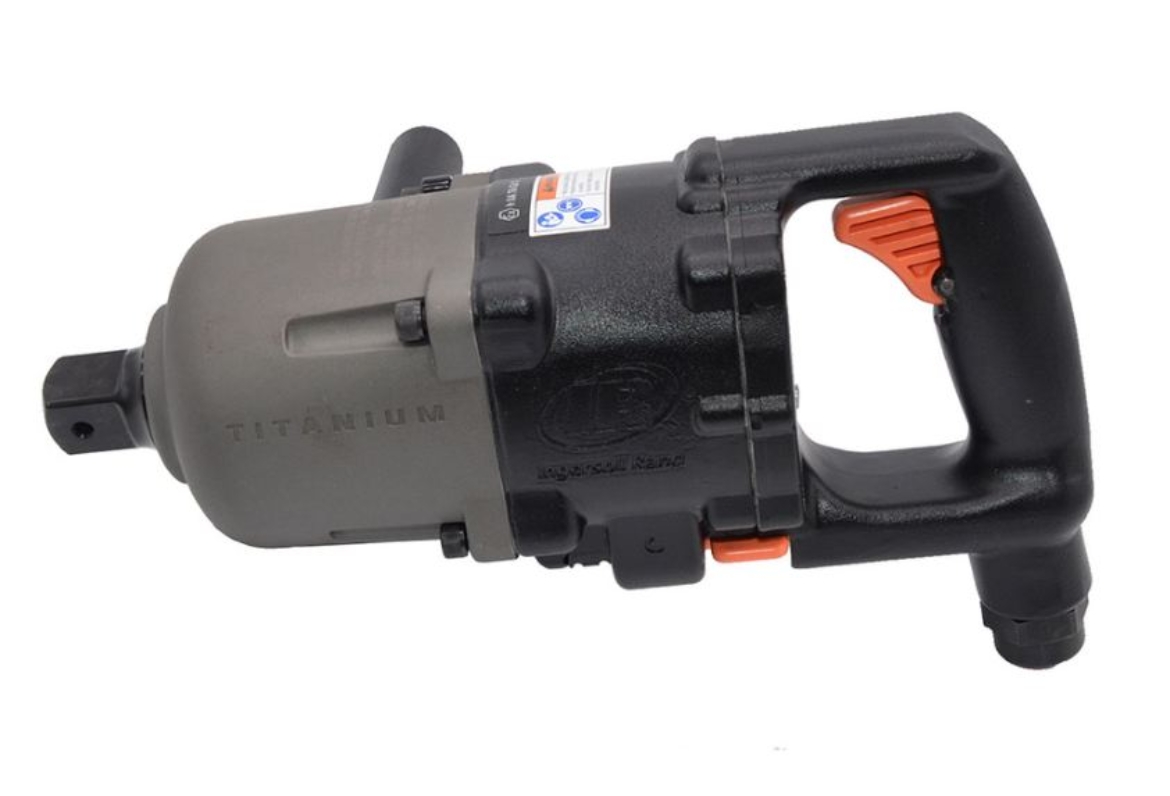

IR 3940B2TIEX
1" Air Impact Wrench, ATEX/Hazardous Duty, 2750 ft-lb Torque, Titanium Hammercase, D-Handle Inside Trigger
Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, with titanium hammer case, bronze end plates, and a corrosion preventative treatment up to 2750 ft-lbs, the 3900 Series are the premier industrial grade impact wrench in the industry. ATEX Marking ATEX 2014/34/EU Ex h IIA T6 Gb X and ISO 80079-36 Certified.
Features And Benefits
- Environmental, Health and Safety: ISO 80079-36 and ATEX 2014/34/EU, Ex h IIA T6 Gb X Certified to meet ATEX Zone 1 or Zone 2 requirements.
- Power: High torque output of 2750 ft-lbs and 800 blows per minute. The reverse bias motor helps remove the most stubborn bolts and the twin hammer mechanism ensures consistent power and balance.
- Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
- Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
- Reverse bias motor to help remove the most stubborn bolts.
- Balance: Twin hammer mechanism ensure consistent power and balance.
- Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
- Integral muffler
Product Application and Uses: Hazardous Zones, Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 64
Average Air Consumption (l/min): 1812
Blows per Min: 800
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Atex/Hazardous Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 103.4 / 114.4
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 100.6 / 111.6
Max Bolt Diameter (in): 1-3/8
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2750
Max Torque (in-lb): 33004
Max Torque (nm): 3729
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 117.9
Product Length (in): 13.5
Product Weight (lb): 21.2
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 500-1800
Recommended Forward Torque Range (in-lb): 6001-21596
Recommended Forward Torque Range (nm): 678-2440
Retainer Type: Thru-hole
Special Features: ATEX Rated, Titanium hammercase
Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 13.1
Vibration Uncertainy K* (m/s2): 1.6
Warranty: 1-year
