Torque Management

IR QCD11-FM

IR QCXD11-FM

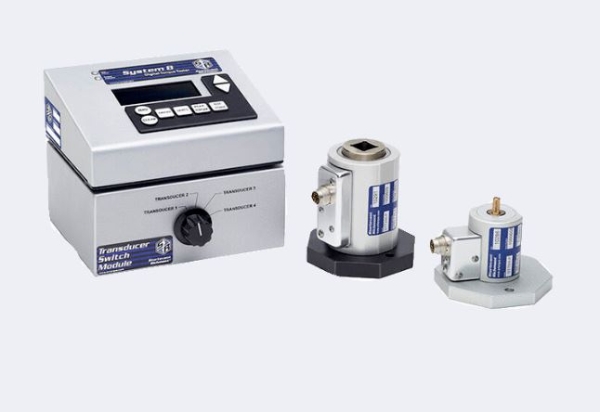

STR 10600

Torque Testers: System 8 Digital Torque Tester

Product Description

IR MTC-SW-OPT4-NA

AIM ATC-100

STR 10599

Calibration and Certification Software: Torque Tool Manager 4.0

Product Description

• Calibration and certification software directly engineered to work with Torq-Tronics 2 and System 8
• Backward compatible so it also works with Torq-Tronics, System 4/5, and System 6
• Fulfills your TS 16949 and ISO 17025 requirements
• Gives you a robust database about your torque tools and it also allows you to print Calibration Certificates
• Track past and future calibration dates
• Keeps records for each tool, including calibration date, serial number, tester and transducer serial numbers, and operator identification
• Tracks "As Found" and "As Left" test results
• NIST traceability numbers and all other data requirements for ISO and QS compliance are covered
• Error-proofs calibration procedures and virtually eliminates retesting due to operator error
• Downloads the proper test protocol to your SR tester and sets up the tester for the tool
• Only accepts results that are in line with the test protocol. Errors resulting from failure to follow the programmed test procedure are automatically rejected
• Has a send request radio button - 30 day free trial available by request

IR QXX2A52T0594PS12

IR QCD21-FM

IR QCXM11-FM

IR QXX5A72T1620PS16

IR QXX5A52T0880PS12

IR IQCTA

IR QCD21

IR QXX5A45T0180PS12

STR 10009

Torque Transducers: TT and STT Series

Product Description

• Traditional SR hex flange style
• Can be mounted to ML 250 and ML 600 Mechanical Loaders
• Can be Mounted to Quad Plate for multiple mounting on ML 250
• Detachable cable (Part No: 10293) is required for all transducers
• TT25IO, TT1000 and TT2000 include detachable cable (Part No: 10293)
• Larger sizes (500 ft. lbs. and above) can be mounted on UMB L-bracket
• Smaller sizes (up to 400 in. oz. capacity) can be mounted to SSMB, STMB, or UMB brackets

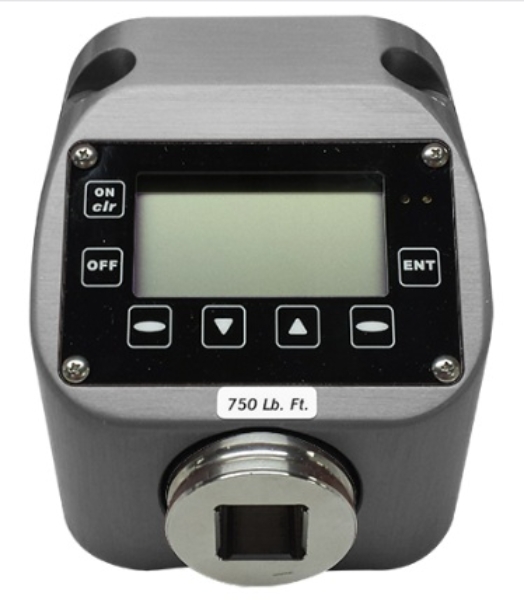

AIM ATC-500

IR QCD11-F

IR QCXD11

IR QXX2A52T0396PS12

STR 10692

Torque Testers: Torq-Tronics 2 Digital Torque Testers, in-lb

Product Description

• Accuracy of +/- .5% of Indicated Value in clockwise and counterclockwise directions from 10% to 100% of rated capacity
• Meets or exceeds requirements of ASME B107.300-2010
• Tests in both clockwise and counterclockwise directions
• Four modes of operation providing excellent versatility: Track, Peak, Initial Peak, and Power Tool
• Units of measure include English, Standard International, and metric
• Units of 300 inch-pound (34 Nm) capacity and below are optimized for bench mounting; larger units may be mounted vertically or horizontally, providing better safety and efficiency
• Simple to operate, memory stores up to 999 records that can be downloaded to Hyper-Terminal or terminal type program to create testing reports and data storage
• Four-line vacuum fluorescent display (VFD) is easy to read.- Red/Green LED indicates whether a measurement is within the target torque value
• Includes FREE calibration certificate from our ISO/IEC 17025 Accredited Calibration Laboratory
• Includes 110-220 VAC to 6 VDC screw-on power supply for security during power tool testing
• Runs on four AA NiMH rechargeable batteries
• Batteries are sold separately
• Industrial assembly tools use rechargeable batteries like thisA quick charge unit for batteries is available
• Includes a free blow-molded plastic box for storage and transit
• Power Tool mode has ten filters and will accurately test all clutch types and pulse tools
• An anti-Static strap included with your TorqTronics 2 or System 8 is there to ensure limited electronic interference
• One end of the strap is screwed into the power outlet where your test instrument is plugged in
• Other end of the strap attaches to the base of your test instrument
• Anti-static strap is an integral part of your calibration instrument operation and is required for operation
• 10695, 10696: Comes with .375" or 3/8 inch adapter at no additional charge - Part number 870777
• 10697, 10698: Comes with .5" or 1/2 inch adapter at no additional charge - Part number 870779

AIM ATC-10

AIM SPC-2PGM

CL 520003

CL CST6838

IR QC-SSD-32-K
