Piston
DURA-FLO PUMP, 3400/430
GG P15LSB
GG P15LSB
DURA-FLO PUMP, 3400/430
Dura-Flo NXT 2-Ball Piston Pump, 15:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 Tuffstack PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
$16,830.00
Pump Displ, Recip
GG 224341
GG 224341
PUMP, DISPL, RECIP
Graco 224341 Severe-Duty, UHMWPE/PTFE Packed Stainless Steel Displacement Pump
- Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish
$3,820.00
DURA-FLO 1800 PUMP, XL, 47:1, (18 CM CSTL)
GG 24Y211
GG 24Y211
DURA-FLO 1800 PUMP, XL, 47:1, (18 CM CSTL)
Graco 24Y211 47:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, Severe Duty, Long Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer- XL 1000 Air Motor
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 430cc Dura-Flo Lower
Severe Duty coatings on rods and cylinder Extends production time
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
Improves structural integrity
- Air Inlet Size (in): 1
- Air Inlet Size (mm): 25.4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 6.9
- Maximum Flow Rate (L/min): 26.12
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 310
- Maximum Working Pressure (kPa): 31000
- Maximum Working Pressure (MPa): 31
- Maximum Working Pressure (psi): 4500
- Portable: Non-Portable
- Power Type: Pneumatic
- Pump Ratio: 47:1
$23,180.00
Pump, Displacement, .552/356.26
GG 245971
GG 245971
Pump, Displacement, .552/356.26
Call for pricing
DURA-FLO XL PUMP, 47:1, (18 CM CSTL)
GG 24Y212
GG 24Y212
DURA-FLO XL PUMP, 47:1, (18 CM CSTL)
Graco 24Y212 47:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, Severe Duty, Right Hand Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer- XL 1000 Air Motor
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 430cc Dura-Flo Lower
Severe Duty coatings on rods and cylinder Extends production time
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
Improves structural integrity
- Model: Dura-Flo
- Series: XL 1800
- Air Inlet Size (in): 1
- Air Inlet Size (mm): 25.4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 6.9
- Maximum Flow Rate (L/min): 26.12
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 310
- Maximum Working Pressure (kPa): 31000
- Maximum Working Pressure (MPa): 31
- Maximum Working Pressure (psi): 4500
- Portable: Non-Portable
- Power Type: Pneumatic
- Pump Ratio: 47:1
$22,030.00
T3 PUMP, CS
GG 24Z834
GG 24Z834
T3 PUMP, CS
T3 Supply Pump (Carbon Steel): 3:1 Fluid to Air Ratio Transfer Pumps are required to move A and B materials to the Reactor Spray Systems. The T3 Transfer Pump combines Graco’s proven Merkur air-motor and popular T2 stainless steel lower. The T3 is a 3:1 ratio pump – using less air pressure to provide the same fluid pressure required. Easier to maneuver - The overall height of the T3 is 3.7 inches (9.4 cm) shorter above the drum than the T2, making it easier to remove from the drum inside of a spray rig. More quiet – Studies show the T3 Transfer Pump is about 3x more quiet than the T2 Transfer Pump. Less maintenance - the Merkur air-motor is based on air pilot valve technology. The air-motor switchingis purely pneumatic. This differs from T1 and T2 Transfer Pumps, which use a mechanicalreversing mechanism in the air-motor
$1,695.00
MONARK PUMP, 5-1
GG 218956
GG 218956
MONARK PUMP, 5-1
Monark 5:1 Pneumatic 2-Ball Piston Pump, Carbon Steel Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes. Drum and stubby length models available for mounting and application flexibility Positive displacement, 2-ball piston design provides uniform and easily controlled delivery Stainless steel or carbon steel models available to handle various fluids Fluid return stanchion for circulation back to the pump Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids
$4,210.00
CHECK-MATE 800 PUMP, SHOVEL, 8CM HOTMELT, 55GL
GG 237795
GG 237795
CHECK-MATE 800 PUMP, SHOVEL, 8CM HOTMELT, 55GL
Graco 237795 55 gal (200 liter) Hot Melt Pump with 8 cm Shovel
Application: For use with hot-melt applications
- Model: Check-Mate
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Extended Rod Height (in): 31.25
- Fluid Outlet Size (in): 1
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Maximum Flow Rate (GPM): 3
- Maximum Operating Temperature (°F): 400
- Maximum Working Pressure (psi): 5850
$11,170.00
PRESIDENT PUMP, 15:1
GG 217580
GG 217580
PRESIDENT PUMP, 15:1
Graco 217580 President 15:1 Pneumatic 2-Ball Piston Pump, CS, Stubby Length
2-ball pneumatic piston pumps for a wide range of applications.
- Reliable President air motor designed for low maintenance operation and long life
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials
- Model: President
- Series: 2-Ball
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Supply
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stubby Length
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 8.27
- Maximum Air Inlet Pressure (kPa): 827
- Maximum Air Inlet Pressure (psi): 120
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 1.8
- Maximum Flow Rate (L/min): 6.81
- Maximum Operating Temperature (°C): 82
- Maximum Operating Temperature (°F): 180
- Maximum Working Pressure (bar): 28
- Maximum Working Pressure (kPa): 2800
- Maximum Working Pressure (MPa): 2.8
- Maximum Working Pressure (psi): 400
- Portable: Non-Portable
- Pump Ratio: 15:1
$7,090.00
PRESIDENT PUMP, 10:1
GG 224342
GG 224342
PRESIDENT PUMP, 10:1
President 10:1 Pneumatic 2-Ball Piston Pump, SST, Stubby 2-ball pneumatic piston pumps for a wide range of applications. Reliable President air motor designed for low maintenance operation and long life Positive displacement, 2-ball piston design provides uniform and easily controlled delivery Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials
$6,380.00
MERKUR SPRAYER, ES, AA, 15:1, SST, STAND
GG 24F159
GG 24F159
MERKUR SPRAYER, ES, AA, 15:1, SST, STAND
Graco 24F159 15:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 15 gun, suction hose, and stainless steel
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
- Quick flush system requires less than 1 minute to flush
- 45% less material to fill the system than the leading competitors
- Delivers a superior, consistent spray finish
- Easily set and monitor air control, plus an integrated carrying handle for transport
- Air motor provides consistent finishes with smooth, rapid changeover
- Suction hose and strainer leaves less material in the supply container
- Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
- Model: Merkur
- Series: ES
- Convertible: Non-Convertible
- Fluid Outlet Size (cm): 0.635
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Size (mm): 6.35
- Fluid Outlet Thread Type: NPSM
- Gun Included: 1
- Gun Model: G15
- Gun Technology: Air-Assisted
- Gun Type: Air-Assisted
- Hose Inlet Diameter (cm): 0.3175
- Hose Inlet Diameter (in): 0.125
- Hose Inlet Diameter (mm): 3
- Includes: G15 Gun, Suction Hose, Stand Mount
- Maximum Flow Rate (GPM): 0.4
- Maximum Hose Length (ft): 25
- Maximum Hose Length (m): 7.6
- Maximum Sound Pressure Level (dB(A)): 76.5
- Maximum Tip Size (cm): 0.0483
- Maximum Tip Size (in): 0.019
- Maximum Tip Size (mm): 0.4826
- Maximum Working Pressure (bar): 103
- Maximum Working Pressure (kPa): 10300
- Maximum Working Pressure (MPa): 10.3
- Maximum Working Pressure (psi): 1500
- Motor Type: Pneumatic
- Mount Type: Stand Mount
- Number of Guns: 1
- Power Source: Air
- Pressure Type: High Pressure
- Product Type: Spray Package
- Pump Ratio: 15:1
- Pump Sleeve Material: Stainless Steel
- Pump Type: Pneumatic Piston Pump
$3,910.00
PUMP, DISPL, RECIP.
GG 224344
GG 224344
PUMP, DISPL, RECIP.
Graco 224344 Viscount I Displacement Pump
$4,340.00
MERKUR SPRAYER, ES, AL, 30, 1, CS, STAND
GG 24F155
GG 24F155
MERKUR SPRAYER, ES, AL, 30, 1, CS, STAND
Graco 24F155 30:1 Merkur ES Airless Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 50 Airless gun, suction hose, and plated steel
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
- Quick flush system requires less than 1 minute to flush
- 45% less material to fill the system than the leading competitors
- Delivers a superior, consistent spray finish
- Easily set and monitor air control, plus an integrated carrying handle for transport
- Air motor provides consistent finishes with smooth, rapid changeover
- Suction hose and strainer leaves less material in the supply container
- Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
- Model: Merkur
- Series: ES
- Convertible: Non-Convertible
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Size (mm): 6.35
- Fluid Outlet Thread Type: NPSM
- Gun Included: 1
- Gun Model: PerformAA 50 Airless
- Gun Technology: Airless
- Gun Type: Airless
- Hose Inlet Diameter (cm): 0.3175
- Hose Inlet Diameter (in): 1/8
- Hose Inlet Diameter (mm): 3.175
- Includes: PerformAA 50 Airless Gun, Suction Hose, Stand Mount
- Maximum Flow Rate (GPM): 0.40
- Maximum Flow Rate (L/min): 1.5
- Maximum Hose Length (ft): 25
- Maximum Hose Length (m): 7.5
- Maximum Sound Pressure Level (dB(A)): 77.9
- Maximum Tip Size (in): 0.019
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kg/cm²): 210.9
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (MPa): 20.7
- Maximum Working Pressure (psi): 3000
- Motor Type: Pneumatic
- Mount Type: Stand Mount
- Number of Guns: 1
- Power Source: Air
- Pressure Type: High Pressure
- Product Type: Spray Package
- Pump Ratio: 30:1
- Pump Sleeve Material: Carbon Steel
- Pump Type: Pneumatic Piston Pump
$4,160.00
Pump

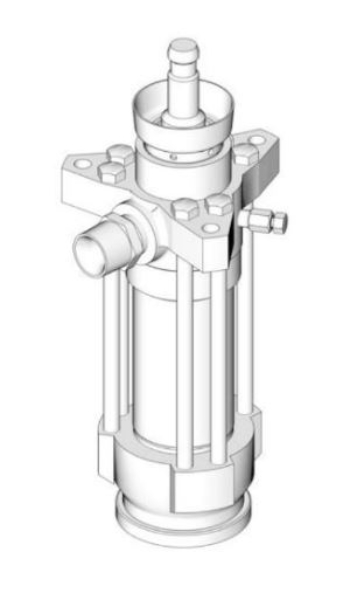

GG 222801
GG 222801
PUMP, RECIP, DISPL
Graco 222801 Dura-Flo 2400 (580 cc) Lower, Carbon Steel, 3 PTFE/2 Leather Packings
$8,180.00
VISCOUNT II PUMP, 20:1
GG 222834
GG 222834
VISCOUNT II PUMP, 20:1
Viscount Hydraulic Motor with Dura-Flo 2400 (580 cc) Lower, 3 PTFE/2 Leather Packings The rugged pump lower construction with Severe Duty rods and cylinders reduces downtime and extends the interval between repairs. The simple construction makes service and repair fast and easy. The efficient hydraulic powered piston makes these pumps the ideal choice for factory and outdoor mobile use, even at below freezing temperatures. Clean, quiet operation with no airborne contamination Up to three times more energy efficient than comparable compressed air systems Positive displacement, 2-ball piston design provides uniform and easily controlled delivery Reduce routine maintenance and cut repairs time in half of comparable pump lowers Eliminate downtime without ice build-up
$20,100.00
PRESIDENT PUMP, 10:1
GG 224346
GG 224346
PRESIDENT PUMP, 10:1
Graco 224346 President 10:1 Pneumatic 2-Ball Piston Pump, SST, Stubby, UHMWPE/Neoprene Packings
2-ball pneumatic piston pumps for a wide range of applications.
- Reliable President air motor designed for low maintenance operation and long life
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials
- Model: President
- Series: 2-Ball
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Supply
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stubby Length
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 12.41
- Maximum Air Inlet Pressure (kPa): 1241
- Maximum Air Inlet Pressure (psi): 180
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 3
- Maximum Flow Rate (L/min): 11.36
- Maximum Operating Temperature (°C): 82
- Maximum Operating Temperature (°F): 180
- Maximum Working Pressure (bar): 25
- Maximum Working Pressure (kPa): 2500
- Maximum Working Pressure (MPa): 2.5
- Maximum Working Pressure (psi): 360
- Portable: Non-Portable
- Pump Ratio: 10:1
$6,410.00
10:1 President Hydra-Clean Pump
GG 239326
GG 239326
PRESIDENT PUMP, 10:1
Graco 239326 10:1 Ratio President Hydra-Clean Pump
Reliable, low maintenance air motor
Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
Carbon Steel Model
Drum Length
- Model: President
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
$5,390.00
KIT, COMPLETE, 2:1(AIR/FLUID)
GG 246081
GG 246081
KIT, COMPLETE, 2:1(AIR/FLUID)
Graco 246081 T2 Complete Package: Includes 2 Pumps (Stainless Steel), 2 Supply Hoses, Air Supply Kit and Desicant Dryer Kit
Graco&prime, s family of transfer pumps maintains performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.
Application: Ideal for moving A and B materials to Reactor spray machines.- Provide consistent feed pressures and flow rates for dependable results
- Lower pressure drops with higher viscosity materials at any ambient temperature
- Designed and manufactured by the worldwide leader in pump technology
- Quick-release bung adapter for easy drum removal without interference from hose connections
- Stainless steel wetted parts for corrosion-resistance
- PTFE seals for improved performance and less maintenance
- Model: T2
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Compatible Material: Polyurethane Materials
- Cycles Per Gallon: 15.9
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- For Use With: HFR Metering System
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 12.5
- Maximum Air Inlet Pressure (kPa): 1250
- Maximum Air Inlet Pressure (MPa): 1.2
- Maximum Air Inlet Pressure (psi): 180
- Maximum Flow Rate (GPM): 5
- Maximum Flow Rate (L/min): 19
- Maximum Operating Temperature (°C): 88
- Maximum Operating Temperature (°F): 190
- Maximum Working Pressure (bar): 28
- Maximum Working Pressure (kPa): 2800
- Maximum Working Pressure (MPa): 2.8
- Maximum Working Pressure (psi): 405
- Package Options: Air Supply & Supply Hose
- Pump Ratio: 2.25:1
$6,180.00
Pump, Lower, Dura-Flo 1200 (290 cc), SST, Severe-Duty Rod and Cylinder
GG 237514
GG 237514
Pump, Lower, Dura-Flo 1200 (290 cc), SST, Severe-Duty Rod and Cylinder
$13,950.00
PUMP, FTB100, 1:1, 200L DRUM, METL
GG 279037
GG 279037
PUMP, FTB100, 1:1, 200L DRUM, METL
Graco 279037 Fast-Ball 100 55 Gallon Drum, Universal Pump, Steel Tube
Redesigned for enhanced quality, durability and reliability, the Fast-Ball 100 air-operated piston pump is easy to install, easy to operate, and simple design allows for efficient serviceability when necessary to minimize downtime and keep your operations running.
Application:
Ideal for low-volume transfer of petroleum and synthetic-based oils with a continuous duty flow rate of up to 5 gpm (19lpm).
- In-line design with fewer parts for less pump wear
- Double-acting pump provides reliable fluid flow
- Differential air motor ensures smooth pumping
- Model: Fast-Ball
- Series: 100
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: ATF, Gear Lube, Oil
- Cycles Per Gallon: 31
- Fluid Inlet Size (in): 1
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 0.75
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Maximum Air Inlet Pressure (psi): 150
- Maximum Continuous Cycle Rate (CPM): 170
- Maximum Working Pressure (psi): 150
- Power Type: Pneumatic
- Pump Ratio: 1:1
$875.00
Dura-Flo 2400 Lower, SS, 3 UHMWPE 2 PTFE Packings
GG 222803
GG 222803
PUMP,RECIP,DISPL
Graco 222803 Dura-Flo 2400 (580 cc) Lower, Stainless Steel, 3 UHMWPE/2 PTFE Packings
$13,710.00
Payment options
