Other Pumps
MONARK PUMP, 5:1
GG 224343
GG 224343
MONARK PUMP, 5:1
Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, UHMWPE/PTFE Packings Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes. Drum and stubby length models available for mounting and application flexibility Positive displacement, 2-ball piston design provides uniform and easily controlled delivery Stainless steel or carbon steel models available to handle various fluids Fluid return stanchion for circulation back to the pump Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids
$4,550.00
CHECK-MATE SUPPLY UNIT, 68:1, 3.0 RAM, 200L
GG CM2L59
GG CM2L59
CHECK-MATE SUPPLY UNIT, 68:1, 3.0 RAM, 200L
68:1 Ratio 200 L 3.0 RAM Supply UnitGraco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.
Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials. For large drums up to 200 liter (55 gal) Graco D200 - For high-volume in-plant applications Industry-first controls give you immediate and important information at the touch of a button Quick placement of drum Platen wipers can be replaced in seconds Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram High-quality, durable parts reduce maintenance time, maximize uptime
$24,560.00
MONARK PUMP, 5:1
GG 224350
GG 224350
MONARK PUMP, 5:1
Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, Drum Length, UHMWPE/PTFE Packings Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes. Drum and stubby length models available for mounting and application flexibility Positive displacement, 2-ball piston design provides uniform and easily controlled delivery Stainless steel or carbon steel models available to handle various fluids Fluid return stanchion for circulation back to the pump Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids
$5,070.00
15:1 Merkur Bellows Pump, Assembly, 150Cc, Std
GG B15FA0
GG B15FA0
15:1 Merkur Bellows Pump, Assembly, 150Cc, Std
$8,870.00
DURA-FLO PUMP, 6500/580
GG P23LSA
GG P23LSA
DURA-FLO PUMP, 6500/580
Graco P23LSA Dura-Flo NXT 2-Ball Piston Pump, 23:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, Low Noise Exhaust Motor, 3 UHMWPE/2 PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 9.2
- Maximum Flow Rate (L/min): 34.83
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 164
- Maximum Working Pressure (kPa): 16400
- Maximum Working Pressure (MPa): 16.4
- Maximum Working Pressure (psi): 2380
- Motor Type: Low Noise NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 23:1
$17,780.00
MODU-FLO PUMP, ASSY AL-25
GG 563306
GG 563306
MODU-FLO PUMP, ASSY AL-25
Modu-Flo® AL-25 Pneumatic Pump without ReservoirMix and match pumps, reservoir and manifolds in any configuration to meet any application. Replace the pump or reservoir without disconnecting lubrication lines.
Easy to standardize on components and reduce inventory Adjustable pump output for fast, convenient customizing Lubriquip part number 521-000-021
$925.00
ENDURA-FLO PUMP, 4:1 AODD, 150, BSP, STD
GG 24W347
GG 24W347
ENDURA-FLO PUMP, 4:1 AODD, 150, BSP, STD
Endura-Flo 4D150, 4:1 Air Operated Diaphragm Pump, 150cc, BSPP The Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money. Endure-Flo diaphragms last longer against extreme operating conditions Easy access to critical components for fast online maintenance Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money Minimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systems Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
$6,730.00
PRESIDENT PUMP, 10:1
GG 224348
GG 224348
PRESIDENT PUMP, 10:1
Graco 224348 President 10:1 Pneumatic 2-Ball Piston Pump, SST, Drum, UHMWPE/PTFE Packings
2-ball pneumatic piston pumps for a wide range of applications.
- Reliable President air motor designed for low maintenance operation and long life
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials
- Model: President
- Series: 2-Ball
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Supply
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Drum Length
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 12.41
- Maximum Air Inlet Pressure (kPa): 1241
- Maximum Air Inlet Pressure (psi): 180
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 3
- Maximum Flow Rate (L/min): 11.36
- Maximum Operating Temperature (°C): 82
- Maximum Operating Temperature (°F): 180
- Maximum Working Pressure (bar): 25
- Maximum Working Pressure (kPa): 2500
- Maximum Working Pressure (MPa): 2.5
- Maximum Working Pressure (psi): 360
- Portable: Non-Portable
- Pump Ratio: 10:1
$6,430.00
PUMP, PISTON HAND, FUEL
GG 260407
GG 260407
PUMP, PISTON HAND, FUEL
Graco 260407 Piston Hand Pump for Petroleum Products
- Lightweight die cast aluminum construction
- Corrosion resistant design
- High quality piston seals are designed for long life and smooth operation.
- Adjustable bung adapter allows pump to be rotated
- One quart per stroke gives fast, efficient fluid transfer
- Locking mechanism prevents unauthorized dispensing
- Application: Industrial
- Compatible Material: Oil, Grease
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 25.4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 0.75
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Includes: Hose, Die Cast Aluminum Nozzle, Inlet Suction Tube, Bung Adapter
Call for pricing
CHECK-MATE SUPPLY UNIT, 63:1, 3.0 RAM, 200L
GG CM155A
GG CM155A
CHECK-MATE SUPPLY UNIT, 63:1, 3.0 RAM, 200L
Graco CM155A 63:1 Ratio 200 L 3.0 RAM Supply Unit
Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.
Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.- For large drums up to 200 liter (55 gal)
- Graco D200 - For high-volume in-plant applications
- Industry-first controls give you immediate and important information at the touch of a button
- Platen wipers can be replaced in seconds
- Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
- High-quality, durable parts reduce maintenance time, maximize uptime
- Model: Check-Mate
- Series: D200
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Container Type: Drum
- Material Container Volume (gal): 52.8
- Material Container Volume (l): 200
- Maximum Air Inlet Pressure (bar): 10.34
- Maximum Air Inlet Pressure (kg/cm²): 10.55
- Maximum Air Inlet Pressure (kPa): 1034
- Maximum Air Inlet Pressure (psi): 150
- Maximum Flow Rate (GPM): 1.6
- Maximum Flow Rate (L/min): 6.1
- Maximum Fluid Pressure (bar): 434.4
- Maximum Fluid Pressure (kPa): 43440
- Maximum Fluid Pressure (psi): 6300
- Maximum Fluid Pressure (bar): 434.4
- Maximum Fluid Pressure (kPa): 43440
- Maximum Fluid Pressure (psi): 6300
- Maximum Height (cm): 259.9
- Maximum Height (ft): 8.53
- Maximum Height (in): 102.3
- Maximum Height (m): 2.6
- Maximum Height (mm): 2599
- Maximum Operating Temperature (°C): 49
- Maximum Operating Temperature (°F): 120
- Maximum Working Pressure (bar): 441
- Maximum Working Pressure (kPa): 44100
- Maximum Working Pressure (MPa): 44.1
- Maximum Working Pressure (psi): 6300
- Minimum Height (cm): 164.6
- Minimum Height (ft): 5.4
- Minimum Height (in): 64.8
- Minimum Height (m): 1.65
- Minimum Height (mm): 1646
- Overall Depth (cm): 63.5
- Overall Depth (in): 25
- Overall Depth (mm): 635
- Overall Width (cm): 106.7
- Overall Width (in): 42
- Overall Width (mm): 1067
- Power Type: Pneumatic
- Pump Ratio: 63:1
- Pump Type: Priming Piston
- Ram Material: Carbon Steel
$21,650.00

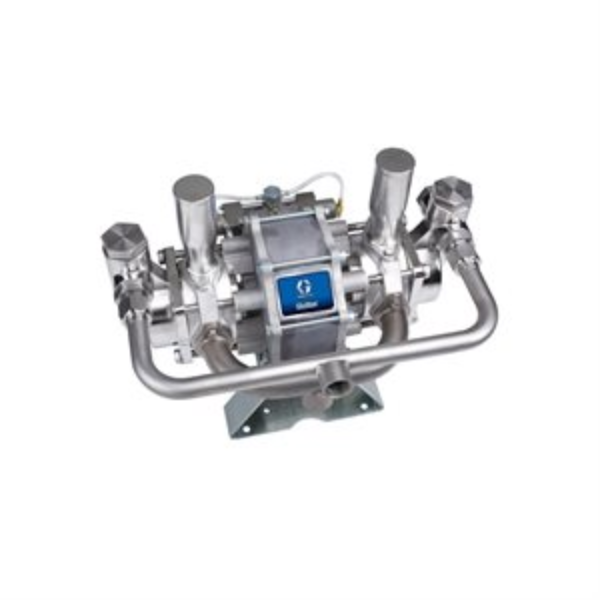

GLUTTON PUMP, (4:1 CS)
GG 220663
GG 220663
GLUTTON PUMP, (4:1 CS)
Glutton 4:1 Bellows Pump, CS, UHMWPE Seals The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1 Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials Designed to handle a broad range of applications, including abrasive materials Reversible outlet manifold simplifies plumbing installations Vertical ball checks design ensures uniform ball wear and long life
$8,360.00
CHECK-MATE SUPPLY UNIT, 63:1, 3.0 RAM, 200L
GG CM1559
GG CM1559
CHECK-MATE SUPPLY UNIT, 63:1, 3.0 RAM, 200L
63:1 Ratio 200 L 3.0 RAM Supply UnitGraco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.
Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials. For large drums up to 200 liter (55 gal) Graco D200 - For high-volume in-plant applications Industry-first controls give you immediate and important information at the touch of a button Quick placement of drum Platen wipers can be replaced in seconds Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram High-quality, durable parts reduce maintenance time, maximize uptime
$22,120.00
ENDURA-FLO PUMP, 3:1 AODD, 150, NPT, STD
GG 25M740
GG 25M740
ENDURA-FLO PUMP, 3:1 AODD, 150, NPT, STD
Graco 25M740 Endura-Flo 3D150, 3:1 Air Operated Diaphragm Pump, 150cc, NPT
The Endura-Flo 3D offers extended durability. The isolated air section of the 3:1 Endura-Flo pump prevents fluids from entering the air section and muffler. Ideal for fluid transfer and supply, small paint circulation and piggable paint systems requiring a lower pressure range and seeking extended diaphragm life.
- Endure-Flo diaphragms last longer against extreme operating conditions
- Easy access to critical components for fast online maintenance
- Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
- Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
- Model: Endura-Flo
- Series: 3D150
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Circulation
- Compatible Material: High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set
- Connection Type: Threaded
- Fluid Inlet Size (cm): 1.27
- Fluid Inlet Size (in): 1/2
- Fluid Inlet Size (mm): 12.7
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.27
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Type: NPT
- Includes: NPT Fittings
- Material: Stainless Steel
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 20
- Maximum Flow Rate (GPM): 2.4
- Maximum Flow Rate (L/min): 9.1
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (kPa): 2100
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (kPa): 2100
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 122
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Overall Height (in): 12.23
- Power Source: Air
- Pump Ratio: 3:1
$6,730.00
ENDURA-FLO PUMP, 3:1 AODD, 350, NPT, ADV
GG 25M761
GG 25M761
ENDURA-FLO PUMP, 3:1 AODD, 350, NPT, ADV
Endura-Flo 3D350, 3:1 Air Operated Diaphragm Pump, 350cc, NPT, DataTrak The Endura-Flo 3D offers extended durability. The isolated air section of the 3:1 Endura-Flo pump prevents fluids from entering the air section and muffler. Ideal for fluid transfer and supply, small paint circulation and piggable paint systems requiring a lower pressure range and seeking extended diaphragm life. Endure-Flo diaphragms last longer against extreme operating conditions Easy access to critical components for fast online maintenance Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money Minimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systems Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges DataTrek option prevents runaway and tracks material usage
$11,860.00
ENDURA-FLO PUMP, 4:1 AODD, 150, NPT, STD
GG 24W346
GG 24W346
ENDURA-FLO PUMP, 4:1 AODD, 150, NPT, STD
Endura-Flo 4D150, 4:1 Air Operated Diaphragm Pump, 150cc, NPT The Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money. Endure-Flo diaphragms last longer against extreme operating conditions Easy access to critical components for fast online maintenance Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money Minimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systems Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
$6,730.00
PUMP, EXTRUDER, SST, 190
GG 235870
GG 235870
PUMP, EXTRUDER, SST, 190
Graco 235870 DynaMite Pump Assembly
The Graco DynaMite Pump utilizes the NXT air motor to provide the power necessary to move viscous materials.
- Application: Bonding, Sealing, Gasketing, Thermal Management
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Operating Temperature (°C): 60
- Maximum Operating Temperature (°F): 140
- Maximum Working Pressure (bar): 83
- Maximum Working Pressure (kPa): 8300
- Maximum Working Pressure (MPa): 8.3
- Maximum Working Pressure (psi): 1200
- Overall Depth (cm): 20.96
- Overall Depth (in): 8.25
- Overall Depth (mm): 209.6
- Overall Width (cm): 43.2128
- Overall Width (in): 17.0129
- Overall Width (mm): 431.8
- Power Type: Pneumatic
- Pump Ratio: 12:1
$4,060.00
CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, S20, 20L
GG CM7A3B
GG CM7A3B
CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, S20, 20L
Graco CM7A3B 20:1 Ratio 20 L S20 Supply Unit
Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.
Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.- 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
- Graco S20 - For low-volume applications of medium to high-viscosity materials
- Industry-first controls give you immediate and important information at the touch of a button
- Platen wipers can be replaced in seconds
- Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
- High-quality, durable parts reduce maintenance time, maximize uptime
- Model: Check-Mate
- Series: S20
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Container Type: Pail
- Control Panel Material: N/A
- Material Container Volume (gal): 5.3
- Material Container Volume (l): 20
- Maximum Air Inlet Pressure (bar): 8.62
- Maximum Air Inlet Pressure (kg/cm²): 8.79
- Maximum Air Inlet Pressure (kPa): 862
- Maximum Air Inlet Pressure (psi): 125
- Maximum Flow Rate (GPM): 0.9
- Maximum Flow Rate (L/min): 3.4
- Maximum Fluid Pressure (bar): 137.9
- Maximum Fluid Pressure (kPa): 13790
- Maximum Fluid Pressure (psi): 2000
- Maximum Fluid Pressure (bar): 137.9
- Maximum Fluid Pressure (kPa): 13790
- Maximum Fluid Pressure (psi): 2000
- Maximum Height (cm): 150.6
- Maximum Height (ft): 4.94
- Maximum Height (in): 59.3
- Maximum Height (m): 1.51
- Maximum Height (mm): 1506
- Maximum Operating Temperature (°C): 49
- Maximum Operating Temperature (°F): 120
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa): 13800
- Maximum Working Pressure (MPa): 13.8
- Maximum Working Pressure (psi): 2000
- Minimum Height (cm): 90.9
- Minimum Height (ft): 2.98
- Minimum Height (in): 35.8
- Minimum Height (m): 0.91
- Minimum Height (mm): 909
- Overall Depth (cm): 48.26
- Overall Depth (in): 19
- Overall Depth (mm): 482.6
- Overall Width (cm): 43.18
- Overall Width (in): 17
- Overall Width (mm): 431.8
- Power Type: Pneumatic
- Pump Ratio: 20:1
- Pump Type: Priming Piston
- Ram Material: Carbon Steel
$11,900.00
GLUTTON PUMP, (4:1 SST)
GG 220666
GG 220666
GLUTTON PUMP, (4:1 SST)
Graco 220666 Glutton 4:1 Bellows Pump, SST, UHMWPE Seals
The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1
- Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
- Designed to handle a broad range of applications, including abrasive materials
- Reversible outlet manifold simplifies plumbing installations
- Model: Glutton
- Series: Bellows
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Circulation
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: Sealed
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 5.6
- Maximum Flow Rate (L/min): 21.2
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 28
- Maximum Working Pressure (kPa): 2800
- Maximum Working Pressure (MPa): 2.8
- Maximum Working Pressure (psi): 400
- Portable: Non-Portable
- Pump Ratio: 4:1
$12,280.00
Lsr Pump, 2-Ball Cat, 7:1 To 15:1, U
GG C100-V2
GG C100-V2
Lsr Pump, 2-Ball Cat, 7:1 To 15:1, U
$3,930.00
CHECK-MATE PUMP, 63:1 3400/100 CS SD
GG P63LCS
GG P63LCS
CHECK-MATE PUMP, 63:1 3400/100 CS SD
Graco P63LCS 63:1 - 100cc Check-Mate Pump with NXT 3400 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 3400 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 100cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump
- Material: Carbon Steel
- Maximum Working Pressure (bar): 441
- Maximum Working Pressure (kPa): 44100
- Maximum Working Pressure (MPa): 44.1
- Maximum Working Pressure (psi): 6300
- Power Type: Pneumatic
- Pump Ratio: 63:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler
$12,850.00
Monark Pump, 23:1 (Chrome)
GG 223596
GG 223596
MONARK PUMP,23:1 (CHROME)
Graco 223596 Series B 23:1 Ratio Monark Pump
- Reliable, low maintenance air motor
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids Drum and stubby length models available for mounting and application flexibility
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
$6,070.00
MANUAL PUMP, HAND, ROTARY
GG 226290
GG 226290
MANUAL PUMP, HAND, ROTARY
Graco 226290 Rotary Pump for 16 Gallon (60 Liter) or 55 Gallon (200 Liter) Bulk Lubricants for Petroleum-Based Products - 1 Gallon per 18 Cycles
Rotary hand pump for dispensing bulk fluids.
- Application: Industrial
- Compatible Material: Oil
- Includes: Bung Adapter, Spout Outlet
$393.00
ENDURA-FLO PUMP, 4:1 AODD, 350, TRI, STD
GG 24W351
GG 24W351
ENDURA-FLO PUMP, 4:1 AODD, 350, TRI, STD
Endura-Flo 4D350, 4:1 Air Operated Diaphragm Pump, 350cc, Tri-Clamp The Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money. Endure-Flo diaphragms last longer against extreme operating conditions Easy access to critical components for fast online maintenance Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money Minimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systems Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
$11,390.00
Payment options
