Bellows

GG 17K656

KIT,PUMP,4B,BELLOWS,750 CC

Graco 17K656 Sealed 4-Ball Lower, 750 cc, Stainless Steel, Ultralife Rod & Cylinder, Tri-Clamp Fittings

GG 220667

GLUTTON PUMP, (12:1 SST)

Glutton 12:1 Bellows Pump, SST, UHMWPE SealsThe Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materialsDesigned to handle a broad range of applications, including abrasive materialsReversible outlet manifold simplifies plumbing installationsVertical ball checks design ensures uniform ball wear and long life

GG 17K657

KIT,PUMP,4B,BELLOWS,1000 CC

Graco 17K657 Sealed 4-Ball Lower, 1000 cc, Stainless Steel, Ultralife Rod & Cylinder, Tri-Clamp Fittings

GG 17K658

KIT, PUMP, 4B, BELLOWS, 1500 CC

Sealed 4-Ball Lower, 1500 cc, Stainless Steel, Ultralife Rod & Cylinder, Tri-Clamp Fittings

GG 237009

GLUTTON PUMP, (12:1 CS)

Graco 237009 Glutton 12:1 Bellows Pump, CS, Series A

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

• Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
• Designed to handle a broad range of applications, including abrasive materials
• Reversible outlet manifold simplifies plumbing installations

• Model: Glutton
• Series: Bellows

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Sealed

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 7.57

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Working Pressure (bar): 83
• Maximum Working Pressure (kPa): 8300
• Maximum Working Pressure (MPa): 8.3
• Maximum Working Pressure (psi): 1200

• Portable: Non-Portable

• Pump Ratio: 12:1

BB 192881

Knifed Bellows

GG 237008

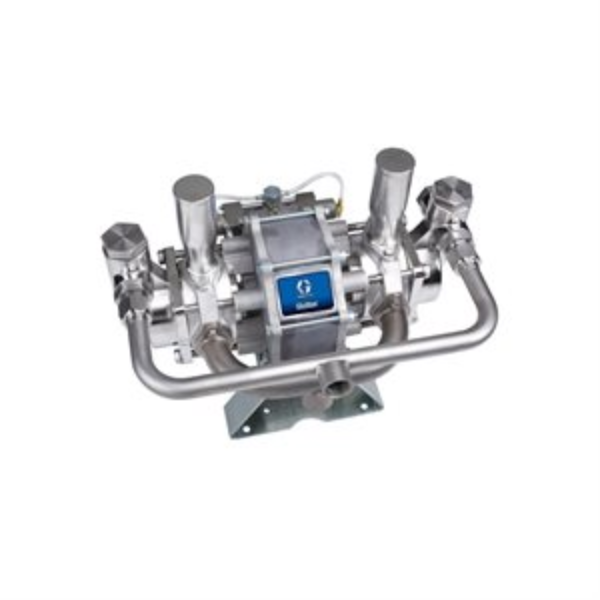

GLUTTON PUMP, (4:1 CS)

Glutton 4:1 Bellows Pump, CS, Series AThe Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materialsDesigned to handle a broad range of applications, including abrasive materialsReversible outlet manifold simplifies plumbing installationsVertical ball checks design ensures uniform ball wear and long life

GG 17K659

KIT, PUMP, 4B, BELLOWS, 2000 CC

Sealed 4-Ball Lower, 2000 cc, Stainless Steel, Ultralife Rod & Cylinder, Tri-Clamp FittingsGraco’s Sealed 4-Ball Lower needs no routine maintenance and prevents unexpected downtime. The sealed fluid section eliminates the need for TSL (throat seal liquid). Designed to keep pumping in the event of a bellows failure, the lower allows you to schedule maintenance.Ultralife coating on lower rods and cylinders means a smoother finish, better wear and longer seal life for most applications.Connection kits contain tie rods and adapters – everything required to upgrade most legacy Graco circulation pumps to the latest technology. Refer to manual 311876 for complete information.

GG 220668

GLUTTON PUMP, (25:1 SST)

Glutton 25:1 Bellows Pump, SST, UHMWPE SealsThe Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materialsDesigned to handle a broad range of applications, including abrasive materialsReversible outlet manifold simplifies plumbing installationsVertical ball checks design ensures uniform ball wear and long life

GG 237011

GLUTTON PUMP, (4:1 SST)

Glutton 4:1 Bellows Pump, SST, Series AThe Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materialsDesigned to handle a broad range of applications, including abrasive materialsReversible outlet manifold simplifies plumbing installationsVertical ball checks design ensures uniform ball wear and long life

GG 237013

GLUTTON PUMP, (25:1 SST)

Glutton 25:1 Bellows Pump, SST, Series AThe Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materialsDesigned to handle a broad range of applications, including abrasive materialsReversible outlet manifold simplifies plumbing installationsVertical ball checks design ensures uniform ball wear and long life
