Scalers and Hammers

U UT9922

Recoilless Scaling Hammer

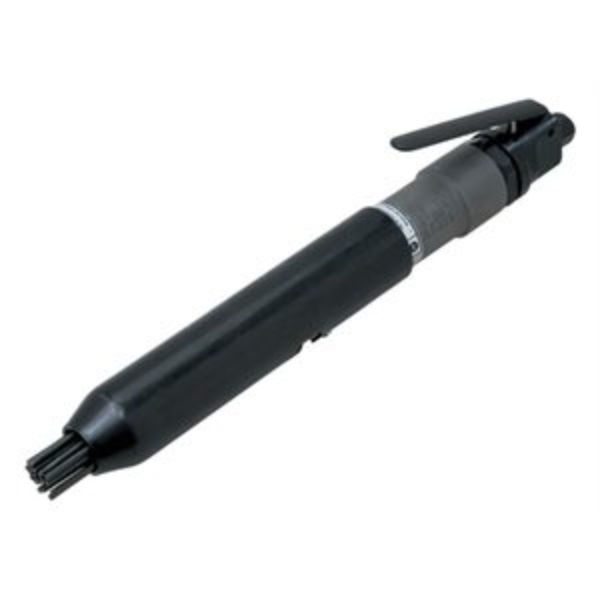

IR 182LNA1

Air Needle Scaler, 4000 BPM, 1-1/16" Stroke

With 4000 blows-per-minute and 1" stroke, the 182 is our most powerful and chisel durable scaler.

Features And Benefits

• Easy Adjustment: The adjustable bayonet-type needle housing lock allows for easy adjustment without special tools.
• Durability: These scalers feature a rubber faced throttle valve to ensure positive sealing of internal components, and they’re durable enough to withstand repeated drops and harsh conditions with ease.
• Comfort: Compact, well balanced and low vibration maximize operators comfort
• Power: The powerful motor featured in the 182 Series makes work easier and more efficient.
• Tested and approved in accordance with MIL-S-23492A (Ships).
• Includes (19) steel precision heat-treated needles for maximum performance. (1/8" diameter, 5" length)

Includes: 19 steel precision heat-treated needles (1/8" diameter, 5" length)
Product Application and Uses: Remove Paint, Rust, Dirt, Weld Slags
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 13
Air Consumption @ Load (l/min): 368
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 4000
Bore Diameter (in): 0.94
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Needle Qty: 19 Needles
Non Sparking: No
Power Source: Air Powered
Product Length (in): 15
Product Width (in): 6.6
Product Height (in): 2.7
Product Weight (lb): 5.8
Shank SIze (in): .5
Shank Type: Ingersoll Rand Shank
Sound Pressure/Power Db(A): 107.2 / 118.2
Stroke Length (in): 1.06
Vibration Level (m/s2): 10.1
Warranty: 1-year

Similar IR

• 182L
• 172L
• 172LNA1

CL CH-30-RD

Heavy-duty pneumatic chipping hammer designed for rugged demolition, scaling, and material removal. Features a hard-hitting ring valve mechanism and forged steel components for maximum durability and performance.

Cleco CH30 Series pneumatic chipping hammer CH-30-RD.

• Bore: 1.125in
• Shank: .680in Round
• Stroke: 2.5in
• Blows Per Minute: 2,200
• Aluminum Housing
• Heavy-duty industrial use

SX PT850P12R

1/2in Pinned Anvil Assy

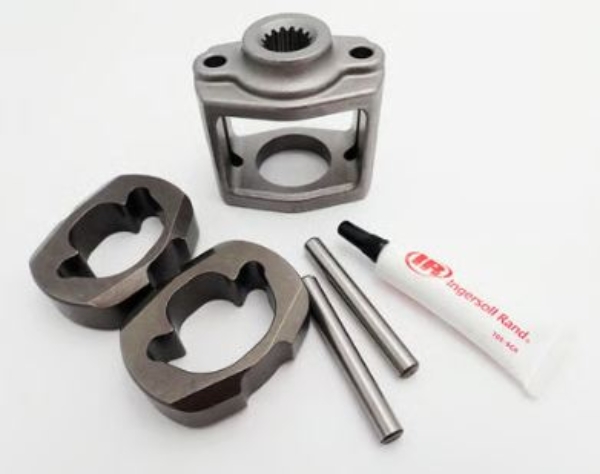

IR 2145-THK2

Hammer Mechanism Replacement Part for Ingersoll Rand 2145 and 2155 Series Impact Wrench

Includes: (2) Hammer, Hammer Frame, (2) Hammer pins
Product Application and Uses: For use with Ingersoll Rand 2145 and 2155 Series Impact Wrench

For Use With

• 2145QIMAX-3
• 2145QIMAX-3-AP
• 2145QIMAX-6
• 2145QIMAX-6-AP
• 2145QIMAX-AP
• 2145QIMAX-SP
• 2155QIMAX

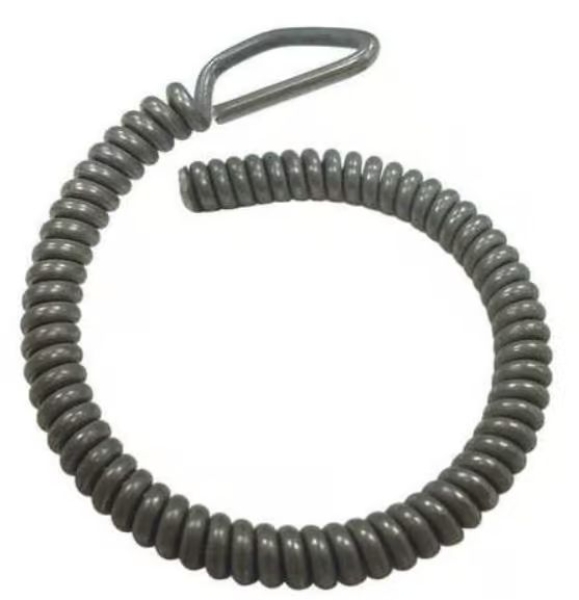

IR HH1-1194

Grooved Lock Spring for Ingersoll Rand K, A, D Series Chipping Hammers

Product Application and Uses: For use with all Ingersoll Rand grooved retainer K, A and D Series Chipping Hammers.
Housing Material: Steel
Shank SIze (in): 0.5
Shank Type: Ingersoll Rand Shank

For Use With

• 1A1SA
• 1A2SA
• 2A1SA
• 2A2SA
• 2DA1SA
• 2DA2SA
• 3A1SA
• 3A2SA
• 3DA1SA
• 3DA2SA
• 4A1SA
• 4A2SA
• 4DA1SA
• 4DA2SA

IR 117

Air Hammer, 2000 BPM, 3-1/2" Stroke

The 117 standard air hammer has a longer piston stroke than other hammers in the series. It is designed for exhaust work, bolt cutting, and front end work.

Features And Benefits

• Reliable: Ingersoll Rand promises tools that last, and this hammer is no different. You can count on it to perform the same way every time. Comes with a 1-year warranty.
• 2,000 Blows Per Minute: This hammer has a built-in power regulator that allows you to completely control the speed and power output of your tool.
• Longer Life: To ensure a long life for your tool, it has a heat-treated piston and an alloyed steel barrel.

Includes: Tool, Retainer, Manuals
Product Application and Uses: Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 15
Air Consumption @ Load (l/min): 396
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 3
Average Air Consumption (l/min): 85
Blows per Min: 2000
Bore Diameter (in): 0.69
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: General Duty
Handle Material: Aluminum
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.9
Product Width (in): 7.4
Product Height (in): 2.68
Product Weight (lb): 4.1
Retainer Type: Spring
Shank SIze (in): .401
Shank Type: Round
Sound Pressure/Power Db(A): 103.5 / 114.5
Standards/Certifications: Ce
Stroke Length (in): 3.5
Vibration Level (m/s2): 9.2
Warranty: 1-year

Similar IR

• 116
• 115

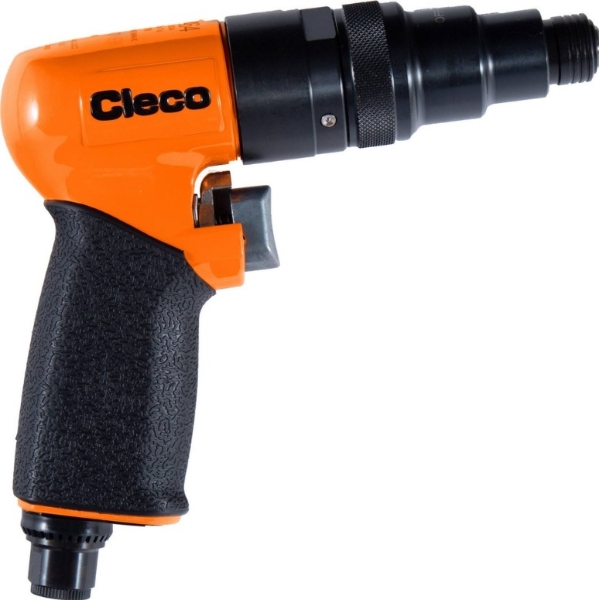

MP MP2466

Pistol Grip Postive Clutch Screwdriver

APT 5214

MODEL 131 BACKFILL TAMPER

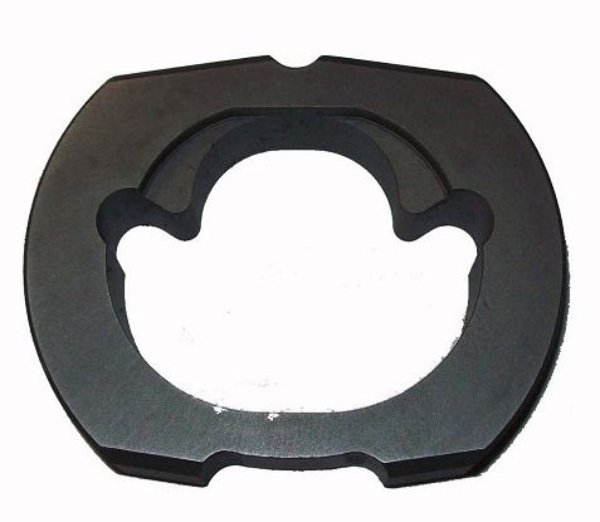

IR 2940-724

HAMMER

SX SSD4P18P

Pistol Grip Driver

IR 121/Q

Super Duty Air Hammer, 3000 BPM, 2-9/32" Stroke

Make fast work of body panel crimping and cutting, bushing driving, shearing and general front end work with this air hammer, a super duty tool that produces up to 3000 blows per minute.

Features And Benefits

• Long Lasting: The 121 super duty air hammer was built with an alloyed steel barrel and heat-treated piston to make sure it lasts as long as you need it to.
• Super Duty: This hammer can produce up to 3,000 blows per minute so you can speed through your tasks with ease.
• Easy to maintain: Includes "easy out" throttle valve assembly.
• Built-in power regulator and trigger control

Includes: Tool, Retainer, Manuals
Product Application and Uses: Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 15
Air Consumption @ Load (l/min): 425
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 3
Average Air Consumption (l/min): 85
Blows per Min: 3000
Bore Diameter (in): 3/4
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Super Duty
Handle Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 7.63
Product Width (in): 8
Product Height (in): 3.1
Product Weight (lb): 3.5
Retainer Type: Spring
Shank SIze (in): .401
Shank Type: Round
Sound Pressure/Power Db(A): 97.1 / 108.1
Standards/Certifications: Ce, Eac
Stroke Length (in): 2.28
Vibration Level (m/s2): 19.9
Warranty: 1-year

Similar IR

• 115
• 116
• 117

IR 123MAX

Vibration Reduced Air Hammer, 3530 BPM, 2-5/8" Stroke, Round Shank

Great for front-end jobs, general bolt cutting, pin driving, and body shearing work, this short barreled hammer is ready to deliver the punch you need.

Features And Benefits

• Increased Power: The 123MAX hammer has a 15% impact force increase over standard air hammers.
• Reduced Vibration: The 123MAX vibration reduced air hammer comes equipped with anti-vibration features that reduce vibration by 30%.
• Comfort Grip: Shock reduction and anti-slip grip.
• Quick-Change Retainer: This quick-change retainer allows you to quickly and easily change out chisels, increasing your productivity as you work.
• Durable: This hammer can withstand anything, including repeated drops and harsh conditions. No matter where you take it, it will perform like new.
• Swivel Air Inlet: Prevents hose twisting during use.
• Optimized for the vehicle repair industry, heavy trucks, and MRO.

Includes: Tool, Quick-change Retainer, Manuals
Product Application and Uses: Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 24.1
Air Consumption @ Load (l/min): 682.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 3530
Bore Diameter (in): 3/4
Color: Grey
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Handle Material: Composite
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 7.2
Product Width (in): 2
Product Height (in): 7.2
Product Weight (lb): 3.9
Retainer Type: Quick Change
Shank SIze (in): .401
Shank Type: Round
Sound Pressure/Power Db(A): 95 / 106
Special Features: Vibration reduced
Standards/Certifications: Ce, Eac
Stroke Length (in): 2.63
Vibration Level (m/s2): 5.9
Warranty: 1-year

Similar IR

• 119MAX
• 135MAX
• 117
• 135MAXK

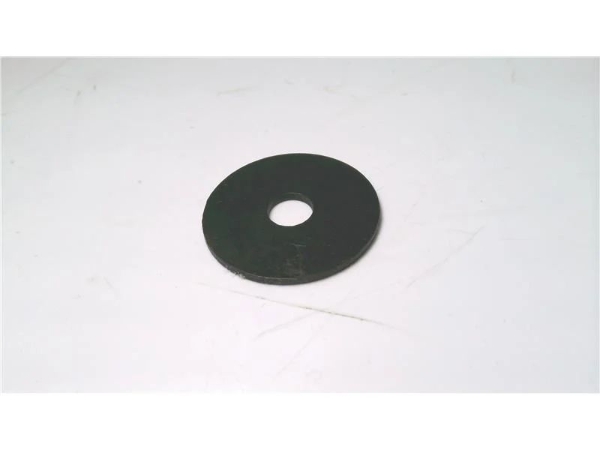

IR HH-2A

VALVE

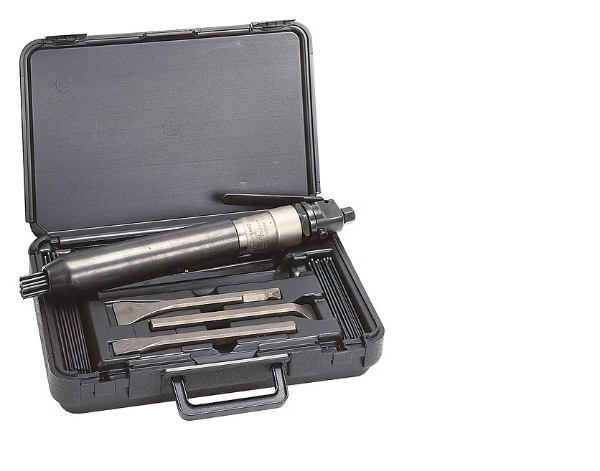

IR 182K1

Air Needle and Chisel Scaler Kit, 4000 BPM, 1-1/16" Stroke

With 4000 blows-per-minute and 1" stroke, the 182 is our most powerful and chisel durable scaler. The 'swan' neck grip option add an extra level of comfort for both vertical and horizontal operation

Features And Benefits

• Easy Adjustment: The adjustable bayonet-type needle housing lock allows for easy adjustment without special tools.
• Durability: These scalers feature a rubber faced throttle valve to ensure positive sealing of internal components, and they’re durable enough to withstand repeated drops and harsh conditions with ease.
• Comfort: Compact, well balanced and low vibration maximize operators comfort
• Power: The powerful motor featured in the 182 Series makes work easier and more efficient.

Includes: (19) 5" Needles, (19) 7" Needles, 1 Angle Chisel, 1 Straight Chisel, 1 Flat Chisel
Product Application and Uses: Remove Paint, Rust, Dirt, Weld Slags
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 13
Air Consumption @ Load (l/min): 368
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 4000
Bore Diameter (in): 0.94
Color: Silver
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Needle Qty: 19 5" Needles, 19 7" Needles, 1 Angle Chisel, 1 Straight Chisel, 1 Flat Chisel
Non Sparking: No
Power Source: Air Powered
Product Length (in): 9
Product Width (in): 3.5
Product Height (in): 8.9
Product Weight (lb): 4.06
Shank SIze (in): 1/2
Shank Type: Square
Sound Pressure/Power Db(A): 107.2 / 118.2
Stroke Length (in): 1.06
Vibration Level (m/s2): 12.7
Warranty: 1-year

Similar IR

• 182L
• 182LNA1
• 172L

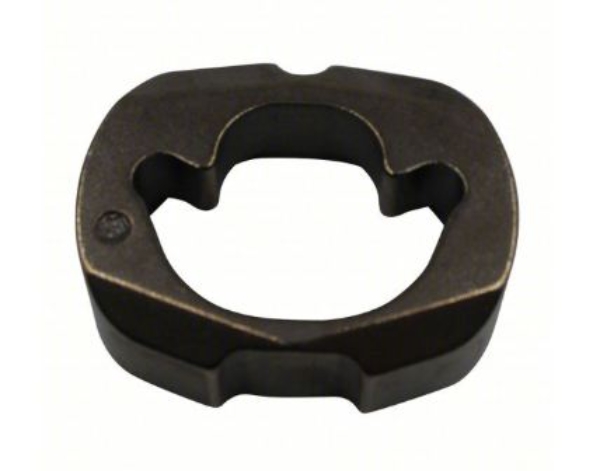

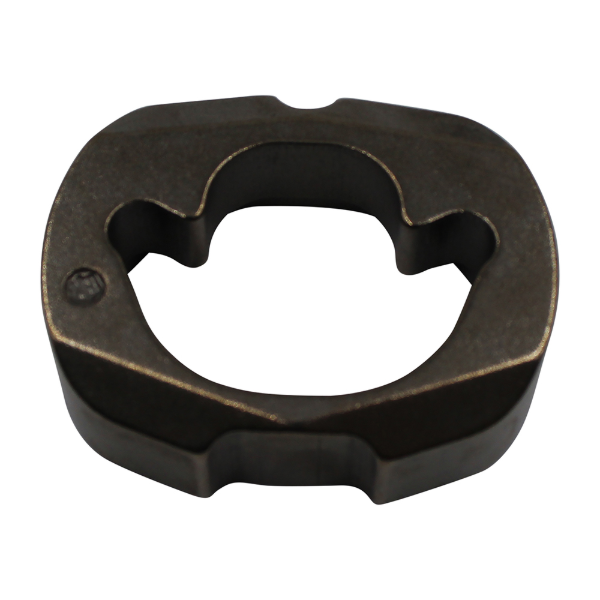

IR 2141-724

Hammer for Ingersoll Rand 2141 Series Impact Wrench

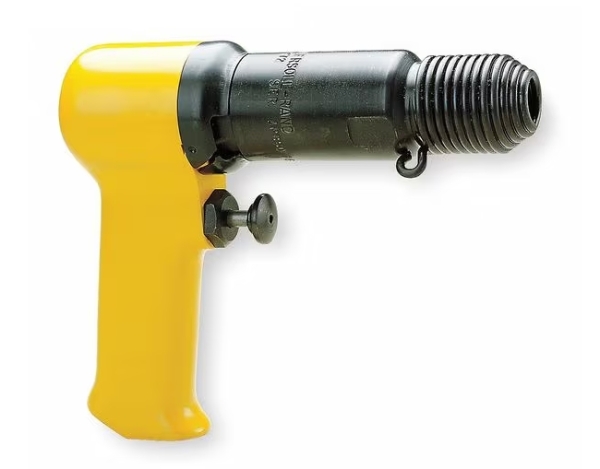

IR 772

AIR HAMMER

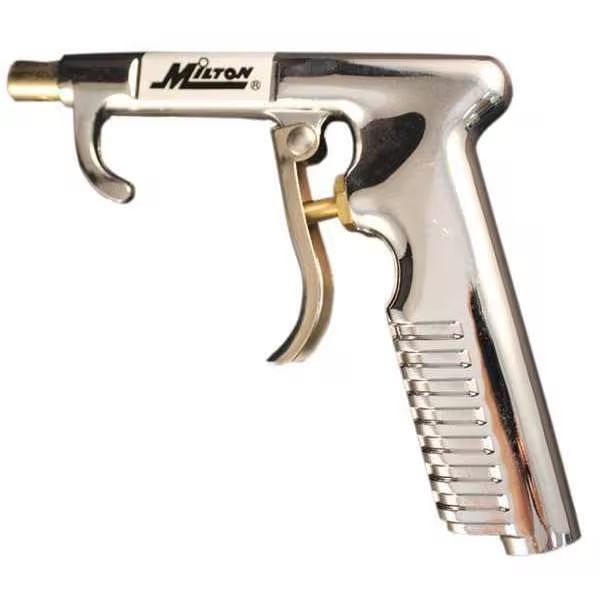

MN S-160

Pistol Grip Blo-Gun

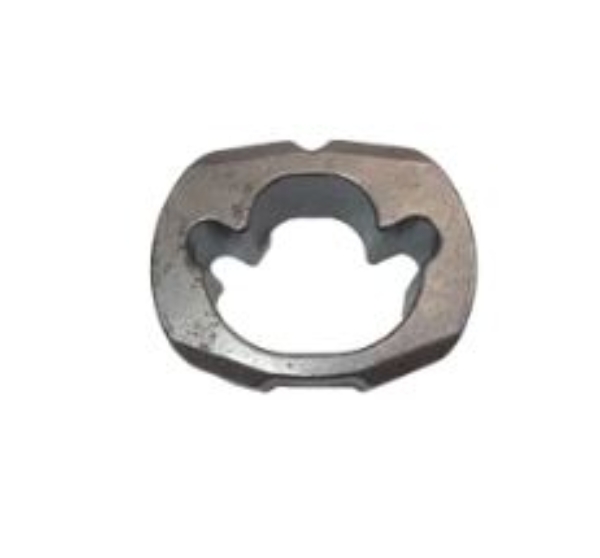

IR 260-724

HAMMER

SX SPSDR-2B

Pistol Grip Housing

IR 116

Air Hammer, 3500 BPM, 2-5/8" Stroke

The 116 standard air hammer is ideal for fast cutting action, and excels in medium exhaust systems, panel cutting, and general repair work.

Features And Benefits

• Reliable: This hammer’s alloyed steel barrel and heat-treated piston prolong your tool’s life and make sure it delivers the same quality output every time.
• Lightweight: Built for user comfort, this tool is lightweight and easy to use, so you never have to overexert yourself when working a job.
• Power: With a built-in power regulator you have full control over the speed and power output of your hammer, up to 3,500 blows per minute.

Includes: Tool, Retainer, Manuals
Product Application and Uses: Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 15
Air Consumption @ Load (l/min): 425
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 3
Average Air Consumption (l/min): 85
Blows per Min: 3500
Bore Diameter (in): 0.69
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: General Duty
Handle Material: Aluminum
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 7.8
Product Width (in): 7.01
Product Height (in): 2.28
Product Weight (lb): 3.4
Retainer Type: Spring
Shank SIze (in): .401
Shank Type: Round
Sound Pressure/Power Db(A): 101.4 / 112.4
Standards/Certifications: Ce
Stroke Length (in): 2.63
Vibration Level (m/s2): 14.8
Warranty: 1-year

Similar IR

• 117
• 115

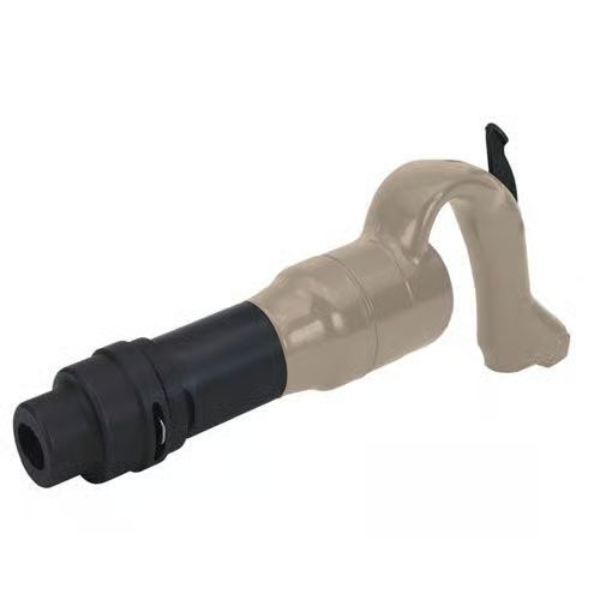

IR 2A2SA

Air Chipping Hammer, 2" Stroke, 2300 BPM, Round Shank Oval Collar

Whether you’re working in construction or demolition, the A Series chipping hammers are great for any job. With its incredible power-to-weight ratio, these hammers will increase productivity and make working easy.

Features And Benefits

• Durability: The A Series chipping hammers are equipped with a rubber buffer retainer and threaded barrels to extend the life of your product.
• Reliability: The A Series hammers have lock spring retainers that make sure the steel stays in place.
• Access: With a swan neck handle and long nozzle, you’ll be able to work in tight, hard to reach spaces with ease.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 28.0
Air Consumption @ Load (l/min): 793
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 2300
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Height Over Spindle (in): 16
Housing Material: Steel
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: Yes
Power Source: Air Powered
Product Length (in): 16
Product Width (in): 9.06
Product Weight (lb): 16.8
Retainer Type: Lock-spring (Plain Arrow)
Shank SIze (in): 0.68
Shank Type: Round
Standards/Certifications: Standards
Steels: Yes
Stroke Length (in): 2
Warranty: 1-year

Similar IR

• 2A1SA
• W2A2
• W2A1

IR 172L

Air Chisel Scaler, 5500 BPM, 9/16" Stroke

At 5,500 blows per minute, this lever-operated chisel scaler is not only fast, but extremely durable and efficient.

Features And Benefits

• Easy Adjustment: The adjustable bayonet-type needle housing lock allows for easy adjustment without special tools.
• Durability: These scalers feature a rubber faced throttle valve to ensure positive sealing of internal components, along with a strengthened head block that will hold up in tough conditions.
• Comfort: Compact, well balanced and low vibration maximize operators comfort

Includes: Bare Tool
Product Application and Uses: Remove Paint, Rust, Dirt, Weld Slags
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 12
Air Consumption @ Load (l/min): 340
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 5500
Bore Diameter (in): 0.94
Color: Silver
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Housing Material: Steel
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Non Sparking: No
Power Source: Air Powered
Product Length (in): 12.7
Product Width (in): 6.2
Product Height (in): 2.2
Shank SIze (in): .5
Shank Type: Ingersoll Rand Shank
Sound Pressure/Power Db(A): 107.5 / 118.5
Stroke Length (in): 0.56
Vibration Level (m/s2): 11.6
Warranty: 1-year

Similar IR

• 182L
• 182K1
• 172LNA1

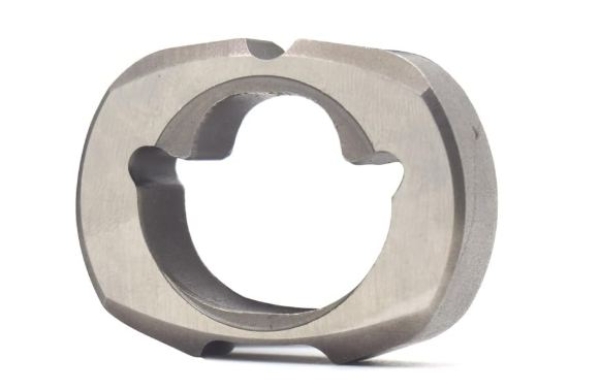

IR 231XP-724

Hammer for Ingersoll Rand Air Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 2130, 2132, 2135, 231, 232 and 231H Series impact wrenches

IR HH1-1190

Standard Retainer Replacement Part for Ingersoll Rand A, W, D, MDT3-EU Series Chipping Hammer

For Use With

• 1A1SA
• 1A2SA
• 2A1SA
• 2A2SA
• 2DA1SA
• 2DA2SA
• 3A1SA
• 3A2SA
• 3DA1SA
• 3DA2SA
• 4A1SA
• 4A2SA
• 4DA1SA
• 4DA2SA
