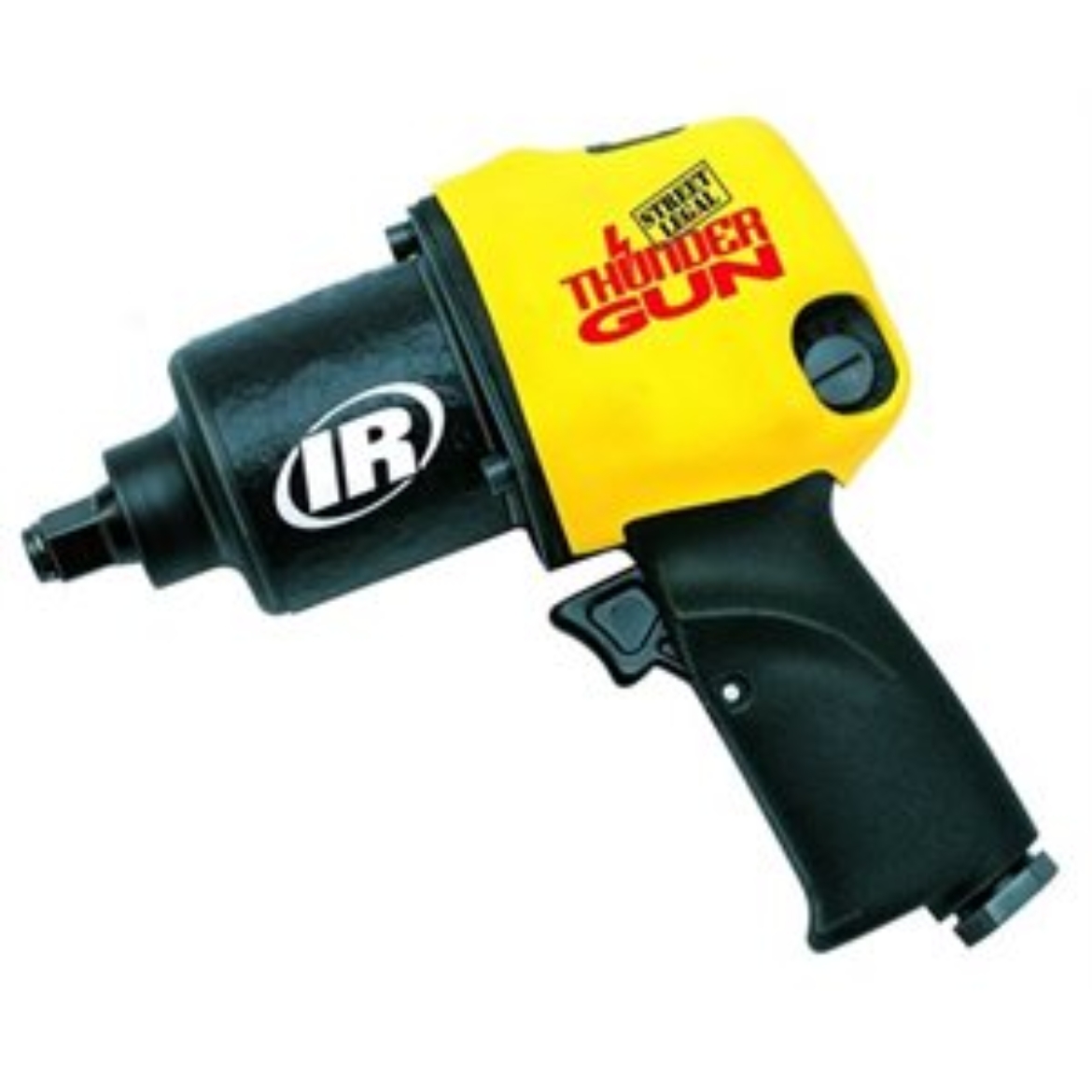

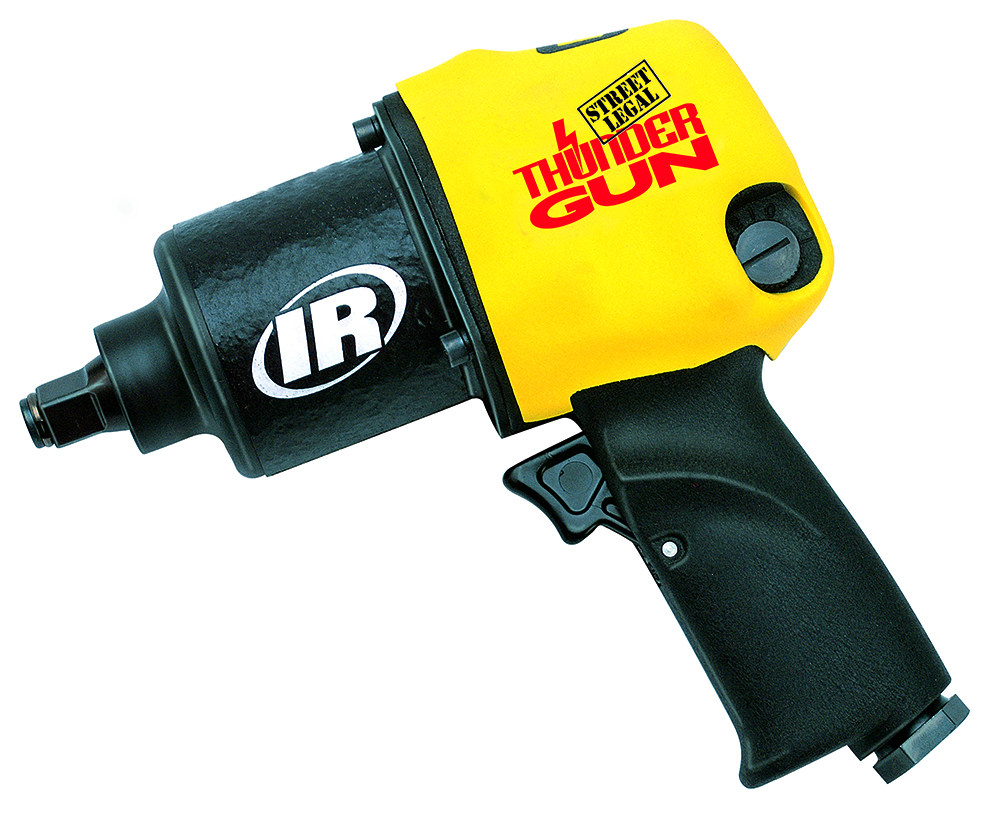

IR 232TGSL
1/2" Air Impact Wrench, Super Duty, 625 ft-lb Torque, Friction Ring Retainer, Pistol
If you’re looking for NASCAR pitstop-level speeds, the 232TGSL ½” is the impact wrench for you. Its powerful vane motor and smooth trigger actuation will help you fly through vehicle repair jobs with an added level of confidence and control.
Features And Benefits
- POWER: The 232TGSL impact gun delivers 625 ft/lbs of maximum reverse torque to give technicians the power they need to complete tough repairs.
- SPEED: This pneumatic thunder gun is the fastest 1/2 inch impact wrench in the Ingersoll Rand line, at 10,000 RPM, to deliver pit crew speed.
- Durability: The steel hammer case and metal housing in the 232TGSL ½” makes this impact wrench strong and durable to last through any job.
- Warranty: Your 232TGSL ½” comes with a one-year standard warranty to protect against any manufacturing defects.
Includes: Bare Tool
Product Application and Uses: Automotive Vehicle Service Racing
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 23
Air Consumption @ Load (l/min): 651
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 5.4
Average Air Consumption (l/min): 153
Blows per Min: 1250
Color: Yellow
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 105.3 / 109.3
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 10000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 625
Max Torque (in-lb): 7497
Max Torque (nm): 847
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 104.1
Product Length (in): 7.3
Product Width (in): 2.8
Product Height (in): 7.3
Product Weight (lb): 6
Recommended Forward Torque Range (ft-lb): 500
Recommended Forward Torque Range (in-lb): 6001
Recommended Forward Torque Range (nm): 678
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Warranty: 1-year
