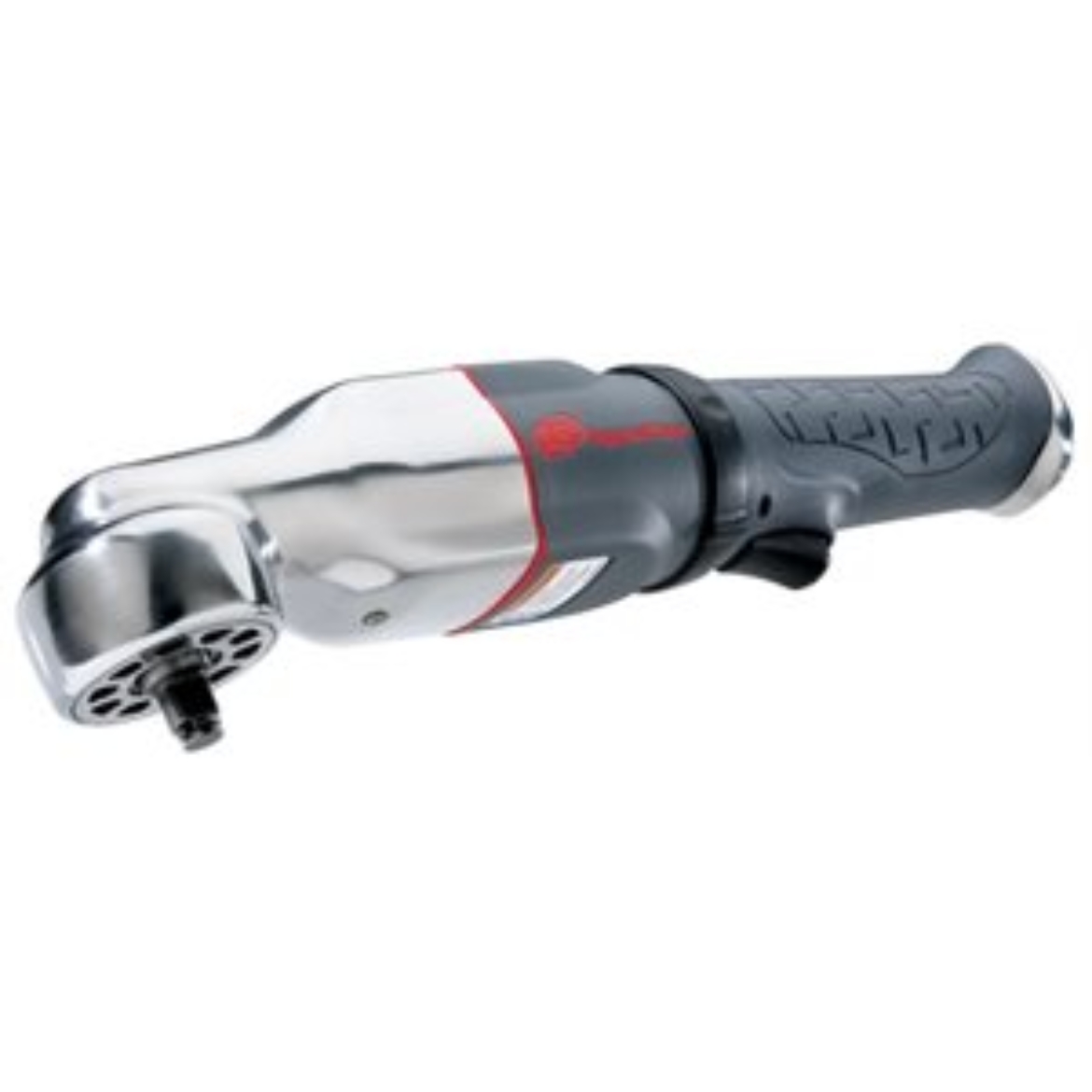

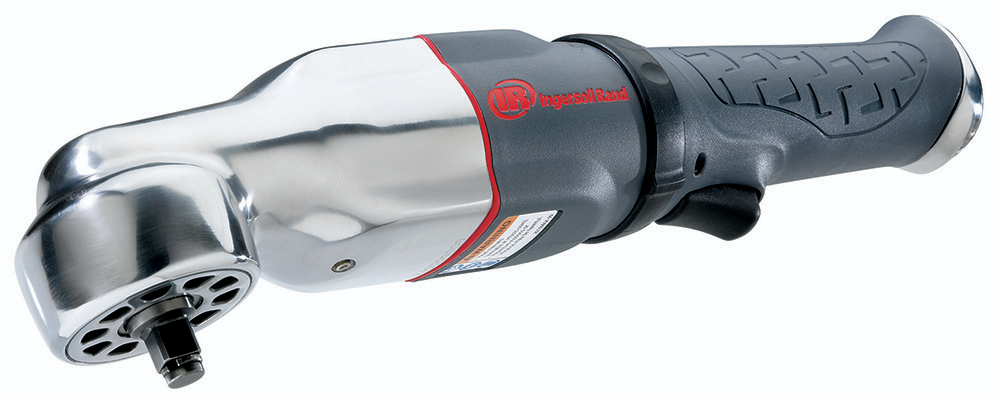

IR 2025MAX
1/2" Angle Air Impact Wrench, 180 ft-lb Torque, Friction Ring Retainer
This Right Angle Impact Wrench is lightweight, durable, and easy to use. Paired with its powerful vane motor and trigger actuation, this tool will quickly become your favorite on any job site.
Features And Benefits
- Power: With a finely tuned vane motor and power regulation, you’ll have full control of your tool while never having to settle for less power.
- Access: Thanks to this wrench’s angle grip and composite housing, you’ll be able to access any hard-to-reach spaces with ease.
- Fluctuation: The Right Angle Impact Wrench features a square socket retaining ring anvil, allowing it switch sockets with ease. Perfect for automotive repair work.
- Feather touch trigger, 2-position forward power regulator, forward/reverse ring
- Compact design, with head height under 2 inches, makes operation and access easier in tight spots so you can perform even the most detailed work with this air impact wrench
- Ergonomically sound rear exhaust system
- Offers the same reach as a ratchet
- 180 ft-lb max torque
- Free speed: 7,100 revolutions per minute
- Optimized for the vehicle repair industry, body shops, and MRO
- 1-year warranty
Includes: Bare Tool
Product Application and Uses: General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 3.5
Average Air Consumption (l/min): 99
Blows per Min: 2100
Color: Grey
Configuration/Handle Type: Right Angle
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 94.1 / 105.1
Hammer Case: Aluminum
Handle Material: Composite
Impact Mechanism: Single Hammer
Impacting Sound Pressure/Power Db(A): 96.6 / 107.6
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 9000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 180
Max Torque (in-lb): 2160
Max Torque (nm): 244
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 2
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 52.9
Product Length (in): 13.1
Product Width (in): 2.2
Product Height (in): 3.1
Product Weight (lb): 3.4
Recommended Forward Torque Range (ft-lb): 45-140
Recommended Forward Torque Range (in-lb): 540-1682
Recommended Forward Torque Range (nm): 61-190
Recommended Reverse Torque (ft-lb): 45-160
Recommended Reverse Torque (nm): 61-217
Retainer Type: Friction Ring
Side to Center Distance (in): 1.1
Side to Center Distance (mm): 28
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 17.4
Warranty: 1-year
