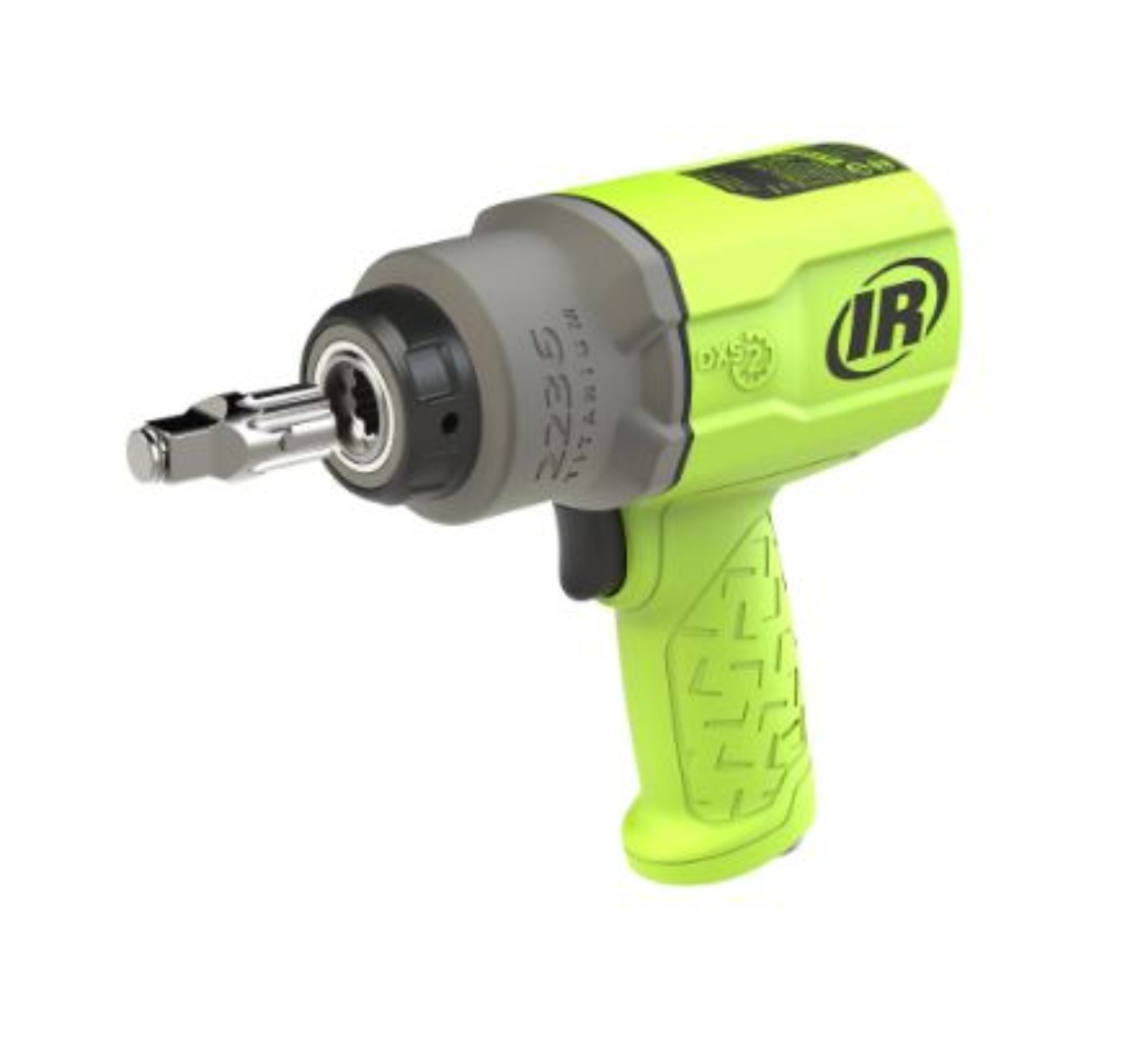

IR 2236QTIMAX-G
DXS2 1/2" Air Impact Wrench, Quiet, 1500 ft-lb Torque, Titanium Hammercase, Friction Ring Retainer, Green
The Ingersoll Rand 2236QTiMAX Visibility Series, provides the power you know and trust in vibrant colors. Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years — and the performance, durability, and power of the 2236 1/2” pneumatic impact is no different. Our patented Drive Xchange System™ lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand — without losing a single ft-lb of power. Innovation: Ingersoll Rand’s patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.
Features And Benefits
- Visibility: The green 2236QTIMAX-G impact wrench allows you to see it on the job and in the garage, while customizing your toolbox. Also available in orange and red.
- Patented Drive Xchange System™: Helps you get more versatility, torque, and control out of your impact wrench. With 3/8," 1/2", and 3/4" drive options and 5 different anvil lengths ranging from 2 to 10 inches, you can do more work with less equipment.
- Powerful Versatility: 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.
- Patented Direct Greasing System: Greasing your tool has never been easier. Directly grease the tool’s hammer for more efficient operation and increased run time.
- Reliable Performance: Stay working, and at peak power by quickly replacing worn or broken anvils. Titanium hammer case is light weight with unyielding durability.
- Ergonomic: Smaller, lighter and better balanced design under 4.5 lbs. and 7.4" overall length.
- Quiet: 4 decibels quieter than the 2235TIMAX for a more user-friendly environment.
- Includes 1/2” Square Drive Anvil (A41H); 3/8” and 3/4” drive size options as well as extended lengths sold separately.
Includes: DXS2 1/2" Square Drive Anvil (A41H). Compatible with all DXS2 anvils and sockets. 3/8” and 3/4” drive size options as well as extended lengths sold separately.
Product Application and Uses: Vehicle Repair
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 36
Air Consumption @ Load (l/min): 1090
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 9
Average Air Consumption (l/min): 255
Blows per Min: 1350
Color: Green
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.4 / 107.4
Hammer Case: Titanium
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 94.2 / 105.2
Max Bolt Diameter (in): 1 1/4
Max Free Speed (rpm): 7500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1000
Max Torque (in-lb): 12002
Max Torque (nm): 1356
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 1500
Nut-busting/Breakaway Torque (in-lb): 18002
Nut-busting/Breakaway Torque (nm): 2034
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 339
Product Length (in): 7.36
Product Width (in): 2.9
Product Height (in): 7.34
Product Weight (lb): 4.4
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 900
Recommended
