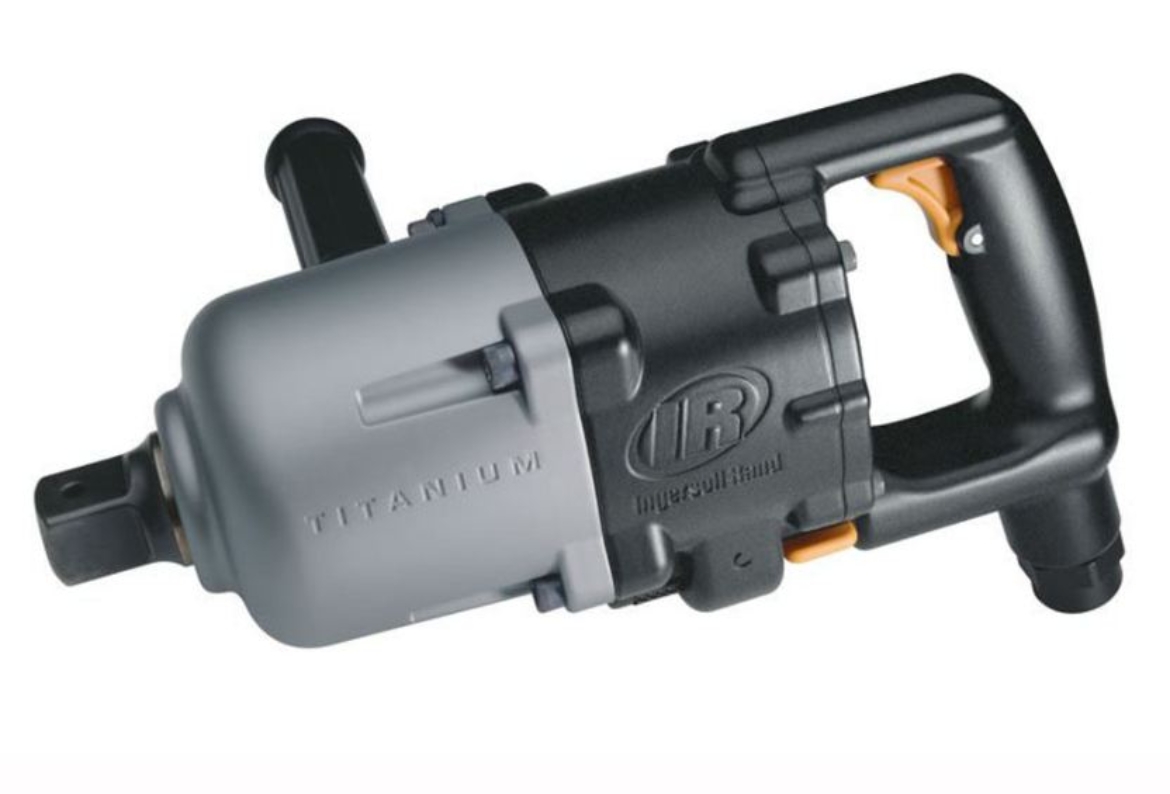

IR 3955A2TI
1-1/2" Air Impact Wrench, Super Duty, 5000 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Outside Trigger
With a titanium hammercase, bronze end plates and torque up to 5,000 ft-lbs of torque, the 3900 Series are the premier industrial grade impacts in the industry.
Features And Benefits
- Power: The 3900 Series delivers a high torque output of 5000 ft-lbs and 700 blows per minute.
- Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
- Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
- Balance: Twin hammer mechanism ensure consistent power and balance.
- Reverse bias motor to help remove the most stubborn bolts.
- Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
- Integral muffler
- Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding
- Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding.
Product Application and Uses: Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 80
Average Air Consumption (l/min): 2266
Blows per Min: 700
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 101.5 / 112.5
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 101.2 / 112.2
Max Free Speed (rpm): 2750
Max Pressure (bar): 6.2
Max Torque (ft-lb): 5000
Max Torque (in-lb): 60000
Max Torque (nm): 6779
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 16.5
Product Weight (lb): 34.6
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 3900
Recommended Forward Torque Range (in-lb): 46803
Recommended Forward Torque Range (nm): 5288
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Tool Type: High-torque
Vibration Level (m/s2): 20.8
Vibration Uncertainy K* (m/s2): 8.5
Warranty: 1-year
