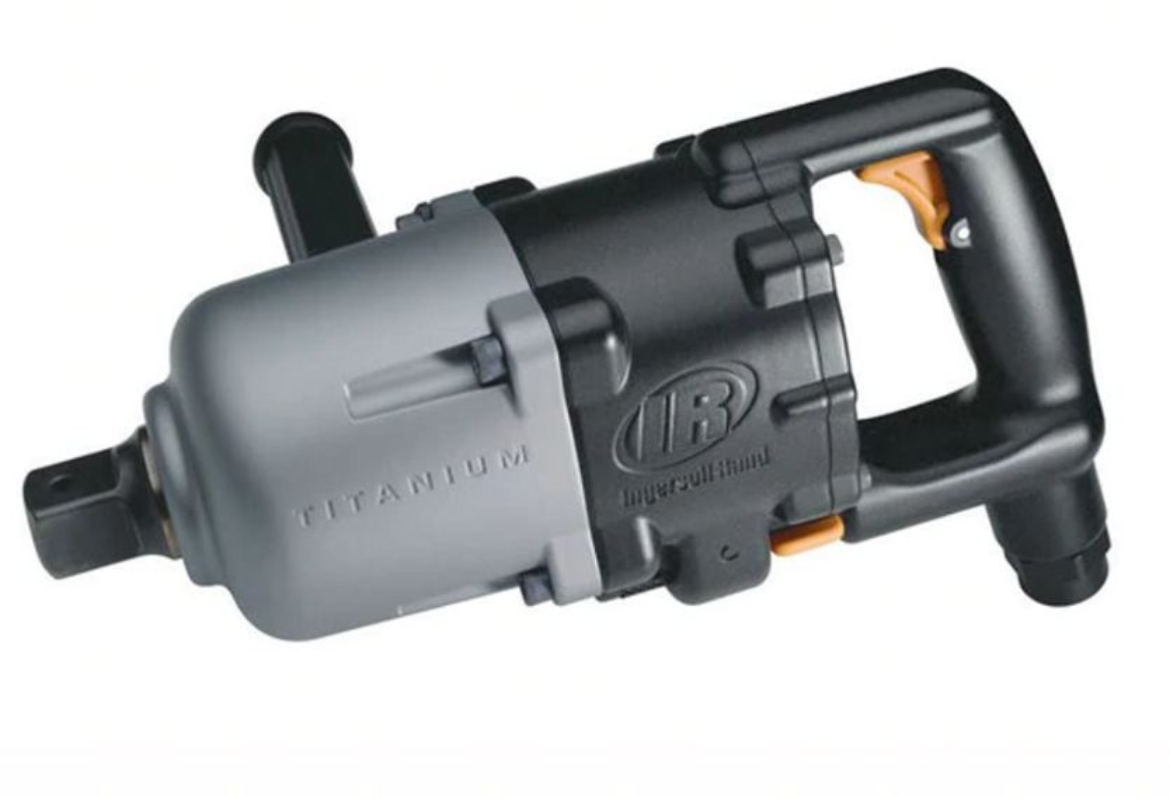

IR 3955B2TIEX
1-1/2" Air Impact Wrench, ATEX Rated, 5000 ft-lb Torque, Titanium Hammercase, D-Handle Inside Trigger
Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, with a titanium hammer case, bronze end plates, and a corrosion preventative treatment up to 5000 ft-lbs, the 3900 Series are the premier industrial grade impact wrench in the industry.ATEX Markings: ATEX 2014/34/EU and Ex h IIA T6 Gb XISO 80079-36 Certified
Features And Benefits
- Environmental, Heath and Safety: ISO 80079-36 Certified and ATEX Zone 1 or Zone 2 requirements.
- Power: The 3900 Series delivers a high torque output of 5000 ft-lbs and 700 blows per minute.
- Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this series is corrosion and wear resistant, which makes it great for outdoor conditions.
- Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
- Balance: Twin hammer mechanism ensure consistent power and balance.
- Reverse bias motor to help remove the most stubborn bolts.
- Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
- Integral muffler
Product Application and Uses: Hazardous Zones, Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 80
Average Air Consumption (l/min): 2266
Blows per Min: 700
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Atex/Hazardous Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 101.5 / 112.5
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 101.2 / 112.2
Max Bolt Diameter (in): 1-1/2
Max Free Speed (rpm): 2750
Max Pressure (bar): 6.2
Max Torque (ft-lb): 5000
Max Torque (in-lb): 60000
Max Torque (nm): 6779
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 144.5
Product Length (in): 16.6
Product Width (in): 8.2
Product Height (in): 5.3
Product Weight (lb): 34.6
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 4700
Recommended Forward Torque Range (in-lb): 56397
Recommended Forward Torque Range (nm): 6372
Retainer Type: Thru-hole
Side to Center Distance (in): 4.1
Side to Center Distance (mm): 104
Special Features: ATEX Rated, Titanium hammercase
Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 20.8
Vibration Uncertainy K* (m/s2): 8.5
Warranty: 1-year
