Agitators
AGITATOR, HEAVY DUTY, 10 GAL
GG 236662
GG 236662
AGITATOR, HEAVY DUTY, 10 GAL
Graco 236662 10 Gallon (38 L) Heavy Duty Pressure Tank Agitator, air driven, 1/2 HP, 15 inches (38 cm) in length, gear reduced
Waterborne compatible
- 20:1 gear reduction to mix high viscosity materials, even at low speeds
- Sealed agitator shaft to prevent air leakage and contamination
- Built-in baffle and support for efficient mixing
- For Use With: 10 Gallon (38 Litre) Pressure Tank
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Speed (RPM): 3000
- Maximum Viscosity (cP): 800
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 0.50
$2,780.00
AGITATOR, HEAVY DUTY, SST
GG 24C522
GG 24C522
AGITATOR, HEAVY DUTY, SST
Graco 24C522 Heavy-Duty In-Drum Back-Geared Agitator, Stainless Steel, 2 inch Bung Adapter, 7/16 inch Shaft Adapter
- Corrosion resistant materials for high quality and long life
- Leak-free gearbox eliminates material contamination common with oil filled units
- Installs easily onto in-drum agitators
- Includes 7/16 in shaft adapter
- ATEX approval for hazardous locations
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Includes: Heavy Duty Agitator Drive, 2 Adapters
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Speed (RPM): 1200
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 0.25
$2,660.00
Gear Drive, 55 Gallon Ss Agitated Drum Lid Assembly
BB 31-424
BB 31-424
Gear Drive, 55 Gallon Ss Agitated Drum Lid Assembly
$4,015.00
Agitator Assembly, Ss, 2 Gallon Agitator Shaft
DD QMS-431
DD QMS-431
Agitator Assembly, Ss, 2 Gallon Agitator Shaft
$1,285.00

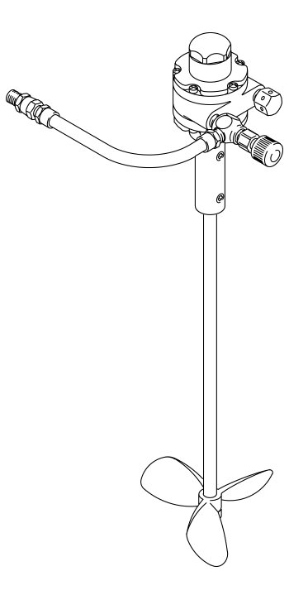

AGITATOR
GG 222695
GG 222695
AGITATOR
Graco 222695 Pail Cover Agitator for 5 gallon (18 L) pails, air driven, 1/4 HP, 13.25 inches (33.6 cm), stainless steel material, round prop
Waterborne compatible
- Lift handles for easy moving and color changes
- Locking bolts to secure cover and reduce spills
- Ideal for wall mount pumps or spray packages
- Air Inlet Size (cm): 0.3175
- Air Inlet Size (in): 1/8
- Air Inlet Size (mm): 3.175
- Air Inlet Thread Type: NPT
- For Use With: 5 Gallon Pail
- Maximum Speed (RPM): 800
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 0.25
$868.00
AGITATOR, AIR
GG 225831
GG 225831
AGITATOR, AIR
Clamp Mounted Drum Agitator, air driven, 1 HP, 41.5 inches (105.4 cm) in length, includes dual round prop; open drum Clamp mounts agitator directly to drum Adjustable shaft angle to reduce mixing vortex and air entrapment Dual propeller ensures efficient and thorough mixing Easy adjustment knob for fine tuning agitator speed to ideal mixing parameters
$1,735.00
AGITATOR, HD, SST
GG 231413
GG 231413
AGITATOR, HD, SST
Heavy Duty Back-Geared Drum Agitator with elevator and drum cover, air driven, 1/2 HP, 32 inches (81.25 cm) long Heavy Duty Back-Geared Drum Agitator with elevator and drum cover. Does not include siphon kit. Heavy duty gearbox mixes high viscosity materials Leak-free and oil-less gearbox prevents material contamination Stainless steel agitator and cover for corrosion resistance and waterborne compatibility Twin paddles thoroughly mix finishing materials Siphon option allows material transfer through agitator shaft Access port for easy sampling and inspection of material during operation Maximum viscosity 3,000 cps
$5,820.00
3/4in x 48.25in Shaft W/Folding Blades (Special)
ASC ASC-SP-976
ASC ASC-SP-976
3/4in x 48.25in Shaft W/Folding Blades (Special)
$1,600.00
55 Gallon Agitated Drum Lid Assembly
BB 31-397
BB 31-397
55 Gallon Agitated Drum Lid Assembly
$3,313.00
1/2 HP, 6 Cylinder Bare Air Motor, C/W Tacho
BB 31-509
BB 31-509
1/2 HP, 6 Cylinder Bare Air Motor, C/W Tacho
$1,679.00
