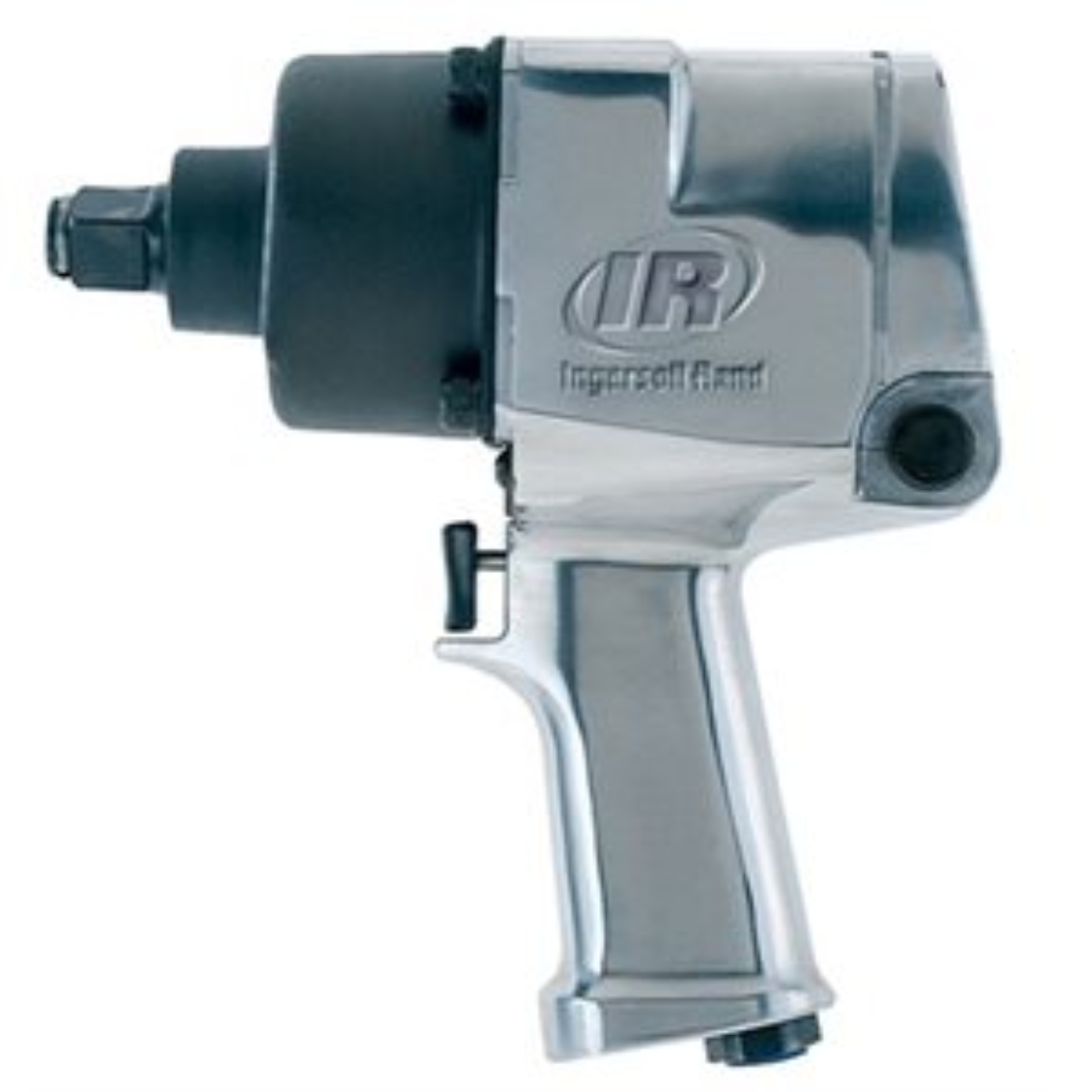

IR 261
3/4" Air Impact Wrench, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol
The 261 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you’ll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.
Features And Benefits
- Power to Weight: Lightweight but still delivers high torque output capabilities, making it the best choice for spring work, pinion nut and track pad removal, and major engine teardowns.
- Power: The 6 vane motor provides a high torque output for increased power.
- Jumbo Hammer Mechanism: The patented jumbo hammer is unaffected by air pressure changes and delivers 1100 ft-lbs. of max torque and a working torque of 200-900 ft-lbs.
- Square Socket: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection, like auto repair and heavy truck and machinery jobs.
- Lasting Performance: This power tool is equipped with a pressure-fed lube system which provides trouble-free, longer performance.
- Handle Exhaust: Handle exhaust directs dust and dirt from being blow at you while working as it directs air away from the operator.
Includes: Bare Tool
Product Application and Uses: Vehicle Repair And Heavy Truck Markets
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 38
Air Consumption @ Load (l/min): 1076
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 9.5
Average Air Consumption (l/min): 269
Blows per Min: 1000
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 98.4 / 109.4
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 96.7
Product Length (in): 8.8
Product Width (in): 4.7
Product Height (in): 10.3
Product Weight (lb): 12.4
Recommended Forward Torque Range (ft-lb): 200-600
Recommended Forward Torque Range (in-lb): 2399-7196
Recommended Forward Torque Range (nm): 271-813
Recommended Reverse Torque (ft-lb): 200-600
Recommended Reverse Torque (nm): 271-813
Retainer Type: Friction Ring
Side to Center Distance (in): 2.4
Side to Center Distance (mm): 61
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 10.4
Warranty: 1-year
