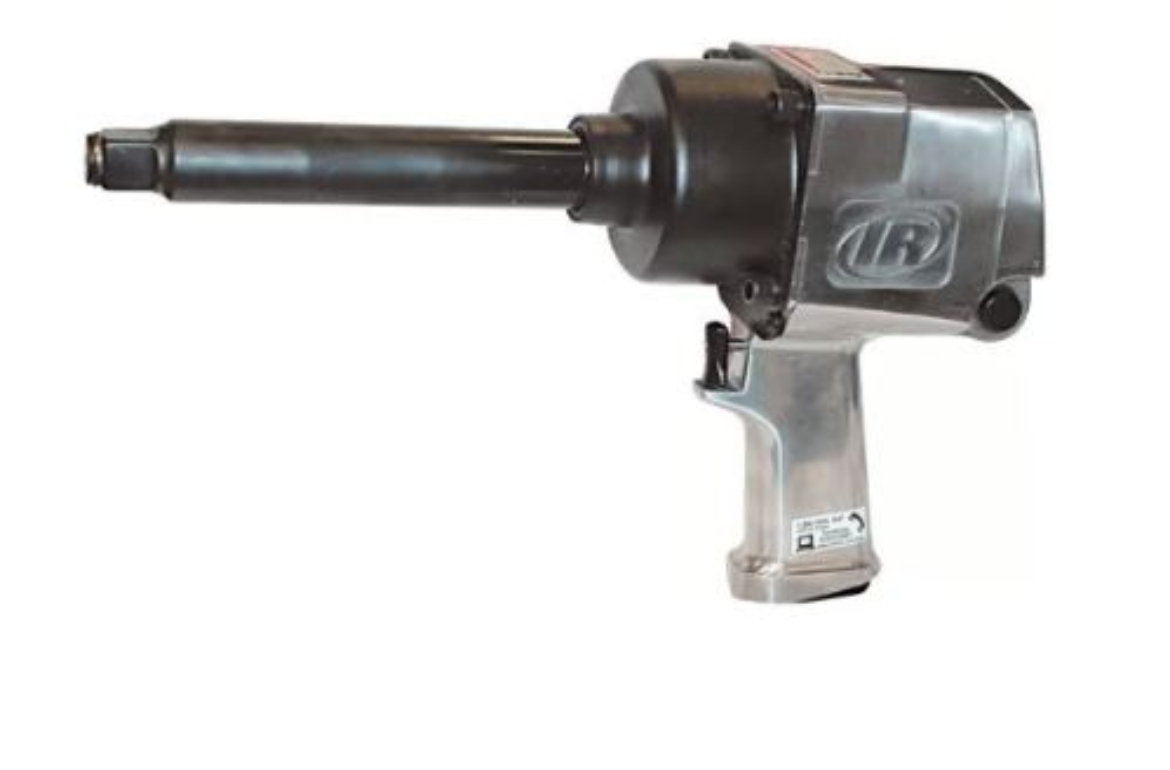

IR 261-6
3/4" Air Impact Wrench, 6" Ext Anvil, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol
The 261 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you’ll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.
Features And Benefits
- Power: The 6 vane motor on the 261 Series provides a high torque output for increased power.
- Jumbo Hammer Mechanism: The patented jumbo hammer is unaffected by air pressure changes and delivers 1100 ft-lbs. of max torque and a working torque of 200-900 ft-lbs.
- Square Socket: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection, like auto repair and heavy truck and machinery jobs.
- Lasting Performance: This power tool is equipped with a pressure-fed lube system which provides trouble-free, longer performance.
- Handle Exhaust: Handle exhaust directs dust and dirt from being blow at you while working as it directs air away from the operator.
- Extended Reach: The 6-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
Product Application and Uses: Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 38
Air Consumption @ Load (l/min): 1076
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: 6" Extended
Average Air Consumption (cfm): 9.5
Average Air Consumption (l/min): 269
Blows per Min: 1000
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 98.4 / 109.4
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 14.8
Product Width (in): 3.76
Product Height (in): 10.3
Product Weight (lb): 13.7
Recommended Forward Torque Range (ft-lb): 200-600
Recommended Forward Torque Range (in-lb): 2399-7196
Recommended Forward Torque Range (nm): 271-813
Recommended Reverse Torque (ft-lb): 200-600
Recommended Reverse Torque (nm): 271-813
Retainer Type: Friction Ring
Side to Center Distance (in): 1.88
Side to Center Distance (mm): 48
Special Features: Extended anvil
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 10.4
Warranty: 1-year
