GG 25C905
EM SERIES EM8 VALVE, GEAR LUBE, 1/2in NPT

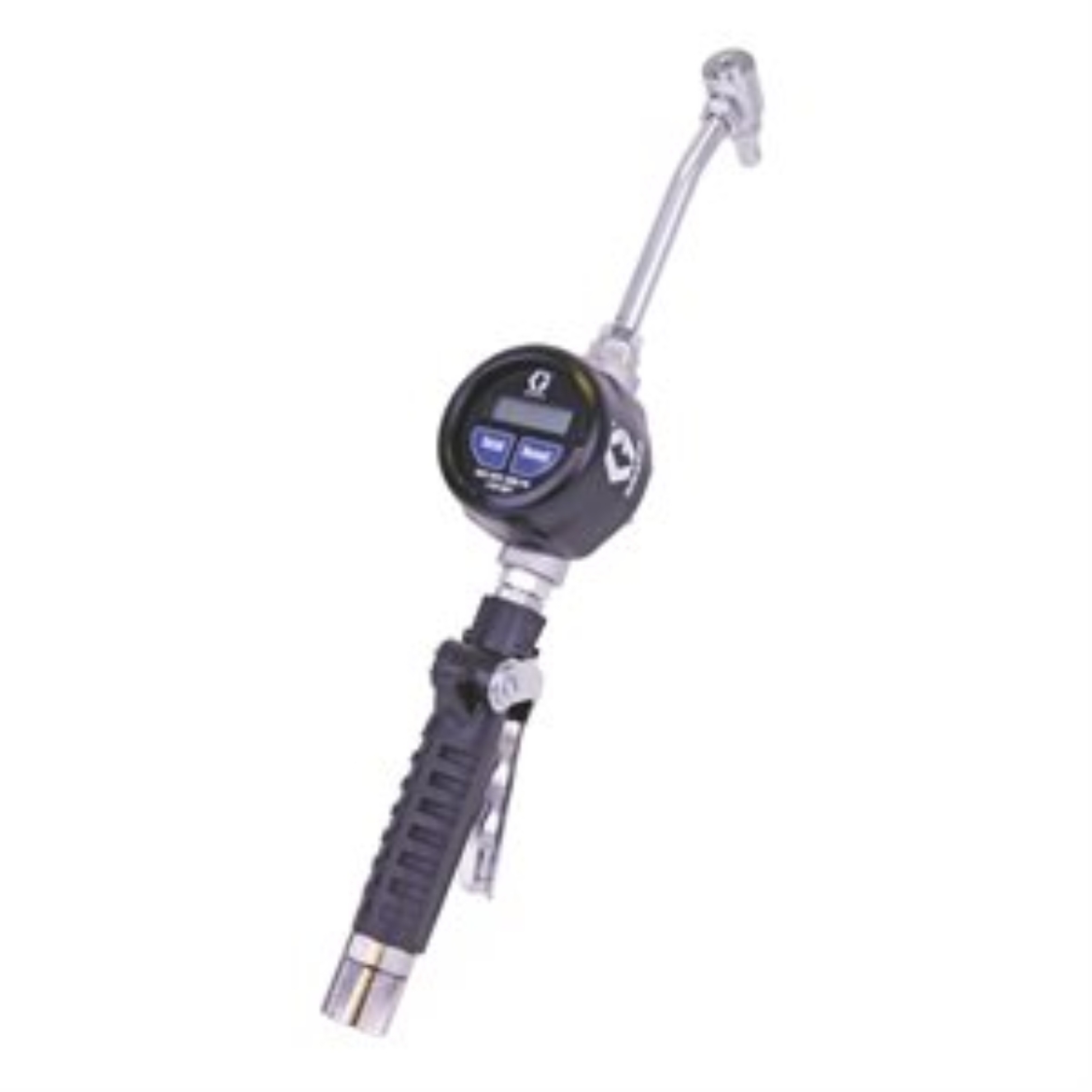

Graco 25C905 EM8 Electronic Manual Gear Lube Meter - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT
EM Series handheld and in-line meters are designed to last - from small service centers and lubrication trucks to heavy-duty repair facilities. Choose from 8 or 20 gpm (30.3 to 75.7 lpm) hand-held models or our 20 gpm (75.7 lpm) in-line meter. Graco's EM Series meters are backed by our robust warranty and feature upgraded electronics and easy-to-read LCD with simple operator controls that measures in quarts, gallons, pints and liters.
- Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
- High-Flow Rates - Capable of up to 8 gpm (30.3 lpm).
- Legacy Valve - 1/2 inch (13 mm) inlet, compatible with gear lube.
- Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
- Long Battery Life - Features upgraded electronics and easily replaceable AAA batteries.
- Calibration Type: Factory Calibrated
- Compatible Material: Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze
- Fluid Inlet Thread Gender: Female
- Fluid Outlet Thread Gender: Female
- Includes: Nozzle, Extension
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Maximum Flow Rate (cc/min): 30283
- Maximum Flow Rate (cc/sec): 505
- Maximum Flow Rate (GPM): 8
- Maximum Flow Rate (L/min): 30.3
- Maximum Operating Temperature ( degree C): 82
- Maximum Operating Temperature ( degree F): 180
- Maximum Recorded Dispense: 19999
- Maximum Storage Temperature ( degree C): 85
- Maximum Storage Temperature ( degree F): 185
- Maximum Working Pressure (bar): 102
- Maximum Working Pressure (kPa): 10200
- Maximum Working Pressure (MPa): 10.2
- Maximum Working Pressure (psi): 1500
- Meter Accuracy (%): plus/minus 00.5
- Meter Pressure Loss (bar): 2.1 Bar at 6 GPM
- Meter Pressure Loss (psi): 30 PSI at 6 GPM
- Meter Technology: Oval Gear
- Metering Gun Weight (kg): 1.36
- Metering Gun Weight (lb): 3
- Minimum Flow Rate (GPM): 0.25
- Minimum Flow Rate (L/min): 0.95
- Minimum Operating Temperature ( degree C): -30
- Minimum Operating Temperature ( degree F): -22
- Outlet Size (cm): 1.905
- Outlet Size (in): 3/4
- Outlet Size (mm): 19.05
- Outlet Thread Type: ORB
- Overall Height (cm): 13.3
- Overall Height (in): 5.25
- Overall Height (mm): 133
- Overall Length (cm): 33
- Overall Length (in): 13
- Overall Length (mm): 330
- Overall Width (cm): 9
- Overall Width (in): 3.5
- Overall Width (mm): 90
- Recommended Environment: Indoor/Outdoor
