Hydraullic Units

EP VMMD-003

EP CDB-180502

EP LX-101

EP PACG5002SB

Enerpac PACG Air Hydraulic Pumps are for designed for intermittent to medium duty workholding applications up to 5,000 psi. Valve mount options include, remote, and mountings for DO3 and VP valves.

Enerpac Turbo II Air Over Hydraulic Pumps generate the hydraulic pressure you need using the air pressure you have available. The Air Saver Piston reduces air consumption, and the pump can start at low pressures from 50-125 psi.

Turbo II Air-Hydraulic Pumps are best suited to medium or lower cycle applications. They provide the power and speed needed for simple clamping circuits and mostly single acting tools. At only 75 dBA, the Turbo II Series helps to keep the noise level to a minimum.

Choose from a range with maximum working pressure of either 5,000 or 10,000psi, and various reservoir capacities from 116 - 462 in3 (2100 - 7500 cm3).

Turbo II Air Over Hydraulic Pump Series :

• PATG - Treadle for foot or hand operation
• PARG - Pendant Operation
• PAMG - Manual lever operated. For double-acting applications
• PACG - For remote valve mount. For workholding, 5000 psi (350 bar).
• PASG - Includes mount for a single DO3 Valve. For workholding, 5000 psi (350 bar).

• Type: Hydraulic Pump
• Max Bar: 350
• Max PSI: 5000

• Product Group: Pumps
• Product Line: Work Holding Tools
• Series: PACG
• SubTypes: Air Pump

• On-demand stall-restart operation maintains system pressure, providing clamping security
• External adjustable pressure relief valve (behind sight glass)
• Internal pressure relief valve provides overload protection
• Reduced noise level to 75 dBA
• Operating air pressure: 50-125 psi - enables pump to start at low air pressure**
• Hydraulic to air ratio: 45:1
• Reinforced heavy-duty lightweight reservoir for applications in tough environments
• Five valve mounting options provide flexibility in setup and operation
• Fully serviceable air motor assembly
• User supplied valves

** NOTE: From 50-125 psi air inlet pressure. Performance is significantly diminished below 50 psi. Performance may vary compared to listed values due to seal friction, internal pressure drops and manufacturing tolerances. Be sure to allow some flexibility on air inlet pressure.

EP RC-102

EP RCH-302

EP XA-11

EP ZU4K

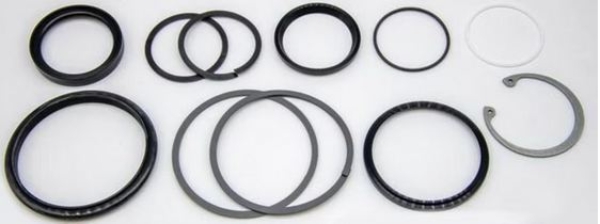

• Type: Service Kit

• SubTypes: Seal Kit

EP V-152

EP CDB40K

• Type: Service Kit

EP GA-2

EP HC-9206C

EP RC-256

EP RCH-121

EP ZCP-3

EP DC9357900SR

• Type: ERP

• SubTypes: Repair Part

EP GA-3

EP HC-9220

EP RC-106

EP RCS302

RCS-Series Low Profile Hydraulic Cylinders provide superior durability, performance longevity, safety, and quality in a compact and convenient footprint. These low profile hydraulic jacks are the perfect choice for general lifting and production applications where space is limited or constrained. A low collapsed height, short stroke, and solid construction enables safety and stability in both vertical and horizontal orientations.

Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. RCS cylinders are different and include a powerful return spring, which is faster, convenient, and more productive. The entire RCS cylinder range is rated for high-pressure; 10,000 psi (700 bar).

• Type: Hydraulic Cylinders
• Max Bar: 700
• Max PSI: 10000

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• Series: RCS
• Stroke Inches: 2.44
• Stroke MM: 62
• SubTypes: Low Height Cylinder

• Lightweight, low profile design for use in confined spaces
• Baked enamel finish for increased corrosion resistance
• Plunger wiper reduces contamination, extending cylinder life
• CR-400 coupler and dust cap included on all models
• Grooved plunger end with threaded holes for mounting tilt saddles
• Plated steel plungers
• Single-acting spring return

• Spare Part(s): RCS302K, DC5215900, RCS302KV
• Accessories: CATS53

EP GA3

• Type: Gauge Accessory
• Max Bar: 700
• Max PSI: 10000

• Product Group: Gauges, Pumps
• Product Line: Industrial Tools, Work Holding Tools
• Series: GA
• SubTypes: Gauge Adaptor

• For easy mounting of a pressure gauge into your system
• Male end screws into pump or cylinder port, female end accepts hose or coupler, third port is for gauge connection
• Simplifies gauge installation and reading

EP RC-1010

EP RC-506

EP RCH202K

• Type: Service Kit

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• SubTypes: Repair Kit

SPX C104C
