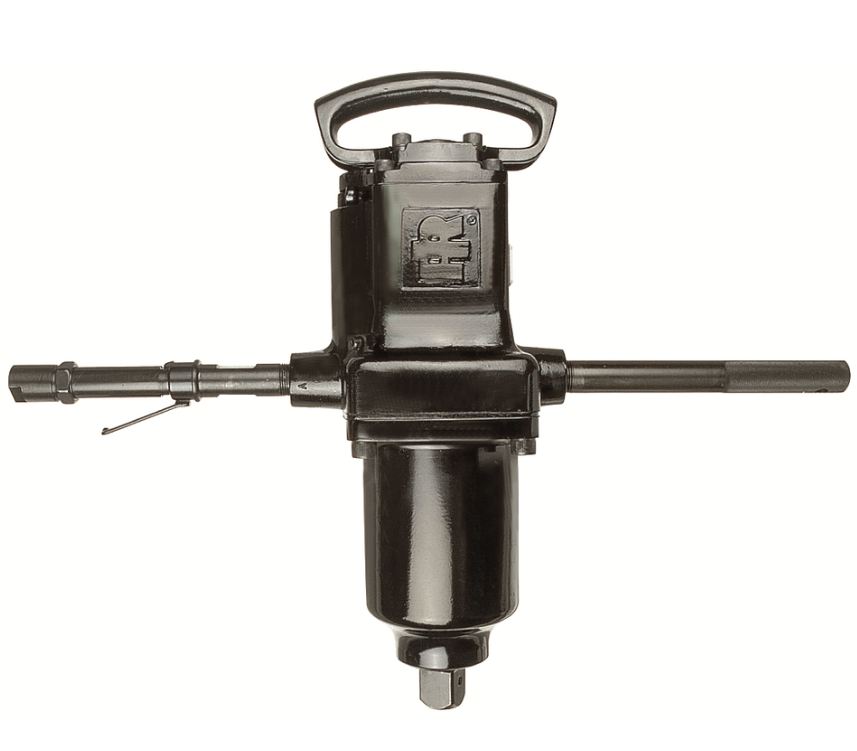

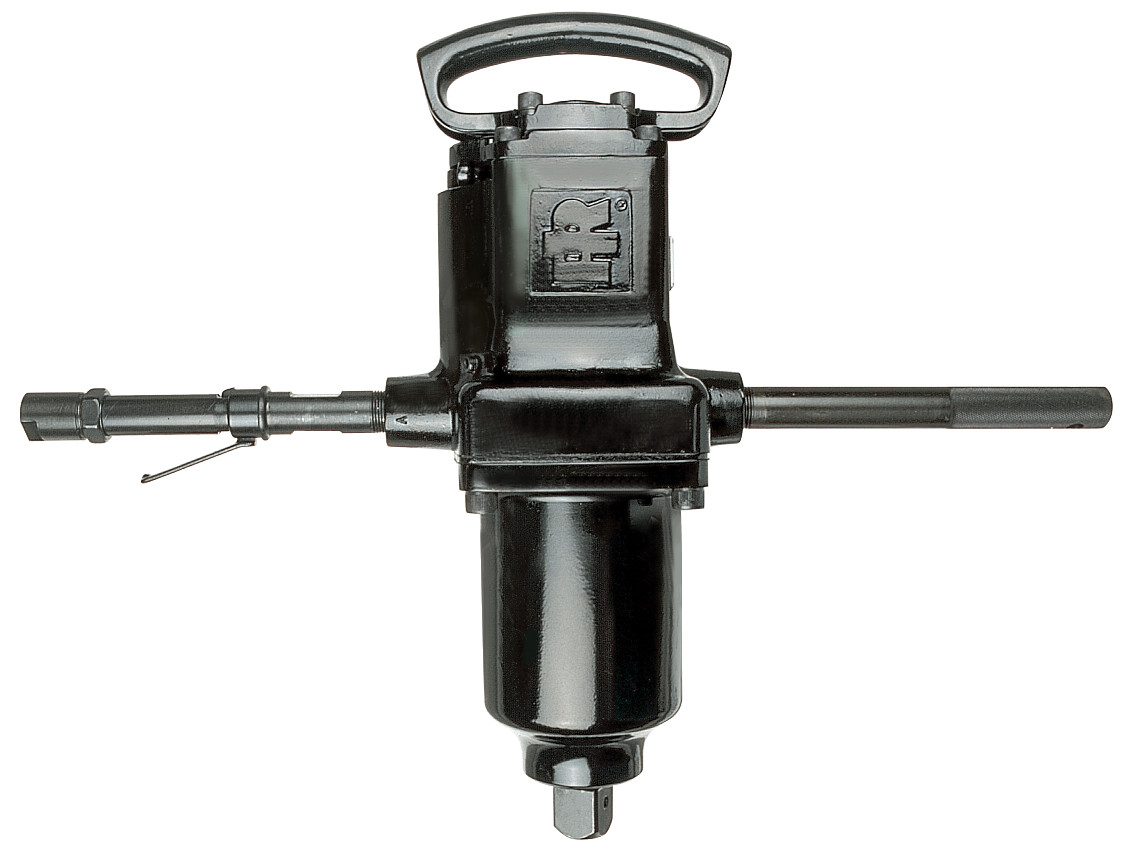

IR 5980A1
1-1/2" Air Impact Wrench, Super Duty, 10,000 ft-lb Torque, Thru-hole Retainer, T-handle
The 5980 series is not only one of the most powerful impacts in the industry, they are also one of the most durable and reliable.
Features And Benefits
- Durability: With an aluminum hammer case, metal housing, and bronze end-plate, this series is corrosion resistant. It will last through just about anything.
- Reliability: Ingersoll Rand products are built to last, and this series is no different. These tools will deliver the right amount of power every time you pull the trigger.
- Power: This series has a high torque output of 10,000 ft.-lbs. max. torque and the planetary gear drive delivers smooth constant speed from the motor, so you never have to worry about power.
- Built-in lubricator
Product Application and Uses: Engineered to withstand the harshest working conditions in oilfields, mines, and shipyards
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 138
Average Air Consumption (l/min): 3908
Blows per Min: 1000
Color: Grey
Configuration/Handle Type: T-handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 103.1 / 114.1
Gear Train: Planetary
Hammer Case: Aluminum
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 2
Max Free Speed (rpm): 830
Max Pressure (bar): 6.2
Max Torque (ft-lb): 10000
Max Torque (in-lb): 119998
Max Torque (nm): 13558
Min Hose Size (in): 1
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 23
Product Weight (lb): 88
Recommended Forward Torque Range (ft-lb): 5500
Recommended Forward Torque Range (in-lb): 66000
Recommended Forward Torque Range (nm): 7457
Retainer Type: Thru-hole
Side to Center Distance (in): 3.06
Side to Center Distance (mm): 78
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 5
Vibration Level (m/s2): 20.5
Warranty: 1-year
