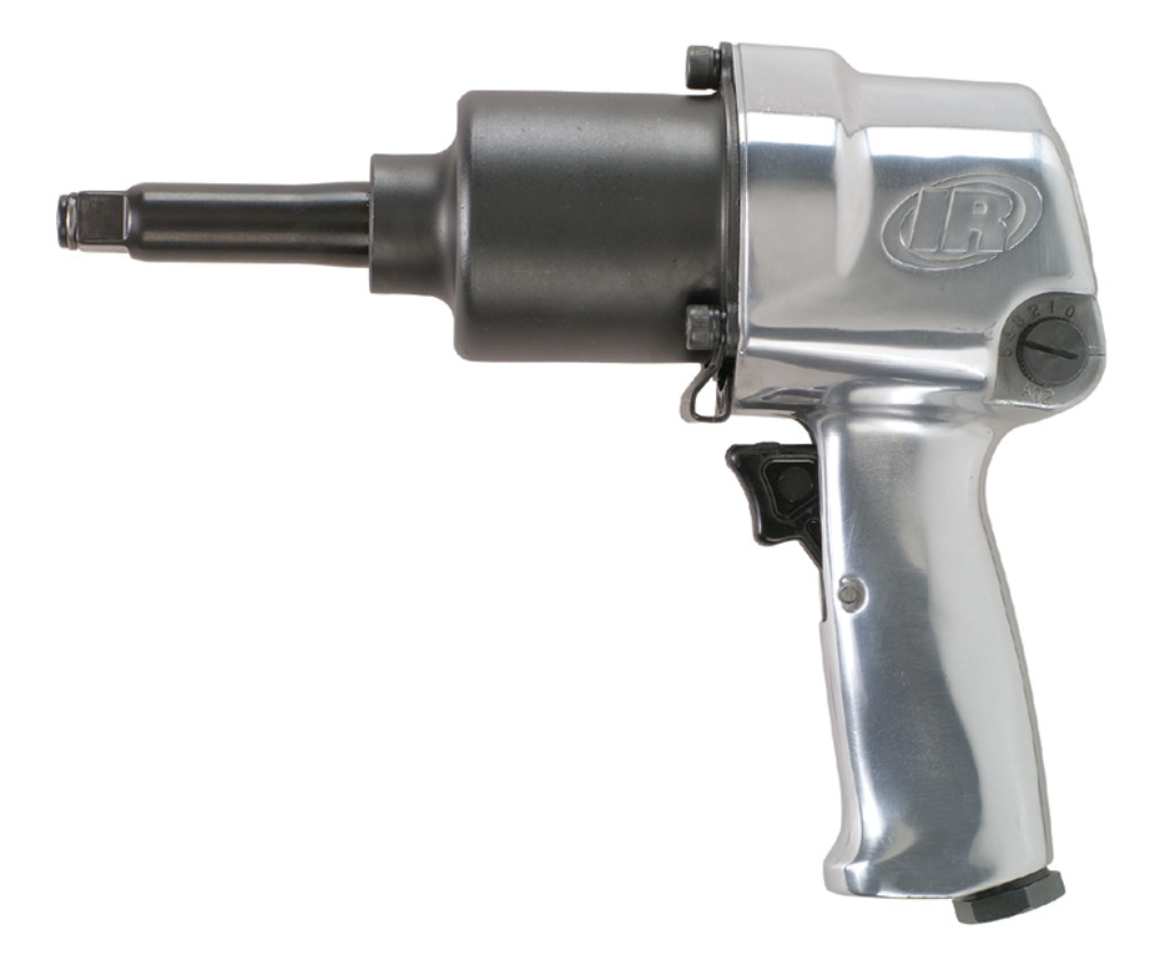

IR 244A-2
1/2" Air Impact Wrench, 2" Ext Anvil, Super Duty, 500 ft-lb Torque, Friction Ring Retainer, Pistol
The 244A Series ½” Impact Wrench comes loaded with a steel hammer case, square socket retaining ring, vane motor and metal housing — making this wrench one of the toughest, most durable impact wrenches on the market.
Features And Benefits
- Increased Control: The power regulator on the 244A Series provides you with increased control and stability on even your toughest projects.
- Durability: Tough and durable, the metal housing and steel hammer case on the 244A Series will help it hold up through repeated drops and harsh environments.
- Two-Piece Construction: Easy-to-service two-piece construction.
- Comfort and Control: Contoured handle for comfort and control. Patented one-hand forward/reverse for easy operation.
- Pressure Feed Lubrication: Pressure feed lubrication system automatically greases the impact mechanism.
- Extended Reach: The 2-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
Product Application and Uses: General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 21
Air Consumption @ Load (l/min): 595
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: 2" Extended
Average Air Consumption (cfm): 5.4
Average Air Consumption (l/min): 153
Blows per Min: 1300
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 93.0 / 104.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 7000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 500
Max Torque (in-lb): 6001
Max Torque (nm): 678
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 6
Power Source: Air Powered
Product Length (in): 9.5
Product Width (in): 2.95
Product Height (in): 7.85
Product Weight (lb): 6.3
Recommended Forward Torque Range (ft-lb): 40-350
Recommended Forward Torque Range (in-lb): 478-4204
Recommended Forward Torque Range (nm): 54-475
Recommended Reverse Torque (ft-lb): 40-350
Recommended Reverse Torque (nm): 54-475
Retainer Type: Friction Ring
Side to Center Distance (in): 1.5
Side to Center Distance (mm): 38
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 8.6
Warranty: 1-year
