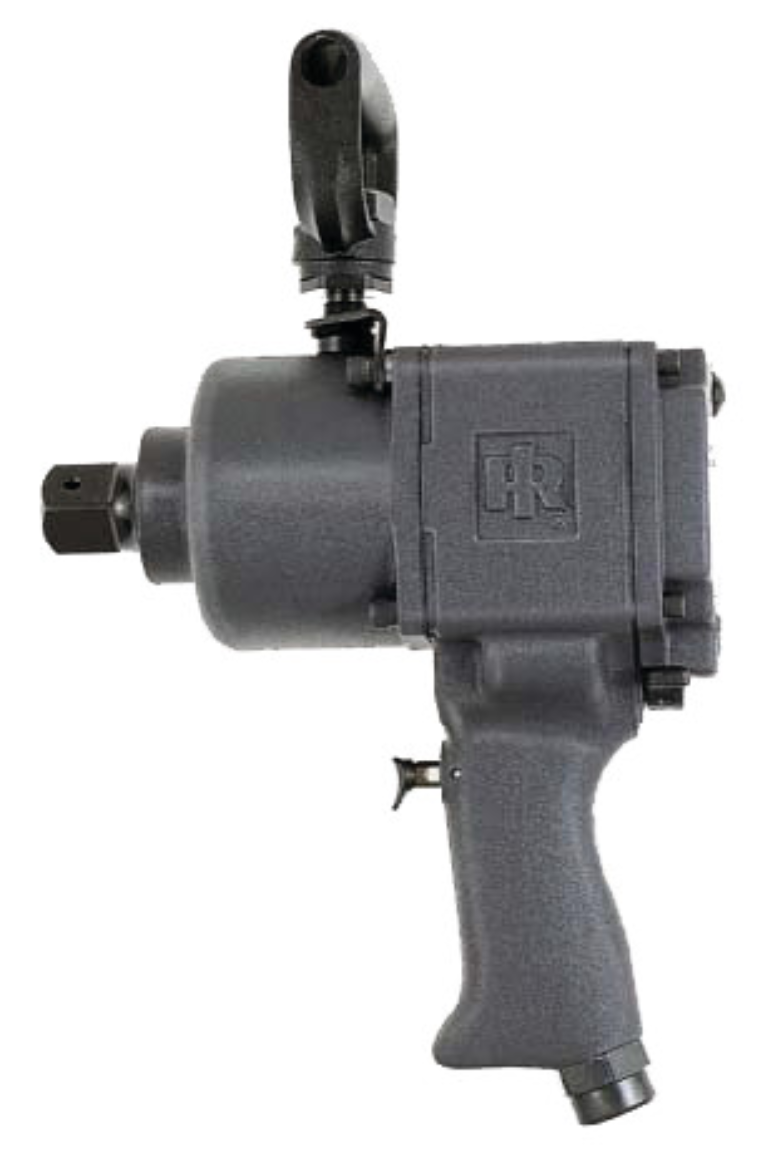

IR 290
1" Air Impact Wrench, Super Duty, 1600 ft-lb Torque, Thru-hole Retainer, Pistol
With a steel hammer case and metal housing, the 290 Series is built for heavy duty jobs. Through repeated drops in the garage or harsh outdoor weather conditions, this wrench will see you through every job.
Features And Benefits
- Reliability: Built to last, the 290 Series will work like new every time you use it.
- Great Power-to-Weight Ratio: Thanks to the 290 Series’ jumbo hammer impact mechanism, these wrenches provide increased control without an increase of effort.
- 3-way Adjustable Handle: Designed for getting into cramped spaces with big power.
Product Application and Uses: Designed for getting into cramped spaces with big power and great for spring work, tractor pads, bus maintenance, off-road equipment, and farm equipment.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 55
Air Consumption @ Load (l/min): 1557
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 800
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 101.6 / 112.6
Hammer Case: Steel
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Jumbo Hammer
Max Bolt Diameter (in): 1.25
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1600
Max Torque (in-lb): 19197
Max Torque (nm): 2169
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 9.75
Product Weight (lb): 21.9
Recommended Forward Torque Range (ft-lb): 150-1000
Recommended Forward Torque Range (in-lb): 1797-12002
Recommended Forward Torque Range (nm): 203-1356
Retainer Type: Thru-hole
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 22.7
Warranty: 1-year
