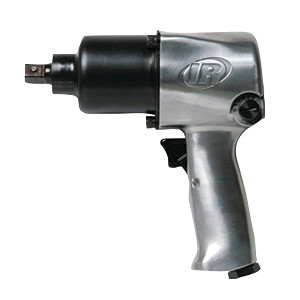

IR 2705P1
1/2" Air Impact Wrench, Heavy Duty, 600 ft-lb Torque, Pin Retainer, Pistol
The 2700 Series impact wrench is built strong with a twin hammer impact mechanism, smooth trigger actuation and an easy-to-hold pistol grip. This wrench’s vane motor delivers high torque output, while the power regulator allows for increased control.
Features And Benefits
- Durability: Steel hammer case and metal housing increases the ability to withstand drops or harsh conditions.
- Power and Performance: Finely tuned twin hammer impact mechanism and power regulator
Includes: Bare Tool
Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 4.2
Air Consumption @ Load (l/min): 119
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 1200
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 99.0 / 110.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 8500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 600
Max Torque (in-lb): 7196
Max Torque (nm): 813
Min Hose Size (in): 3/8
Motor: Non-Biased
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 106.5
Product Length (in): 7.3
Product Width (in): 2.81
Product Height (in): 7.7
Product Weight (lb): 5.63
Recommended Forward Torque Range (ft-lb): 40-200
Recommended Forward Torque Range (in-lb): 478-2399
Recommended Forward Torque Range (nm): 54-271
Retainer Type: Pin Detent
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 6.5
Warranty: 1-year
