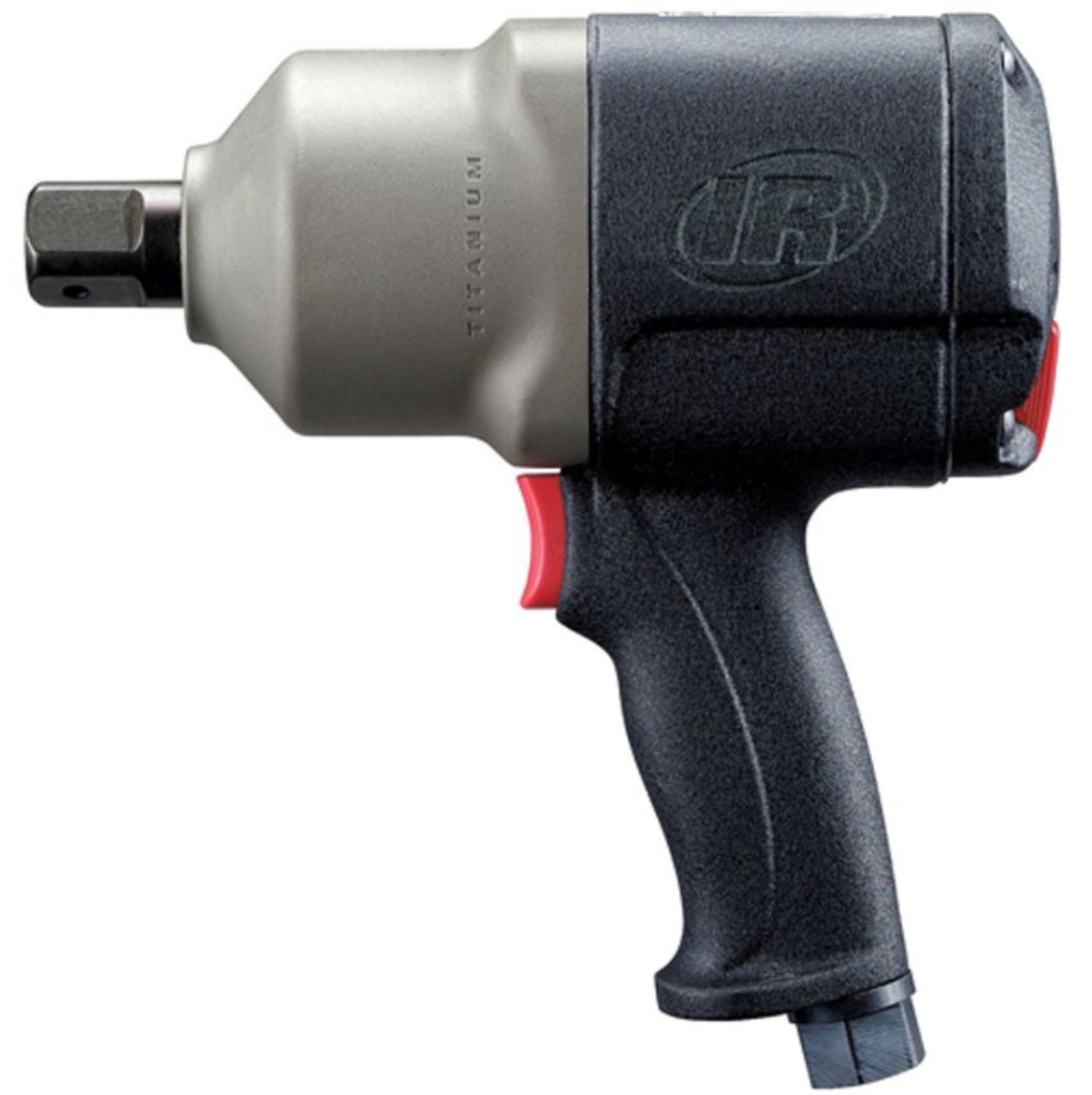

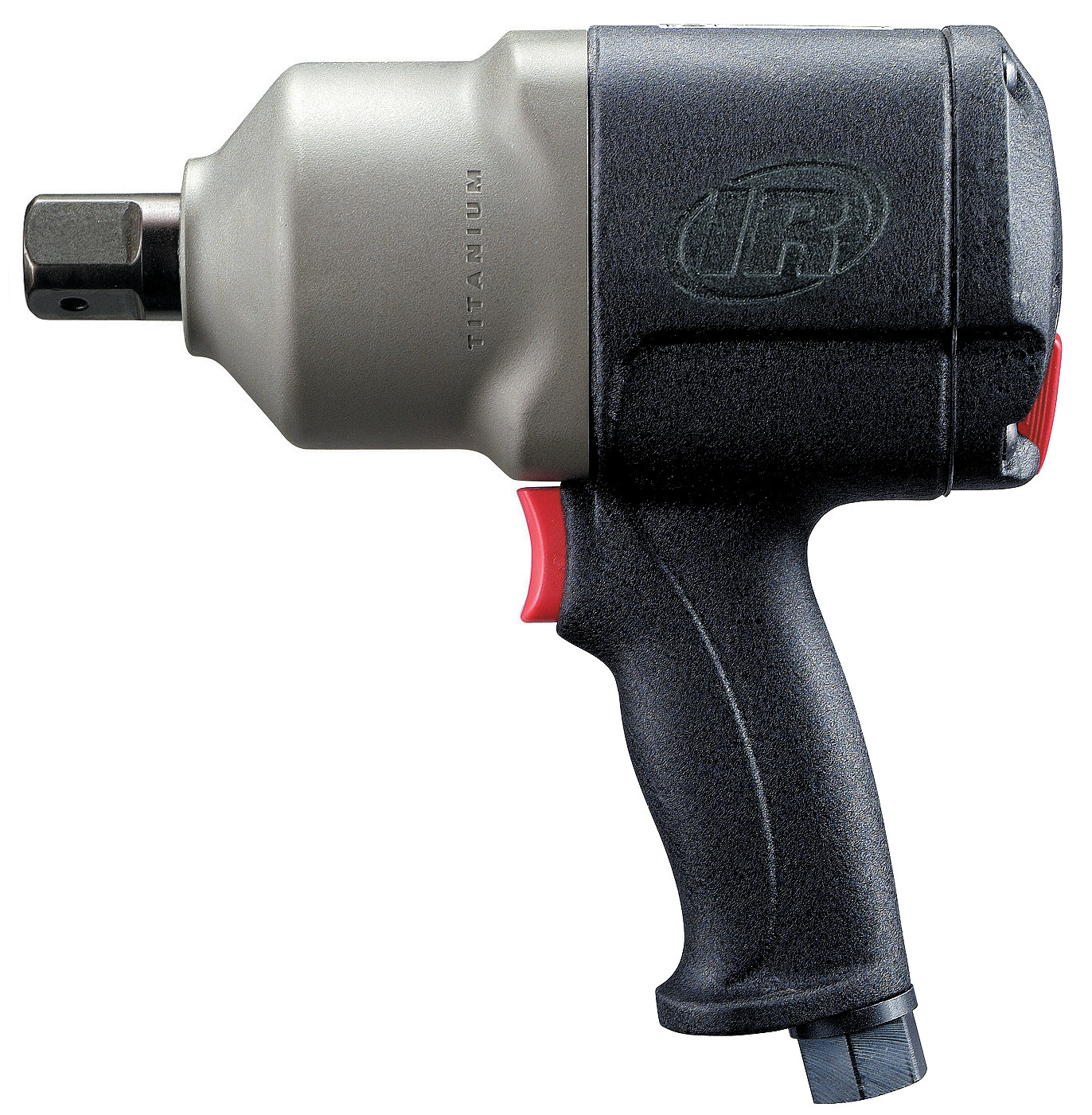

IR 2925P3TI
1" Air Impact Wrench, Heavy Duty, 1450 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, Pistol
Armed with a titanium hammer case and a special corrosion preventative treatment, this series is rust and corrosion resistant.
Features And Benefits
- Thanks to a titanium hammer case, this wrench is both lightweight and durable.
- The twin hammer impact mechanism means it's less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench's effectiveness.
- Bronze endplates and a corrosion preventative treatment prevents internal in outdoor, wet environments.
- Pressure-fed mechanism lubrication ensures complete coverage throughout the tool.
- Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
- Integral muffler.
- 3/8” NPT inlet.
Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 60
Air Consumption @ Load (l/min): 1699
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 1050
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.9 / 106.6
Max Bolt Diameter (in): 1-1/8
Max Free Speed (rpm): 5200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1497
Max Torque (in-lb): 17967
Max Torque (nm): 2030
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 9
Product Width (in): 3.5
Product Height (in): 9.6
Product Weight (lb): 12.2
Recommended Forward Torque Range (ft-lb): 1298
Recommended Forward Torque Range (in-lb): 15577
Recommended Forward Torque Range (nm): 1760
Retainer Type: Thru-hole
Side to Center Distance (in): 1.8
Side to Center Distance (mm): 46
Special Features: Titanium hammercase
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 10.5
Warranty: 1-year
