Impacts

IR 2235QTIMAX-G

1/2" IMPACT WRENCH

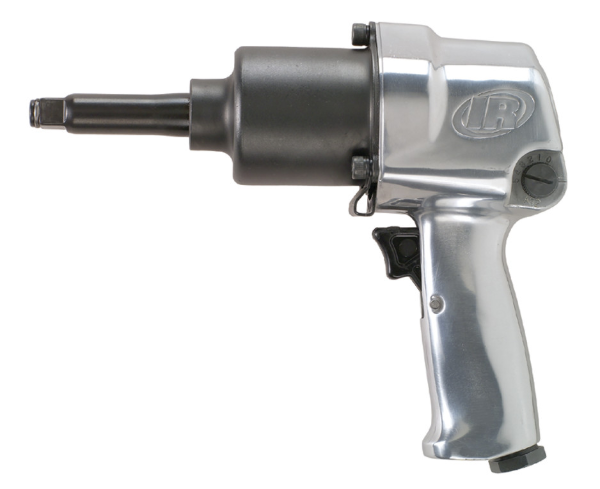

IR 244A-2

1/2" Air Impact Wrench, 2" Ext Anvil, Super Duty, 500 ft-lb Torque, Friction Ring Retainer, Pistol

The 244A Series ½” Impact Wrench comes loaded with a steel hammer case, square socket retaining ring, vane motor and metal housing — making this wrench one of the toughest, most durable impact wrenches on the market.

Features And Benefits

• Increased Control: The power regulator on the 244A Series provides you with increased control and stability on even your toughest projects.
• Durability: Tough and durable, the metal housing and steel hammer case on the 244A Series will help it hold up through repeated drops and harsh environments.
• Two-Piece Construction: Easy-to-service two-piece construction.
• Comfort and Control: Contoured handle for comfort and control. Patented one-hand forward/reverse for easy operation.
• Pressure Feed Lubrication: Pressure feed lubrication system automatically greases the impact mechanism.
• Extended Reach: The 2-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.

Product Application and Uses: General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 21
Air Consumption @ Load (l/min): 595
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: 2" Extended
Average Air Consumption (cfm): 5.4
Average Air Consumption (l/min): 153
Blows per Min: 1300
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 93.0 / 104.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 7000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 500
Max Torque (in-lb): 6001
Max Torque (nm): 678
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 6
Power Source: Air Powered
Product Length (in): 9.5
Product Width (in): 2.95
Product Height (in): 7.85
Product Weight (lb): 6.3
Recommended Forward Torque Range (ft-lb): 40-350
Recommended Forward Torque Range (in-lb): 478-4204
Recommended Forward Torque Range (nm): 54-475
Recommended Reverse Torque (ft-lb): 40-350
Recommended Reverse Torque (nm): 54-475
Retainer Type: Friction Ring
Side to Center Distance (in): 1.5
Side to Center Distance (mm): 38
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 8.6
Warranty: 1-year

Similar IR

• 244A
• 2135QXPA-2
• 2235TIMAX-2

MPT 4940A2

Impact Straight 1 in. Sq. Drive OT

SX IW75BP-8H

Impact Wrench, 1in Sq Dr, Pistol Handle

SUM ST-5830P

Impact Wrench, 1 Inch Square Drive, Super Duty, Twin Hammer

IR 2131PSP

1/2" IMPACT WRENCH

IR 2135PTIMAX-A

1/2" Air Impact Wrench, 1100 ft-lb Torque, Titanium Hammercase, Pin Retainer, Pistol

Powerful, durable and reliable, the 2135PTiMAX Series Impact Wrench will excel in any market.

Features And Benefits

• Power: This wrench's high torque output and power regulator allow easy control over your tool.
• Durability: With a composite housing and a hammer case made of titanium, this wrench can endure repeated drops and harsh environments.
• Reliability: With twin hammer mechanism and powerful motor, the 2135PTiMAX is built not only for performance, but to last. Comes with a 1-year warranty.

Product Application and Uses: Designed to remove and install threaded fasteners for vehicle repair, general industrial, facility maintenance applications.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 5
Average Air Consumption (l/min): 142
Blows per Min: 1250
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 109.2 / 120.2
Hammer Case: Titanium
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 99.8 / 110.8
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 9800
Max Pressure (bar): 6.2
Max Torque (ft-lb): 780
Max Torque (in-lb): 9364
Max Torque (nm): 1058
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1100
Nut-busting/Breakaway Torque (in-lb): 13196
Nut-busting/Breakaway Torque (nm): 1491
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 278.48
Product Length (in): 7.35
Product Width (in): 2.7
Product Height (in): 7.2
Product Weight (lb): 3.95
Recommended Forward Torque Range (ft-lb): 600
Recommended Forward Torque Range (in-lb): 7196
Recommended Forward Torque Range (nm): 813
Retainer Type: Pin Detent
Side to Center Distance (in): 1.37
Side to Center Distance (mm): 35
Special Features: Titanium Hammer case
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 13.3
Warranty: 1-year

IR 3940B1TI

No. 5 Spline Air Impact Wrench, Super Duty, 2750 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Inside Trigger

With a titanium hammer case, bronze end plates and torque up to 2750 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits

• Power: High torque output of 2750 ft-lbs and 800 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding

Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 64
Average Air Consumption (l/min): 1812
Blows per Min: 800
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): No. 5
Drive Type: Spline
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 103.4 / 114.4
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 100.6 / 111.6
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2750
Max Torque (in-lb): 33004
Max Torque (nm): 3729
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 13.5
Product Weight (lb): 21.2
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 500-1800
Recommended Forward Torque Range (in-lb): 6001-21596
Recommended Forward Torque Range (nm): 678-2440
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 13.1
Vibration Uncertainy K* (m/s2): 1.6
Warranty: 1-year

Similar IR

• 3940A1TI
• 3942B1TI
• 3955B1TI

IR 588A1-EU

IMPACTOOL 588A1-EU

IR 5980A1-EU

IMPACTOOL 5980A1-EU

IR 2171XP-6

IMPACT TOOL WITH 6" EXTENDED ANVIL

IR 2080-92G

IMPACT HANDLE

IR 2940A1

No. 5 Spline Air Impact Wrench, 1600 ft-lb Torque, 850 BPM, D-handle Outside Trigger

Actuation/Throttle Type/Switch Type: Outside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 850
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): No. 5
Drive Type: Spline
Duty Rating: Industrial Duty
Exhaust Location: Bottom
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1601
Max Torque (in-lb): 19206
Max Torque (nm): 2170
Min Hose Size (in): 3/4
Motor: Non-Biased
Power Source: Air Powered
Product Length (in): 10.2
Product Width (in): 22.1
Product Height (in): 6.5
Product Weight (lb): 22
Recommended Forward Torque Range (ft-lb): 1003-1601
Recommended Forward Torque Range (in-lb): 12037-19206
Recommended Forward Torque Range (nm): 1360 - 2170
Recommended Reverse Torque (ft-lb): 1003-1601
Recommended Reverse Torque (nm): 1360-2170
Side to Center Distance (in): 11.1
Side to Center Distance (mm): 282
Sound Pressure/Power Db(A): 94.8 / 105.8
Tool Type: Full-size
Vibration Level (m/s2): 17.8
Vibration Uncertainy K* (m/s2): 3.4
Warranty: 1-year

Similar IR

• 2940A2
• 280-S-6
• 285B-S6

IR SK8M4LN

1" Drive Hex Universal Metric Impact Socket Set, 4-Piece

Includes: sockets and blow-molded case
Drive Size (in): 1
Number of Points: 6
Socket Bit Type: Hex
Socket Depth: Standard
Socket Measurement Type: Metric
Special Features: Schlagfestigkeit
Warranty: Lifetime Limited

For Use With

• 1712B2
• 2175MAX
• 2175MAX-6
• 271
• 2850MAX
• 2850MAX-6
• 285B
• 285B-6
• 285B-6-AP
• 2925P3TI
• 2940B2
• 295A
• 3940B2TI
• 3940B2TIEX
• 3940P2TI
• 3942B2TI
• 3942B2TIEX

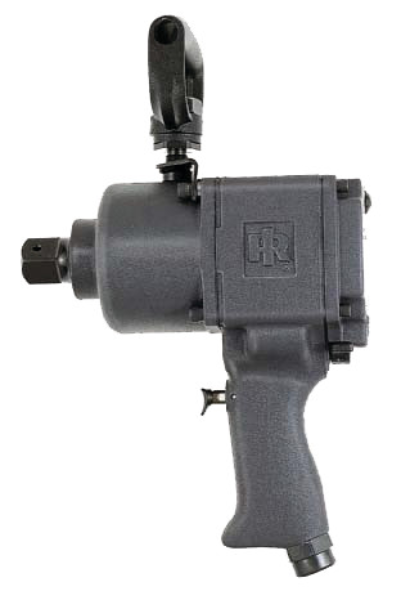

IR 290

1" Air Impact Wrench, Super Duty, 1600 ft-lb Torque, Thru-hole Retainer, Pistol

With a steel hammer case and metal housing, the 290 Series is built for heavy duty jobs. Through repeated drops in the garage or harsh outdoor weather conditions, this wrench will see you through every job.

Features And Benefits

• Reliability: Built to last, the 290 Series will work like new every time you use it.
• Great Power-to-Weight Ratio: Thanks to the 290 Series’ jumbo hammer impact mechanism, these wrenches provide increased control without an increase of effort.
• 3-way Adjustable Handle: Designed for getting into cramped spaces with big power.

Product Application and Uses: Designed for getting into cramped spaces with big power and great for spring work, tractor pads, bus maintenance, off-road equipment, and farm equipment.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 55
Air Consumption @ Load (l/min): 1557
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 800
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 101.6 / 112.6
Hammer Case: Steel
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Jumbo Hammer
Max Bolt Diameter (in): 1.25
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1600
Max Torque (in-lb): 19197
Max Torque (nm): 2169
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 9.75
Product Weight (lb): 21.9
Recommended Forward Torque Range (ft-lb): 150-1000
Recommended Forward Torque Range (in-lb): 1797-12002
Recommended Forward Torque Range (nm): 203-1356
Retainer Type: Thru-hole
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 22.7
Warranty: 1-year

Similar IR

• 280

IR 01372465

IMPACTOOL

IR 2235TIMAX-R

1/2" IMPACT WRENCH
