Indicator, Rupture 6400 Psi

GG 563226

INDICATOR, RUPTURE 6400 PSI

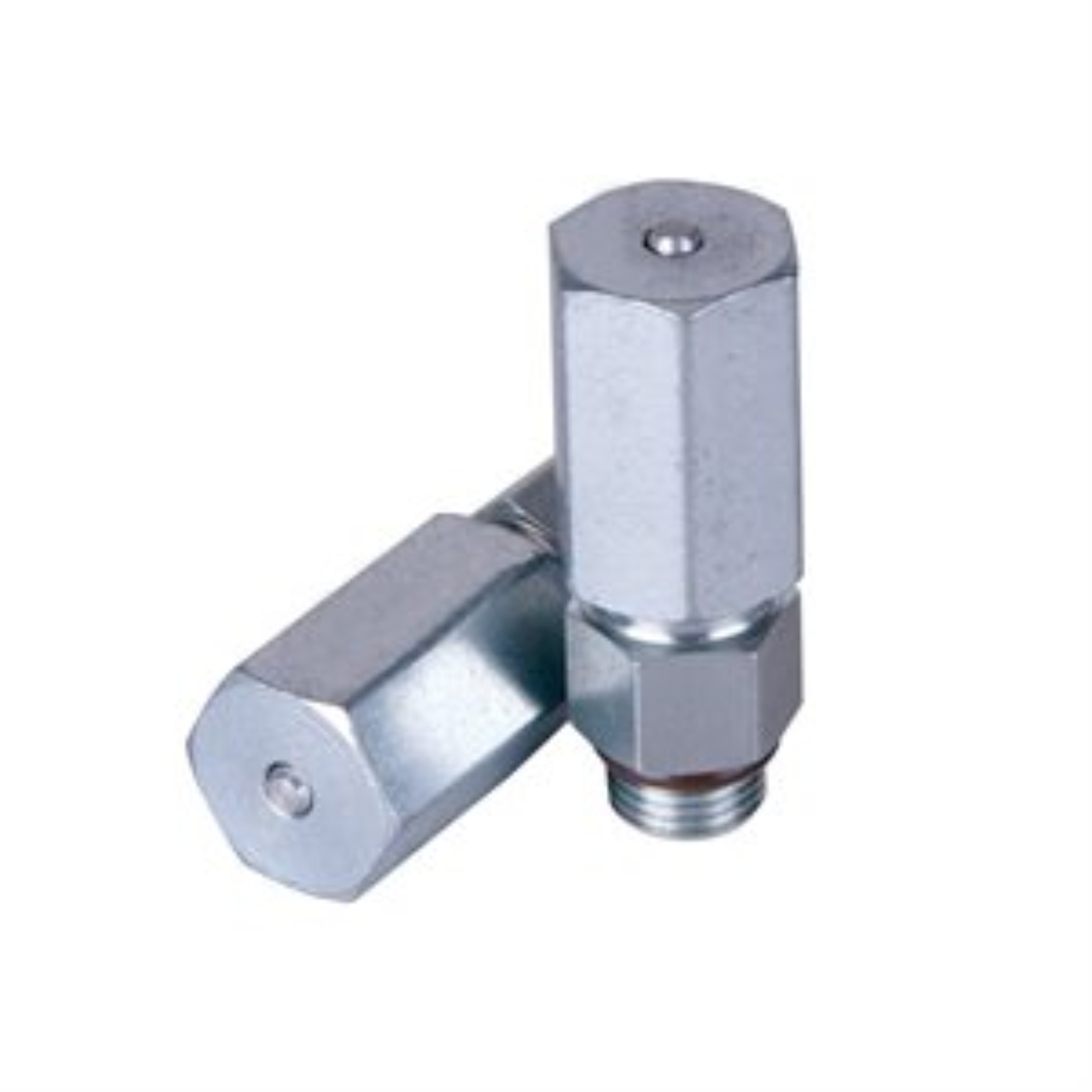

Graco 563226 Trabon Replacement Rupture Indicator, 1/8-27 NPSF with O-Ring, 6400 psi (441 bar)

Used on MH divider valve applications where lube system pressures exceed 2,500 psi (172 bar).

• High pressure from blockage causes a disc to rupture
• Lubricant forces an indicator pin to protrude, indicating the blockage
• High pressure backs up through the system and trips a switch to shut the system off
• Lubriquip part number 509-499-165

• Model: Trabon

• Application: In-Plant Machinery, Compressor Equipment

• Compatible Material: Oil

• Connection Size (in): 0.125

• Indicator Type: Rupture Indicator

• Maximum Working Pressure (bar): 441
• Maximum Working Pressure (kPa): 44100
• Maximum Working Pressure (MPa): 44
• Maximum Working Pressure (psi): 6400

• Overall Length (cm): 4
• Overall Length (in): 1.77
• Overall Length (mm): 45
• Overall Width (cm): 1.4224
• Overall Width (in): 0.56
• Overall Width (mm): 14.224
