Kit, Package, 400# Drum Npt

GG 24J042

KIT, PACKAGE, 400# DRUM NPT

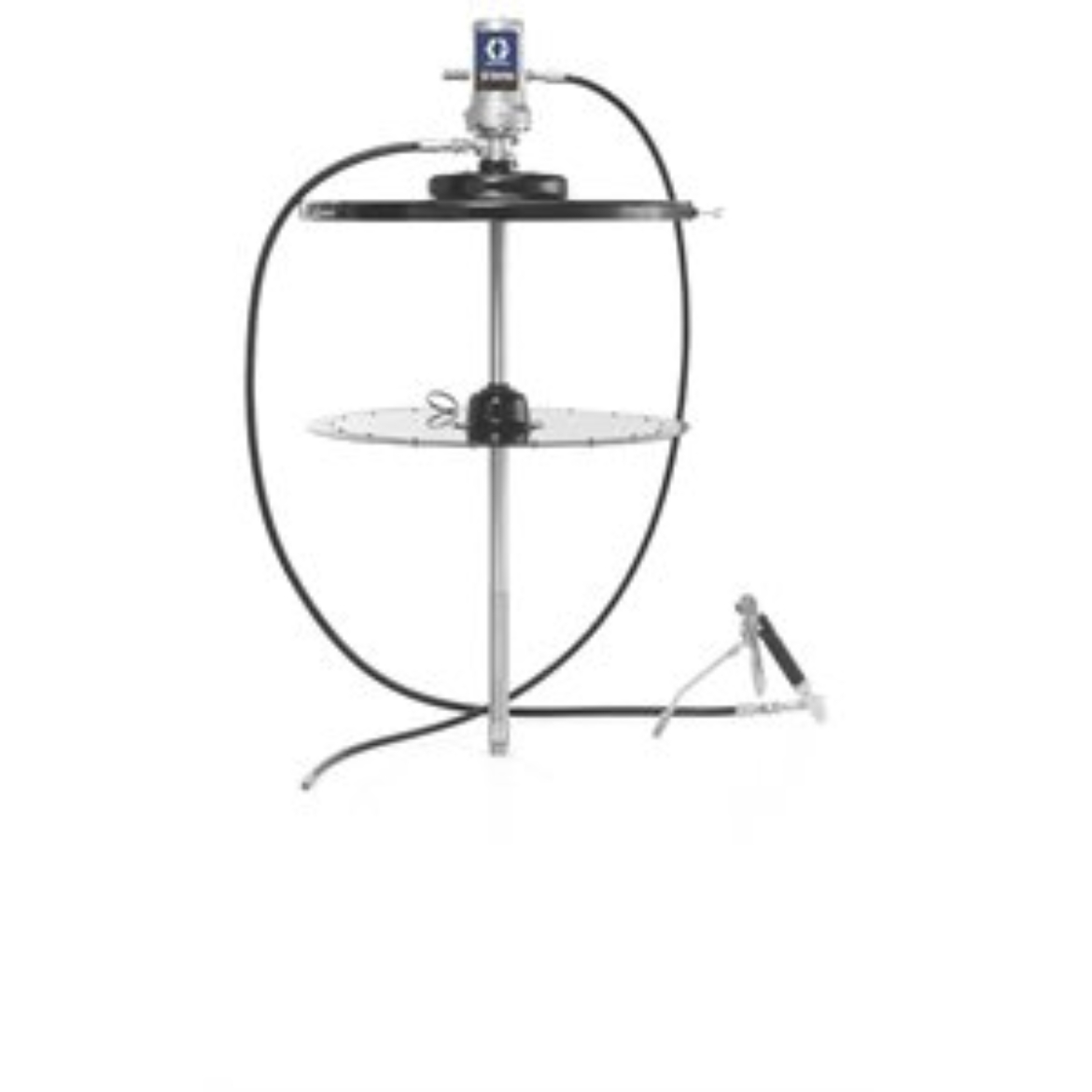

Graco 24J042 LD Series 50:1 400 lb. (180 kg) Grease Pump - Stationary Package

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

• Three Inch Air Motor - Provides more power to create better flow.
• Engineered for Durability - Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.

• Model: LD

• Air Inlet Size (in): 0.25

• Application: Grease

• Compatible Material: Grease

• Container Size (lb): 400

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Power Type: Pneumatic

• Pump Ratio: 50:1
