Kits

GG 25N410

KIT, PUMP, 4B, BELLOWS, 2000 CC

Sealed 4-Ball Lower, 2000cc, Chrome Cylinders, Standard Top Plate Rotation Graco’s Sealed 4-Ball Lower needs no routine maintenance and prevents unexpected downtime. The sealed fluid section eliminates the need for TSL (throat seal liquid). Designed to keep pumping in the event of a bellows failure, the lower allows you to schedule maintenance. Chrome coating on lower rods and cylinders works well for fine pigment paint and fluids with low lubrication, such as solvents and water. Connection kits contain tie rods and adapters – everything required to upgrade most legacy Graco circulation pumps to the latest technology. Refer to manual 311876 for complete information.

GG 25N415

KIT, BARE FMS METER

Pulse® Oil Bar Dispense Meter Graco dispense meters designed for our Pulse® fluid management system are durable and easy to use. Everything you need is at your fingertips. Enter PINs and other data using the intuitive display. Track and record inventory levels with electronic metering Increase technician productivity Flexible—one meter can handle all fluids Reliable—time-tested Graco engineering Large, Intuitive Display—high-contrast display for low and bright light conditions Protective trigger guard—prevents accidental dispenses Four finger trigger with lock-on feature No need to leave bay or use computer to complete dispense Long battery life—uses 4 AA easy-to-replace batteries

GG 25N426

KIT, PUMP, 4B, BELLOWS, 1500 CC

Sealed 4-Ball Lower, 1500cc, Ultralife Cylinders, 90° Top Plate Rotation Graco’s Sealed 4-Ball Lower needs no routine maintenance and prevents unexpected downtime. The sealed fluid section eliminates the need for TSL (throat seal liquid). Designed to keep pumping in the event of a bellows failure, the lower allows you to schedule maintenance. 90° top plate rotation makes installation easy on motors with back inlet/front outlet orientation. Connection kits provide all components required to upgrade to the newest technology. Ultralife coating on lower rods and cylinders means a smoother finish, better wear and longer seal life for most applications.

GG 25P133

KIT, DIAPHRAGM-D1 PO

PTFE/EPDM Overmold Diaphragm Kit for 1-inch Pump

GG 25P210

KIT, DIAPHRAGM-F1 EO

EPDM Overmold Diaphragm Kit for 1.5-inch Pump

GG 25P686

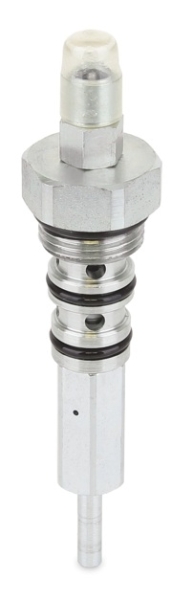

Kit, Afso

GG 25P690

Kit, Vent Valve

GG 25P693

Kit, Follower Plate, Cds

GG 25P695

Kit, Sensor, Switch, 12L

GG 25P702

KIT, FUSION PC, RETRO, RND, 02

Fusion ProConnect Retrofit Kit with Round 02 Mix Chamber and 0.052 in (1.3 mm) Orifice Size Transform your Fusion Air Purge gun into a Fusion PC with the ProConnect Retrofit Kit, allowing you to take full advantage of what the Fusion PC delivers: A perfect rebuild in seconds. The Retrofit Kit is compatible with all Fusion AP guns and is available in multiple mix chamber sizes. Acquire all the advantages of the revolutionary Fusion ProConnect while utilizing your existing Fusion AP handle and fluid manifold. Same Fusion AP gun, all new possibilities A single cartridge replaces the entire fluid section in seconds Sprays exactly like a Fusion AP Integrated check valves for cross-over containment 13 parts are replaced by a single ProConnect cartridge Eliminates the need to purchase fluid section o-rings Spare ProConnect cartridges can replace your back-up guns

GG 25P947

Kit, Cable, Cds, W/Ll

GG 25R332

Kit, Transducer, Pressducer

GG 25S027

KIT, MIXER, 10MM, 12ELEMENT, 50PK

GG 25T675

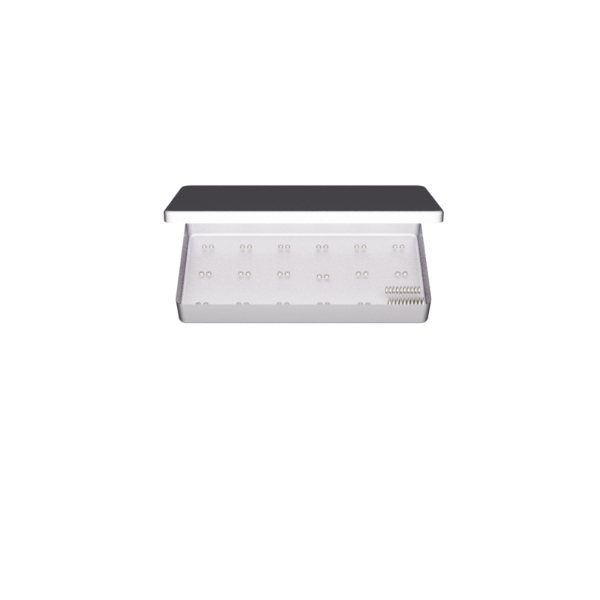

KIT, SAMPLE, ORIFICE

GG 25T718

KIT, HARNESS, EXTENSION, 3M

GG 25T719

KIT, HARNESS, EXTENSION, 6M

GG 25T720

KIT, HARNESS, EXTENSION, 15M

GG 25T729

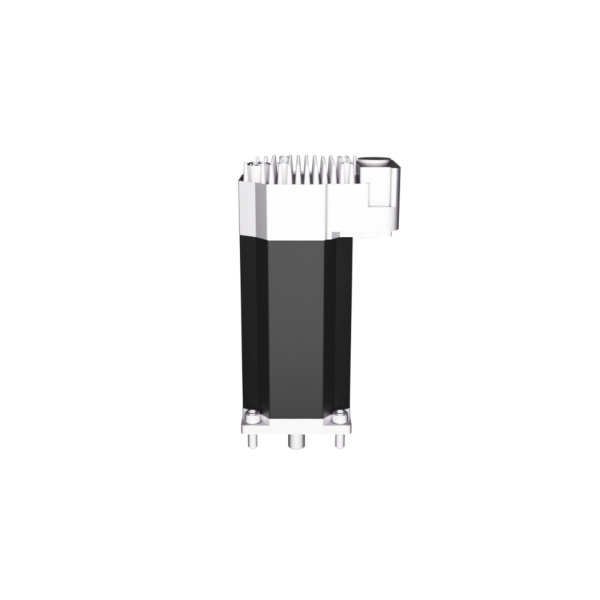

KIT, MOTOR REPLACEMENT

GG 25U268

KIT, PRESSURE TRANSDUCER

GG 25U361

KIT, VOLTEX, VALVE, RECIRC

Voltex Two-Component Dynamic Mix Valve with Recirculation The Voltex Dynamic Mix Valve is a rotary static valve that consistently mixes and dispenses materials requiring exceptional mixing energy. Engineered with rugged components and precision controls that eliminate dispensing inconsistencies, reduce maintenance downtime, and optimize material usage. Reliably mixes, recirculates, and dispenses difficult foaming polyurethanes, low viscosity silicones, and other hard to blend two component chemistries. Recirculation controls activate between dispensing to properly suspend mixed materials and prevent premature curing. Easily integrates with Graco meter, mix, and dispense systems like the EFR, PR70, or HFR for a complete dispensing solution. Control system delivers precision RPM control, and real time monitoring for dispensing process stability. Built with durable check valves and disposable mixers that reduce maintenance and downtime.

GG 25U384

KIT, POWER SHUTOFF, 13MM MIXER

Voltex 2K Power Shut-Off Kit for 13mm Mixer 2K Power Shut-Off Kit for Voltex Dynamic Mix Valves ensure clean material dispense and shut-off to eliminate bead tails, dripping, and messy clean up.

GG 25U386

KIT, POWER SHUTOFF, 8MM MIXER

Voltex 2K Power Shut-Off Kit for 8mm Mixer 2K Power Shut-Off Kit for Voltex Dynamic Mix Valves ensure clean material dispense and shut-off to eliminate bead tails, dripping, and messy clean up.

GG 25U389

KIT, HARNESS, TIP SHUTOFF, EFR

GG 25V145

KIT, HOSE REEL, XT

Modular QuikReel Kit for 695 XT, 795 XT & 1095 XT Easy hose management with QuikReel Hose Management System. Deploy and rewind up to 300 feet of hose in seconds without twisting, kinking or coiling.

GG 25V482

KIT, SOLENOID, AIR, PUMP

Air Control Solenoid Valve for Fluid Defender® Regulate air powered equipment connected to the Fluid Defender and Pulse Fluid Defender to help prevent pump cavitation or tank overflow. Control air operated pumps and air actuated control valves Continuously powered during normal operation with the air control solenoid valve being open to provide air pressure to the controlled equipment When the Fluid Defender detects an alarm condition in the same channel as the air control solenoid valve, the solenoid is deactivated causing the connected equipment to deactivate
