GG 247955
KIT, T1, COMPLETE SYSTEM

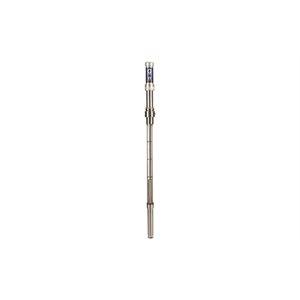

Graco 247955 T1 Complete Package: Includes 2 Pumps (Stainless Steel), 2 Supply Hoses, Air Supply Kit and Desicant Dryer Kit
Gracos family of transfer pumps maintain performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.
Application: Ideal for moving A and B materials to Reactor spray machines.
- Provide consistent feed pressures and flow rates for dependable results
- Lower pressure drops with higher viscosity materials at any ambient temperature
- Designed and manufactured by the worldwide leader in pump technology
- Quick-release bung adapter for easy drum removal without interference from hose connections
- Stainless steel wetted parts for corrosion-resistance
- PTFE seals for improved performance and less maintenance
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: Polyurethane Materials
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- For Use With: Reactor Proportioner
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 12.5
- Maximum Air Inlet Pressure (kPa): 1250
- Maximum Air Inlet Pressure (MPa): 1.2
- Maximum Air Inlet Pressure (psi): 180
- Maximum Continuous Cycle Rate (CPM): 100
- Maximum Flow Rate (GPM): 2.5
- Maximum Flow Rate (L/min): 9.5
- Maximum Operating Temperature ( degree C): 82
- Maximum Operating Temperature ( degree F): 180
- Maximum Working Pressure (bar): 25
- Maximum Working Pressure (kPa): 2500
- Maximum Working Pressure (MPa): 2.5
- Maximum Working Pressure (psi): 360
- Package Options: Air Supply & Supply Hose
