Module, Inj, 24V, Hp, 60#, Tank, F, Ll

GG 77X104

MODULE, INJ, 24V, HP, 60#, TANK, F, LL

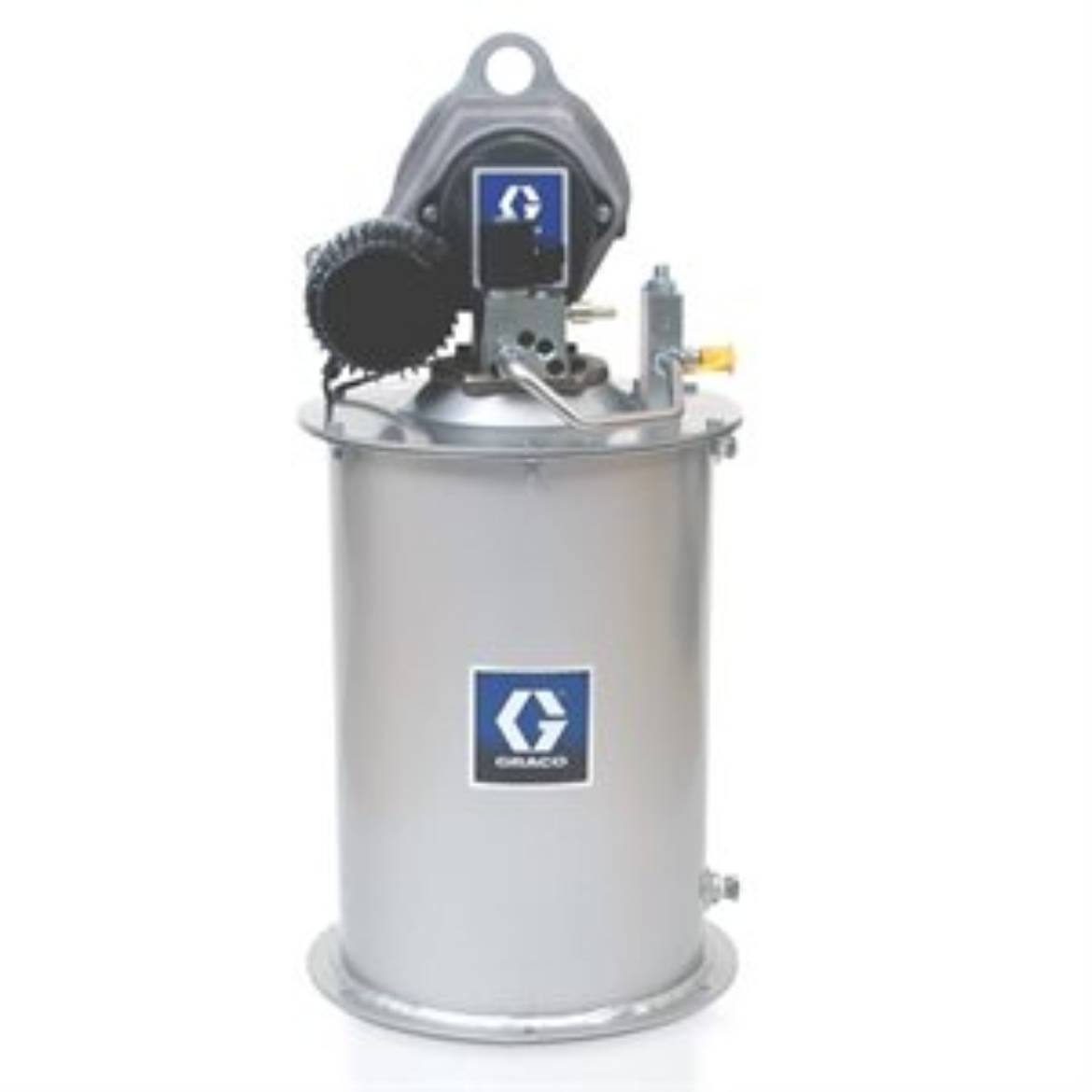

Graco 77X104 Electric Dyna-Star HP 24 VDC Injector Module with Pump, Tube-in-Tube, Vent Valve, Follower Plate, LL Kit, Cover, Tank for 60 lb (27 kg). Reservoir

The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. For heavy-duty construction and mining equipment, rely on the Electric Dyna-star to supply fresh lubricant and flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

• High-quality helical hardened steel gears are lubricated for life and sealed to keep contaminants out for longer lasting performance.
• Ability to adjust motor controls like power input, motor speed, current control and signal input to perfectly match the pump to your application and environmental changes.
• Mechanical auto-fill shutoff and remote-mounted fill port ensures clean and efficient refills.
• IP69K rated
• Built-in pressure relief for safety and compact, efficient installations.
• Cavitation-free fill and vent path provides simple and direct venting and filling to the foot of the pump.
• Built-in lift ring is rated to 500 lbs (226 kg).
• Strong 12 gauge steel reservoir, 60 lb (27 kg) size.
• AC to DC Converter Box for fixed and in-plant applications.

• Model: Dyna-Star

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Single Line Parallel

• Fluid Outlet Size (in): 0.375
• Fluid Outlet Size (mm): 9.5250
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: HP Pump 24 VDC, tube-in-tube, Vent Valve, cover, 60 lb. reservoir

• IP Rating: IP69K

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum cST Grade (cST): 40

• Overall Height (cm): 77.5
• Overall Height (in): 30.5
• Overall Height (mm): 775
• Overall Width (cm): 36.8
• Overall Width (in): 14.5
• Overall Width (mm): 368

• Power Connection Type: M12

• Power Type: Pneumatic
