Module, Stack, Lg Mxr, Vlv

GG 25A997

MODULE, STACK, LG MXR, VLV

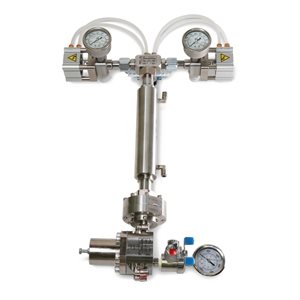

Graco 25A997 Straight Thread Single Pass Mixing Stack with Material Valves

Straight Thread Single-Pass Mixing Stack designed for Graco F-5 two-component LSR equipment.

• Reduce pressure drops

  High-flow material passages on the regulator are 225% larger which reduces pressure drops through the barrel stack.

  • Easier to clean + assemble- No tapered national pipe thread (NPT) threads and regulator and mixer enhancements for greater clearance. Reduces cleaning time by 50 percent so you can spend more time producing parts.




  • Model: LSR
  • Air Line Tube Length (ft): 3
  • Air Line Tube Length (m): 0.915
  • Air Line Tube Outside Diameter (cm): 0.8
  • Air Line Tube Outside Diameter (in): 5/16
  • Air Line Tube Outside Diameter (mm): 8
  • For Use With: Fluid Automation F4 Series
  • Includes: Manifold, Mixer and Regulator, Manifold On/Off Valves, Solenoid Block With Two Solenoids
  • Number of Pieces: 12
