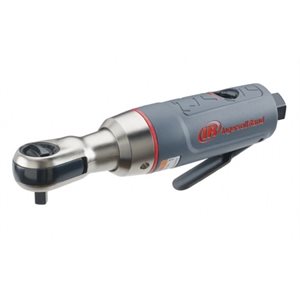

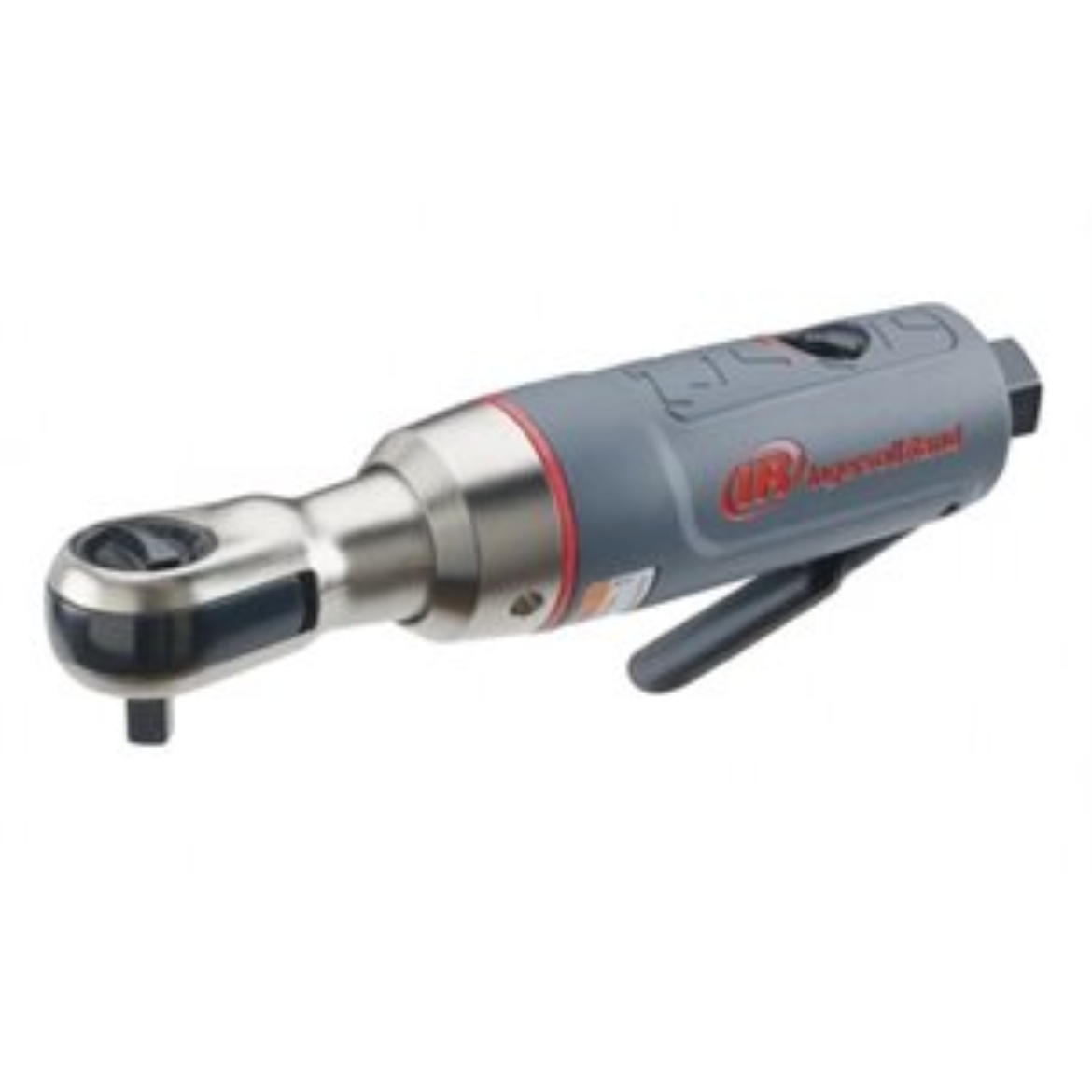

IR 1105MAX-D3
3/8" Air Ratchet Wrench, 30 ft-lb Torque, 300 RPM
The 1105MAX Series is our top-of-the-line, premium mini impact wrenches. These air ratchets offer best-in-class power and speed with features like enhanced corrosion resistance and an ultra-comfortable housing.
Features And Benefits
- Increased Access & Reach: These mini ratchet wrenches let you get into deep, tight, and hard-to-reach places.
- Long-Lasting Comfort: The composite housing and handle insulates from the cold and ensures operator comfort even during extended use.
- Trusted Durability: The 1105MAX Series can withstand harsh environments and repeated drops.
Includes: Bare Tool
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption (cfm): 20
Air Consumption (l/min): 566
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 3.5
Average Air Consumption (l/min): 99
Color: Black
Configuration/Handle Type: Straight
Drive Size (in): 3/8
Duty Rating: Industrial Duty
Exhaust Location: Rear
Housing Material: Aluminum core with composite sleeve
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 3/8
Max Free Speed (rpm): 300
Max Pressure (bar): 6.2
Max Torque (ft-lb): 30
Max Torque (in-lb): 363
Max Torque (nm): 41
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 7.36
Product Width (in): 1.6
Product Height (in): 1.46
Product Weight (lb): 1.43
Recommended Forward Torque Range (ft-lb): 5.2-25
Recommended Forward Torque Range (in-lb): 62-301
Recommended Forward Torque Range (nm): 7-34
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 88.9 / 99.9
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 5.7
Warranty: 1-year
