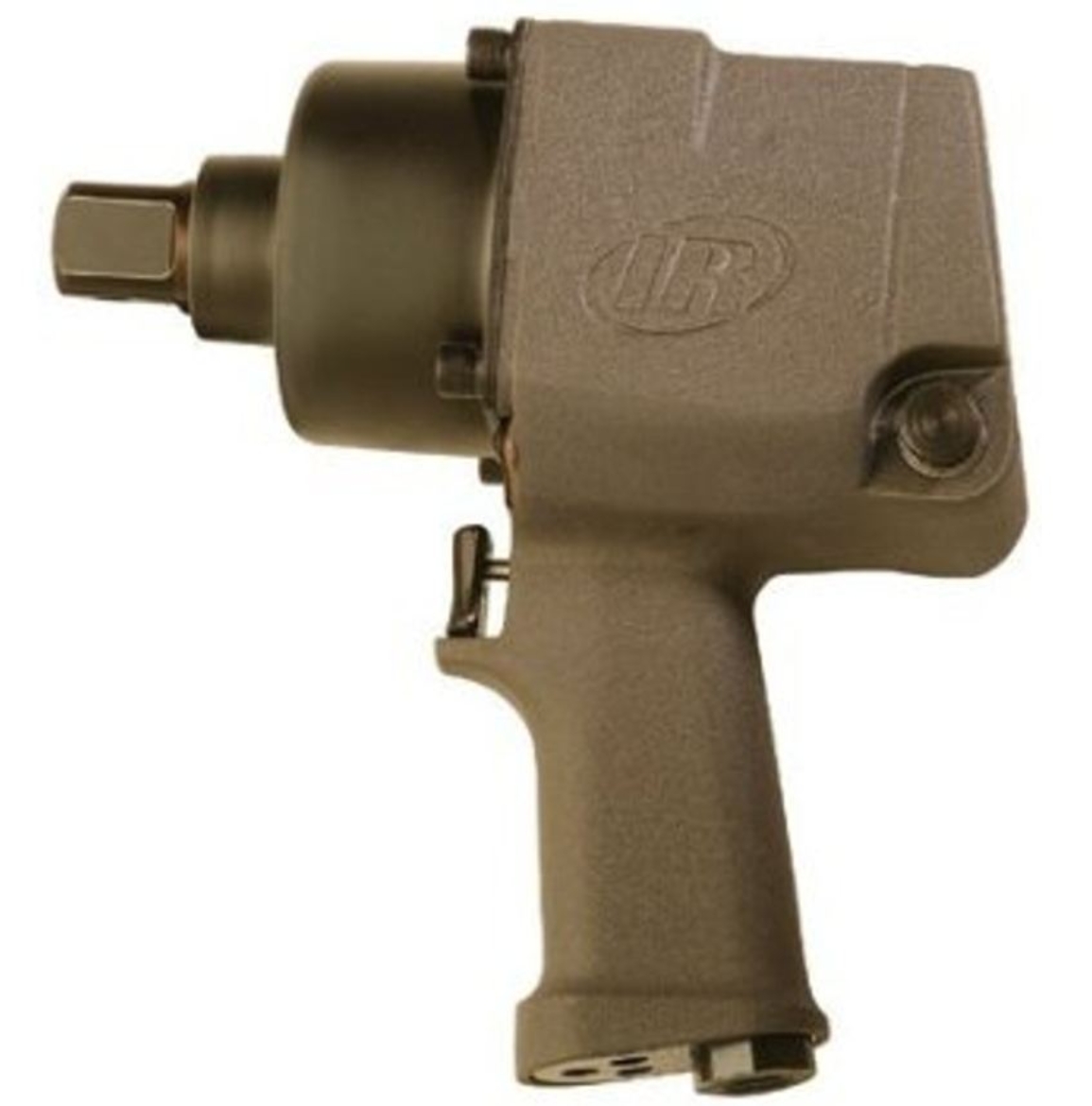

IR 1720P3
1" Air Impact Wrench, Heavy Duty, 1100 ft-lb Torque, Thru-hole Retainer, Pistol
The 1720 Series Impact Wrench features a jumbo hammer impact mechanism with an optimized power-to-weight ratio. Paired with its steel hammer case and metal housing, this tool is ready for even the toughest jobs.
Features And Benefits
- Different Trigger Styles Available: Featuring both trigger and butterfly actuation, this tool is ready for anything.
- Durability: Ingersoll Rand has built the 1720 Series Impact Wrench to last. Even through frequent dropping and harsh environments, this tool is reliable from its first use to its last.
Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1132
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 1000
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 100.5 / 111.5
Hammer Case: Steel
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 98.5 / 109.5
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 8
Product Length (in): 7.63
Product Width (in): 11.4
Product Height (in): 5
Product Weight (lb): 12.54
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 251-749
Recommended Forward Torque Range (in-lb): 3009-8992
Recommended Forward Torque Range (nm): 340 - 1016
Retainer Type: Thru-hole
Side to Center Distance (in): 5.7
Side to Center Distance (mm): 145
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 13.2
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year
