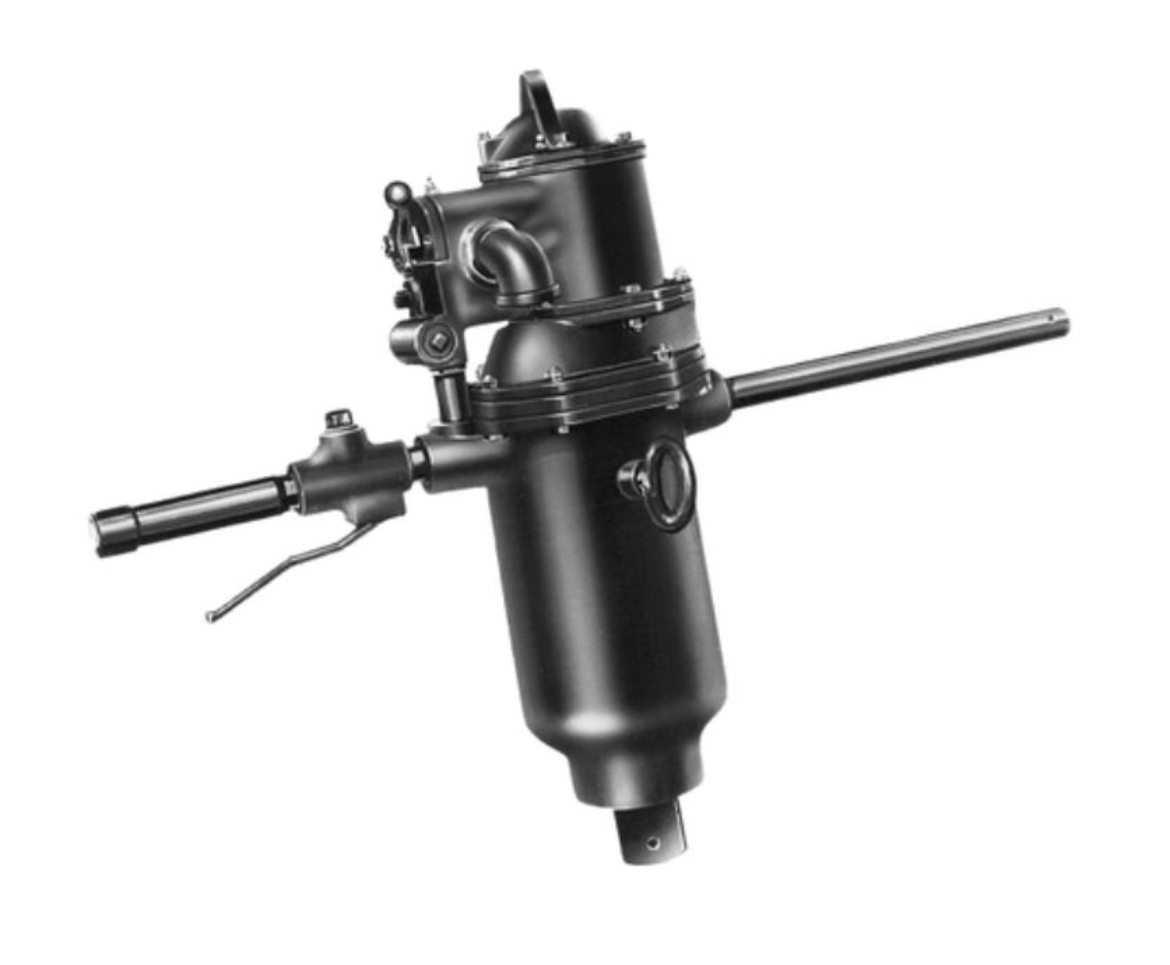

IR 588A1
2-1/2" Air Impact Wrench, Super Duty, 50,000 ft-lb Torque, Thru-hole Retainer, T-handle
The 588A1 Impact Wrench delivers high power, doesn’t stall, and delivers smooth, constant speed from its motor.
Features And Benefits
- Durability: With a cast iron hammer case and bronze end-plate, this wrench is spark proof and corrosion resistant. It will withstand even the harshest conditions.
- Reliability: Doesn’t stall, and delivers smooth, constant speed from its motor. Built with the most premium parts in the industry, this wrench is designed to last.
- Power: With a high torque output and maximum power of 50,000 ft-lbs max torque, this wrench makes every job a breeze.
- Built-in lubricator
Product Application and Uses: These Air Impact Wrenches are designed to remove and install threaded fasteners requiring high torque. Engineered to withstand the harshest working conditions in oilfields, mines, and shipyards.
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 155
Average Air Consumption (l/min): 4389
Blows per Min: 550
Color: Grey
Configuration/Handle Type: T-handle
Drive Size (in): 2-1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 110.0 / 121.0
Hammer Case: Cast Iron
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 3
Max Free Speed (rpm): 355
Max Pressure (bar): 6.2
Max Torque (ft-lb): 50000
Max Torque (in-lb): 599992
Max Torque (nm): 67790
Min Hose Size (in): 1
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 26.63
Product Weight (lb): 215
Recommended Forward Torque Range (ft-lb): 12000-25003
Recommended Forward Torque Range (in-lb): 144002-300040
Recommended Forward Torque Range (nm): 16270 - 33900
Retainer Type: Thru-hole
Side to Center Distance (in): 4
Side to Center Distance (mm): 102
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 5
Vibration Level (m/s2): 20.5
Warranty: 1-year
