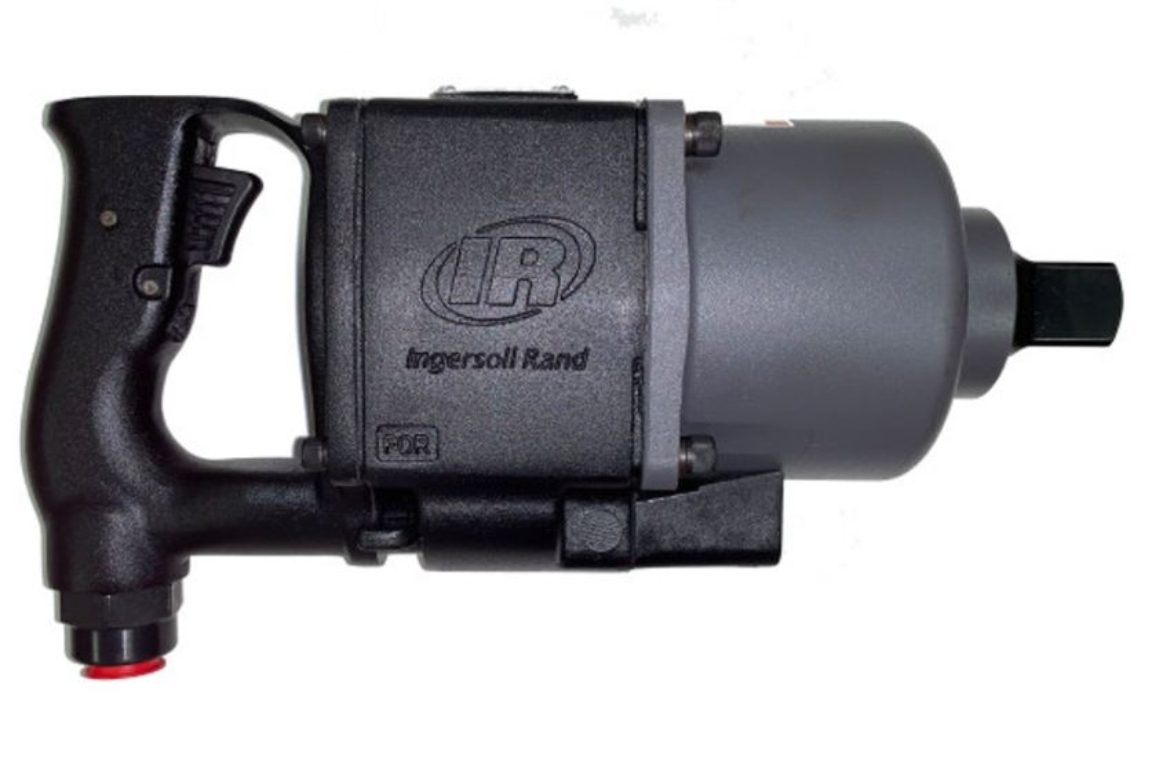

IR 2934B2
1" Air Impact Wrench, Super Duty, 1500 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger
The twin hammer impact mechanism ensures this series is reliable, durable, and will produce the same output every time.
Features And Benefits
- Durability: This Series features an iron hammer case and metal housing that’ll withstand harsh conditions and drops.
- Reliability: Resistant to fluctuations in air pressures, this series will work just as well in any condition. Comes with a 1-year warranty.
- Great for Outdoor Environments: This wrench contains a bronze end-plate that increases durability and is corrosion resistant.
Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 47
Average Air Consumption (l/min): 1331
Blows per Min: 750
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 94.9 / 105.9
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 94.5 / 105.5
Max Bolt Diameter (in): 1.125
Max Free Speed (rpm): 6600
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1500
Max Torque (in-lb): 18002
Max Torque (nm): 2034
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 11.25
Product Width (in): 4.4
Product Height (in): 6.7
Product Weight (lb): 18.5
Recommended Forward Torque Range (ft-lb): 1100
Recommended Forward Torque Range (in-lb): 13196
Recommended Forward Torque Range (nm): 1491
Recommended Reverse Torque (ft-lb): 500-1099
Recommended Reverse Torque (nm): 678-1490
Retainer Type: Thru-hole
Side to Center Distance (in): 2.2
Side to Center Distance (mm): 56
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 18.8
Warranty: 1-year
