Valve, Vent 24VDC NC, NPT

GG 571170

VALVE, VENT 24VDC N.C. NPT

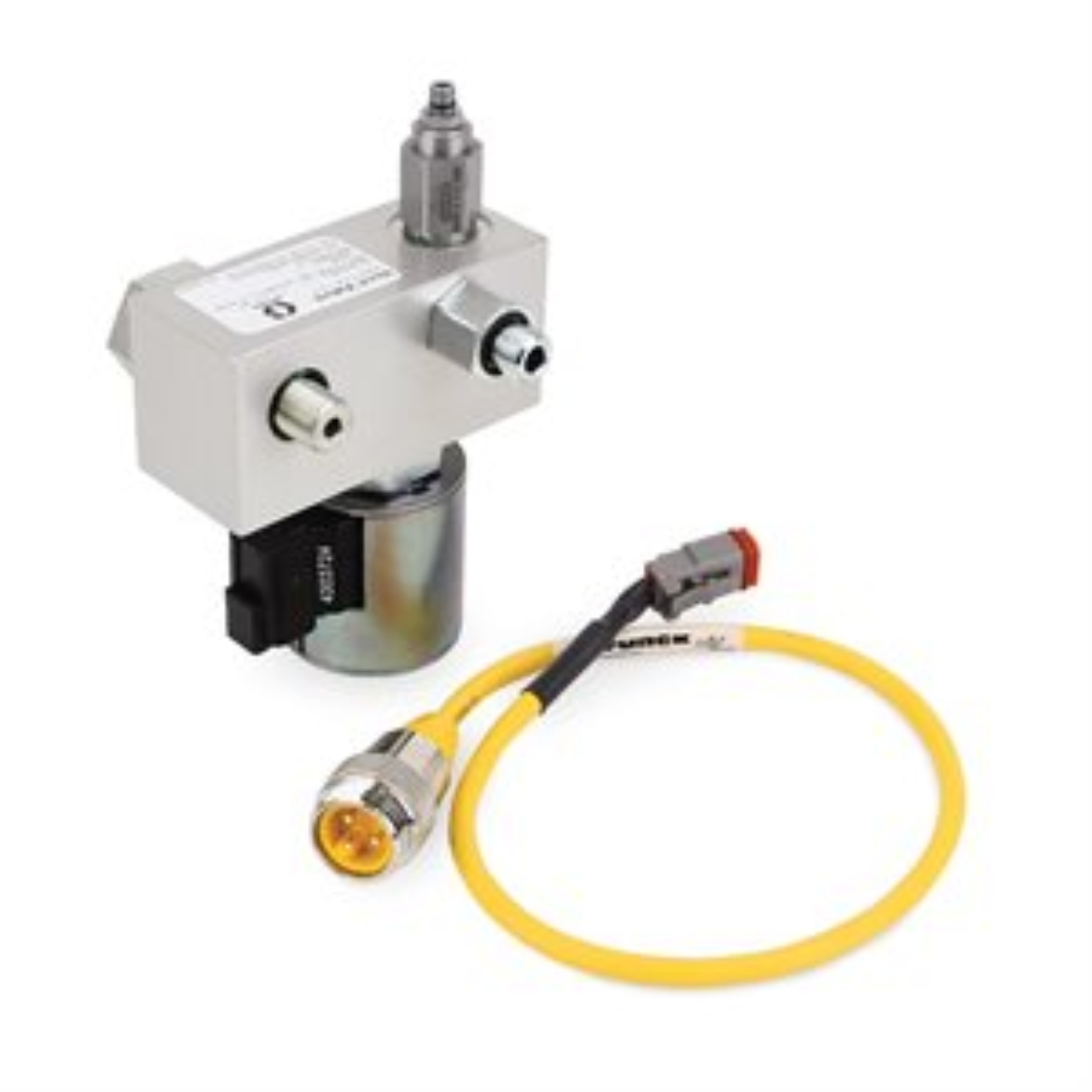

Graco 571170 Direct-Mount Vent Valves for G3 Pumps - NPT, 24 VDC, 500-3500 psi (35-241 bar), Normally Closed, RH

Industry leading feature for your lube system needs.

• Easily mounts to your G3 pump.
• Eliminates time and material costs associated with remote mounted vent valves.
• 24 VDC
• The normally closed valve works with the G3 Max pumps controller, and vents pressure based on the time duration you program into the G3 control.
• Adjustable pressure relief is integrated into the valve, no need to purchase an additional relief valve.
• Deutsch Power Connection

• Model: Trabon

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Oil, Grease

• For Use With: G3 Pumps

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 5
• Maximum Flow Rate (L/min): 19

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24
• Maximum Working Pressure (psi): 3500

• Outlet Thread Type: NPT
