Grinders

IR AG210-578A

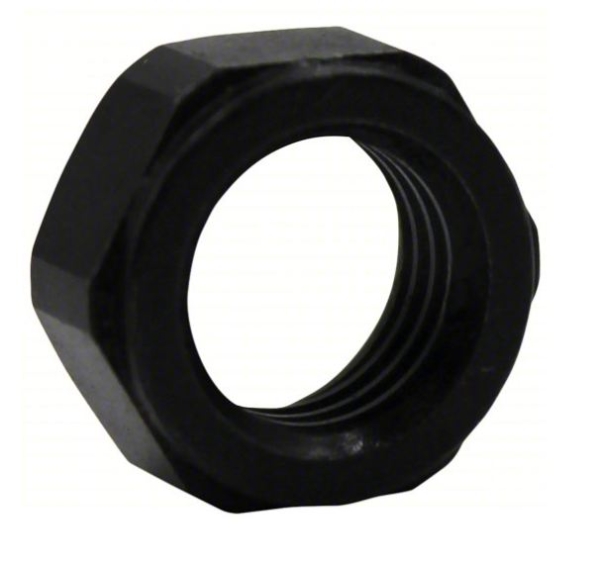

NUT (49440-61)

IR AG210-699A

Collet Nut for Ingersoll Rand G1, G2 Series

IR AG2-311B

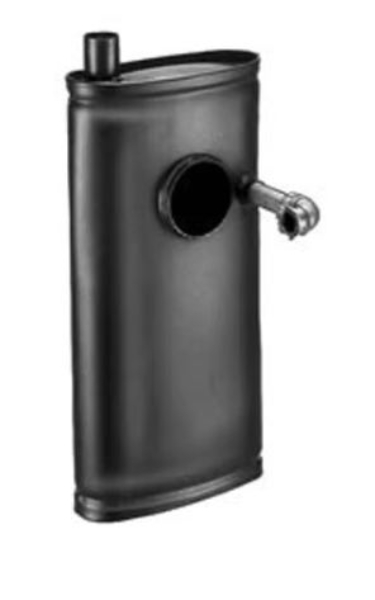

MUFFLER

IR AG3-26M

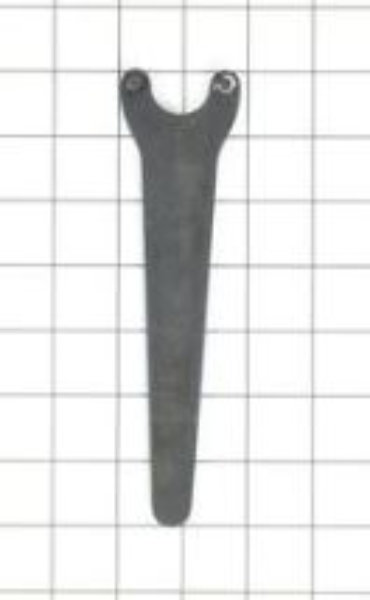

SPANNER WRENCH

IR G1A200RG4

Angle Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip that ensures you'll get more done with less fatigue.
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
• One-nut access for all motor servicing.
• Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3.1
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6
Product Width (in): 12.5
Product Height (in): 2.5
Product Weight (lb): 1.1
Rated Power (hp): 0.4
Right Angle Length (in): 3
Right Angle Length (mm): 76
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 83.6 / 94.6
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.6
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2A180RG4
• G1A120RG4
• G1A200FG4

IR G1H200FG4

Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Front Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip shape that ensures you'll get more done with less fatigue.
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
• One-nut access for all motor servicing.
• Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks for applications such as shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.13
Product Weight (lb): 0.9
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 82.1 / 93.1
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.9
Warranty: 1-year

Similar IR

• G1H200RG4

IR G1H250RG4

Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it’s right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you’re repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you’ll get more done with less fatigue.
• At .4 hp, the G1 Series packs a lot of power in a small package
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
• Ergonomically designed D-shaped grip
• One-nut access for all motor servicing
• Patent-pending soft-mount system reduces vibration for extended motor and switch life

Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 20
Air Consumption @ Load (l/min): 566
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.13
Product Width (in): 6.5
Product Height (in): 2.75
Product Weight (lb): 0.9
Rated Power (hp): 0.4
Side to Center Distance (in): 0.87
Side to Center Distance (mm): 22
Sound Pressure/Power Db(A): 82.9 / 93.9
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 2.5
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2H250RG4
• G1H250FG4
• G1H200RG4
• 5108MAX

IR G3H180RG4

Air Angle Die Grinder, 18,000 RPM, 1.35 HP, 1/4" Collet, Rear Exhaust

The G3 Series die Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.

Features And Benefits

• Power: Powerful 1.35 18,000 RPM vane motor that won’t let you down on job that call for maximum power.
• Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
• Vibration dampening for ease-of-use.

Product Application and Uses: Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Grinder Type: Die Grinder
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Sound Pressure/Power Db(A): 87.4 / 98.4
Vibration Level (m/s2): 3.6
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year

IR G4621-K22

20V Cordless Polisher/Sander 2 Battery Kit, 8300 RPM, 2" & 3" Pad

Say goodbye to stall-outs, and say hello to power that lasts all shift long. The IQV20™ Cordless Polisher/Sander comes equipped with a powerful brushless motor, compact form, and powerful battery platform that helps you tackle any task in record time. Plus, lightweight, ergonomic features designed with technicians in mind help keep operator fatigue at bay. So, whether you’re sanding down sheet metal or giving a headlight one last polish, you’ll be covered. Kit includes 6 polishing and sanding accessories (2" & 3" Roloc Pads, 3" Hook & Loop Backing Pad, 3” Wool, 3” Soft Foam, 3” Medium Foam Pads), (2) BL2012 2.5Ah Batteries, and 20V Battery Charger.

Features And Benefits

• Performance: A high-power brushless motor provides extended runtime and reliability, so you can leave stall-outs and overheated equipment in the dust.
• Durability: A threaded, all-metal chuck and spindle lock keep accessories in place during tough jobs and make abrasive changes quick. IPX6 rated protection against harmful effects of water ingress.
• Ergonomics: Small size to easily reach spots where large sanders (DA/Orbital) cannot.
• Visibility: An LED light located at the foot of the tool helps reduce shadows so you can see your work area clearly.
• Flexibility: An adjustable auxiliary handle keeps you steady in any configuration.
• Reliability: Efficient, high-performance brushless motor provides extended runtime and long-term reliability.
• Compatibility: Compatible with the entire Ingersoll Rand IQV20™ platform, giving it an extra dose of power without weighing it down.
• Kit Includes: G4621 Polisher/Sander, 2" & 3" Roloc Pads, 3" Hook & Loop Backing Pad, 3" Wool Pad, 3" Soft Foam Pad, 3" Medium Foam Pad, Auxiliary Handle, (2) BL2012 2.5Ah Batteries, and 20V Battery Charger.

Includes: G4621 Polisher/Sander Tool; 2" & 3" Roloc Backing Pads; 3" Hook & Loop Backing Pad; 3" Wool; 3" Soft Foam Pad, 3" Medium Foam Pad; Auxiliary Handle; (2) BL2012 20V 2.5Ah Batteries, 20V Battery Charger, 110/120V Power Cord
Product Application and Uses: Gasket removal or cleaning corrosion and dirt off parts similar to right angle die grinders; Small size to easily reach spots where larger polisher/sanders (ex. DA/Orbital sanders) cannot reach.
Actuation/Throttle Type/Switch Type: Trigger
Anti-Restart Technology: No
Anti-Vibration Technology: No
Arbor/Collet: 5/16"-24 Thread
Color: Grey
Configuration/Handle Type: Pistol Grip
Configuration/Handle Type: Auxiliary Handle
Duty Rating: Maintenance Duty
Gear Train: Planetary
Gripping Length (in): 4
Handle Material: Overmolded Grip
Height Over Spindle (in): 1.06
Housing Material: Nylon
Lock Mechanism: Toggle Switch
Max Free Speed (rpm): 8300
Mounting Type: Arbor
Pad Diameter or Size (in): 2 & 3
Pad Face: Hook & Loop
Pad Face: Roloc
Power Source: Battery Powered
Product Length (in): 4.92
Product Width (in): 3.19
Product Height (in): 8.26
Product Height (in) (with Battery): 9.25
Product Weight (lb): 1.7
Product Weight (lb) (with Battery): 2.61
Sound Pressure/Power Db(A): 73 / 84
Speed Setting: Dual speed
Standards/Certifications: UL, IPX6 (protection against harmful effects of water ingress)
Tether Style: Not Tether Capable
Vacuum: None
Vibration Level (m/s2): 1.2
Vibration Uncertainy K* (m/s2): 0.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wheel Thickness (in): 0.5

Similar IR

• 3129KA
• 317-B
• 313-B

IR HG2-202C

FRONT HOUSING CAP

IR HG2-A106-45

GUARD AND LABEL ASSEMBLY

IR HG2-A40

MOTOR HOUSING ASSEMBLY

IR LG1-11

END PLATE (49440-14)

IR M2A120RG4

Angle Air Die Grinder, 12,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 12,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These are grinders are designed for material removal or cutting off using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Grinder Type: Angle Grinder
Handle Material: Composite
Height Over Spindle (in): 3.28
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.94
Product Weight (lb): 3.56
Rated Power (hp): 1
Right Angle Length (in): 8.06
Right Angle Length (mm): 205
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 87.1 / 98.1
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.3
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2A180RG4

IR M2H250RG4

Air Die Grinder, 25,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 25,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.38
Product Width (in): 7.01
Product Height (in): 2.83
Product Weight (lb): 1.69
Rated Power (hp): 1
Side to Center Distance (in): 0.89
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 88.2
Speed Setting: Variable Speed
Standards/Certifications: En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 2.3
Warranty: 1-year
Wheel Type: Burr

Similar IR

• G1H250RG4
• G1H250FG4
• M2H200RG4

IR M2X180RH63

Extended Air Grinder, 3" Type 1 Wheel, 18,000 RPM, 1 HP, 3/8"-24 Thread, Rear Exhaust

The M2-Series industrial Grinders is offering high durability with a powerful motor and less maintenance, more productivity with the speed governor helping to maximize life time of the abrasive, an adjustable guard and a spindle lock feature. For sure with the M2-Series from Ingersoll Rand you will get more time to work and less time in maintenance.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 18,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: 3/8" spindle; Piped Exhaust; Wrenches
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 14
Air Consumption @ Free Speed (l/min): 396
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 13.35
Product Weight (lb): 3.26
Rated Power (hp): 1
Sound Pressure/Power Db(A): 85.3 / 96.3
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.3
Warranty: 1-year
Wheel Diameter (in): 3
Wheel Thickness (in): 1/2
Wheel Type: Type 1

IR M2X250RG4

Extended Air Die Grinder, 25,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 25,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: Heavier-duty grinding, cutting, cleaning, and polishing applications
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 30
Air Consumption @ Free Speed (l/min): 849
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 2.15
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 13.08
Product Weight (lb): 2.68
Rated Power (hp): 1
Sound Pressure/Power Db(A): 88.2 / 99.2
Speed Setting: Variable Speed
Vibration Level (m/s2): 1.9
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2X200RG4

SX 5055C

R/A .3 Hp 20,000 rpm Die Grinder

U UT2740-1

4 In R/A Grinder, 12000 Rpm

U UT8724-20

1/4 Inch, Angle Die Grinder, 20,000 rpm

U UT8766-25-85

Universal Tool, 7 In, 2.5HP, Angle Grinder, 8500 RPM

AIM UAG-70SBL-76

7" Angle Gringer

ATP ATP360HL-8

3HP Cyclone Vertical Grinder

CL 10L2081-01

Grinder, RE, 20K, 1/4" Collet

CL 10LF281-36OH

RA SNDR/GRD,RE,20K,1/4" COLLET
