Grinders

DY 48316

.4 hp Right Angle Die Grinder

15,000 RPM, Spiral-Geared, Rear Exhaust, 1/4in Collet

All models have air passage to continually cool the gear box. gears last longer! Pinion piloted on rotor to reduce run-out. Needle bearing assures proper shaft alignment.

Dual wick lubrication system saturated with gear oil for extended gear life over 700 hours. This helps administer the right amount and keep the gear oil on the metal gears. Highest horsepower and torque levels of any similar competitive product.

• HP: 0.4
• Max. RPM: 15000.0
• Motor RPM: 15,000

DY 48335

.4 hp 7 Degree Offset Die Grinder

25,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

One-piece spindle keeps all rotating components on the same centerline for reduced run-out, which means lower vibration levels for enhanced operator comfort.

• HP: 0.4
• Max. RPM: 25000.0
• Motor RPM: 25,000

DY 51300

.5 hp Straight-Line Die Grinder

15,000 RPM, Gearless, Front Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 15000.0
• Motor RPM: 15000

DY 51301

.5 hp Straight-Line Die Grinder

18,000 RPM, Gearless, Front Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 18000.0
• Motor RPM: 18000

DY 51756

.1 hp Straight-Line Extension Pencil Grinder

35,000 RPM, Turbine Air Motor, Rear Exhaust, 1/8in Collet

Tool has integrated collet with 1/8in Collet Insert (51659)

Turbine-Driven Air Motor Models are ideal for precision deburring and finishing on a variety of surfaces. High-efficiency air motor has no wearable gears, vanes or blades. Oil-free operation minimizes maintenance time and repair costs. Air motor is controlled with patented governor, providing constant tool speed under load. Quality high-speed bearings are included.

• HP: 0.1
• Max. RPM: 35000.0
• Motor RPM: 35000

DY 52211

.5 hp 7 Degree Offset Die Grinder

18,000 RPM, Gearless, Front Exhaust, Short Shank, 1/4in and 6mm Collets

High-Quality Air-powered Die Grinder 7 Degree Offset, Short Shank, Gearless, Front Exhaust

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 18000.0
• Motor RPM: 18000

DY 52258

.7 hp Straight-Line Die Grinder

20,000 RPM, Gearless, Front Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.7
• Max. RPM: 20000.0
• Motor RPM: 20000

DY 52579

4in (102 mm) Diameter Straight-Line 6in (152 mm) Extension Cut-Off Wheel Tool

1 hp, 15,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Cut-Off Wheel Tool, for efficient cutting of sheet metal, frame rails, clamps, bolts, etc.

4in Diameter, Straight Line, 1 hp, 6in Extension, 15,000 RPM.

• HP: 1.0
• Max. RPM: 15000.0
• Motor RPM: 15,000

DY 52667

1 hp Straight-Line Die Grinder

15,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 15000.0
• Motor RPM: 15000

DY 52802

7in (178 mm) Diameter Right Angle Disc Sander

1.3 hp, 7,200 RPM, Rotational Exhaust, 5/8in -11 Spindle Thread

Includes 51151 Backing Pad, 7in (178 mm) diameter, plus mounting hardware. Accepts optional 7in (178 mm) diameter Abrasive Discs with 7/8in (22 mm) center hole.

Dynabrade's 1.3 hp (970 W) Right Angle Sander offer countless grinding and material removal solutions to industries such as metal/stainless steel fabrication, composites, masonry, ironwork and general welding. Designed to the Dynabrade standard of excellence, these tools offer a wide array of features to increase efficiency and maximize operator comfort!Vibration Dampening Side Handle Specially designed to reduce vibration transfer to operator. Removable for left or right hand use. Rotational Exhaust System Rotates a full 360 degree to ensure that exhaust is directed away from operator.

• HP: 1.3
• Max. RPM: 7200.0
• Motor RPM: 7,200

DY 53270

7in (180 mm) Diameter Right-Angle Disc Sander

2.8 hp, 8,500 RPM, Adjustable Exhaust, 5/8in -11 Spindle Thread

Rebel 2.8 hp series grinders and sanders are powerful tools designed to overcome the challenges of heavy-duty industrial applications

Durability has been elevated to a new level. with 1,000+ hours of use between recommended maintenance, the Rebel 2.8 hp is a tool to depend upon

• HP: 2.8
• Max. RPM: 8500.0
• Motor RPM: 8,500

DY 53502

.5 hp Straight-Line 7-1/4in (184 mm) Extension Die Grinder

20,000 RPM, Extended Rear Exhaust, 1/4in and 6 mm Collets

Includes 1/4in (01485) and 6 mm (01497) Collet Inserts. fits optional 1/8in (01495)

Extension Die Grinder has 7-1/4in workable reach.

• HP: 0.5
• Max. RPM: 20000.0
• Motor RPM: 20000

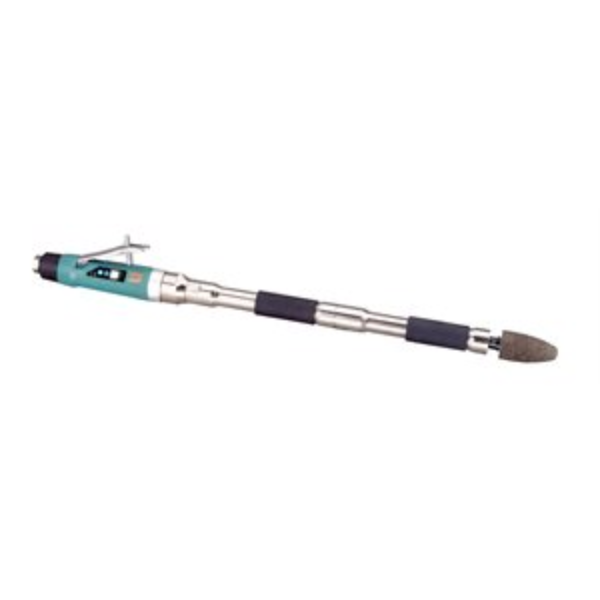

DY 53532

Cone or Plug Grinder (Double Extension)

1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Includes 3/8in -24 Male Threaded Adapter (53610)

Extension Grinders allow operator to extend into work pieces and reach lengthy distances.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000

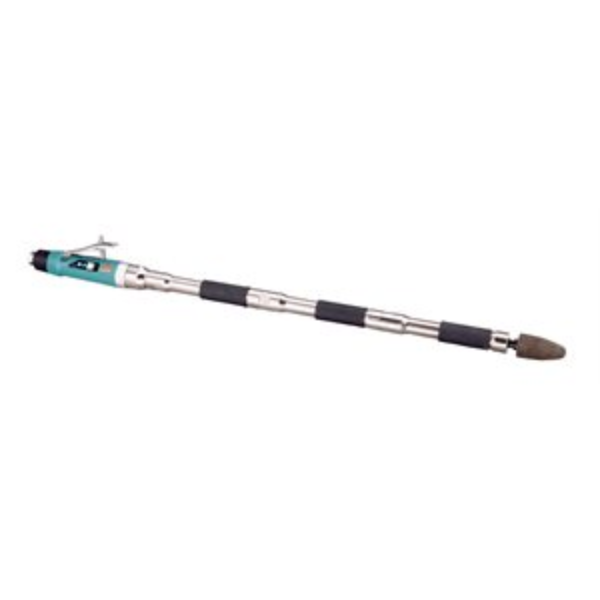

DY 53533

Cone or Plug Grinder (Triple Extension)

1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Includes 3/8in -24 Male Threaded Adapter (53610)

Extension Grinders allow operator to extend into work pieces and reach lengthy distances.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000

DY 54773

4in (102 mm) Diameter Extended Right Angle Type 27 Depressed Center Wheel Grinder

.7 hp, 12,000 RPM, Composite

Model accepts optional 4in (102 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8in (10 mm) center hole. wheel width of 1/8in to 1/4in (3 mm to 6 mm).

Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.

• HP: 0.7
• Max. RPM: 13500.0
• Motor RPM: 12,000

IR 301BK

Angle Air Die Grinder Stone Kit, 21,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust

As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit includes 10 mounted grinding tips and a Blow-molded case.

Features And Benefits

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
• Kit Includes: 10 mounted grinding tips and a Blow-molded case.

Includes: 301B Angle Die Grinder, 10 mounted grinding tips, Blow-molded case, 1/4" collet, (2) Wrenches and Manuals.
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 302B
• 5102MAX
• 307B
• 308B

IR 314AC4A

SUPERCEDED TO 5104MAX

IR 320PG

Air Pencil Grinder, 60,000 RPM

A slim profile pencil grinder makes it ideal for intricate spaces, precise grinders to final cleaning and polishing dies, to mold finishing, light deburring and flash removal

Features And Benefits

• COMFORT: Complete with a custom TPU grip, low vibration and noise and an oversized speed control knob, the 320PG was designed for enhanced user comfort and safety.
• PRODUCTIVITY: The countless capabilities of the 320PG allow for more tasks to be completed with a singular tool, allowing for maximum versatility and productivity.
• VALUE: Affordability across the board is a top priority for the 320PG, which provides high quality performance at a budget-conscious price point.

Includes: (1) Tool; (2) Wrench; (1) Hose Assy; (1) Sleeve Exhaust
Product Application and Uses: For precision grinding and applications in confined spaces. Used for final cleaning and polishing of dies, mold finishing, intricate grinding applications, light deburring and flash removal.
Actuation/Throttle Type/Switch Type: Twist
Air Consumption @ Load (cfm): 8
Air Consumption @ Load (l/min): 220
Air Inlet: 1/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/8"
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Grinder Type: Pencil Grinder
Handle Material: Alloy with TPU Grip
Hose Length (ft): 4.75
Housing Material: Aluminum Alloy
Max Free Speed (rpm): 60000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/4
Pencil Diameter (in): 0.74
Power Source: Air Powered
Product Length (in): 5.51
Product Width (in): 0.74
Product Height (in): 0.74
Product Weight (lb): 0.51
Rated Power (hp): 0.1
Side to Center Distance (in): 0.37
Side to Center Distance (mm): 9
Sound Pressure/Power Db(A): 78 / 89
Speed Setting: Variable Speed
Spindle Offset (in): 0.37
Standards/Certifications: CE, EAC, UKCA
Vibration Level (m/s2): <3.2
Warranty: 1-year
Wheel Type: Burr, Mounted Points

Similar IR

• GH011A-600-1
• 7978
• 140EP
• EP51
• EP51K

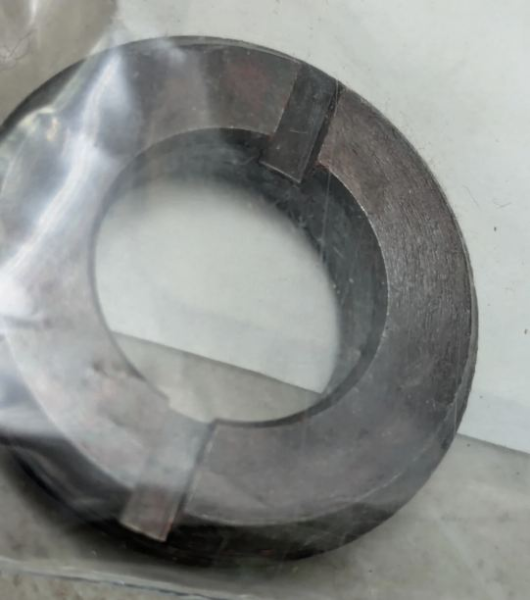

IR 5102MAX-531

Cap

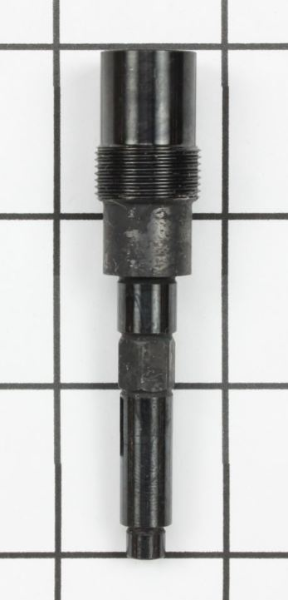

IR 5102MAX-591A

Collet Arbor

IR 5107MAX

Air Die Grinder, 30,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

• MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 30,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
• MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
• MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (3) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 30000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.56
Product Height (in): 1.6
Product Weight (lb): 1
Rated Power (hp): 0.4
Rated Power (kW): 0.29828000000000005
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 81.6 / 92.6
Special Features: Lube-Free Motor
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.5
Vibration Uncertainy K* (m/s2): 1.4
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 5108MAX
• 308B
• G1H350RG4
• 307B

Supersedes

• 330SC4A

IR 545MAX

Air Angle Grinder, 5" Type 27 Wheel, 12,000 RPM, 2.5 HP, 5/8"-11 Thread, Rear Exhaust

Take your productivity to the MAX with the 5445MAX and 545MAX Series 2.5 HP Air Angle Grinders from Ingersoll Rand®. Featuring a 2.5 hp motor that delivers the best power-to-weight ratio to maximize material removal, dramatically reducing job completion time on even the hardest alloys. At just over 4lbs, its compact construction is comfortable for all day use without operator fatigue. Durable, high strength internal components are built for long run times, reducing maintenance costs and operator downtime. An governed motor optimizes air consumption for the task at hand, delivering more power when you need it while increasing the life of abrasives and reducing consumable costs. A tool-free adjustable guard allows for orientation changes in seconds and spindle lock enables quick abrasive changeovers with a single spanner wrench. For colossal power in a compact size, keep your operators running with the 545MAX Series Angle Grinders.

Features And Benefits

• Power: 2.5 hp motor delivers the best power-to-weight ratio to maximize material removal, dramatically reducing job completion time on even the hardest alloys.
• Performance: Governed motor optimizes air consumption for the task at hand, delivering more power when you need it while increasing the life of abrasives and reducing consumable costs.
• Productivity: No more excessive accessories. A tool-free adjustable guard allows for orientation changes in seconds and spindle lock enables quick abrasive changeovers with a single spanner wrench.
• Durability: Durable, high strength internal components are built for long run times, reducing maintenance costs and operator downtime.
• Comfort: At just over 4lbs, its compact construction packs a punch with a best-in-class power-to-weight ratio for all day use without operator fatigue.

Includes: Tool, 1 Wrench, Safety Manual, Auxiliary Handle, Allen wrench, Screw
Product Application and Uses: Designed for material removal using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 32.33
Air Consumption @ Free Speed (l/min): 916
Air Consumption @ Load (cfm): 76.75
Air Consumption @ Load (l/min): 2174
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Average Air Consumption (cfm): 76.75
Average Air Consumption (l/min): 2174
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Configuration/Handle Type: Auxiliary Handle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Gripping Length (in): 5.4
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 4.17
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 9.33
Product Height (in): 5.5
Product Weight (lb): 4.12
Rated Power (hp): 2.5
Rated Power (kW): 1.86
Side to Center Distance (in): 33.9
Side to Center Distance (mm): 861
Sound Pressure/Power Db(A): 95.1/106.1
Special Features: Tool free adjustable guard, spindle lock
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vibration Level (m/s2): 8.38
Vibration Uncertainy K* (m/s2): 1.32
Warranty: 1-year
Wheel Diameter (in): 5
Wheel Thickness (in): 1/4
Wheel Type: Type 27

Similar IR

• M2A120RP105
• 345MAX

IR 61H-TK1

TUNE-UP KIT

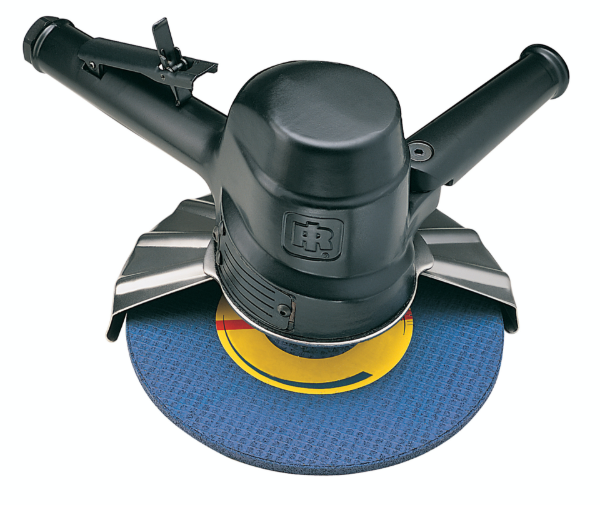

IR 99V85P107

Vertical Air Grinder, 7" Type 27/28 Wheel, 8,500 RPM, 3 HP, 5/8 in-11 Thread, Side Exhaust

The 99 Series Vertical Grinders are tough and reliable, with a number of features that help you get the job done faster, easier and safer.

Features And Benefits

• Power: The 99 Series Vertical Grinder sports a powerful vane motor and an ideal power-to-weight ratio.
• Safety: The included guard on the 99 Series block sparks and debris from flying back at you, while the locking throttle lever prevents accidental throttle operation.
• Reliable: Made with you in mind, the 99 Series Vertical Grinder is a trusted tool that will last you years to come. Comes with a 1-year warranty.

Includes: Tool, Large Wrench, Small Wrench
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 84
Air Consumption @ Load (l/min): 2379
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Industrial Duty
Exhaust Location: Side
Grinder Type: Vertical Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 6.9
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 8500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 6.88
Product Weight (lb): 11.25
Rated Power (hp): 3
Right Angle Length (in): 7.95
Right Angle Length (mm): 202
Sound Pressure/Power Db(A): 103 / 104
Vibration Level (m/s2): 3.6
Warranty: 1-year
Wheel Diameter (in): 7
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

Similar IR

• 88V77P107

IR AG121-A106-4

GUARD ASSEBMLY
