Grinders

IR 88V60-12

REAR END PLATE

IR 88V60P109

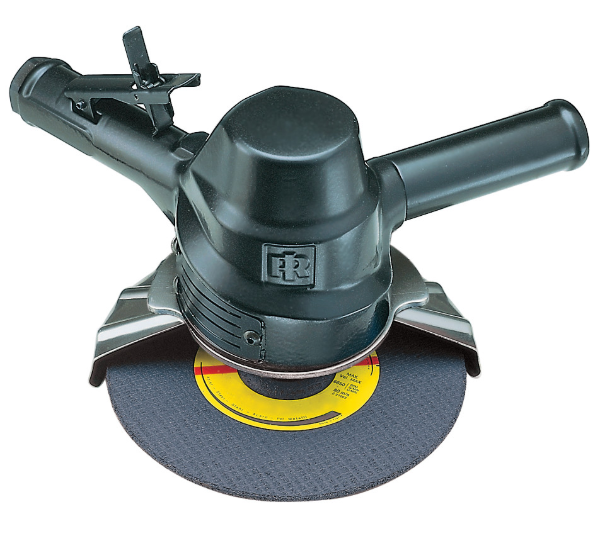

Vertical Air Grinder, 9" Type 27/28 Wheel, 6000 RPM, 2.1 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Safety: The 88 Pro Series’ lock-out lever, guard and side-handle safety is designed to increase comfort and block sparks and debris.
• Durability: You can count on the 88 Pro Series to withstand chemical spills, repeated drops, and other harsh environments.
• Reliability: The patented motor controller removes material faster, prevents over speeding and reduces operator fatigue.

Includes: Guard
Product Application and Uses: Heavy Stock Removal And Rough Grinding In Metal Fabrication Operations
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1728
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Heavy Duty
Exhaust Location: Side
Grinder Type: Vertical Type 27/28
Height Over Spindle (in): 6.1
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 15.9
Product Height (in): 8.2
Product Weight (lb): 9.13
Rated Power (hp): 2.1
Sound Pressure/Power Db(A): 86.2 / 97.2
Vibration Level (m/s2): 3.6
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year
Wheel Diameter (in): 9
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

IR AG1-A3

CYLINDER ASSEMBLY

IR AG210-693

BEARING (49440-58)

IR AG3-K284

EXHAUST KIT, G3 SERIES

IR G1H200RG4

Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it’s right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you’re repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you’ll get more done with less fatigue.
• At .4 hp, the G1 Series packs a lot of power in a small package
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
• Ergonomically designed D-shaped grip
• One-nut access for all motor servicing
• Patent-pending soft-mount system reduces vibration for extended motor and switch life
• 1-year warranty

Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.13
Product Width (in): 6.7
Product Height (in): 2.7
Product Weight (lb): 0.9
Rated Power (hp): 0.4
Side to Center Distance (in): 0.87
Side to Center Distance (mm): 22
Sound Pressure/Power Db(A): 82.3 / 93.3
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 2.9
Warranty: 1-year
Wheel Type: Burr

Similar IR

• G1H200FG4
• M2H180RG4
• G1H250RG4

IR G3A120RG4

Air Angle Die Grinder, 12,000 RPM, 1.35 HP, 1/4" Collet, Rear Exhaust

The G3 Series die Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.

Features And Benefits

• Power: Powerful 1.35 12,000 RPM vane motor that won’t let you down on job that call for maximum power.
• Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
• Vibration dampening for ease-of-use.

Product Application and Uses: Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Grinder Type: Die Grinder
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Sound Pressure/Power Db(A): 86.4 / 97.4
Vibration Level (m/s2): 5.5
Vibration Uncertainy K* (m/s2): 0.9
Warranty: 1-year

IR HG2-311R

REAR MUFFLER

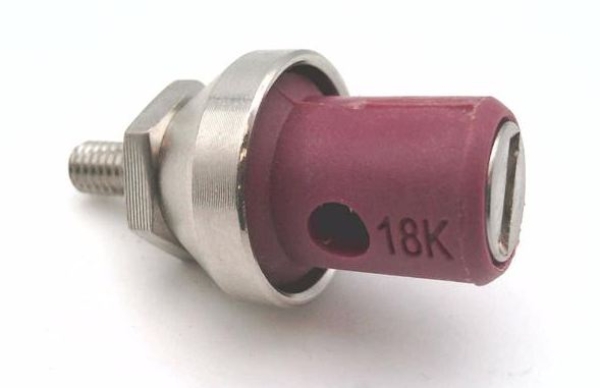

IR HG2-A424-18K

CONTROLLER ASSEMBLY

IR HG2-GTKA

Tune-up Kit for Ingersoll Rand HG2 Series Grinder

IR LG1-103-3

FLOW RING (49440-50)

IR LG2-300A

CARTRIDGE (49450-113)

IR LG2-303

Seat for Ingersoll Rand GH07A, GX07A, HDS, TDS, TA, TXA, TD, TX, TXD Series Grinders

IR MG1-A106-5

WHEEL GUARD ASSEMBLY, 5"

CL 208863PT

D14-0811 Dotco Wrench Grinder 9/16 x 11/16

CL 3060AVL-06

3HP VERT GRD, 6K RPM, 6" CUP WHEEL GUARD

CL 4060AVL-07

4HP VERT GRD, 6K RPM, 7in WHEEL GUARD

DC 10LF281-36

RA SNDR/GRD,RE,20K,1/4" COLLET

DC 10R9000-03

TURBINE GRD,FE,100K,3MM COLLET

DC 12R0400-18

GRD,PEN,ERGO,SHRT GRD,60K,1/8"

DY 51307

.5 hp Straight-Line Die Grinder

24,000 RPM, Gearless, Extended Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 24000.0
• Motor RPM: 24000

DY 53295

Flange- Back-up, P.G. Grinder

DY 55065

Grinder Guard Assy

IR 88V60-11

FRONT END PLATE

IR AG210-91

THROTTLE VALVE BUSHING
