Grinders

GG 25P475

GRINDLAZER SYSTEM, HP DC1525 P DCS

GrindLazer HP DC1525 P DCS Self-Propelled Propane-Powered Scarifier, High-Speed Pulley Kit The DC1525 P DCS heavy-duty, self-propelled drum scarifier is designed to tackle the most demanding removal and surface preparation jobs. It's capable of removing a path up to 16 inches wide and features Graco's electronic DCS Depth Control System to quickly adjust cut depth without stopping. All GrindLazer DC15 DCS models come with either a low or high-speed pulley kit installed. Choose a model with the high-speed pulley kit if operating with diamond or PCD cutters. Choose a model with the low-speed pulley kit if using with carbide cutters. Do-It-All Solution

• Adaptable for leveling, grooving, scarifying, and stripping coatings
• Up to 16 inch removal path
• Wide variety of cutters available
• High-speed pulley kit for diamond and PCD cutters
• Quick-change side plate for easier drum removal

Depth Control System

• Eliminate Measuring & Guesswork
• Quickly and precisely adjust the cutter depth with the push of a button
• Achieve accurate cut depth for leveling, grooving, and inlay
• Eliminate damage due to “dropped drums”

DCS Controller

• Total Operator Control
• Easy adjustment via control panel buttons
• Set “zero point” where the cutter meets the surface
• Adjust cut depth in 0.01 inch increments
• Displays “active depth” from zero point
• English and metric units
• Robust design stands up to harsh job site environments
• Electronic components are protected against dust, debris, water, and vibration

Self-Propelled

• Variable-speed hydrostatic drive allows user to dial in the speed for each application

Designed for the Toughest Jobs

• All-steel chassis
• Low-vibration design
• Long-life bearings

Powered by 25 HP Kohler® EFI Propane Engine Dust Removal

• Dust port for connecting to LazerVac vacuum systems

GG 25P476

GRINDLAZER SYSTEM, HP DC1520 E DCS

GrindLazer HP DC1520 E DCS Self-Propelled Electric Scarifier, High-Speed Pulley Kit The DC1520 E DCS heavy-duty, self-propelled drum scarifier is designed to tackle the most demanding removal and surface preparation jobs. It is capable of removing a path up to 16 inches wide and features Graco's electronic DCS Depth Control System to quickly adjust cut depth without stopping. All GrindLazer DC15 DCS models come with either a low or high-speed pulley kit installed. Choose a model with the high-speed pulley kit if operating with diamond or PCD cutters. Choose a model with the low-speed pulley kit if using with carbide cutters. Do-It-All Solution

• Adaptable for leveling, grooving, scarifying, and stripping coatings
• Up to 16 inch removal path
• Wide variety of cutters available
• High-speed pulley kit for diamond and PCD cutters
• Quick-change side plate for easier drum removal

Depth Control System

• Eliminate Measuring & Guesswork
• Quickly and precisely adjust the cutter depth with the push of a button
• Achieve accurate cut depth for leveling, grooving, and inlay
• Eliminate damage due to “dropped drums”

DCS Controller

• Total Operator Control
• Easy adjustment via control panel buttons
• Set “zero point” where the cutter meets the surface
• Adjust cut depth in 0.01 inch increments
• Displays “active depth” from zero point
• English and metric units
• Robust design stands up to harsh job site environments
• Electronic components are protected against dust, debris, water, and vibration

Self-Propelled

• Variable-speed hydrostatic drive allows user to dial in the speed for each application

Designed for the Toughest Jobs

• All-steel chassis
• Low-vibration design
• Long-life bearings

Powered by 20 HP Motor, 480V, 60Hz, 3ph Dust Removal

• Dust port for connecting to LazerVac vacuum systems

GG 25R090

GRINDLAZER SYSTEM, LONGOPAC SEPERATOR

Cyclone LP Separator

Graco’s Cyclone LP Separator works in-line with the LazerVac to collect "larger debris" prior to reaching the vacuum filter - greatly extending the time between filter changes.

Cyclone Design

• Reduced Filter Clogging
• Removes large debris before it gets to the vacuum filter — reducing filter clogging, which allows you to work longer
• No maintenance design

Longopac Bag System

• Continuous dust containment bag means less exposure to silica dust and easier disposal

All Steel Construction

• Heavy-duty design will stand up to the harsh jobsite environment

IR 301B2MK

Angle Air Die Grinder 2" Pad Kit, 21,000 RPM, 0.25 HP, 1/4" & 6mm Collets, Front Exhaust

As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit includes (4) 2” coarse pads, (4) 2” medium pads, Blow-molded case.

Features And Benefits

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
• Kit Includes: (4) 2” coarse pads, (4) 2” medium pads, Blow-molded case.

Includes: 301B Air Angle Die Grinder, (4) 2” coarse pads, (4) 2” medium pads, Blow-molded case, 1/4" and 6mm collets, (2) Wrenches and Manuals
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year

Similar IR

• 302B
• 5102MAX
• 307B
• 308B

IR 301B3MK

Angle Air Die Grinder 3" Pad Kit, 21,000 RPM, 0.25 HP, 1/4" & 6mm Collets, Front Exhaust

As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit includes (4) 3” coarse pads, (4) 3” medium pads, and a Blow-molded case.

Features And Benefits

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
• Kit Includes: (4) 3” coarse pads, (4) 3” medium pads, Blow-molded case.

Includes: 301B Angle Die Grinder, (4) 3” coarse pads, (4) 3” medium pads, Blow-molded case, 1/4" and 6mm collets, (2) Wrenches and Manuals.
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year

Similar IR

• 302B
• 5102MAX
• 307B
• 308B

IR 307A-699

HOUSING CAP

IR 308A-699

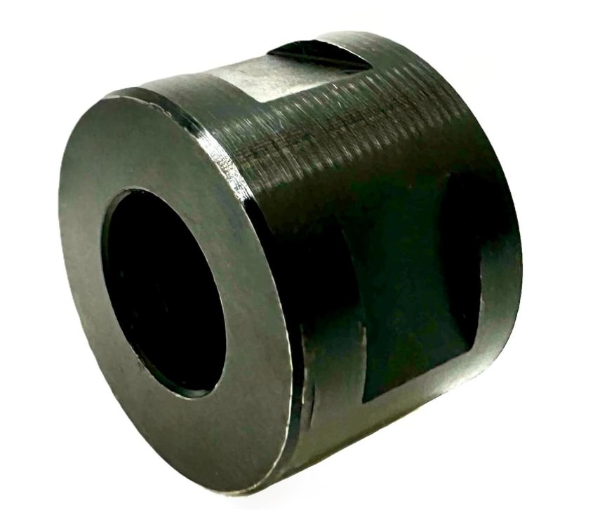

COLLET NUT

IR 308BK

Air Die Grinder Burr Kit, 25,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Lightweight and durable for ultimate performance, the 308B die grinder is the perfect choice. These powerful grinders feature a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polishing and grinding. Kit includes 4 burrs.

Features And Benefits

• Performance: Powerful vane motor delivers 0.33 HP and 25,000 RPM free speed.
• Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
• Lightweight: At only 1lb., the ergonomic composite housing protects this tool from cold air and offers greater operator comfort.
• Safety: Integral safety-lock throttle lever prevents accidental start up.
• Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
• Rear exhaust directs air away from the operator
• Kit Includes: 4 burrs and a blow-molded carrying case.

Includes: 308B Straight Air Die Grinder, 4 Burrs (Cylindrical bit super cut burr, Cylindrical bit super cut burr, 3/8" ball shaped super cut burr, Tree shaped super cut burr), a Blow-molded Carrying Case, 1/4" Collet, (2) Wrenches.
Product Application and Uses: Designed for various applications including porting, weld breaking, de-burring, polishing and grinding.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 7
Average Air Consumption (l/min): 198
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.85
Product Width (in): 4
Product Height (in): 2.5
Product Weight (lb): 1.02
Rated Power (hp): 0.33
Side to Center Distance (in): 0.71
Side to Center Distance (mm): 18
Sound Pressure/Power Db(A): 92.0 / 103.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.7
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 307BK
• 5108MAX

IR 3445MAX-M

Angle Air Grinder/Cut-off Tool, 4.5" Wheel, 12,000 RPM, 0.88 HP, M14 Arbor, Rear-Piped Away Exhaust

In keeping with the tradition of Ingersoll Rand MAX tools, the MAX series Angle Grinders deliver MAX Power, MAX Productivity, MAX Comfort and improved reliability needed to tackle the toughest material removal jobs. MAX Series Angle Grinders gives you MAX performance for the daily grinding.

Includes:

Tool, Spanner wrench, Large Wrench, Small Wrench, Allen Wrenches (2), Piped Away Exhaust

Product Application/Uses:

These air grinders are designed for material removal or cutting off using a rotated abrasive wheel in most major markets, from vehicle repair and body work to construction and metal fabrication.

Features and Benefits:

• Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
• Power: With an ideal power-to-weight ratio, the Max Series Angle Grinders are great for high-performance material removal.
• Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication.
• 1-year warranty.

Configuration/Handle Type: Right Angle

Max Free Speed (rpm): 12000

IR 5109MAX-24

Air Die Grinder, 20,000 RPM, 0.3 HP, 1/4" Collet, Rear Exhaust, Top Mounted Lever, 24-Piece

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

• MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 20,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
• MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
• MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: (24) 5109MAX Die Grinders; 1/4" collet, 24 Large Wrenches; 24 Small Wrenches
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 21
Air Consumption @ Load (l/min): 600
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 5.3
Average Air Consumption (l/min): 150
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.6
Product Height (in): 2.7
Product Weight (lb): 1.1
Rated Power (hp): 0.3
Rated Power (kW): 0.22371
Side to Center Distance (in): 0.75
Side to Center Distance (mm): 19
Sound Pressure/Power Db(A): 83.3 / 94.3
Special Features: Lube-Free Motor
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 1.8
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 5108MAX
• G1H200RG4
• 308B
• 307B

IR 80199599

INLET SEAL

IR 88V60-86A

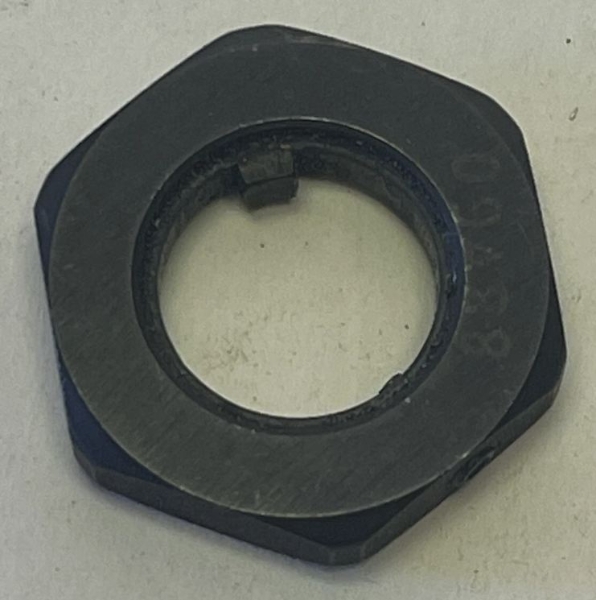

FLANGE

IR 88V77P107

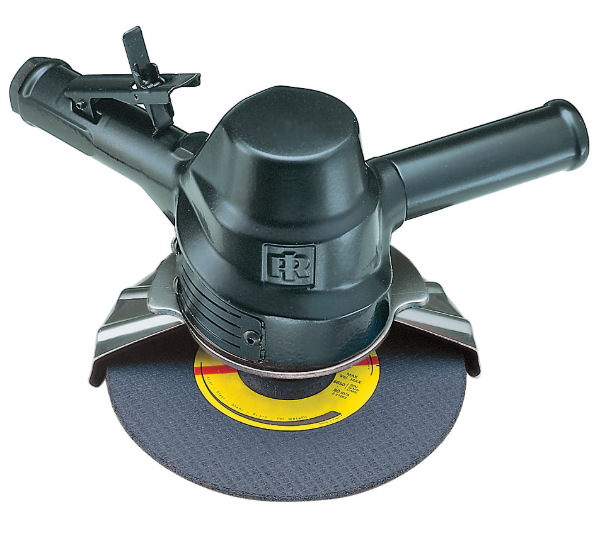

Vertical Air Grinder, 7" Type 27/28 Wheel, 7700 RPM, 2.1 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Safety: The 88 Pro Series’ lock-out lever, guard and side-handle safety is designed to increase comfort and block sparks and debris.
• Durability: You can count on the 88 Pro Series to withstand chemical spills, repeated drops, and other harsh environments.
• Reliability: The patented motor controller removes material faster, prevents over speeding and reduces operator fatigue.

Includes: Guard
Product Application and Uses: Heavy Stock Removal And Rough Grinding In Metal Fabrication Operations
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1728
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Heavy Duty
Exhaust Location: Side
Grinder Type: Vertical Type 27/28
Height Over Spindle (in): 6.1
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 7700
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 15.9
Product Height (in): 8.2
Rated Power (hp): 2.1
Warranty: 1-year
Wheel Diameter (in): 7
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

IR AG1-A161

THROTTLE PIN ASSEMBLY

IR AG1-A465

INLET BUSHING ASSEMBLY

IR AG210-4-G4

Arbor for Ingersoll Rand G1 and G2 Die Grinder

IR AG210-531

CAP (49440-62)

IR AG2-311F1

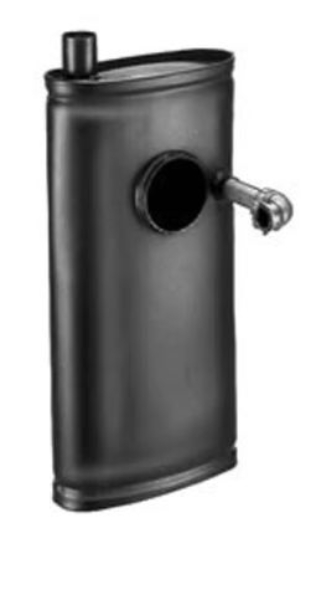

MUFFLER

IR AG31-667-4

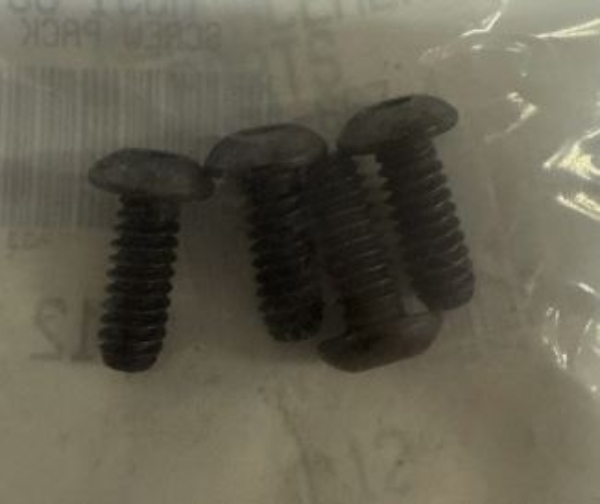

SCREW PACK

IR G1A120PG4M

Angle Air Die Grinder, 12,000 RPM, 0.4 HP, 6mm Collet, Piped Away Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 18.96
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 6mm
Bearing Type: Needle Bearing
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Piped away
Grinder Type: Die Grinder
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.28
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.98
Product Weight (lb): 1.1
Rated Power (hp): 0.4
Right Angle Length (in): 5.17
Right Angle Length (mm): 131
Sound Pressure/Power Db(A): 79.6 / 90.6
Vibration Level (m/s2): 3.4
Warranty: 1-year
Wheel Type: Burr

Similar IR

• G1A120RG4

IR G1A200PG4M

Angle Air Die Grinder, 20,000 RPM, 0.4 HP, 6mm Collet, Piped Away Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 6mm
Bearing Type: Needle Bearing
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Piped away
Grinder Type: Die Grinder
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.28
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.98
Product Weight (lb): 1.1
Rated Power (hp): 0.4
Right Angle Length (in): 5.17
Right Angle Length (mm): 131
Sound Pressure/Power Db(A): 80.6 / 91.6
Vibration Level (m/s2): 5.6
Warranty: 1-year
Wheel Type: Burr

Similar IR

• G1A200RG4

IR G1A200PP63

Air Angle Grinder, 3" Type 27 Wheel, 20,000 RPM, 0.4HP, 3/8"-24 Thread

The versatile die grinders of the G3 Series can easily become the most trusted tools in your arsenal.

Features And Benefits

• Power: At 0.4 HP and 20,000 RPM, the G1 Series packs a lot of power in a small package
• Ergonomic: D-shaped handle fits better in your hand while using this air angle grinder
• Low noise and vibration during use
• One-nut access for all motor servicing
• Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication

Product Application and Uses: Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks. Used in oil and gas, shipbuilding and even metal fabrication, this handy series has a contamination-free air controller that increases operator safety and maximizes material removal rates.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Color: Black
Configuration/Handle Type: Right Angle
Exhaust Location: Rear
Grinder Type: Angle Grinder
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Power Source: Air Powered
Product Length (in): 6
Product Height (in): 0
Product Weight (lb): 0.3
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 79.9 / 90.9
Vibration Level (m/s2): 16.8
Vibration Uncertainy K* (m/s2): 6.2
Warranty: 1-year
Wheel Diameter (in): 3
Wheel Thickness (in): 1/4
Wheel Type: Type 27

IR G1A200RH63

Air Angle Grinder, 3" Type 1 Wheel, 20,000 RPM, 0.4 HP, 3/8"-24 Thread, Rear Exhaust

Air Pressure (psi): 90
Color: Black
Configuration/Handle Type: Right Angle
Max Pressure (bar): 6.2
Power Source: Air Powered
Warranty: 1-year

IR G1A200RP63

Air Angle Grinder, 3" Type 27 Wheel, 20,000 RPM, 3/8"-24 Thread

Air Pressure (psi): 90
Color: Black
Max Pressure (bar): 6.2
Power Source: Air Powered
Warranty: 1-year

IR G1H200RH63

Air Grinder, 3" Type 1 Wheel, 20,000 RPM, 0.4 HP, 3/8"-24 Thread, Rear Exhaust

The G1 Series Type 1 Grinders come equipped with powerful 0.4HP vane motors and adjustable front, rear and dual exhaust options. A motor controller helps maintain tool speed to maximize removal rate and increase operator safety by preventing overspeeding.

Features And Benefits

• Power: At 0.4 HP and 20,000 RPM, the G1 Series packs a lot of power in a small package.
• Comfort: At home, in industrial, heavy machinery, construction environments and more, this lightweight tool features an ergonomic design and low vibrations that make even the toughest jobs a little bit easier.
• Reduced Vibration: Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.

Product Application and Uses: Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Rear
Grinder Type: Horizontal Grinder
Guard Material: Steel
Handle Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Power Source: Air Powered
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 83.0 / 94.0
Vibration Level (m/s2): 10.7
Vibration Uncertainy K* (m/s2): 3.3
Warranty: 1-year
Wheel Diameter (in): 3
Wheel Thickness (in): 1/4
Wheel Type: Type 1
