Grinders

IR G1H250PH63

Air Grinder, 3" Type 1 Wheel, 25,000 RPM, 0.4 HP, 3/8"-24 Thread, Piped Away Exhaust

The G1 Series Type 1 Grinders come equipped with powerful 0.4HP vane motors and adjustable front, rear and dual exhaust options. A motor controller helps maintain tool speed to maximize removal rate and increase operator safety by preventing over speeding.

Features And Benefits

• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
• This tool’s lightweight, composite housing means it will work well time after time, even amid harsh temperature changes.
• Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.

Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Rear- Piped away
Grinder Type: Horizontal Grinder
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Power Source: Air Powered
Product Length (in): 6.14
Product Weight (lb): 1.26
Rated Power (hp): 0.4
Vibration Level (m/s2): 10.7
Vibration Uncertainy K* (m/s2): 3.3
Warranty: 1-year
Wheel Diameter (in): 3
Wheel Thickness (in): 1/4
Wheel Type: Type 1

IR G1H250RH63

Air Grinder, 3" Type 1 Wheel, 18,000 RPM, 1.34 HP, 3/8"-24 Thread, Rear Exhaust

The G1 Series Type 1 Grinders come equipped with powerful 0.4HP vane motors and adjustable front, rear and dual exhaust options. A motor controller helps maintain tool speed to maximize removal rate and increase operator safety by preventing overspeeding.

Features And Benefits

• Comfort: At home, in industrial, heavy machinery, construction environments and more, this lightweight tool features an ergonomic design and low vibrations that make even the toughest jobs a little bit easier.
• Power: At 0.4 HP and 18,000, the G1 Series packs a lot of power in a small package.
• Reduced Vibration: Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.

Product Application and Uses: Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Rear
Grinder Type: Horizontal Grinder
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Power Source: Air Powered
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 84.3 / 95.3
Vibration Level (m/s2): 10.7
Vibration Uncertainy K* (m/s2): 3.3
Warranty: 1-year
Wheel Diameter (in): 3
Wheel Thickness (in): 1/4
Wheel Type: Type 1

IR G1X200RG4

Extended Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.13
Product Weight (lb): 1.3
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 82.3 / 93.2
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• G1X250RG4

IR HG2-A552-2.4

BEVEL PINION ASSEMBLY

IR LG1-118

RETAINER (49440-11)

IR LG1-32

SEAL (49440-16)

IR LG1-A350-812

ATTACHMENT (49440-156)

IR LG1-K284

Exhaust Hose Adapter Kit for Ingersoll Rand G1 Series Grinder

Includes: adapter, hose, retainer

For Use With

• G1A120FG4
• G1A120PG4M
• G1A120PS4
• G1A120RG4
• G1A200FG4
• G1A200PG4M
• G1A200PS4
• G1A200RG4
• G1H200FG4
• G1H200PG4M
• G1H200RG4
• G1H250PG4M
• G1H250RG4
• G1H350FG4
• G1H350PG4M
• G1H350RG4
• G1X200RG4
• G1X250RG4
• G1X350PG4M
• G1X350RG4

IR LG3-103-3

FLOW RING (49460-21) BLU

IR LG3-53-4

ROTOR (49460-15)

IR M2A120RP105

Angle Air Grinder, 5" Type 27 Wheel, 12,000 RPM, 1 HP, 5/8"-11 Thread, Rear Exhaust

Features And Benefits

• Power: With a powerful, lube-free 1 HP 12,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 17
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.29
Product Weight (lb): 3.89
Rated Power (hp): 1
Sound Pressure/Power Db(A): 87 / 98
Speed Setting: Variable Speed
Vibration Level (m/s2): 5
Warranty: 1-year
Wheel Diameter (in): 5
Wheel Thickness (in): 1/4
Wheel Type: Type 27

IR M2H200RG4

Air Die Grinder, 20,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 20,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: Heavier-duty grinding, cutting, cleaning, and polishing applications
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 2.15
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.38
Product Weight (lb): 1.69
Rated Power (hp): 1
Sound Pressure/Power Db(A): 84.9 / 95.9
Speed Setting: Variable Speed
Vibration Level (m/s2): 4.4
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2H180RG4

IR M2X075RG4

Extended Air Die Grinder, 7500 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 7,500 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: Heavier-duty grinding, cutting, cleaning, and polishing applications
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 780
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 2.15
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 7500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 11.95
Product Weight (lb): 2.97
Rated Power (hp): 1
Sound Pressure/Power Db(A): 88 / 99
Speed Setting: Variable Speed
Vibration Level (m/s2): 0.8
Warranty: 1-year
Wheel Type: Sanding Drum (Mounted)

Similar IR

• M2X180RG4

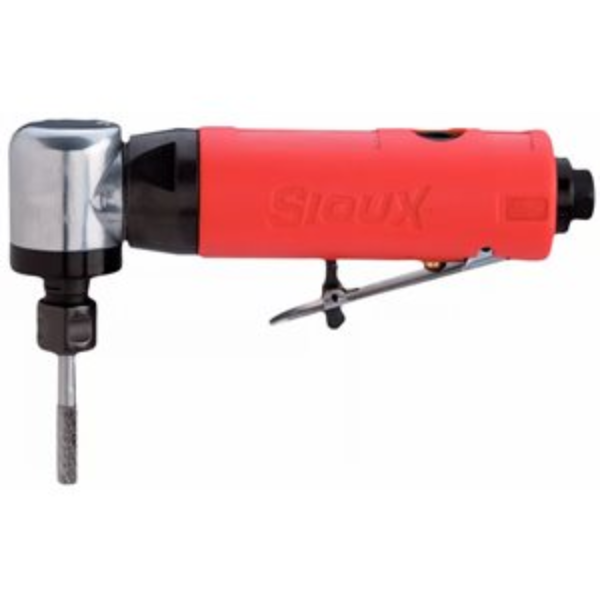

SX 5056A

COMPOSITE GRIP RA DIE GRINDER

AIM UG-1250L-72

Grinder with Guard, 5in Wheel Capacity 7200rpm

DC 10L1080-36

GRINDER,RE,30K,1/4" COLLET

DC 10L1082-36

GRINDER,RE,25K,1/4" COLLET

DC 10L1100-36

3" EXT.GRINDER,28K,1/4" COLLET

DC 10L1181-36

5" EXT. GRINDER,28K,1/4" COLLET

DC 10L2000-01

GRINDER,FE,25K,1/4" COLLET

DC 10L2080-01

GRINDER,RE,25K,1/4" COLLET

DC 10L2580-01

GRINDER,RE,23K,1/4" COLLET

DC 10N1200-36M6

RA Sander/Grinder, 12K, 6MM Collet

DC 10N2080-0124

Grinder

DC 12L1001-36

GRINDER,FE,34K,ERGO,1/4" COLLET
