Impacts

IR 2125PTIMAX

1/2" Air Impact Wrench, 332 ft-lb Torque, Titanium Hammercase, Pin Retainer, Pistol

Made with durable materials and featuring a number of different anvil configurations, this 2115TiMAX Series are a tools you can count on.

Features And Benefits

• Durable: With a titanium hammer case and composite housing, this wrench can withstand anything, including repeated drops and harsh environments.
• Versatile: This tool is so versatile, it can be used in just about any market.
• Easier access to grease fitting- for quicker maintenance and less downtime.
• Enhanced socket retention.
• 7-vane Motor delivers added power with less weight.
• Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency.
• Feather-touch trigger provides maximum control of this air impact wrench.
• Anodized end plate for enhanced durability.
• Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction.
• Patented one-hand forward/reverse control for easy operation.
• Optimized air flow for maximized performance when using this pneumatic impact wrench.
• 2-year warranty.

Product Application and Uses: Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 17
Air Consumption @ Load (l/min): 481
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Blows per Min: 1500
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 99.7 / 100.7
Hammer Case: Titanium
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 93.2 / 104.2
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 332
Max Torque (in-lb): 3983
Max Torque (nm): 450
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 4
Power Source: Air Powered
Product Length (in): 6.1
Product Width (in): 2.2
Product Height (in): 6.7
Product Weight (lb): 2.51
Recommended Forward Torque Range (ft-lb): 277
Recommended Forward Torque Range (in-lb): 3328
Recommended Forward Torque Range (nm): 376
Retainer Type: Pin Detent
Side to Center Distance (in): 1.1
Side to Center Distance (mm): 28
Special Features: Titanium Hammer case
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 7.5
Warranty: 2-year

IR 2850-K48

AUXILIARY HANDLE KIT

IR 285B-6

1" Air Impact Wrench, 6" Ext Anvil, Heavy Duty, 1770 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-handle Inside Trigger

The 285B combine exceptional power, control and durability. It delivers 1770 ft-lb of maximum torque @ 120 psi, with 5,250 rpm free speed and a high-efficiency, 6-vane motor. The swept-back 285B handle provides excellent maneuverability. The 285B 6-inch extended anvil makes changing tires and deeper fastening will be a breeze.

Features And Benefits

• Power: The rocking dog's combination of high inertia and low BPM means this tool can deliver a powerful blow with little air, giving you all the power you want without having to overextend yourself.
• Professional Use: Designed for the professional with over 1770 ft.-lbs. of torque for the toughest applications.
• Reliability: Built with a steel hammer case and metal housing, this wrench can withstand repeated drops and harsh weather conditions.
• Durable and Resistant: Phenolic 6 vane motor resist harsh environments for less downtime on the job. A protective rubber boot shields the tool from exterior damage.
• Reach: With Multiple retention methods and a 6-inch extended anvil you access hard-to-reach spaces, while maintaining a strong connection to the socket.
• Control: Feather Touch trigger and 3 position power regulator in both forward and reverse. Ergonomic swept-back handle provides excellent maneuverability.
• Speed: The impact wrench has a free speed of 5,250 rpm.
• Optimized: Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO. 1-year warranty.

Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Inside Trigger
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1727
Air Inlet: 1/2" NPT
Air Pressure (psi): 120
Anvil Length: 6" Extended
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 830
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Hammer Case: Aluminum
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Rocking Dog
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 5250
Max Torque (ft-lb): 1770
Max Torque (in-lb): 21242
Max Torque (nm): 2400
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 20.43
Product Width (in): 7.94
Product Height (in): 7.18
Product Weight (lb): 27.8
Recommended Forward Torque Range (ft-lb): 120-1080
Recommended Forward Torque Range (in-lb): 1443-12957
Recommended Forward Torque Range (nm): 163-1464
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 4.1
Side to Center Distance (mm): 104
Sound Pressure/Power Db(A): 107/118
Speed Setting: Variable Speed
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 13.3
Vibration Uncertainy K* (m/s2): 2.1
Warranty: 1-year

Similar IR

• 2850MAX-6
• W9691-K4E
• W9691-K2E
• 2850MAX

IR 2934-12

REAR END PLATE

IR 2934-223

Gasket Service Part for Ingersoll Rand Power Tools

IR 3940-364

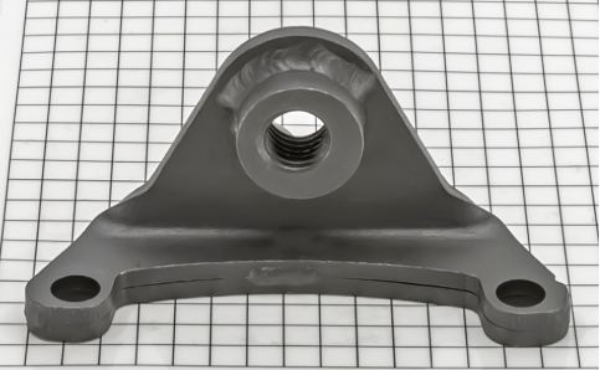

DEAD HANDLE BRACKET

IR W5153-K22

1/2" 20V Cordless Impact Wrench 2 Battery Kit, 550 ft-lb Torque, Friction Ring Retainer, Pistol

Features And Benefits

• POWER: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drivetrain and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool.
• CONTROL: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there’s no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
• DURABLE: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5153 is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV® spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
• ACCESS: Thanks to its 6.5” tip-to-tail compact ergonomic design and lightweight build, the W5133 can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree LED light ring with task light mode and 4 dimmable settings casts a wide beam to give you excellent visibility with no shadows.
• Tapered hammer case / Front End
• Compatible with IQV® 20 Series Battery System
• Kit includes 1/2" Cordless Impact Wrench, (1) BL2022 5.0Ah battery, (1) BL2012 2.5Ah battery, 20V Battery Charger, Tool Bag

Includes: W5153 1/2" Cordless Impact Wrench, (1) BL2022 5.0Ah Battery, (1) BL2012 2.5Ah Battery, 20V Battery Charger, Tool Bag
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include brake calipers, valve covers, cylinder head cover removal, brake repairs, shock replacement, industrial and Mro.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 3300
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 2.2-8.9
Forward Torque setting 1 (in-lb): 27-106
Forward Torque setting 1 (nm): 3-12
Forward Torque setting 2 (ft-lb): 9.6-24
Forward Torque setting 2 (in-lb): 115-292
Forward Torque setting 2 (nm): 13-33
Forward Torque setting 3 (ft-lb): 240
Forward Torque setting 3 (in-lb): 2876
Forward Torque setting 3 (nm): 325
Forward Torque setting 4 (ft-lb): 339
Forward Torque setting 4 (in-lb): 4071
Forward Torque setting 4 (nm): 460
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.3
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 32
Max Bolt Diameter (in): 1/2
Max Free Speed (rpm): 2100
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 549
Nut-busting/Breakaway Torque (in-lb): 6594
Nut-busting/Breakaway Torque (nm): 745
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 101.85
Product Length (in): 7.2
Product Width (in): 2.8
Product Height (in): 8.3
Product Height (in) (with Battery): 10.4
Product Weight (lb): 3.9
Product Weight (lb) (with Battery): 5.3
Recommended Forward Torque Range (ft-lb): 339
Recommended Forward Torque Range (in-lb): 4071
Recommended Forward Torque Range (nm): 460
Retainer Type: Frictio

MPT MP-2660-UD

Impact 3/4in, SQ Uni-Drive

IR 15QMAX

3/8" Air Impact Wrench, Quiet, Ultra Compact, 475 ft-lb Torque, Friction Ring Retainer, Pistol

The 35MAX Ultra-Compact Impact Wrench is as versatile as it is reliable. With its twin hammer impact mechanism, aluminum hammer case and composite housing, this tool will deliver the power you need.

Features And Benefits

• Access: Thanks to its small size and easy handling, the 35MAX Ultra-Compact Impact Wrench can be used in even the tightest of spaces.
• User Experience: The 35MAX Ultra-Compact Impact Wrench comes with improved operator comfort and safety, so you’ll never have to worry while doing your job.
• Power-to-Weight: At 2.4 lbs., the 15QMAX is the lightest on the market and it still manages to produce 380 ft.-lbs. of max torque.
• Patented Quiet Technology: Ingersoll Rand's patented Quiet Tool Technology reduces sound levels without compromising best-in-class power performance.

Includes: Bare Tool
Product Application and Uses: Vehicle Maintence And Industrial Mro For Resctricted Areas
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 17
Air Consumption @ Load (l/min): 481
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Blows per Min: 1350
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 83.7 / 94.7
Hammer Case: Aluminum
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 89.7 / 100.7
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 384
Max Torque (in-lb): 4602
Max Torque (nm): 520
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 475
Nut-busting/Breakaway Torque (in-lb): 5700
Nut-busting/Breakaway Torque (nm): 644
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 158.3
Product Length (in): 4.6
Product Width (in): 2.4
Product Height (in): 7.1
Product Weight (lb): 2.4
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 310
Recommended Forward Torque Range (in-lb): 3717
Recommended Forward Torque Range (nm): 420
Retainer Type: Friction Ring
Side to Center Distance (in): 1.2
Side to Center Distance (mm): 30
Special Features: Quiet, Ultra Compact
Speed Setting: Variable Speed
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Compact
Vanes: 7
Vibration Level (m/s2): 5.5
Warranty: 2-year

Similar IR

• 36QMAX

IR 212

3/8" Air Impact Wrench, Super Duty, 150 ft-lb Torque, Friction Ring Retainer, Pistol

Whether you’re working on vehicle repair or maintenance repair, the 212 Impact Wrench will help you through even the toughest of jobs.

Features And Benefits

• Reliability: This wrench was built to ensure high quality output from its first day to its last.
• Durability: This steel hammer case and metal housing make the 212 Impact Wrench as durable as it is efficient. It can withstand repeated drops and harsh environments with ease.
• Access: With a pistol grip and ergonomic design, this wrench helps you access hard-to-reach spots every time.
• Power: The wrench's finely tuned vane motor pairs smoothly with the jumbo hammer impact mechanism on the 212 Impact Wrench for maximum power.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair Or Maintenance Repair
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 11
Air Consumption @ Load (l/min): 311
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 2.5
Average Air Consumption (l/min): 71
Blows per Min: 1500
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.0 / 107.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 92.2 / 103.2
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 150
Max Torque (in-lb): 1797
Max Torque (nm): 203
Min Hose Size (in): 3/8
Motor: Non-Biased
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 51.9
Product Length (in): 6
Product Width (in): 2.8
Product Height (in): 6.5
Product Weight (lb): 2.89
Recommended Forward Torque Range (ft-lb): 20-125
Recommended Forward Torque Range (in-lb): 239-1505
Recommended Forward Torque Range (nm): 27-170
Recommended Reverse Torque (ft-lb): 20-125
Recommended Reverse Torque (nm): 27-170
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 6.5
Warranty: 1-year

Similar IR

• 2115TIMAX
• 231C

IR 2145Q-311

Exhaust silencer for Ingersoll Rand 2145 Series Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 2145QIMAX, 2145QIMAX-3, 2145QIMAX-6, and 2155QIMAX Impacts

For Use With

• 2145QIMAX
• 2145QIMAX-3
• 2145QIMAX-6
• 2155QIMAX

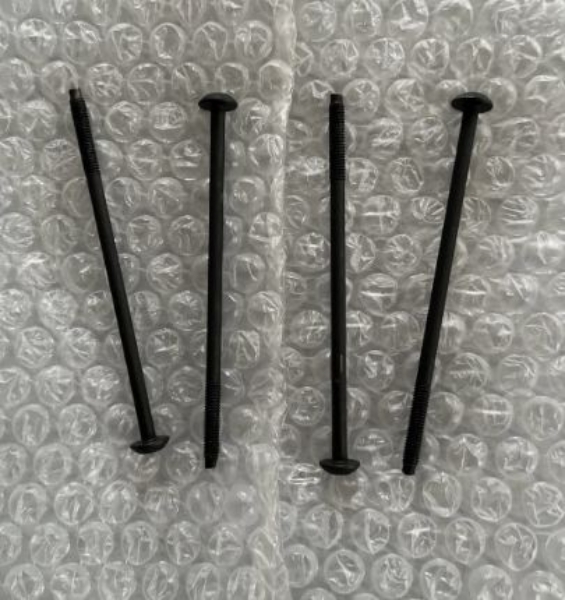

IR 3940-638

HANDLE CAP SCREW

IR W5350

1/2" 20V Cordless Angle Impact Wrench, 190 ft-lb Torque, Friction Ring Retainer, Bare Tool, Inline

The 20V W5350 Impact Wrench’s right angle design and reactionless torque will spare your knuckles while getting those hard-to-reach jobs done. Also available in the W5350-K12 (1) battery or W5350-K22 (2) battery kit.

Features And Benefits

• 180 ft-lbs. of reactionless torque and great power-to-weight ratio, you’ll be able to work quickly and efficiently without having to over-exert yourself.
• From 0-1,900 rpm just like your favorite impact wrench, the W5330 flies through bolts with the variable speed trigger for more control.
• Durable steel-lined aluminum hammer case is designed to be strong and lightweight, while protecting interior components of this cordless impact wrench.
• Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
• Ergonomic handle and comfort grip offers the same reach as a ratchet.
• Conveniently located forward/ reverse switch for maximum control.
• Fully serviceable head for extended tool life; save on parts and replacement tool costs by removing a few quick screws for better accessibility.
• Patented Inline battery design can go places other impact wrenches only dream of- spaces that used to be reserved for a traditional ratchet or your bare hands.
• Compatible with all IQV® 20 batteries.
• Available in the W5350-K12 (1) battery kit or W5350-K22 (2) Kit which also includes a charger and carrying case.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Actuation/Throttle Type/Switch Type: Trigger
Blows per Min: 3000 (BL2022)
Blows per Min: 3000 (BL2012)
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Drive Size (in): 1/2
Drive Type: Square
Free Speed Sound Pressure/Power Db(A): 85
Hammer Case: Aluminum
Handle Material: Nylon
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 181
Max Torque (in-lb): 2168
Max Torque (nm): 245
Number of Batteries Required: 1
Power Source: Battery Powered
Recommended Forward Torque Range (ft-lb): 181
Recommended Forward Torque Range (in-lb): 2168
Recommended Forward Torque Range (nm): 245
Retainer Type: Friction Ring
Sound Pressure/Power Db(A): 85 / 96
Speed Setting: Variable Speed
Vibration Level (m/s2): 10
Vibration Uncertainy K* (m/s2): 6.3
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

IR W7172-K22

3/4" 20V Cordless Impact Wrench 2 Battery Kit, 1500 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

Features And Benefits

• POWER: Powerful brushless motor and impact mechanism are finely tuned for best in class power-to-weight ratio. 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque.
• CONTROL: Includes the IQV® Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there’s no need to switch tools.
• ACCESS: 8.5” short tip-to-tail design and 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access.
• Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency.
• Variable-speed switch (half and full power only) with electronic brake provides maximum control of the tool and increases safety—release trigger, drive stops spinning.
• Patented steel-reinforced nylon casing protects against aggressive fluids, chemicals and repeated drops
• Ideally used for removing or fastening cradle bolts, tire changing, fleet truck maintenance and in industrial and MRO settings.
• Weighs only 7.8 lbs (with BL2022 battery).
• 3-year warranty.
• Compatible with IQV® 20 Series Battery System.

Includes: W7172 3/4" Cordless Impact Wrench, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Bag
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 2450 (BL2022)
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 3.7-10
Forward Torque setting 1 (in-lb): 44-124
Forward Torque setting 1 (nm): 5-14
Forward Torque setting 2 (ft-lb): 37-111
Forward Torque setting 2 (in-lb): 443-1328
Forward Torque setting 2 (nm): 50-150
Forward Torque setting 3 (ft-lb): 531
Forward Torque setting 3 (in-lb): 6373
Forward Torque setting 3 (nm): 720
Forward Torque setting 4 (ft-lb): 1003
Forward Torque setting 4 (in-lb): 12037
Forward Torque setting 4 (nm): 1360
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.7
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 1003
Max Torque (in-lb): 12037
Max Torque (nm): 1360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1505
Nut-busting/Breakaway Torque (in-lb): 18056
Nut-busting/Breakaway Torque (nm): 2040
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 194.81
Product Length (in): 8.5
Product Width (in): 3.3
Product Height (in): 9.1
Product Height (in) (with Battery): 11.1
Product Weight (lb): 6.1
Product Weight (lb) (with Battery): 7.7
Recommended Forward Torque Range (ft-lb): 1003
Recommended Forward Torque Range (in-lb): 12037
Recommended Forward Torque Range (nm): 1360
Retainer Type: Friction Ring and Thru-hole
RPM Setting 1: 600
RPM Setting 2: 1000
RPM Setting 3: 1450
Side to Center Distance (in): 1.35
Side to Center Distance (mm): 34
Sound Pressure/Power Db(A): 92 / 103
Standards/Certifications: Ul Listed, Csa Certified
Tool Type: High-torque
Vibration Level (m/s2): 16.6
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Similar IR

• W7152-K22
• W7152P-K22

IR 2115Q-311

SILENCER, EXHAUST

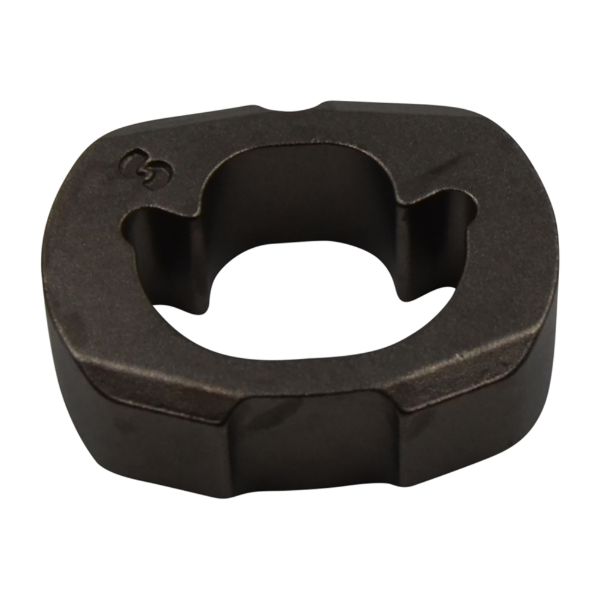

IR 2235-724

Hammer for Ingersoll Rand 2235 Series Impact Wrench

Includes: (2) Hammers
Product Application and Uses: For use with Ingersoll Rand 2235 Series Impact Wrench

For Use With

• 2235QPTIMAX
• 2235TIMAX-2
• 2235QTIMAX
• 2235QTIMAX-G
• 2235TIMAX-G
• 2235TIMAX
• 2235QTIMAX-2
• 2235TIMAX-R
• 2235PTIMAX

IR 2934-11

FRONT END PLATE

IR 35-TK1

Tune-up Kit for Ingersoll Rand 35MAX, 15QMAX and 36QMAX Series Impact Wrenches

Includes: O-rings, inlet parts kit, vane pack, bearings and gasket

For Use With

• 15QMAX
• 36QMAX

IR W5133

3/8" 20V Cordless Impact Wrench, 550 ft-lb Torque, Friction Ring Retainer, Pistol, Bare Tool

The Ingersoll Rand W5133 impact wrench enhances the features you demanded: increased durability with stronger internal parts, and increased access with its tapered front end. This next generation compact impact wrench packs 365 ft.-lbs. of MAX torque in a cordless compact unit that weighs only 5.3 lbs. (with a BL2022 battery). Tested by real technicians, ready to tackle real work.

Features And Benefits

• Power: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drivetrain and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool and increases safety-release trigger.
• Control: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there’s no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
• Durable: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5133 is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV® spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
• Access: 6.5” tip-to-tail ergonomic design and lightweight build, the W5133 can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree LED light ring with task light mode and 4 dimmable settings casts a wide beam to give you excellent visibility with no shadows.
• Tapered hammer case / Front End
• Compatible with IQV® 20 Series Battery System

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include brake calipers, valve covers, cylinder head cover removal, brake repairs, shock replacement, industrial and Mro.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 3300
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 2.2-8.9
Forward Torque setting 1 (in-lb): 27-106
Forward Torque setting 1 (nm): 3-12
Forward Torque setting 2 (ft-lb): 9.6-24
Forward Torque setting 2 (in-lb): 115-292
Forward Torque setting 2 (nm): 13-33
Forward Torque setting 3 (ft-lb): 240
Forward Torque setting 3 (in-lb): 2876
Forward Torque setting 3 (nm): 325
Forward Torque setting 4 (ft-lb): 339
Forward Torque setting 4 (in-lb): 4071
Forward Torque setting 4 (nm): 460
Free Speed Sound Pressure/Power Db(A): 85
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.3
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 32
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 2100
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 549
Nut-busting/Breakaway Torque (in-lb): 6594
Nut-busting/Breakaway Torque (nm): 745
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.77
Product Length (in): 7
Product Width (in): 2.8
Product Height (in): 8.3
Product Height

FP U AF-32C

AIR AILTER (SOL-31)

IR 2115PTIMAX

3/8" Air Impact Wrench, 300 ft-lb Torque, Titanium Hammercase, Pin Retainer, Pistol

The 2115TiMAX delivers best in class performance for a tool less than six inches long and weighing less than two and a half pounds. The minimal size of this tool will allow greater access to tight spaces, while the minimal weight will reduce operator fatigue...all while still delivering MAX performance.

Features And Benefits

• Durable: With a titanium hammer case and composite housing, this wrench can withstand anything, including repeated drops and harsh environments. In fact, we provide a 2-year warranty to prove it.
• Versatile: This tool is so versatile, it can be used in just about any market.
• Reliable This wrench has been tested and is guaranteed to last. It’ll deliver the same level of power every time.
• Easier access to grease fitting – for quicker maintenance and less downtime
• Enhanced socket retention
• 7-vane Motor delivers added power with less weight
• Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency
• Feather-touch trigger provides maximum control of this air impact wrench
• Anodized end plate for enhanced durability
• Pin anvil ensures positive socket retention
• Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction
• Patented one-hand forward/reverse control for easy operation
• Optimized air flow for maximized performance when using this pneumatic impact wrench

Includes: Bare Tool
Product Application and Uses: General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 17
Air Consumption @ Load (l/min): 481
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Blows per Min: 1500
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 89.7 / 100.7
Hammer Case: Titanium
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 93.2 / 104.2
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 300
Max Torque (in-lb): 3602
Max Torque (nm): 407
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 4
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 120.9
Product Length (in): 5.9
Product Width (in): 2.2
Product Height (in): 6.7
Product Weight (lb): 2.48
Recommended Forward Torque Range (ft-lb): 250
Recommended Forward Torque Range (in-lb): 3000
Recommended Forward Torque Range (nm): 339
Retainer Type: Pin Detent
Side to Center Distance (in): 1.1
Side to Center Distance (mm): 28
Special Features: Titanium hammercase, 2-year Max warranty
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 7.8
Warranty: 2-year

Similar IR

• 2115TIMAX

IR 2131-638

SCREW

IR 2146Q1MAX

3/4" Air Impact Wrench, Quiet, 2000 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

The 2146MAX Series Impact Wrenches- including the 2146Q1MAX, is the most powerful 3/4" impact in its class. Available in 1′′ (2146Q2MAX) drive or extended anvil pistol grip configurations, these tools have been engineered with an innovative pressure gauge that ensures optimized air flow and pressure. These quiet impact wrenches help you maximize productivity across a range of jobs and tackle anything that comes your way. And because you can avoid operating below and above the recommended 90 PSI air pressure, your tool will last longer and perform more reliably. Work more and spend less; the 2146MAX Series helps you do what you do best.

Features And Benefits

• Cold-forged twin hammer impact mechanism and motor deliver 2,000 ft-lbs of Nut Busting Torque, durability, and efficiency
• Steel hammer case stands up to drops and everyday abuse
• Patented one-hand forward/reverse and feather-touch trigger provides maximum control
• Ingersoll Rand’s Quiet Technology reduces the sound of the tool, sparing your ears without sacrificing a single ounce of power
• Pressure gauge improves productivity and prolongs product life
• A lightweight, balanced, air impact wrench that weighs just 7.8 lbs
• Standard 3/4" drive size and length for access to confined bolt locations
• Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids
• Optimized for the vehicle repair industry, heavy trucks, tire lanes, fleet maintenance, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding and construction

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 36
Air Consumption @ Load (l/min): 1090
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 14
Average Air Consumption (l/min): 396
Blows per Min: 1075
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 88.8 / 99.8
Hammer Case: Steel
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 94.3 /105.3
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1453
Max Torque (in-lb): 17436
Max Torque (nm): 1970
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 24003
Nut-busting/Breakaway Torque (nm): 2712
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 256.4
Product Length (in): 8.47
Product Width (in): 3.5
Product Height (in): 8.19
Product Weight (lb): 7.8
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 200-900
Recommended Forward Torque Range (in-lb): 2390-10798
Recommended Forward Torque Range (nm): 270-1220
Recommended Reverse Torque (ft-lb): 199-1003
Recommended Reverse Torque (nm): 270-1360
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 1.73
Side to Center Distance (mm): 44
Special Features: Quiet, Air Pressure Gauge, Cold Forged Twin Hammers, Hard Anodized Wear Plates
Standards/Certifications: CE, UKCA, EAC
Vanes: 6
Vibration Level (m/s2): 8.4
Warranty: 2-year

Similar IR

• 2146Q2MAX
• 2146Q1MAX-3
• 2146Q1MAX-6
• W8171-K2
• 2925RBP1TI

Supersedes

• 2145QI

IR 2934-283

Housing Cover Gasket for Ingersoll Rand 290, 293, 280 Series Impact Wrench

IR 2934-36

Hammer Case Gasket for Ingersoll Rand 290, 280 Series Impact Wrench
