Nutrunner

IR QXXN2PT004PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1150 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Vibration Level (m/s2): < 2.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

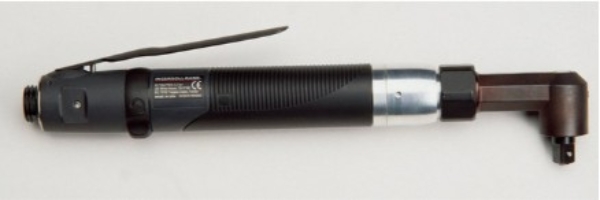

IR QA1L12S1LD

Q2 NUTRUNNER W/ E-CHIP

IR QA6ASLS040NP41S06

NUTRUNNER

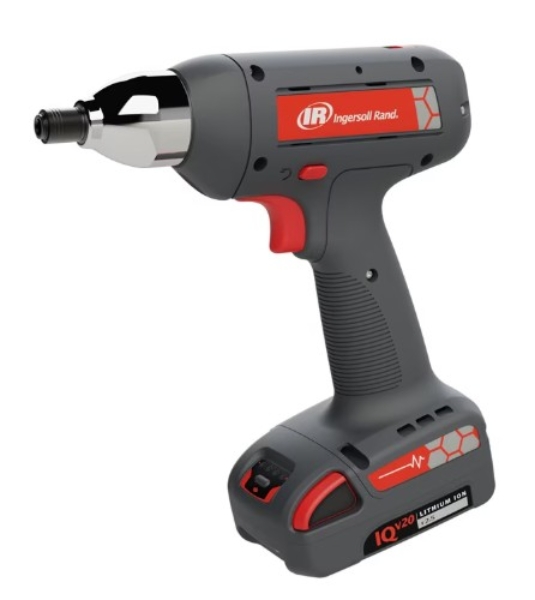

IR QXFN2PT018PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

Designed to replace traditional clutch tools, the 20V pistol grip QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV® 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android; Through ICS Software; Through INISGHTqcx Controllers.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

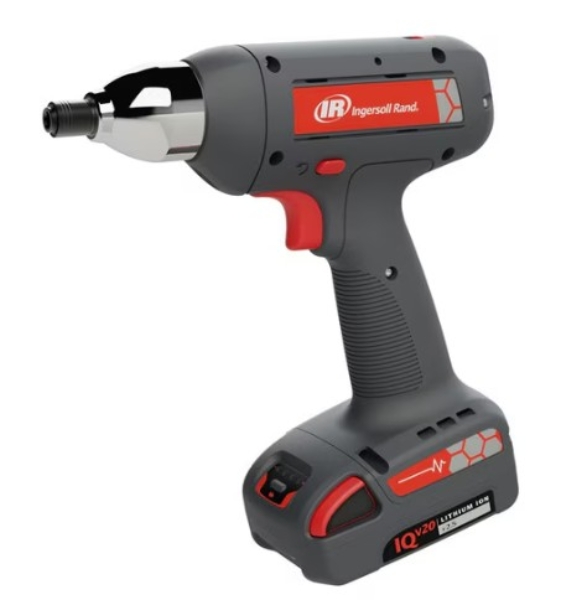

IR QXFN2PT024ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 212 in-lb Torque, 500 RPM, Pistol

Designed to replace traditional clutch tools, the 20V pistol grip QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV® 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Ergonomic tightening system to reduce torque reaction experienced by operator.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android; Through ICS Software; Through INISGHTqcx Controllers.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 18
Max Torque (in-lb): 212
Max Torque (nm): 24
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): -
Recommended Forward Torque Range (in-lb): -
Recommended Forward Torque Range (nm): 4.8 – 24
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXXD2PT018PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT012PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

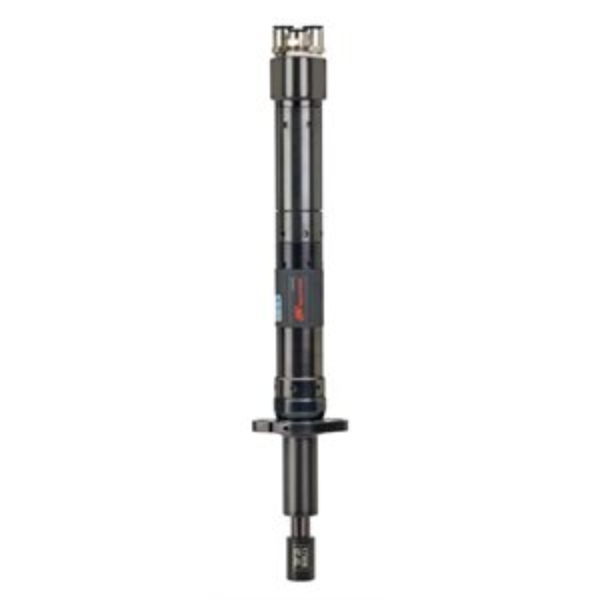

IR QA4ASLS015NP41S06

NUTRUNNER

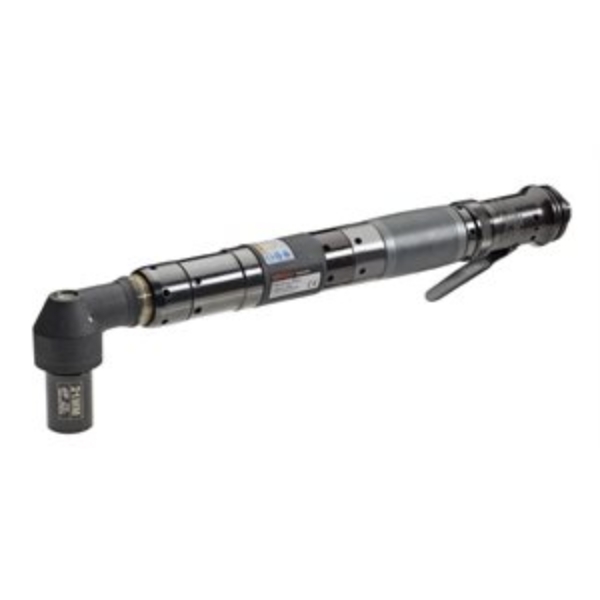

IR QA8AALS150NP48S08

NUTRUNNER

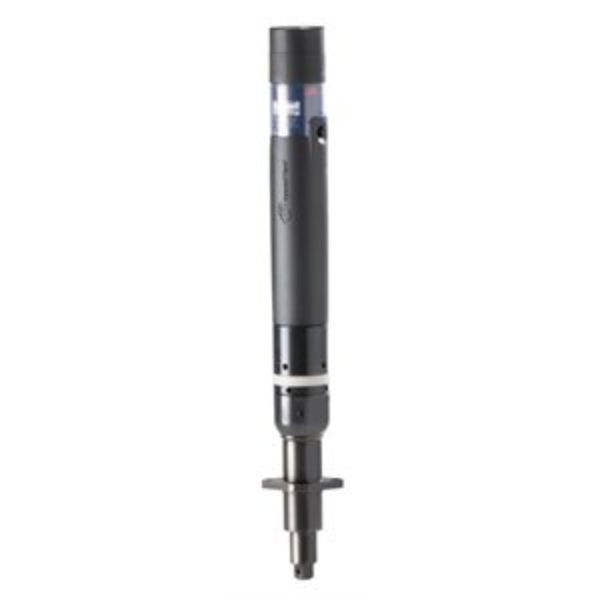

IR QE2SL007P10Q04

Nutrunner

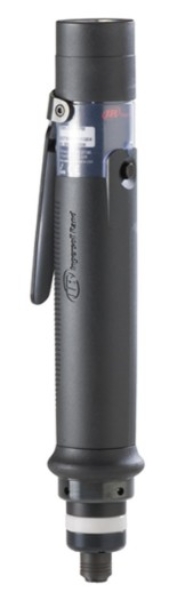

IR QE2TS005P11Q04

ASSEMBLY TOOL

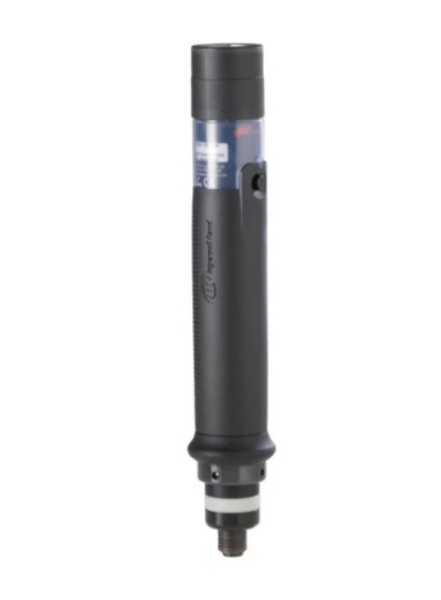

IR QE2TS010P11S04

ASSEMBLY TOOL

IR QE4SC025B41S06

ASSEMBLY TOOL QE4SC025B41S06

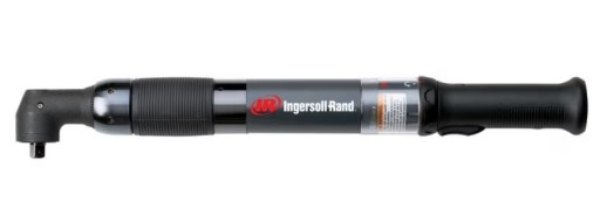

IR QE6AT080PA5S08

ASSEMBLY TOOL

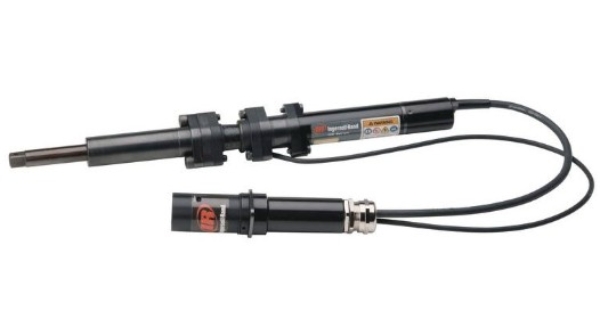

IR QM9SS315H62S12

ASSEMBLY TOOL

IR QXFN2PT012EQ04

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

Designed to replace traditional clutch tools, the 20V pistol grip QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV® 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Ergonomic tightening system to reduce torque reaction experienced by operator.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android; Through ICS Software; Through INISGHTqcx Controllers.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.13
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXXD2AT018PQ04

1/4" Hex 20V Cordless QX Precision Fastening Angle Screwdriver, 159 in-lb Torque, 500 RPM, Display

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 24.34
Product Height (in) (with Battery): 3.94
Product Weight (lb): 2.8
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 0.51
Side to Center Distance (mm): 13
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD2PT012ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode), simplifying setup.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible

IR 7RLM3C6

ANGLE WRENCH 25-130INLB

IR 9SM-53

ROTOR (9RSM)

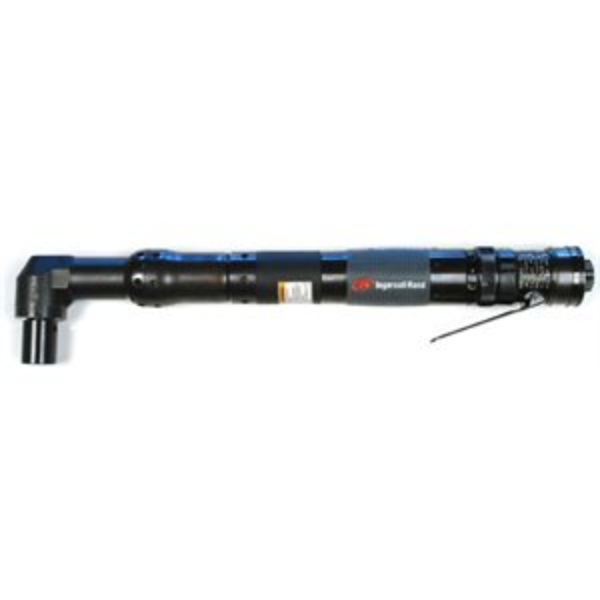

IR QA4AALS030NP28S06

NUTRUNNER

IR QA4AALS040NP35S06

NUTRUNNER

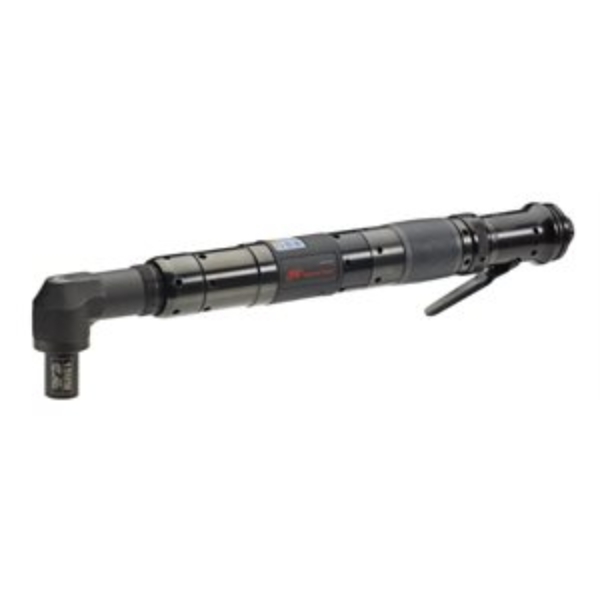

IR QA6AALD055NP35S08

NUTRUNNER

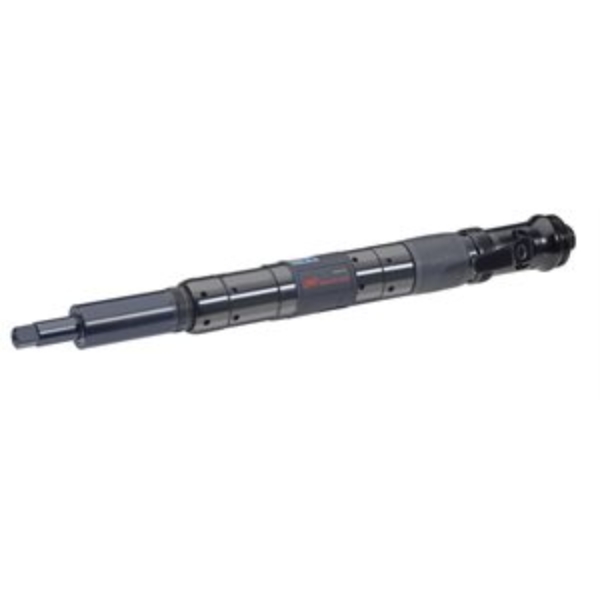

IR QA6ASLS025NP41S06

NUTRUNNER

IR QA8AALS070NP43S08

NUTRUNNER
