Nutrunner

CL 34RAA33AX3

NUTRUNNER (M8)

IR 7RAK-302

THROTTLE VALVE

IR 7RAK-303

THROTTLE VALVE SEAT

IR QXXN2AT027ES06

3/8" 20V Cordless QX Precision Fastening ETS Angle Screwdriver, 239 in-lb Torque, 330 RPM

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing the torque reaction in your fastening process doesn't have to be complicated. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode) simplifying setup:
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 330
Max Torque (ft-lb): 20
Max Torque (in-lb): 239
Max Torque (nm): 27
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 21.73
Product Height (in) (with Battery): 3.94
Product Weight (lb): 3.7
Recommended Forward Torque Range (ft-lb): 4.0-20
Recommended Forward Torque Range (in-lb): 48-239
Recommended Forward Torque Range (nm): 5.4-27
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm):

JC 0114-0438

Screw

JC 0118-0625

Screw

SX SCN-25L

Serrated Clinch Nose, 1/4-20 M6

SX SCN7R518

Clinch Nut Tool, pistol grip, 5/16-18

CL 120PTHHA304

PULSNTS

CL CCBPW123

NUTSTR, CC PISTOL - 12NM

IR 7RLM3C6

ANGLE WRENCH 25-130INLB

IR 9SM-53

Rotor (9RSM)

IR QA4AALS030NP28S06

NUTRUNNER

IR QA4AALS040NP35S06

NUTRUNNER

IR QA6AALD055NP35S08

NUTRUNNER

IR QA6ASLS025NP41S06

NUTRUNNER

IR QA8AALS070NP43S08

NUTRUNNER

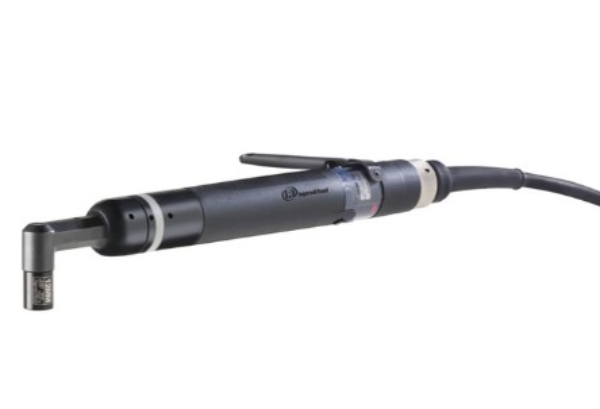

IR QE2AL015PA3S06

ASSEMBLY TOOL

IR QE4AE020PA2S06

Nutrunner R/A Extended DC Electric

IR QE4AT027PA4S08

Dc Electric, Right Angle, 27Nm, 1/2In Drive

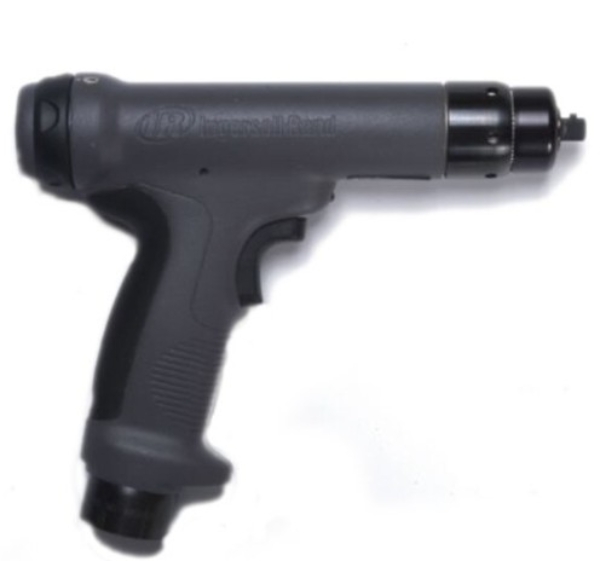

IR QE4PT010P10Q04

ASSEMBLY TOOL

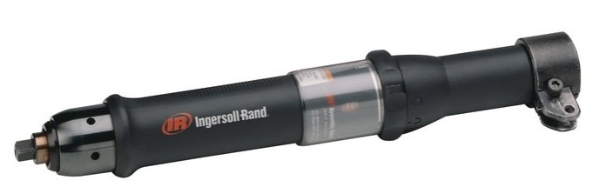

IR QE4ST015B21S06

Nutrunner, DC, Inline, Trigger Start

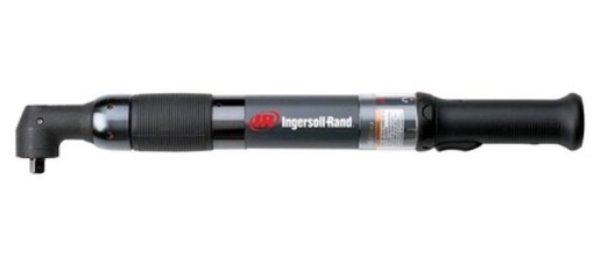

IR QE6SC050F61S08

Nutrunner, Inline, 50nm, 1/2 Dr

IR QXFN2PT008PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Pistol

Designed to replace traditional clutch tools, the 20V pistol grip QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV® 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android; Through ICS Software; Through INISGHTqcx Controllers.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFN5AT035PS06

3/8" 40V Cordless QX Precision Fastening Angle Screwdriver, 310 in-lb Torque, 640 RPM

Designed to replace traditional clutch tools, the 40V high-torque angle QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Series™ IQV® 40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQV® Series 40V, 2.5Ah charger BC1161.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android, ICS Software, INISGHTqcx Controllers.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 640
Max Torque (ft-lb): 26
Max Torque (in-lb): 310
Max Torque (nm): 35
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 5.2-26
Recommended Forward Torque Range (in-lb): 62-310
Recommended Forward Torque Range (nm): 7.0-35
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB
