Fluid Regulators
Fluid Regulator, Hi-Capacity (0-100 Lbs)
BB 84-411
BB 84-411
Fluid Regulator, Hi-Capacity (0-100 Lbs)
$870.00
REGULATOR, PRESS FLUID
GG 214980
GG 214980
REGULATOR, PRESS FLUID
Low Pressure Fluid Regulator, 250 Max psi, 0-30 psi Range, 3.0 GPM, SST, Air Type, 3/8 (f) x 3/8 (f), 1/4 (f) Port Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves Stainless steel wetted materials are compatible with catalyst and waterborne materials Removable adjustment key eliminates operator interference Manual quick flush mode ensures easy cleaning without impacting production settings Air operated model provides easy automation opportunities Tungsten and carbide materials ensure low wear and long life
$842.00
REGULATOR, PRESSURE
GG 217576
GG 217576
REGULATOR, PRESSURE
High Pressure Fluid Regulator, 3000 Max psi, 200-1000 psi Range, 3.5 GP (m), SST, Spring Type, 3/8 (f) x 1/4 (f), 1/4 (f) Port For use in airless spray systems to control and regulate fluid pressure to one spray gun, dispensing valve, or atomizing head Tungsten and carbide materials ensure low wear and long life Plated carbon steel housing is compatible with solvent-borne materials Laser-marked indication lines for easy pressure adjustment and process control Ergonomic adjustment knob
$1,470.00
REGULATOR, PRESSURE, FLUID
GG 222121
GG 222121
REGULATOR, PRESSURE, FLUID
Graco 222121 Mini High Pressure Corrosion Resistant Fluid Regulator, 1500 Max psi, 150-1200 psi Range, 1.0 GPM, SST, Spring Type, 1/4(f) x 1/4(m)
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Tungsten and carbide materials ensure low wear and long life
- Valve cartridge for quick cleaning and replacement – reduce downtime
- Pressure adjustment key with locking mechanism protects production settings
- Actuation Type: Spring
- Includes: Regulator Only
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 1
- Maximum Flow Rate (L/min): 3.8
- Maximum Regulated Pressure (bar): 83
- Maximum Regulated Pressure (kPa): 8300
- Maximum Regulated Pressure (MPa): 8.3
- Maximum Regulated Pressure (psi): 1200
- Maximum Viscosity (cP): 500
- Maximum Working Pressure (bar): 103
- Maximum Working Pressure (kPa): 10300
- Maximum Working Pressure (MPa): 10.3
- Maximum Working Pressure (psi): 1500
- Minimum Regulated Pressure (bar): 10.4
- Minimum Regulated Pressure (kPa): 1040
- Minimum Regulated Pressure (MPa): 1.0
- Minimum Regulated Pressure (psi): 150
- Outlet Size (cm): 0.635
- Outlet Size (in): 1/4
- Outlet Size (mm): 6.35
$1,420.00
REGULATOR, PRESS, FLUID
GG 206661
GG 206661
REGULATOR, PRESS, FLUID
Graco 206661 High Pressure Fluid Regulator, 3000 Max psi, 1000-3000 psi Range, 3.5 GPM, CS, Spring Type, 3/8(f) x 1/4(f), 1/4(f) Port, with gauge
- Tungsten and carbide materials ensure low wear and long life
- Plated carbon steel housing is compatible with solvent-borne materials
- Laser-marked indication lines for easy pressure adjustment and process control
- Actuation Type: Spring
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Thread Gender: Female
- Gauge Port Type: NPT
- Includes: Regulator Only
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Inlet Thread Gender: Female
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 3.5
- Maximum Flow Rate (L/min): 13.25
- Maximum Regulated Pressure (bar): 207
- Maximum Regulated Pressure (kPa): 20700
- Maximum Regulated Pressure (MPa): 21
- Maximum Regulated Pressure (psi): 3000
- Maximum Viscosity (cP): 500
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (MPa): 21
- Maximum Working Pressure (psi): 3000
- Minimum Regulated Pressure (bar): 70
- Minimum Regulated Pressure (kPa): 7000
- Minimum Regulated Pressure (MPa): 7
- Minimum Regulated Pressure (psi): 1000
- Outlet Size (cm): 0.635
- Outlet Size (in): 1/4
- Outlet Size (mm): 6.35
- Outlet Thread Gender: Female
$1,470.00
VALVE, PRESS, BACK
GG 208997
GG 208997
VALVE, PRESS, BACK
Graco 208997 Back Pressure Regulator, Low Pressure Corrosion Resistant, 200 Max psi, SST, Manual, 1-1/4 (f) x 1-1/4 (f), with Gauge
Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Hardened stainless steel seat ensure low wear and long life
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Air operated models available for automated control, Conversion kit (15J498)
- Compatible Material: Catalyst, Waterborne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Includes: Gauge
- Inlet Size (cm): 3.175
- Inlet Size (in): 1-1/4
- Inlet Size (mm): 31.75
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 15
- Maximum Flow Rate (L/min): 56.8
- Maximum Regulated Pressure (bar): 14
- Maximum Regulated Pressure (kPa): 1400
- Maximum Regulated Pressure (psi): 200
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (psi): 300
- Minimum Regulated Pressure (bar): 0.35
- Minimum Regulated Pressure (kPa): 35
- Minimum Regulated Pressure (MPa): 0.035
- Minimum Regulated Pressure (psi): 5
- Outlet Size (cm): 3.175
- Outlet Size (in): 1-1/4
- Outlet Size (mm): 31.75
- Outlet Thread Type: NPT
$1,045.00
REGULATOR, PRESSURE, FLUID
GG 238894
GG 238894
REGULATOR, PRESSURE, FLUID
Corrosion Resistant High Fluid Pressure Regulator, 500-4000 psi Range, 1.0 gpm, SST, Air, 3/8(f) x 3/8(f), 1/4(f) Port, with gauge Stainless steel wetted materials are compatible with catalyst and waterborne materials Tungsten and carbide materials ensure low wear and long life Valve cartridge for quick cleaning and replacement – reduce downtime Glycerin filled gauge for accurate pressure reading
$2,160.00

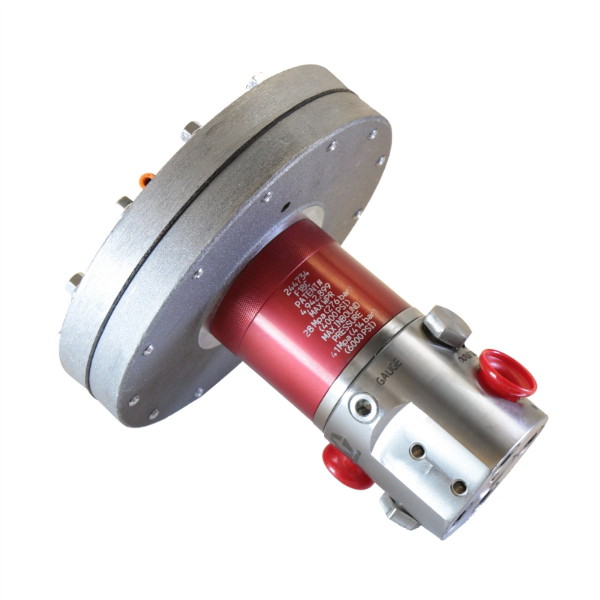

REGULATOR, ASSEMBLY, XL
GG 244734
GG 244734
REGULATOR, ASSEMBLY, XL
Air Operated High Pressure Fluid Pressure Regulator with EZ Flush Gauge PortThese regulators control downstream pressure for mastic or semi-solid material. Install a regulator ahead of each spray gun or extruder gun in a multiple outlet system. The regulator provides precise pressure control to each spray gun from a common header system. It also dampens flow surges when line valves are opened and during pump stroke changeover.
$2,430.00
REGULATOR, PRESS, FLUID
GG 209030
GG 209030
REGULATOR, PRESS, FLUID
Low Pressure Fluid Regulator, 250 Max psi, 5-100 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (m), 1/4 (f) Port Use on circulating line drops to regulate fluid pressure to one air spray gun or dispensing valve Available with mechanical control or pneumatic control Suitable for fluids with low and high viscosities Models available with wetted parts made of stainless steel Application-oriented pressure ranges
$1,225.00

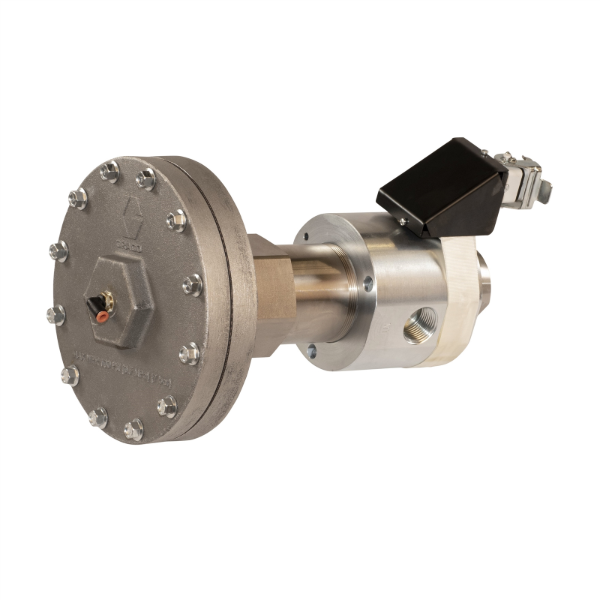

REGULATOR, MASTIC, HEATED
GG 246643
GG 246643
REGULATOR, MASTIC, HEATED
Air Operated Heated Mastic Fluid Pressure Regulator The heated mastic regulator is ideal for low to high viscosity warm-melt and hot-melt sealants or adhesives
$6,110.00
REGULATOR, PRESSURE BACK
GG 205122
GG 205122
REGULATOR, PRESSURE BACK
Graco 205122 Back Pressure Regulator, Low Pressure Mini, 180 Max psi, CS, Manual, 3/8 (m) x 3/8 (f), with Gauge
Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Tungsten and carbide materials ensure low wear and long life
- Compact and lightweight design saves space and reduces payload for small circulation systems
- Air operated model available for automated control, Conversion kit (237448)
- Compatible Material: Catalyst, Waterborne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Includes: Gauge
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Inlet Thread Type: NPSM
- Maximum Flow Rate (GPM): 2
- Maximum Flow Rate (L/min): 7.6
- Maximum Regulated Pressure (bar): 12.4
- Maximum Regulated Pressure (kPa): 1240
- Maximum Regulated Pressure (psi): 180
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (psi): 300
- Minimum Regulated Pressure (bar): 0
- Minimum Regulated Pressure (kPa): 0
- Minimum Regulated Pressure (MPa): 0
- Minimum Regulated Pressure (psi): 0
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Type: NPSM
$627.00
Regulator, Fluid, P20-Vm
GG 233757
GG 233757
REGULATOR, PRESSURE, P20-VM
Graco 233757 Mechanical Fluid Pressure Regulator, 580 psi max inlet pressure, 15-290 psi pressure range
For use in air-assisted spray systems to ensure accurate, positive control of fluid pressure to a spray gun, low pressure dispensing valve, or atomizing head.
- Actuation Type: Spring
$1,435.00
REGULATOR, PRESS, P10-VM, NPT
GG 234273
GG 234273
REGULATOR, PRESS, P10-VM, NPT
Graco 234273 Low Pressure Fluid Regulator, 580 Max psi, 15-145 psi Range, 7.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/8 in BSPP Port
Mechanically operated fluid pressure regulators designed primarily for use with low to medium viscosity fluids.
- Actuation Type: Spring
- Gauge Port Size (cm): 0.3175
- Gauge Port Size (in): 1/8
- Gauge Port Size (mm): 3.175
- Gauge Port Type: BSPP
- Includes: Regulator Only
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 7
- Maximum Flow Rate (L/min): 26.5
- Maximum Regulated Pressure (bar): 10
- Maximum Regulated Pressure (kPa): 1000
- Maximum Regulated Pressure (MPa): 1.0
- Maximum Regulated Pressure (psi): 145
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 40
- Maximum Working Pressure (kPa): 4000
- Maximum Working Pressure (MPa): 4
- Maximum Working Pressure (psi): 580
- Minimum Regulated Pressure (bar): 1
- Minimum Regulated Pressure (kPa): 10
- Minimum Regulated Pressure (MPa): 100
- Minimum Regulated Pressure (psi): 15
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
$1,205.00

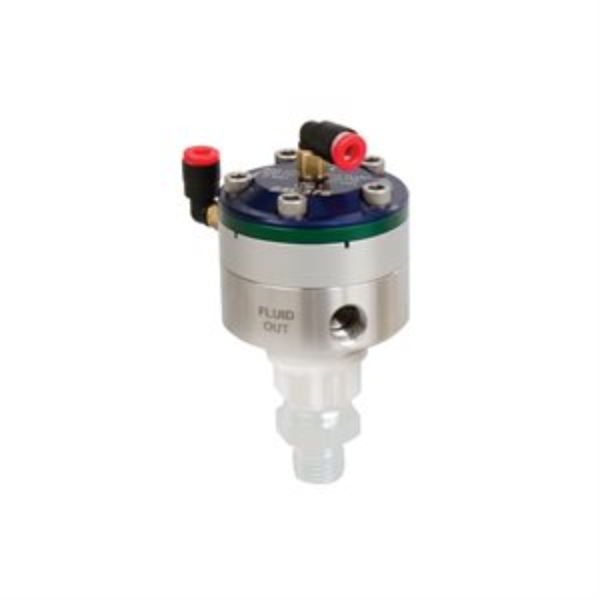

REGULATOR, FLUID, 2:1 RATIO
GG 24E471
GG 24E471
REGULATOR, FLUID, 2:1 RATIO
2:1 Precision Flow Fluid Pressure Regulator, 50 psi (3.4 bar) max pressure, green ratio spacer Fluid regulators keep your system functioning more productively. Available with mechanical control or pneumatic control Suitable for fluids with low and high viscosities Models available with wetted parts made of stainless steel Application-oriented pressure ranges
$2,190.00
REGULATOR, PRESS, P20-VM, NPT
GG 234263
GG 234263
REGULATOR, PRESS, P20-VM, NPT
Graco 234263 Low Pressure Fluid Regulator, 580 Max psi, 15-290 psi Range, 7.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/8 in BSPP Port
Mechanically operated fluid pressure regulators designed primarily for use with low to medium viscosity fluids.
- Actuation Type: Spring
- Gauge Port Size (cm): 0.3175
- Gauge Port Size (in): 1/8
- Gauge Port Size (mm): 3.175
- Gauge Port Type: BSPP
- Includes: Regulator Only
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 7
- Maximum Flow Rate (L/min): 26.5
- Maximum Regulated Pressure (bar): 20
- Maximum Regulated Pressure (kPa): 2000
- Maximum Regulated Pressure (MPa): 2.0
- Maximum Regulated Pressure (psi): 290
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 40
- Maximum Working Pressure (kPa): 4000
- Maximum Working Pressure (MPa): 4
- Maximum Working Pressure (psi): 580
- Minimum Regulated Pressure (bar): 1
- Minimum Regulated Pressure (kPa): 10
- Minimum Regulated Pressure (MPa): 102
- Minimum Regulated Pressure (psi): 15
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
$1,200.00
