Fluid Regulators

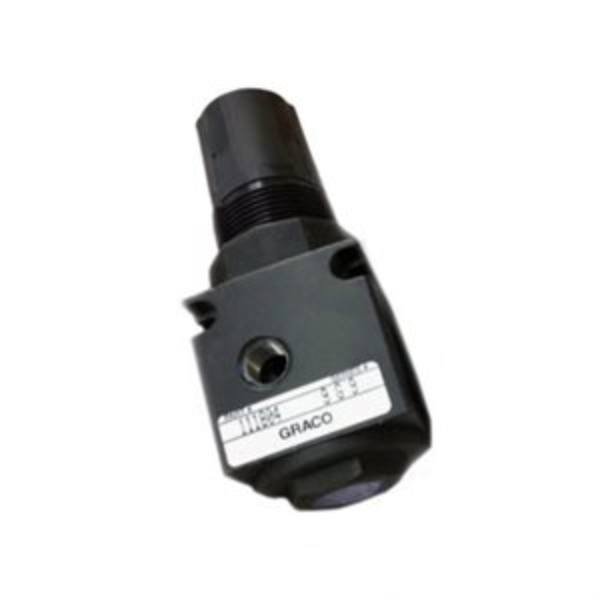

Regulator
GG 244375
GG 244375
REGULATOR, PRESSURE, FLUID
Graco 244375 Air Operated Fluid Regulator, 100 psi max regulated air pressure, 250 psi max inlet pressure, no guage
- Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish
$1,310.00
REGULATOR, MASTIC
GG 246642
GG 246642
REGULATOR, MASTIC
Graco 246642 Air Operated Mastic Fluid Pressure Regulator
The mastic regulator is ideal for low to high viscosity sealants or adhesives
Application: These regulators control downstream pressure for mastic or semi-solid material. Install a regulator ahead of each spray gun or extruder gun in a multiple outlet system. The regulator provides precise pressure control to each spray gun from a common header system. It also dampens flow surges when line valves are opened and during pump stroke changeover.- Actuation Type: Air
- Flow Control Type: Regulation
- Gauge Port Size (cm): 1.905
- Gauge Port Size (in): 3/4
- Gauge Port Size (mm): 19.05
- Gauge Port Type: NPT
- Inlet Size (cm): 1.905
- Inlet Size (in): 3/4
- Inlet Size (mm): 19.05
- Inlet Thread Type: NPT
- Maximum Regulated Pressure (bar): 310
- Maximum Regulated Pressure (kPa): 31000
- Maximum Regulated Pressure (MPa): 31.0
- Maximum Regulated Pressure (psi): 4500
- Maximum Viscosity (cP): 80000
- Maximum Working Pressure (bar): 344
- Maximum Working Pressure (kPa): 34400
- Maximum Working Pressure (MPa): 34.4
- Maximum Working Pressure (psi): 5000
- Minimum Regulated Pressure (bar): 7
- Minimum Regulated Pressure (kPa): 700
- Minimum Regulated Pressure (MPa): 0.7
- Minimum Regulated Pressure (psi): 100
- Outlet Size (cm): 1.905
- Outlet Size (in): 3/4
- Outlet Size (mm): 19.05
- Outlet Thread Type: NPT
$3,050.00
REGULATOR, BP, MECHANICAL, LOW-FLOW
GG 25R488
GG 25R488
REGULATOR, BP, MECHANICAL, LOW-FLOW
Graco 25R488 Low Shear Fluid Back Pressure Regulator, 300 Max psi, 10 gpm Max flow rate, SST, Mechanical, high wear, sanitary inlet/outlet
Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.
- Innovative flow path geometry provides industry-leading low shear capability
- Ultralife series ceramic coated seat and flow directors significantly increase wear resistance capability and service life
- Best-in-class performance holds pressure constant while flow rate changes
- Compatible Material: Waterborne, Solvent borne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Inlet Size (cm): 3.8
- Inlet Size (in): 1.5
- Inlet Size (mm): 38
- Inlet Thread Type: Sanitary Flange
- Maximum Flow Rate (GPM): 10
- Maximum Flow Rate (L/min): 38
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 122
- Maximum Regulated Pressure (bar): 17.6
- Maximum Regulated Pressure (kg/cm²): 17.6
- Maximum Regulated Pressure (kPa): 1724
- Maximum Regulated Pressure (psi): 250
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21.1
- Maximum Working Pressure (kg/cm²): 21.1
- Maximum Working Pressure (kPa): 2068
- Maximum Working Pressure (psi): 300
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Minimum Regulated Pressure (bar): 1.8
- Minimum Regulated Pressure (kg/cm²): 1.8
- Minimum Regulated Pressure (kPa): 172
- Minimum Regulated Pressure (MPa): 0.17
- Minimum Regulated Pressure (psi): 25
- Outlet Size (cm): 3.8
- Outlet Size (in): 1.5
- Outlet Size (mm): 38
- Outlet Thread Type: Sanitary Flange
$1,225.00
REGULATOR, BACK PRESSURE
GG 288117
GG 288117
REGULATOR, BACK PRESSURE
Graco 288117 Pneumatic Corrosion Resistant Fluid Back Pressure Regulator, 20 gpm, 300 psi max fluid pressure, 1-1/4 npt inlet/outlet, with gauge
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Hardened stainless steel seat ensure low wear and long life
- Air operated for remote automated control to eliminate operator interference
- Compatible Material: Catalyst, Waterborne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Includes: Gauge
- Inlet Size (cm): 3.175
- Inlet Size (in): 1-1/4
- Inlet Size (mm): 31.75
- Inlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kg/cm²): 7.03
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 20
- Maximum Flow Rate (L/min): 75.7
- Maximum Regulated Pressure (bar): 17.2
- Maximum Regulated Pressure (kPa): 1720
- Maximum Regulated Pressure (psi): 250
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (psi): 300
- Minimum Regulated Pressure (bar): 1.7
- Minimum Regulated Pressure (kPa): 170
- Minimum Regulated Pressure (MPa): 0.017
- Minimum Regulated Pressure (psi): 25
- Outlet Size (cm): 3.175
- Outlet Size (in): 1-1/4
- Outlet Size (mm): 31.75
- Outlet Thread Type: NPT
$2,400.00
Regulator, Pressure, P60-VP DN
GG 233760
GG 233760
REGULATOR, PRESSURE, P60-VP DN7
Graco 233760 High Pressure Pneumatic Fluid Regulator, 5000 psi (360 bar) max fluid inlet pressure, 70-900 psi (5-60 bar) regulated pressure range
For use in air-assisted spray systems to ensure accurate, positive control of fluid pressure to a spray gun, dispensing valve, or atomizing head.
- Actuation Type: Air
$2,760.00
REGULATOR, PRESS, P10-RP, NPT
GG 234257
GG 234257
REGULATOR, PRESS, P10-RP, NPT
Graco 234257 Low Back Pressure Fluid Regulator, 145 Max psi, 15-145 psi Range, 4.6 GPM, SST, Air Type, 3/8 (f) x 3/8 (f), 1/8 in BSPP Port
Limits the supply pressure to a set value by opening an outlet and guiding back excess material when the predetermined pressure has been achieved. Used in circulating systems.
- Gauge Port Size (cm): 0.3175
- Gauge Port Size (in): 1/8
- Gauge Port Size (mm): 3.175
- Gauge Port Type: BSPP
- Includes: Regulator Only
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Inlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 10
- Maximum Air Inlet Pressure (kPa): 100
- Maximum Air Inlet Pressure (psi): 145
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.5
- Maximum Regulated Pressure (bar): 10
- Maximum Regulated Pressure (kPa): 1000
- Maximum Regulated Pressure (psi): 145
- Maximum Working Pressure (bar): 10
- Maximum Working Pressure (kPa): 1000
- Maximum Working Pressure (psi): 145
- Minimum Regulated Pressure (bar): 1
- Minimum Regulated Pressure (kPa): 100
- Minimum Regulated Pressure (MPa): 0.1
- Minimum Regulated Pressure (psi): 15
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
$1,275.00
SST Fluid Regulator w/Gauge, 5-100 psi
GG 26C160
GG 26C160
REGULATOR,PRESSURE,FLUID,SST(5/100
$962.00
REGULATOR, PRESS, P200-RM, NPT
GG 234269
GG 234269
REGULATOR, PRESS, P200-RM, NPT
High Pressure Fluid Back Pressure Regulator, 3400 Max psi, 1300-3000 psi Pressure Range, 13.1 GPM, SST, Spring Type, 3/8(f) x 3/8(f) Tungsten and carbide materials ensure low wear and long life Plated carbon steel housing is compatible with solvent-borne materials Laser-marked indication lines for easy pressure adjustment and process control Ergonomic adjustment knob
$1,300.00
REGULATOR, BACK PRESSURE
GG 237503
GG 237503
REGULATOR, BACK PRESSURE
Graco 237503 Back Pressure Regulator, Bare, Low Pressure, 180 Max psi, SST, Manual, 3/8 npt(f) inlet x 1/2 npt(f) outlet
237503 is the back pressure regulator only. Part number 236770 includes the gauge, tube, inlet adapter and outlet swivel union. Graco back pressure regulators maintain the system pressure, regardless of flow demand
- Compact and lightweight design saves space and reduces payload for small circulation systems
- Tungsten and carbide materials ensure low wear and long life
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Compatible Material: Catalyst, Waterborne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 4.3
- Maximum Flow Rate (L/min): 16.28
- Maximum Regulated Pressure (bar): 12.4
- Maximum Regulated Pressure (kPa): 1240
- Maximum Regulated Pressure (psi): 180
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (psi): 300
- Minimum Regulated Pressure (bar): 0.3
- Minimum Regulated Pressure (kPa): 30
- Minimum Regulated Pressure (MPa): 0.03
- Minimum Regulated Pressure (psi): 5
- Outlet Size (cm): 1.27
- Outlet Size (in): 1/2
- Outlet Size (mm): 12.7
- Outlet Thread Type: NPT
$641.00
REGULATOR, PRESSURE, FLUID, AIR-OPER.
GG 248090
GG 248090
REGULATOR, PRESSURE, FLUID, AIR-OPER.
Graco 248090 Air-Operated Fluid Pressure Regulator
For a balanced fluid system, pressure control is essential. Graco provides a wide selection of fluid pressure regulators to keep your system functioning more productively by providing rugged, precise pressure regulation.
- Compatible with catalyst and waterborne materials
- Manual or air-operated
- Tungsten and carbide materials to resist wear
- Compact and lightweight – perfect for spray packages
- Actuation Type: Air
- Application: Bonding, Sealing, Gasketing, Encapsulation, Thermal Management, Molding, Spray, Fluid Transfer, Unloading, Underfill, Infusion, Metering, Regulating
- Compatible Material: Waterborne
- Flow Control Type: Regulation
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 2
- Maximum Flow Rate (L/min): 7.57
- Maximum Regulated Pressure (bar): 276
- Maximum Regulated Pressure (kPa): 27600
- Maximum Regulated Pressure (MPa): 28
- Maximum Regulated Pressure (psi): 4000
- Maximum Viscosity (cP): 15000
- Maximum Working Pressure (bar): 414
- Maximum Working Pressure (kPa): 41400
- Maximum Working Pressure (MPa): 41
- Maximum Working Pressure (psi): 6000
- Minimum Regulated Pressure (bar): 34
- Minimum Regulated Pressure (kPa): 3400
- Minimum Regulated Pressure (MPa): 3.4
- Minimum Regulated Pressure (psi): 500
- Outlet Size (cm): 1.27
- Outlet Size (in): 1/2
- Outlet Size (mm): 12.7
- Outlet Thread Type: NPT
$2,440.00
REGULATOR, PRESS, P20-RM DN1, NPT
GG 234261
GG 234261
REGULATOR, PRESS, P20-RM DN1, NPT
Low Back Pressure Fluid Regulator, 290 Max psi, 15-290 psi Range, 5.7 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/8 in BSPP Port Limits the supply pressure to a set value by opening an outlet and guiding back excess material when the predetermined pressure has been achieved. Used in circulating systems.
$1,380.00
REGULATOR, PRESS, P50-VM, NPT
GG 234267
GG 234267
REGULATOR, PRESS, P50-VM, NPT
Graco 234267 Low Pressure Fluid Regulator, 1015 Max psi, 145-725 psi Range, 9.8 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/8 in BSPP Port
Mechanically operated fluid pressure regulators designed primarily for use with low to medium viscosity fluids.
- Actuation Type: Spring
- Gauge Port Size (cm): 0.3175
- Gauge Port Size (in): 1/8
- Gauge Port Size (mm): 3.175
- Gauge Port Type: BSPP
- Includes: Regulator Only
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 9.8
- Maximum Flow Rate (L/min): 37.1
- Maximum Regulated Pressure (bar): 50
- Maximum Regulated Pressure (kPa): 5000
- Maximum Regulated Pressure (MPa): 5.0
- Maximum Regulated Pressure (psi): 725
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 70
- Maximum Working Pressure (kPa): 7000
- Maximum Working Pressure (MPa): 7
- Maximum Working Pressure (psi): 1015
- Minimum Regulated Pressure (bar): 10
- Minimum Regulated Pressure (kPa): 1000
- Minimum Regulated Pressure (MPa): 1.0
- Minimum Regulated Pressure (psi): 145
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
$1,335.00

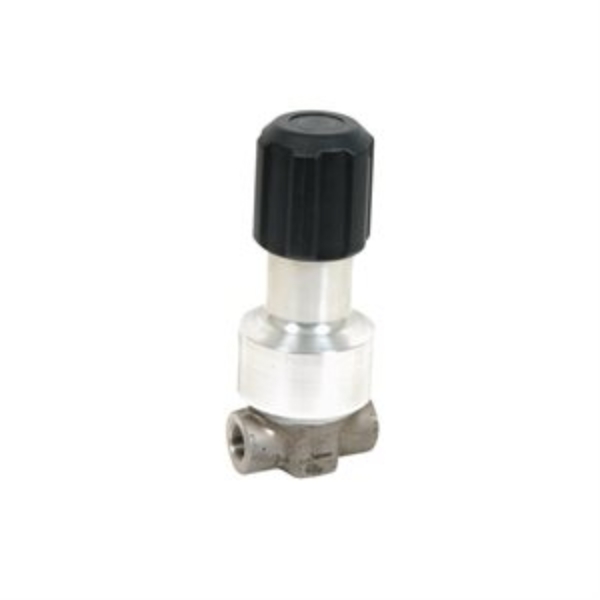

REGULATOR, PRESS, P100-RM, NPT
GG 234268
GG 234268
REGULATOR, PRESS, P100-RM, NPT
High Pressure Fluid Back Pressure Regulator, 2500 Max psi, 600-1500 psi Pressure Range, 10.2 GPM, SST, Spring Type, 3/8(f) x 3/8(f) Tungsten and carbide materials ensure low wear and long life Plated carbon steel housing is compatible with solvent-borne materials Laser-marked indication lines for easy pressure adjustment and process control Ergonomic adjustment knob
$1,215.00
REGULATOR, PRESSURE, FLUID
GG 238892
GG 238892
REGULATOR, PRESSURE, FLUID
Graco 238892 Corrosion Resistant High Fluid Pressure Regulator, 3000-5000 psi Range, 1.0 gpm, SST, Spring, 3/8(f) x 3/8(f), 1/4(f) Port, with gauge
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Tungsten and carbide materials ensure low wear and long life
- Valve cartridge for quick cleaning and replacement – reduce downtime
- Actuation Type: Spring
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Includes: Gauge
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 1
- Maximum Flow Rate (L/min): 3.8
- Maximum Regulated Pressure (bar): 345
- Maximum Regulated Pressure (kPa): 34500
- Maximum Regulated Pressure (MPa): 34
- Maximum Regulated Pressure (psi): 5000
- Maximum Viscosity (cP): 15000
- Maximum Working Pressure (bar): 414
- Maximum Working Pressure (kPa): 41400
- Maximum Working Pressure (MPa): 41
- Maximum Working Pressure (psi): 6000
- Minimum Regulated Pressure (bar): 207
- Minimum Regulated Pressure (kPa): 20700
- Minimum Regulated Pressure (MPa): 21
- Minimum Regulated Pressure (psi): 3000
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
$1,365.00
3/4" Back Pressure Valve Assembly, Ss
BB 84-404
BB 84-404
3/4" Back Pressure Valve Assembly, Ss
$1,019.00
