Fluid Regulators
VALVE, BACK PRESSURE
GG 222405
GG 222405
VALVE, BACK PRESSURE
High Pressure Fluid Back Pressure Regulator, 3000 Max psi, CS, Spring Type, 1/4 (f) x 1/4 (f) Tungsten and carbide materials ensure low wear and long life Plated carbon steel housing is compatible with solvent-borne materials Laser-marked indication lines for easy pressure adjustment and process control Ergonomic adjustment knob
$1,740.00

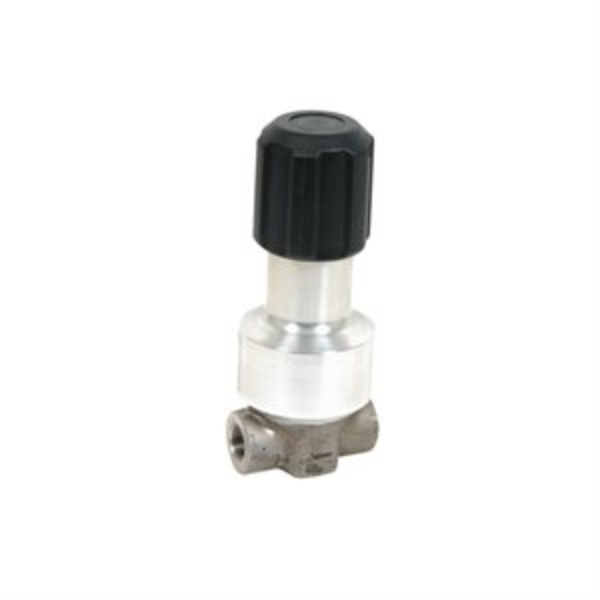

REGULATOR, PRESS, P270-VM, NPT
GG 234265
GG 234265
REGULATOR, PRESS, P270-VM, NPT
High Pressure Fluid Regulator, 5000 Max psi, 1300-4000 psi Range, 9.2 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f) Mechanically operated fluid pressure regulators designed primarily for use with low to medium viscosity fluids.
$1,380.00
REGULATOR, HTD, 230V
GG 243700
GG 243700
REGULATOR, HTD, 230V
230 V Heated Fluid Pressure Regulator These regulators control downstream pressure for mastic or semi-solid material. Install a regulator ahead of each spray gun or extruder gun in a multiple outlet system. The regulator provides precise pressure control to each spray gun from a common header system. It also dampens flow surges when line valves are opened and during pump stroke changeover.
$6,000.00

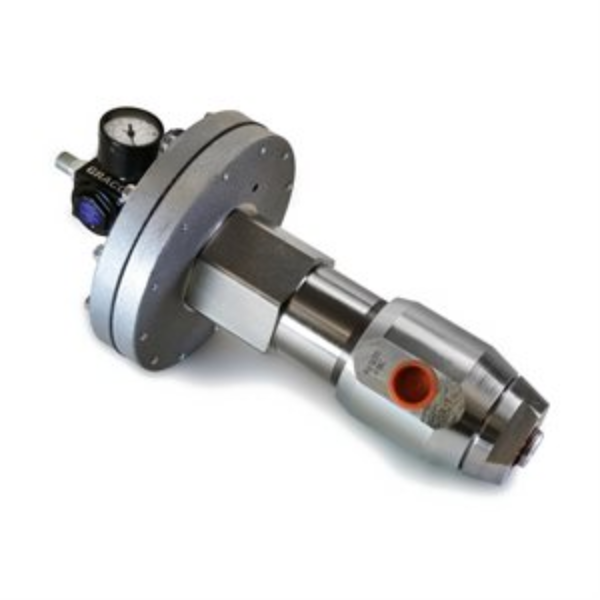

REGULATOR, MASTIC, 5000 PSI
GG 244740
GG 244740
REGULATOR, MASTIC, 5000 PSI
Graco 244740 Air Operated Mastic Fluid Pressure Regulator
The mastic regulator is ideal for low to high viscosity sealants or adhesives.
Application: These regulators control downstream pressure for mastic or semi-solid material. Install a regulator ahead of each spray gun or extruder gun in a multiple outlet system. The regulator provides precise pressure control to each spray gun from a common header system. It also dampens flow surges when line valves are opened and during pump stroke changeover.- Actuation Type: Air
- Flow Control Type: Regulation
- Gauge Port Size (cm): 1.905
- Gauge Port Size (in): 3/4
- Gauge Port Size (mm): 19.05
- Gauge Port Type: NPT
- Inlet Size (cm): 1.905
- Inlet Size (in): 3/4
- Inlet Size (mm): 19.05
- Inlet Thread Type: NPT
- Maximum Regulated Pressure (bar): 310
- Maximum Regulated Pressure (kPa): 31000
- Maximum Regulated Pressure (MPa): 31.0
- Maximum Regulated Pressure (psi): 4500
- Maximum Viscosity (cP): 80000
- Maximum Working Pressure (bar): 344
- Maximum Working Pressure (kPa): 34400
- Maximum Working Pressure (MPa): 34.4
- Maximum Working Pressure (psi): 5000
- Minimum Regulated Pressure (bar): 17
- Minimum Regulated Pressure (kPa): 1700
- Minimum Regulated Pressure (MPa): 1.7
- Minimum Regulated Pressure (psi): 250
- Outlet Size (cm): 1.905
- Outlet Size (in): 3/4
- Outlet Size (mm): 19.05
- Outlet Thread Type: NPT
$3,650.00
REGULATOR, BP, AIRPILOT, LOW-FLOW
GG 25R487
GG 25R487
REGULATOR, BP, AIRPILOT, LOW-FLOW
Graco 25R487 Low Shear Fluid Back Pressure Regulator, 300 Max psi, 10 gpm Max flow rate, SST, Pneumatic, high wear, sanitary inlet/outlet
Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.
- Air operated model works with Intelligent Paint Kitchen (IPK) control to reduce energy consumption and paint shear
- Ultralife series ceramic coated parts resist wear and increase service life
- Low profile, compact design and backwards compatibility mean easy installation and replacement
- Compatible Material: Waterborne, Solvent borne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Inlet Size (cm): 3.8
- Inlet Size (in): 1.5
- Inlet Size (mm): 38
- Inlet Thread Type: Sanitary Flange
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kg/cm²): 7
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 10
- Maximum Flow Rate (L/min): 38
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 122
- Maximum Regulated Pressure (bar): 17.6
- Maximum Regulated Pressure (kg/cm²): 17.6
- Maximum Regulated Pressure (kPa): 1724
- Maximum Regulated Pressure (psi): 250
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21.1
- Maximum Working Pressure (kg/cm²): 21.1
- Maximum Working Pressure (kPa): 2068
- Maximum Working Pressure (psi): 300
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Minimum Regulated Pressure (bar): 1.8
- Minimum Regulated Pressure (kg/cm²): 1.8
- Minimum Regulated Pressure (kPa): 172
- Minimum Regulated Pressure (MPa): 0.17
- Minimum Regulated Pressure (psi): 25
- Outlet Size (cm): 3.8
- Outlet Size (in): 1.5
- Outlet Size (mm): 38
- Outlet Thread Type: Sanitary Flange
$2,270.00
REGULATOR, BACK PRESS, MP, 20:1
GG 25T477
GG 25T477
REGULATOR, BACK PRESS, MP, 20:1
Graco 25T477 Medium Pressure Fluid Back Pressure Regulator, 2000 Max psi, 5 gpm Max flow rate, SST, Pneumatic
Improve finishing process control with this medium pressure, pneumatic back pressure regulator (BPR).
- Gain better resolution than other BPR brands, adjusting more accurately to keep fluid pressure at desired levels.
- Interface with Graco’s Intelligent Paint Kitchen (IPK), controlling pressure and flow without human intervention.
- Compatible Material: Waterborne, Solvent borne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Inlet Size (cm): 0.95
- Inlet Size (in): 0.375
- Inlet Size (mm): 9.5
- Inlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kg/cm²): 7
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 5
- Maximum Flow Rate (L/min): 19
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 122
- Maximum Regulated Pressure (bar): 138
- Maximum Regulated Pressure (kg/cm²): 138
- Maximum Regulated Pressure (kPa): 13800
- Maximum Regulated Pressure (psi): 2000
- Maximum Viscosity (cP): 250
- Maximum Working Pressure (bar): 211
- Maximum Working Pressure (kg/cm²): 211
- Maximum Working Pressure (kPa): 20680
- Maximum Working Pressure (psi): 3000
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Minimum Regulated Pressure (bar): 17
- Minimum Regulated Pressure (kg/cm²): 17
- Minimum Regulated Pressure (kPa): 1720
- Minimum Regulated Pressure (psi): 250
- Outlet Size (cm): 0.95
- Outlet Size (in): 0.375
- Outlet Size (mm): 9.5
- Outlet Thread Type: NPT
$3,970.00
B/P Regulator, 3/8In, Ss, 150-5000 psi
GG 222200
GG 222200
VALVE, RESTRICTOR
Graco 222200 Back Pressure Valve with Carbide Needle and Seat
Application: For use in air-assisted circulating system to control back pressure to the gun(s) and maintain proper pressure for circulation
$1,335.00
