GG 244844
GG 244844 Regulator Add to compare list Add to wishlist
GG 246688
GG 246688 Regulator, Mastic, HID Add to compare list Add to wishlist
GG 289208
GG 289208 REGULATOR, HEATED FLUID Add to compare list Add to wishlist
RR 74151-03
RR 74151-03 Regulator, Dr1, 2-Stage, 1:6 Add to compare list Add to wishlist
GG 223623

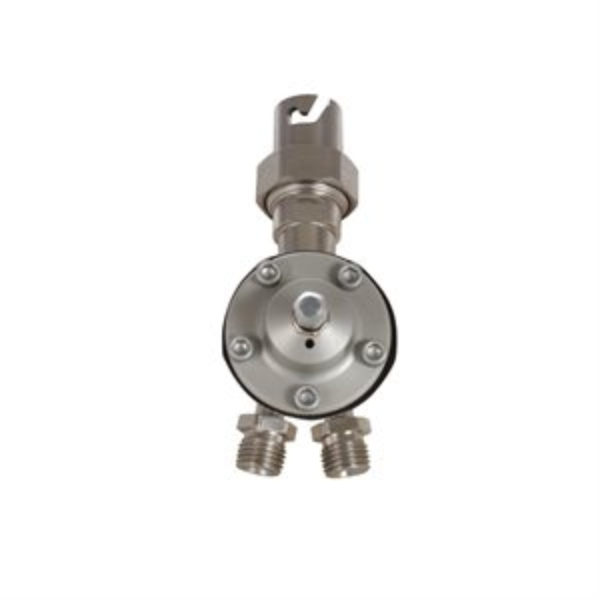

GG 223623 REGULATOR, PRESS, FLUID Graco 223623 Gun Mounted Fluid Regulator, 3/8 twistlock inlet/outlet, 200 max inbound fluid psi (14 bar), SST wetted parts
Stainless steel materials are compatible with catalyst and waterborne materials Easy and accurate pressure adjustment at the gun to fine tune pressure settings during production Connects quickly to spray guns using twistlock connector Includes: Regulator OnlyInlet Size (cm): 0.635Inlet Size (in): 1/4Inlet Size (mm): 6.35Maximum Regulated Pressure (bar): 2.4Maximum Regulated Pressure (kPa): 240Maximum Regulated Pressure (MPa): 0.24Maximum Regulated Pressure (psi): 35Maximum Working Pressure (bar): 13.8Maximum Working Pressure (kPa): 1380Maximum Working Pressure (MPa): 1.4Maximum Working Pressure (psi): 200Minimum Regulated Pressure (bar): 0.34Minimum Regulated Pressure (kPa): 34Minimum Regulated Pressure (MPa): 0.034Minimum Regulated Pressure (psi): 5Outlet Size (cm): 0.635Outlet Size (in): 1/4Outlet Size (mm): 6.35
Add to compare list Add to wishlist
GG 238893
GG 238893 REGULATOR, PRESSURE, FLUID Graco 238893 High Fluid Pressure Regulator, Corrosion Resistant, 6000 Max psi, 500-4000 psi Range, 1.0 gpm, SST, Air, 3/8(f) x 3/8(f), 1/4(f) Port
Stainless steel wetted materials are compatible with catalyst and waterborne materials Tungsten and carbide materials ensure low wear and long life Valve cartridge for quick cleaning and replacement – reduce downtime Gauge Port Size (cm): 0.635Gauge Port Size (in): 1/4Gauge Port Size (mm): 6.35Includes: GaugeInlet Size (cm): 0.9525Inlet Size (in): 3/8Inlet Size (mm): 9.525Maximum Flow Rate (GPM): 1Maximum Flow Rate (L/min): 3.8Maximum Regulated Pressure (bar): 276Maximum Regulated Pressure (kPa): 27600Maximum Regulated Pressure (MPa): 28Maximum Regulated Pressure (psi): 4000Maximum Viscosity (cP): 15000Maximum Working Pressure (bar): 414Maximum Working Pressure (kPa): 41400Maximum Working Pressure (MPa): 41Maximum Working Pressure (psi): 6000Minimum Regulated Pressure (bar): 34Minimum Regulated Pressure (kPa): 3400Minimum Regulated Pressure (MPa): 3.4Minimum Regulated Pressure (psi): 500Outlet Size (cm): 0.9525Outlet Size (in): 3/8Outlet Size (mm): 9.525
Add to compare list Add to wishlist
GG 246687
GG 246687 REGULATOR, MASTIC Air Operated Mastic Fluid Pressure Regulator These regulators control downstream pressure for mastic or semi-solid material. Install a regulator ahead of each spray gun or extruder gun in a multiple outlet system. The regulator provides precise pressure control to each spray gun from a common header system. It also dampens flow surges when line valves are opened and during pump stroke changeover. Add to compare list Add to wishlist
GG 25R457
GG 25R457 REGULATOR, BP, AIRPILOT, HIGH-FLOW Graco 25R457 Low Shear Fluid Back Pressure Regulator, 300 Max psi, 25 gpm Max flow rate, SST, Pneumatic, high wear, sanitary inlet/outlet Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.
Air operated model works with Intelligent Paint Kitchen (IPK) control to reduce energy consumption and paint shear Ultralife series ceramic coated parts resist wear and increase service life Low profile, compact design and backwards compatibility mean easy installation and replacement Compatible Material: Waterborne, Solvent borneGauge Port Size (cm): 0.635Gauge Port Size (in): 1/4Gauge Port Size (mm): 6.35Inlet Size (cm): 3.8Inlet Size (in): 1.5Inlet Size (mm): 38Inlet Thread Type: Sanitary FlangeMaximum Air Inlet Pressure (bar): 7Maximum Air Inlet Pressure (kg/cm²): 7Maximum Air Inlet Pressure (kPa): 690Maximum Air Inlet Pressure (psi): 100Maximum Flow Rate (GPM): 25Maximum Flow Rate (L/min): 95Maximum Operating Temperature (°C): 50Maximum Operating Temperature (°F): 122Maximum Regulated Pressure (bar): 17.6Maximum Regulated Pressure (kg/cm²): 17.6Maximum Regulated Pressure (kPa): 1724Maximum Regulated Pressure (psi): 250Maximum Viscosity (cP): 1000Maximum Working Pressure (bar): 21.1Maximum Working Pressure (kg/cm²): 21.1Maximum Working Pressure (kPa): 2068Maximum Working Pressure (psi): 300Minimum Operating Temperature (°C): 0Minimum Operating Temperature (°F): 32Minimum Regulated Pressure (bar): 1.8Minimum Regulated Pressure (kg/cm²): 1.8Minimum Regulated Pressure (kPa): 172Minimum Regulated Pressure (MPa): 0.17Minimum Regulated Pressure (psi): 25Outlet Size (cm): 3.8Outlet Size (in): 1.5Outlet Size (mm): 38Outlet Thread Type: Sanitary Flange
Add to compare list Add to wishlist
GG 25R490
GG 25R490 REGULATOR, BACK PRES, MP, AIR, 30 TO 1 Graco 25R490 Medium Pressure Fluid Back Pressure Regulator, 3000 Max psi, 5 gpm Max flow rate, SST, Pneumatic Improve finishing process control with this medium pressure, pneumatic back pressure regulator (BPR).
Interface with Graco’s Intelligent Paint Kitchen (IPK), controlling pressure and flow without human intervention. Gain better resolution than other BPR brands, adjusting more accurately to keep fluid pressure at desired levels. Compatible Material: Waterborne, Solvent borneGauge Port Size (cm): 0.635Gauge Port Size (in): 1/4Gauge Port Size (mm): 6.35Inlet Size (cm): 0.95Inlet Size (in): 0.375Inlet Size (mm): 9.5Maximum Air Inlet Pressure (bar): 7Maximum Air Inlet Pressure (kg/cm²): 7Maximum Air Inlet Pressure (kPa): 690Maximum Air Inlet Pressure (psi): 100Maximum Flow Rate (GPM): 5Maximum Flow Rate (L/min): 19Maximum Operating Temperature (°C): 50Maximum Operating Temperature (°F): 122Maximum Regulated Pressure (bar): 207Maximum Regulated Pressure (kg/cm²): 207Maximum Regulated Pressure (kPa): 20700Maximum Regulated Pressure (psi): 3000Maximum Viscosity (cP): 250Maximum Working Pressure (bar): 211Maximum Working Pressure (kg/cm²): 211Maximum Working Pressure (kPa): 20680Maximum Working Pressure (psi): 3000Minimum Operating Temperature (°C): 0Minimum Operating Temperature (°F): 32Minimum Regulated Pressure (bar): 17Minimum Regulated Pressure (kg/cm²): 17Minimum Regulated Pressure (kPa): 1720Minimum Regulated Pressure (psi): 250Outlet Size (cm): 0.95Outlet Size (in): 0.375Outlet Size (mm): 9.5Outlet Thread Type: NPT
Add to compare list Add to wishlist
GG 25R647
GG 25R647 REGULATOR, BP, MECHANICAL, HIGH-FLOW Low Shear Fluid Back Pressure Regulator, 300 Max psi, 25 gpm Max flow rate, SST, Mechanical, high wear, sanitary inlet/outlet Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality. Innovative flow path geometry provides industry-leading low shear capability Ultralife series ceramic coated seat and flow directors significantly increase wear resistance capability and service life Best-in-class performance holds pressure constant while flow rate changes Add to compare list Add to wishlist
BB 107754-C-C
BB 107754-C-C Back Pressure Regulator Add to compare list Add to wishlist
BB 845004
BB 845004 Fluid Reg Ss 60Psi 3 Gpm Add to compare list Add to wishlist
BB 845020
BB 845020 Fluid Reg Ss 30Psi 3Gpm Add to compare list Add to wishlist
DD HGB-510-R4-CO
DD HGB-510-R4-CO Fluid Regulator Assembly Add to compare list Add to wishlist
DD HGB-609-5-B38
DD HGB-609-5-B38 Manual Fluid Regulator Add to compare list Add to wishlist
DD HGB-609-5-R38
DD HGB-609-5-R38 Fluid Regulator Assembly Add to compare list Add to wishlist
GG 116521
GG 116521 REGULATOR, FILTER, AIR Graco 116521 Air Filter/Regulator, 3/4 npt(f) outlet and 3/4 npsm(f) inlet, 5 125 psi (0.3 8.6 bar) pressure range, 40 micron polypropylene filter Air Inlet Size (cm): 1.905Air Inlet Size (in): 3/4Air Inlet Size (mm): 19.05Air Inlet Thread Gender: FemaleAir Inlet Thread Type: NPSMAir Outlet Size (cm): 1.905Air Outlet Size (in): 3/4Air Outlet Size (mm): 19.05Air Outlet Thread Gender: FemaleAir Outlet Thread Type: NPT Add to compare list Add to wishlist
GG 120010
GG 120010 REGULATOR, I/P Add to compare list Add to wishlist
IW 8077B
IW 8077B Low Pressure Paint Regulator Add to compare list Add to wishlist
SATA 1099953
SATA 1099953 Filter, Regulator, Triple Stage Unit 584 Add to compare list Add to wishlist
GG 221118
GG 221118 REGULATOR, PRESS, FLUID Graco 221118 Low Pressure Fluid Regulator, 250 Max psi, 20-160 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (m), 1/4 (f) Port Fluid regulators keep your system functioning more productively
Available with mechanical control or pneumatic control Suitable for fluids with low and high viscosities Models available with wetted parts made of stainless steel Gauge Port Size (cm): 0.635Gauge Port Size (in): 1/4Gauge Port Size (mm): 6.35Includes: GaugeInlet Size (cm): 0.9525Inlet Size (in): 3/8Inlet Size (mm): 9.525Maximum Flow Rate (GPM): 3Maximum Flow Rate (L/min): 11.36Maximum Regulated Pressure (bar): 11Maximum Regulated Pressure (kPa): 110Maximum Regulated Pressure (MPa): 1.1Maximum Regulated Pressure (psi): 160Maximum Viscosity (cP): 1000Maximum Working Pressure (bar): 18Maximum Working Pressure (kPa): 1800Maximum Working Pressure (MPa): 1.8Maximum Working Pressure (psi): 250Minimum Regulated Pressure (bar): 1.5Minimum Regulated Pressure (kPa): 150Minimum Regulated Pressure (MPa): 0.15Minimum Regulated Pressure (psi): 20Outlet Size (cm): 0.9525Outlet Size (in): 3/8Outlet Size (mm): 9.525
Add to compare list Add to wishlist
GG 222115
GG 222115 REGULATOR, PRESSURE, FLUID Low Pressure Fluid Regulator, 300 Max psi, 20-160 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (m), 1/4 (f) Port Fluid regulators keep your system functioning more productively. Available with mechanical control or pneumatic control Suitable for fluids with low and high viscosities Models available with wetted parts made of stainless steel Application-oriented pressure ranges Add to compare list Add to wishlist
GG 224486
GG 224486 REGULATOR BACK PRESSURE Graco 224486 Corrosion Resistant Fluid Back Pressure Regulator, 300 Max psi, SST, Acetal & PTFE Wetted Parts, 1-1/4 (f) x 1-1/4 (f), with Gauge Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand
Stainless steel membrane diaphragm is highly wear resistant while maintaining accurate responsiveness Low Shear diaphragm valve has minimal restriction to reduce material degradation and color matching issues, especially with metallic paint Stainless steel wetted materials are compatible with catalyst and waterborne materials Compatible Material: Catalyst, WaterborneGauge Port Size (cm): 0.635Gauge Port Size (in): 1/4Gauge Port Size (mm): 6.35Includes: GaugeInlet Size (cm): 3.81Inlet Size (in): 1-1/2Inlet Size (mm): 38.1Maximum Flow Rate (GPM): 20Maximum Flow Rate (L/min): 75Maximum Regulated Pressure (bar): 14Maximum Regulated Pressure (kPa): 1400Maximum Regulated Pressure (psi): 200Maximum Viscosity (cP): 1000Maximum Working Pressure (bar): 21Maximum Working Pressure (kPa): 2100Maximum Working Pressure (psi): 300Minimum Regulated Pressure (bar): 1Minimum Regulated Pressure (kPa): 100Minimum Regulated Pressure (MPa): 0.1Minimum Regulated Pressure (psi): 15Outlet Size (cm): 3.81Outlet Size (in): 1-1/2Outlet Size (mm): 38.1Outlet Thread Type: NPT
Add to compare list Add to wishlist
BB 845003
BB 845003 Bp-Reg Ss 200Psi 18 Gpm Add to compare list Add to wishlist
BB 845011
BB 845011 Fluid Reg Ss 3000Psi 3Gpm
