Grinders

IR G1X350RG4

Extended Air Die Grinder, 35,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 35000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.13
Product Weight (lb): 1.3
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 84.1 / 95.1
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• G1X250RG4

IR G3A120PP945AV

G3 ANGLE GRINDER M14 ARBOR 4.5" GUARD AUTO BAL

IR G3A120RP105

Air Angle Grinder, 5" Type 27 Wheel, 12,000 RPM, 1.35 HP, 5/8"-11 Thread, Rear Exhaust

The MAX Series family of angle grinders has a tool to meet your needs, whether you’re looking for a 4.5 or 5-inch option. The built-in lubricating wick optimizes the life of your angle gear set, while the safety guard protects you from debris, sparks and abrasives while you work.

Features And Benefits

• Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
• Power: With an ideal power-to-weight ratio, the Max Series Angle Grinders are great for high-performance material removal.
• Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication.

Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Color: Black
Configuration/Handle Type: Right Angle
Exhaust Location: Rear
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Rated Power (hp): 1.35
Rated Power (kW): 1
Sound Pressure/Power Db(A): 87.6
Warranty: 1-year
Wheel Diameter (in): 5
Wheel Thickness (in): 1/4
Wheel Type: Type 27

IR G3H150RG4

Air Angle Die Grinder, 15,000 RPM, 1.35 HP, 1/4" Collet, Rear Exhaust

The G3 Series die Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.

Features And Benefits

• Power: Powerful 1.35 15,000 RPM vane motor that won’t let you down on job that call for maximum power.
• Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
• Vibration dampening for ease-of-use.

Product Application and Uses: Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Grinder Type: Die Grinder
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Sound Pressure/Power Db(A): 84.1 / 95.1
Vibration Level (m/s2): 3.7
Vibration Uncertainy K* (m/s2): 2.6
Warranty: 1-year

IR G3H180PG4M

G3 HOR DIE GRINDER-6MM COLLET

IR G3X150PG4M

G3 HOR EXT DIE GRINDER, 6MM COLLET

IR G3X180PG4M

G3 HOR EXT DIE GRINDER, 6MM COLLET

IR G5351

20V Cordless Angle Grinder/Cut-off Tool, 8000 RPM, 1HP, 4.5" Wheel, Bare tool

Break free from the cord with the G5351 20V Cordless 4.5/5.0” Angle Grinder & Cut-Off Tool that brings the power of a corded tool with the mobility of a cordless. Slim and well-balanced, G5351 allows access to tight spaces and weighs 20% less than leading competitor. Tool features an extended paddle switch and unique inline battery design that eliminates interference from the forearm during use. The G5351 couples a high-performance Brushless Motor with advanced features like Anti-Kickback and overload protection for safe, reliable performance. Slim handle with rubberized grip makes the G5351 Cordless Grinder comfortable to use for long periods. Tool-free guard attachment and Spindle-lock button allow quick, easy accessory changes. Also available in the G5351-K22 kit which includes (2) 20V 5Ah batteries, and a charger.

Features And Benefits

• 1.0 HP brushless motor delivers up to 8,000 RPM and makes short work of material removal on a variety of surfaces.
• The G5351 is a lightweight and compact tool weighing 5 lbs. (including battery) and 13.25" length, improving control and access to tight spaces.
• Extended paddle switch with lock-off lever prevents accidental triggering and provides a more comfortable grip when maneuvering.
• Spindle-lock design with simple button press to disengage. Spindle can be used with all 5/8”-11 and 4.5”-5.0” wheels.
• Automatic anti-kickback protection and overload protection with E-brake.
• Change guards with tool-free quick release; use with included grinding guard for material removal and surfacing, or with the included cut-off guard for fast metal cutting.
• Slim body and comfortable rubber grip provide more tool control and reduce fatigue during extended use.
• Included side-handle attaches on the left or right side
• Compatible with IQV® 20 Series Battery System.

Includes: G5351 Grinder, Type 1 (Cutting) Guard; Type 27 (Grinding) Guard; Handle, flange, nut, Spanner Wrench, Manuals. Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Material Removal, Surface Preparation, Blade Sharpening, Metal Cutting. Removes material from a variety of sources including wood, steel, aluminum, ceramic, glass, concrete and stone. Optimized for industrial and automotive applications.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Paddle Switch
Anti-Restart Technology: Yes
Anti-Vibration Technology: No
Arbor/Collet: 5/8"-11 Thread
Brake Type: Electronic
Clutch Type: Electronic Anti-Kickback Clutch
Color: Grey
Configuration/Handle Type: Right Angle
Configuration/Handle Type: Auxiliary Handle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: TPE Composite
Head Style: Standard Head
Height Over Spindle (in): 3.11
Housing Material: Impact and chemical-resistant composite housing
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 8000
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 13.25
Product Width (in): 3.11
Product Height (in): 4.4
Product Weight (lb): 3.5
Rated Power (hp): 1
Rated Power (kW): 0.75
Right Angle Length (in): 13.25
Right Angle Length (mm): 337
Side to Center Distance (in): 1.42
Side to Center Distance (mm): 36
Sound Pressure/Power Db(A): 76.3
Speed Setting: Single speed
Standards/Certifications: UL/CSA/EN/IEC 62841-1, UL/CSA/EN/IEC 62841-2-3
Tether Style: Not Tether Capable
Vibration Level (m/s2): 6.6
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wheel Diameter (in): 4.5
Wheel Diameter (in): 5
Wheel Thickness (in): 1/4
Wheel Type: Type 27 (Grinding) Type 1, 27, 41, 42 (Cutting)

IR GH011A-600-1

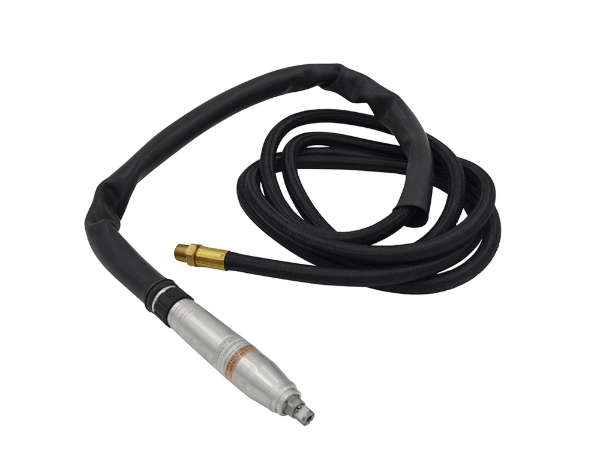

Air Pencil Grinder, 60,000 RPM, 0.1 HP, 1/8" Collet

A durable metal housing and powerful vane motor give the Ingersoll Rand Pencil Grinders the ability to succeed in a variety of projects, from general repair work to precision aerospace projects. Slide throttle and twist throttle actuation bring added flexibility to any job.

Features And Benefits

• Comfort: Lightweight at 2.6 lbs. with a rubber grip, this tool’s ease of use makes longer jobs easier.
• Access: True to its name, this pencil-thin grinder can reach the tightest of spaces, leaving no work left undone.
• Versatile: A durable metal housing and powerful vane motor give this pencil grinder the ability to succeed in a variety of projects, from general repair work to precision aerospace projects. Slide throttle and twist throttle actuation bring added flexibility to any job.

Includes: (1) Tool; (2) Wrench; (1) Hose Assy; (1) Sleeve Exhaust
Product Application and Uses: Final Cleaning And Polishing Of Dies, Mold Finishing, Intricate Grinding Applications, Light Deburring And Flash Removal
Actuation/Throttle Type/Switch Type: Twist
Air Consumption @ Load (cfm): 7
Air Consumption @ Load (l/min): 198
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/8"
Average Air Consumption (cfm): 7
Average Air Consumption (l/min): 3.3
Bearing Type: Ball Bearing
Color: Silver
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Pencil Grinder
Gripping Length (in): 2.4
Housing Material: Steel
Max Free Speed (rpm): 60000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/4
Pencil Diameter (in): 0.68
Power Source: Air Powered
Product Length (in): 5.3
Product Width (in): 6.5
Product Height (in): 2.3
Product Weight (lb): 2.6
Rated Power (hp): 0.1
Side to Center Distance (in): 0.34
Side to Center Distance (mm): 9
Sound Pressure/Power Db(A): 76
Speed Setting: Variable Speed
Spindle Offset (in): 0.34
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 3.2
Warranty: 1-year
Wheel Type: Burr
Whip Hose (in): 7/32

Similar IR

• 7978
• 320PG
• 320PGK

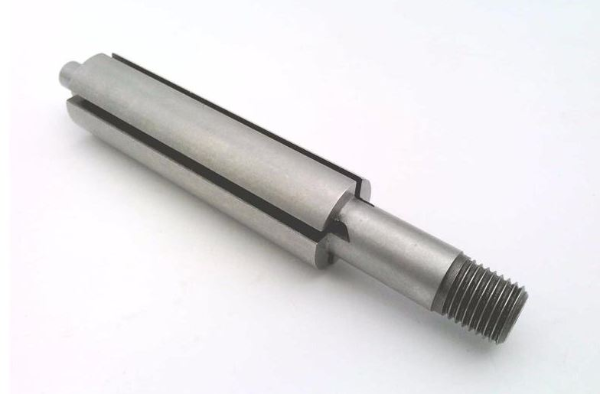

IR HG2-53-4

ROTOR

IR HG2-A552-1.3

BEVEL PINION ASSEMBLY

IR LG2-40

MOTOR HOUSING

IR M2A090RP95

ANGLE GRINDER, 9K, M14, 5IN

IR M2A120RP64

Angle Air Grinder, 4" Type 27 Wheel, 12,000 RPM, 1 HP, 3/8"-24 Thread, Rear Exhaust

Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 12,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These are grinders are designed for material removal or cutting off using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.85
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.29
Product Weight (lb): 3.76
Rated Power (hp): 1
Right Angle Length (in): 8.06
Right Angle Length (mm): 205
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 87 / 98
Speed Setting: Variable Speed
Vibration Level (m/s2): 5.1
Warranty: 1-year
Wheel Diameter (in): 4
Wheel Thickness (in): 1/4
Wheel Type: Type 27

Similar IR

• M2A135RP64

IR M2A135RP64

Angle Air Grinder, 4" Type 27 Wheel, 13,500 RPM, 1 HP, 3/8"-24 Thread, Rear Exhaust

Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 13,500 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Includes: Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These are grinders are designed for material removal or cutting off using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 13500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.29
Product Weight (lb): 3.72
Rated Power (hp): 1
Right Angle Length (in): 8.06
Right Angle Length (mm): 205
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 87.7 / 98.7
Speed Setting: Variable Speed
Vibration Level (m/s2): 5
Warranty: 1-year
Wheel Diameter (in): 4
Wheel Thickness (in): 1/4
Wheel Type: Type 27

Similar IR

• M2E145RP64

IR M2L100RP106

Extended Angle Air Grinder, 6" Type 27 Wheel, 10,000 RPM, 1 HP, 5/8"-11 Thread, Rear Exhaust

Features And Benefits

• Power: With a powerful, lube-free 1 HP 10,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 10000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 12.4
Product Weight (lb): 5.46
Rated Power (hp): 1
Sound Pressure/Power Db(A): 88.8 / 98.8
Speed Setting: Variable Speed
Vibration Level (m/s2): 5.3
Warranty: 1-year
Wheel Diameter (in): 6
Wheel Thickness (in): 1/4
Wheel Type: Type 27

IR M2L120RP1045

Extended Angle Air Grinder, 4.5" Type 27 Wheel, 12,000 RPM, 1 HP, 5/8"-11 Thread, Rear Exhaust

Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 12,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel and optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding,
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Grinder Type: Angle Grinder
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 12.4
Product Weight (lb): 4.55
Rated Power (hp): 1
Right Angle Length (in): 11.17
Right Angle Length (mm): 284
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 87 /98
Speed Setting: Variable Speed
Vibration Level (m/s2): 5.8
Warranty: 1-year
Wheel Diameter (in): 4.5
Wheel Thickness (in): 1/4
Wheel Type: Type 27

Similar IR

• M2L100RP106

IR M2L135RP64

Extended Angle Air Grinder, 4" Type 27 Wheel, 13,500 RPM, 1 HP, 3/8"-24 Thread, Rear Exhaust

Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 13,500 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic extended reach handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 22
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 13500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 12.4
Product Weight (lb): 4.55
Rated Power (hp): 1
Sound Pressure/Power Db(A): 87 / 98.7
Speed Setting: Variable Speed
Vibration Level (m/s2): 4.4
Warranty: 1-year
Wheel Diameter (in): 4
Wheel Thickness (in): 1/4
Wheel Type: Type 27

IR M2X200RG4

Extended Air Die Grinder, 20,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 20,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
• Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
• Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: Heavier-duty grinding, cutting, cleaning, and polishing applications
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 2.15
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 13.08
Product Weight (lb): 2.68
Rated Power (hp): 1
Sound Pressure/Power Db(A): 84.9 / 95.9
Speed Setting: Variable Speed
Vibration Level (m/s2): 1.9
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2X180RG4

IR MG1-A465

ASSEMBLY, INLET BUSHING

U UT8780-1

Angle Grinder, Ac, 4-1/2In.

AIM 5008H

Grinder Right Angle 7", 7" Extn Safety Lever 5/8-11

AIM 5206EC

Extended Air Die Grinder 3 Inch, 25,000 rpm

AIM SG-125H-1M-R

Grinder w/Rear Exhaust w/ Whip hose, 7500RPM, 1.28hp

AIM UG-65E

Grinder Front Exhaust Sleeve Wheel Capacity 2.5in 14600 RPM
