Grinders

IR 301B32MK

Angle Air Die Grinder 2" & 3" Pad Kit, 21,000 RPM, 0.25 HP, 1/4" & 6mm Collets, Front Exhaust

As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit Includes (2) 2” coarse pads, (2) 2” medium pads, (2) 3” coarse pads, (2) 3” medium pads, and a Blow-molded case.

Features And Benefits

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
• Kit Includes: (2) 2” coarse pads, (2) 2” medium pads, (2) 3” coarse pads, (2) 3” medium pads, and a Blow-molded case.

Includes: 301B Air Angle Die Grinder, (2) 2” coarse pads, (2) 2” medium pads, (2) 3” coarse pads, (2) 3” medium pads, Blow-molded case, 1/4" and 6mm collets, (2) Wrenches and Manuals
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year

Similar IR

• 302B
• 5102MAX
• 307B
• 308B

IR 302BK

Angle Air Die Grinder 2" & 3" Pad Kit, 20,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Lightweight and durable for ultimate performance, the 302B die grinder is the perfect choice. These powerful grinders feature .33 HP and 20,000 RPM, a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polish-ing and grinding. Kit includes 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case

Features And Benefits

• Power: Powerful motor with precision gearing offers .33 HP at 20,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Lightweight: Lightweight at only 1lb., the ergonomic composite housing protects tool from cold air and offers greater operator comfort.
• Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
• Reliability: Integral safety-lock throttle lever prevents accidental start up.
• Built-In Lubrication: Built-in lubricating wick increases angle gear life.
• Rear exhaust directs air away from the operator.
• Kit Includes: 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case

Includes: Right Angle 302B Die Grinder, 2” and 3” Quick Change Backing Pads, A Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, Blow-molded Carrying Case, 1/4" Collet.
Product Application and Uses: Deburring, Grinding, Polishing, Porting, Weld Breaking
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 23
Air Consumption @ Load (l/min): 651
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Pad Diameter or Size (in): 2
Pad Diameter or Size (in): 3
Power Source: Air Powered
Product Length (in): 6.93
Product Width (in): 3.74
Product Height (in): 2.36
Product Weight (lb): 1.28
Rated Power (hp): 0.33
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.53
Side to Center Distance (mm): 13
Sound Pressure/Power Db(A): 90.0 / 101.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 5.5
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR

• 301BK
• 301B2MK
• 301B32MK

IR 307BK

Air Die Grinder Stone Kit, 28,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust

Ingersoll Rand's 307B general purpose Air Die Grinder is durable, reliable, and cost-effective. Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing. Their compact design offers exceptional maneuverability, versatility, and accessibility for difficult-to-reach spots. Kit includes 10 mounted grinding tips and a blow-molded case.

Features And Benefits

• Performance: Powerful vane motor delivers .25 HP and 28,000 RPM.
• Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
• Reliable: Strong aluminum housing withstands tough operating conditions and powerful vane motor will make the 307B a trusted tool in your arsenal for years to come.
• Safety: Integral safety-lock throttle lever prevents accidental start up.
• Comfort: Weighing under 1 lb., this small and lightweight design provides easy operation, and greater access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Kit includes 10 abrasive stones, and a blow-molded carrying case.

Includes: 307B Air Die Grinder, (10) Abrasive Stones, a Blow-molded Case, (2) Wrenches, 1/4" Collet.
Product Application and Uses: Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 28000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.19
Product Height (in): 2.1
Product Weight (lb): 0.73
Rated Power (hp): 0.25
Side to Center Distance (in): 0.65
Side to Center Distance (mm): 17
Sound Pressure/Power Db(A): 83.0 / 94.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 4.5
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 307B
• 308B
• 409

IR 3107G

Air Die Grinder, 27,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Ingersoll Rand’s EDGE Series 3017G 1/4" Air Straight Die Grinder is the right tool for the job. It offers a ball-bearing construction that is sturdy yet lightweight. Features include a 1/3-horsepower motor, a 1/4-inch collet, a rear exhaust, and a self-locking throttle. An ergonomic grip makes this pneumatic grinder comfortable to hold and use and provides exceptional torque accuracy. Offering longer life and higher free speed at 27,000 rpm, this general purpose air grinder is designed for finishing, cutting, polishing, porting, light weld grinding, and breaking sharp edges.

Features And Benefits

• Powered by compressed air and comes with a 1/3 HP motor, a 1/4" collet, rear exhaust and a self-locking throttle. With 27,000 rpm, it will power through difficult jobs.
• Contoured grip gives greater comfort and control. Its ergonomic design delivers exceptional torque precision, as well as increased productivity and safety.
• The 3107G is light and sturdy at only 1 lb. It has a ball bearing construction and is exceptionally rugged, compact and lightweight.
• Use this air grinder as a handheld power rotary tool for grinding, cutting, polishing and more.
• Each componet, mechanism and function has undergone rigerous testing to ensure its long-lasting performace.

Includes: tool, Large Wrench, Small Wrench
Product Application and Uses: Finishing, cutting, polishing, porting, light weld grinding, and breaking sharp edges.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 3
Air Consumption @ Free Speed (l/min): 85
Air Consumption @ Load (cfm): 18
Air Consumption @ Load (l/min): 500
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 3
Average Air Consumption (l/min): 85
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 2.36
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 27000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.6
Product Width (in): 2.87
Product Height (in): 1.46
Product Weight (lb): 1
Rated Power (hp): 0.33
Right Angle Length (in): 4.92
Right Angle Length (mm): 125
Side to Center Distance (in): 0.67
Side to Center Distance (mm): 17
Sound Pressure/Power Db(A): 92.4 / 103.4
Vibration Level (m/s2): 2.6
Warranty: 1-year

Similar IR

• 307B

IR 320PGK

Air Pencil Grinder Kit, 60,000 RPM, 5 Mounted Points & 5 Carbide Burrs

A slim profile pencil grinder makes it ideal for intricate spaces, precise grinders to final cleaning and polishing dies, to mold finishing, light deburring and flash removal. Also includes 5 assorted mounted points and carbide burrs in a hard case.

Features And Benefits

• COMFORT: Complete with a custom TPU grip, low vibration and noise and an oversized speed control knob, the 320PG was designed for enhanced user comfort and safety.
• PRODUCTIVITY: The countless capabilities of the 320PG allow for more tasks to be completed with a singular tool, allowing for maximum versatility and productivity.
• VALUE: Affordability across the board is a top priority for the 320PG, which provides high quality performance at a budget-conscious price point.
• Includes 5 assorted mounted points and 5 assorted carbide burrs.

Includes: (1) Tool; (2) Wrench; (1) Hose Assy; (1) Sleeve Exhaust; 5 Mounted points; 5 Carbide Burrs
Product Application and Uses: For precision grinding and applications in confined spaces. Used for final cleaning and polishing of dies, mold finishing, intricate grinding applications, light deburring and flash removal.
Actuation/Throttle Type/Switch Type: Twist
Air Consumption @ Load (cfm): 8
Air Consumption @ Load (l/min): 220
Air Inlet: 1/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/8"
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Grinder Type: Pencil Grinder
Handle Material: Alloy with TPU Grip
Hose Length (ft): 4.75
Housing Material: Aluminum Alloy
Max Free Speed (rpm): 60000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/4
Pencil Diameter (in): 0.74
Power Source: Air Powered
Product Length (in): 5.51
Product Width (in): 0.74
Product Height (in): 0.74
Product Weight (lb): 0.51
Rated Power (hp): 0.1
Side to Center Distance (in): 0.37
Side to Center Distance (mm): 9
Sound Pressure/Power Db(A): 78 / 89
Speed Setting: Variable Speed
Spindle Offset (in): 0.37
Standards/Certifications: CE, EAC, UKCA
Vibration Level (m/s2): <3.2
Warranty: 1-year
Wheel Type: Burr, Mounted Points

Similar IR

• 320PG
• GH011A-600-1
• 7978
• 140EP
• EP51
• EP51K

IR 345MAX-M

Angle Air Grinder/Cut-off Tool, 5" Wheel, 12,000 RPM, 0.88 HP, M14 Arbor, Rear Exhaust

In keeping with the tradition of Ingersoll Rand MAX tools, the MAX series Angle Grinders deliver MAX Power, MAX Productivity, MAX Comfort and improved reliability needed to tackle the toughest material removal jobs. MAX Series Angle Grinders gives you MAX performance for the daily grinding.

Includes:

Tool, Spanner wrench, Large Wrench, Small Wrench, Allen Wrenches (2), Piped Away Exhaust

Product Application/Uses:

These air grinders are designed for material removal or cutting off using a rotated abrasive wheel in most major markets, from vehicle repair and body work to construction and metal fabrication.

Features and Benefits:

• Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
• Power: With an ideal power-to-weight ratio, the Max Series Angle Grinders are great for high-performance material removal.
• Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication.
• 1-year warranty.

Configuration/Handle Type: Right Angle

Max Free Speed (rpm): 12000

IR 5102MAX-A552-1.25

GEAR PINION SET

IR 5104MAX

Angle Air Die Grinder, 12,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

• MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 12,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
• MAX Productivity: Spindle lock feature allows for quick abrasive changeovers reducing operator downtime.
• MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
• MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (2) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3.4
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 7
Product Height (in): 3.43
Product Weight (lb): 1.4
Rated Power (hp): 0.4
Rated Power (kW): 0.29828000000000005
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 85.6 / 96.6
Special Features: Lube-free Motor, Spindle Lock
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 4
Vibration Uncertainy K* (m/s2): 1
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 5102MAX
• G1A120RG4
• G1A120PS4
• G1A120FG4
• 302B
• 301B

Supersedes

• 312AC4A
• 314AC4A

IR 5208MAX

Extended Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

• MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 25,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
• MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
• MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (3) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Extended Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.6
Product Height (in): 1.6
Product Weight (lb): 1.4
Rated Power (hp): 0.4
Rated Power (kW): 0.29828000000000005
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 85.5 / 86.5
Special Features: Lube-Free Motor
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 2.98
Vibration Uncertainy K* (m/s2): 0.4
Warranty: 1-year
Wheel Type: Burr

Similar IR

• G1X250RG4
• G1X200RG4
• G3X180RG4
• G1X350RG4

Supersedes

• 330XC4A
• 325XC4A

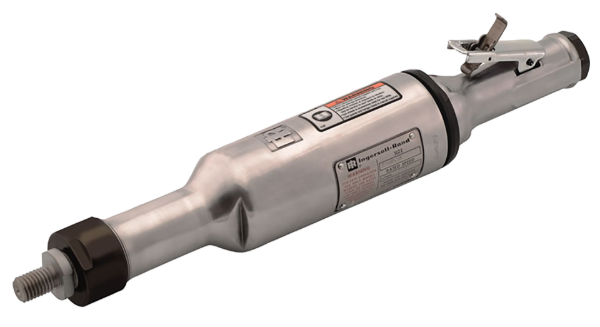

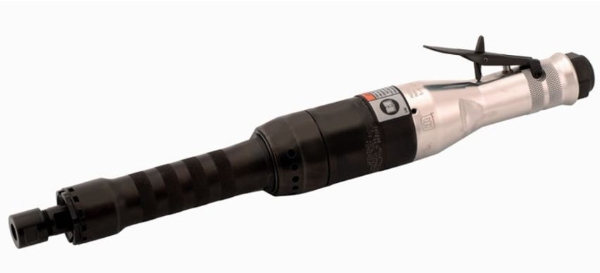

IR 61H120G4

Air Die Grinder, 12,000 RPM, 1.25 HP, 1/4" Collet, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• RELIABILITY: The 61 Pro Series comes with a built-in mist lubricator, motor controller and grit rejection system, to prolong tool life and increase performance.
• POWER: With a powerful 1.25 HP vane motor and 12,000 RPM, these grinders remove materials at top speed for maximum efficiency.
• DURABILITY: Featuring tough metal housing, these tools can withstand harsh environments and repeated drops with ease.
• ACCESS: With extended length and low profile, you can reach tight, hard-to-reach spaces.

Air Consumption @ Load (cfm): 37
Air Consumption @ Load (l/min): 1048
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Configuration/Handle Type: Straight
Exhaust Location: Side
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 15.5
Product Weight (lb): 4.3
Rated Power (hp): 1.25
Warranty: 1-year

IR 61H150G4

Air Die Grinder, 15,000 RPM, 1.33 HP, 1/4" Collet, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• POWER: With a powerful 1.33 HP vane motor and high power 15,000 RPM output, these grinders remove materials at top speed for maximum efficiency.
• RELIABILITY: The 61 Pro Series comes with a built-in mist lubricator, motor controller and grit rejection system, to prolong tool life and increase performance.
• DURABILITY: Featuring tough metal housing, these tools can withstand harsh environments and repeated drops with ease.
• ACCESS: With extended length and low profile, you can reach tight, hard-to-reach spaces.

Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Exhaust Location: Side
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 15.5
Product Weight (lb): 4.3
Rated Power (hp): 1.33
Speed Setting: Variable Speed
Warranty: 1-year

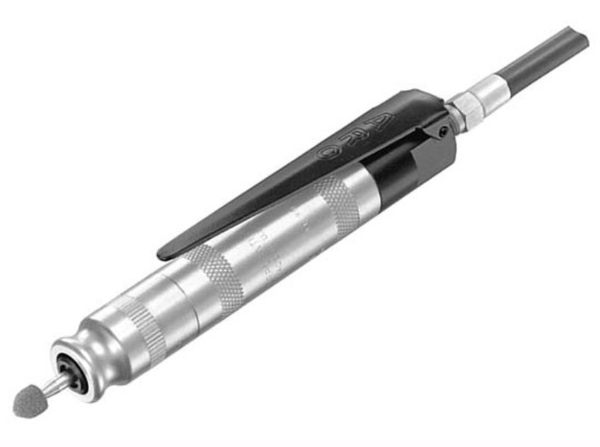

IR 7114-E

Air Pencil Grinder, 20,000 RPM, 1/8" Collet

Made with a metal housing and equipped with a vane motor, the rear exhaust ARO Series Die Grinder is one tough tool. It’s straight configuration and lever actuation throttle make it an ideal tool for industrial jobs and even aerospace projects.

Features And Benefits

• Comfort: Lightweight and easy to handle, this tool is easy to use for longer periods of time.
• Access: Get your work done fast with this compact tool, which can reach tight spaces and hard-to-access angles
• Durable: With a durable metal housing, this tool is built to last.

Product Application and Uses: Ideal tool for industrial jobs and even aerospace projects.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Lever
Air Pressure (psi): 90
Arbor/Collet: 1/8"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 2.8
Configuration/Handle Type: Straight
Grinder Type: Die Grinder
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Power Source: Air Powered
Product Length (in): 6
Product Weight (lb): 13
Spindle Offset (in): 0.5
Vibration Level (m/s2): 3.9
Warranty: 1-year

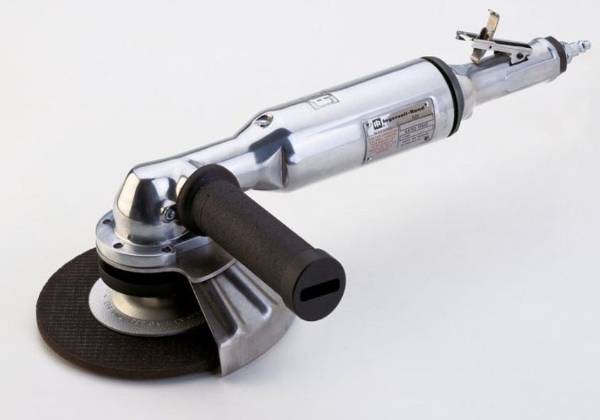

IR 77A60P109

Air Angle Grinder, 9" Type 27/28 Wheel, 6000 RPM, 1.5 HP, 5/8"- 11 Thread, Side Exhaust

Air Pressure (psi): 90
Configuration/Handle Type: Right Angle
Max Pressure (bar): 6.2
Power Source: Air Powered
Warranty: 1-year

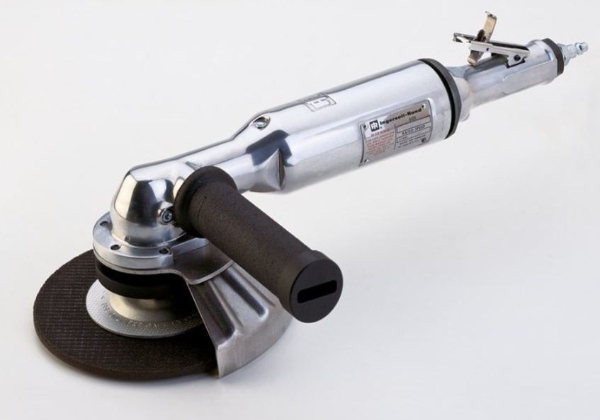

IR 77A75P107

Air Angle Grinder, 7" Type 27/28 Wheel, 7500 RPM 1.5 HP, 5/8"-11 Thread, Side Exhaust

From shipbuilding to general construction, the 77 Pro Series Angle Grinders are equipped to handle even the toughest of jobs.

Features And Benefits

• Reliability: With a built-in mist lubricator and motor controller to extend tool life and regulate performance, you can count on these grinders to work the way you want them to any time you pull the trigger.
• Power: These grinders feature high-powered motors that allow you to remove material quickly and easily.
• Durability: Built to last, these metal housed grinders can withstand repeated drops and harsh environments.

Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Configuration/Handle Type: Right Angle
Exhaust Location: Rear
Max Free Speed (rpm): 7500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Rated Power (hp): 1.5
Sound Pressure/Power Db(A): 88.7
Vibration Level (m/s2): 2.6
Warranty: 1-year
Wheel Diameter (in): 7
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

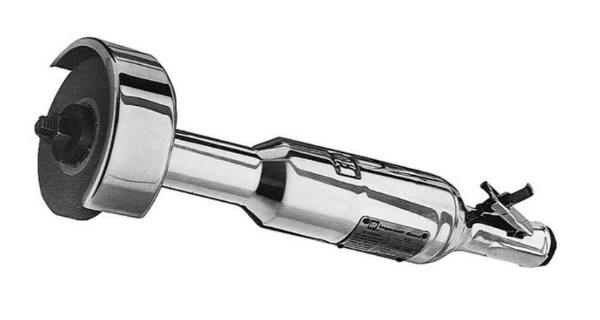

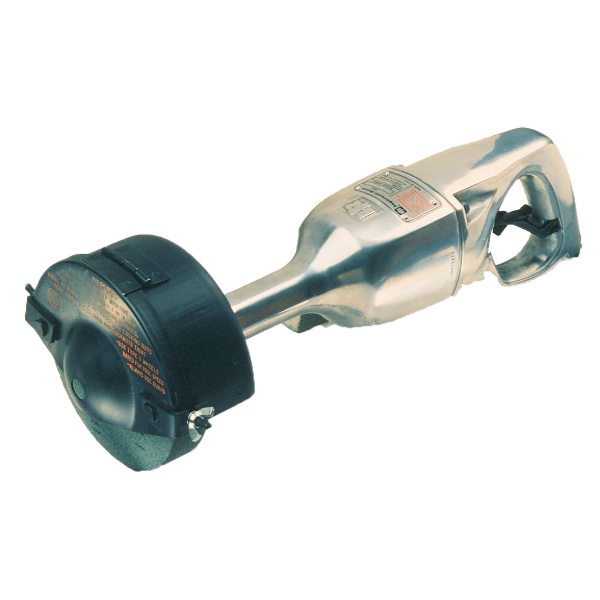

IR 77H120H84

Air Grinder, 4" Type 1 Wheel, 12,000 RPM, 1.5 HP, 1/2"-13 Thread

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Reliability: With a built-in mist lubricator and motor controller to extend tool life and regulate performance, you can count on these grinders to work the way you want them to any time you pull the trigger.
• Power: High powered 1.5 HP and 12,000 RPM motor allow for quick and easy material removal without breaking a sweat.
• Durability: Ingersoll Rand tools are built to withstand harsh conditions and repeated drops, and this series is no different.

Product Application and Uses: Specially designed for heavy duty applications best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/2"-13 Thread
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Guard Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Mounting Type: Arbor
Power Source: Air Powered
Rated Power (hp): 1.5
Rated Power (kW): 1.12
Sound Pressure/Power Db(A): 82.4 / 93.4
Vibration Level (m/s2): 2.8
Vibration Uncertainy K* (m/s2): 1.2
Warranty: 1-year
Wheel Diameter (in): 4
Wheel Thickness (in): 1
Wheel Type: Type 1

IR 77H90L10

Cone and Plug Air Grinder, 9000 RPM, 1.5 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Reliability: With a built-in mist lubricator and motor controller to extend tool life and regulate performance, you can count on these grinders to work the way you want them to any time you pull the trigger.
• Versatile: Compatible with piped-away exhaust kits to make your job easier.

Product Application and Uses: Specially designed for heavy duty applications best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 37
Air Consumption @ Load (l/min): 1048
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Side
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 9000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 16.44
Product Weight (lb): 6
Rated Power (hp): 1.5
Rated Power (kW): 1.1
Vibration Level (m/s2): 4.2
Vibration Uncertainy K* (m/s2): 3.5
Warranty: 1-year
Wheel Type: Cone

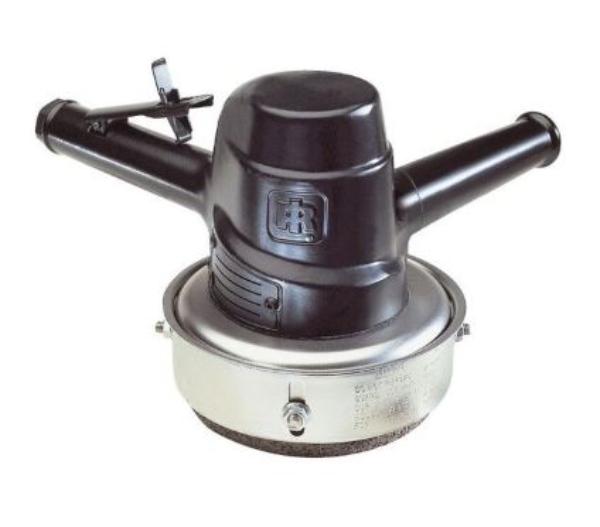

IR 88V60S106

Vertical Air Grinder, 5" Type 6/11 Wheel, 6000 RPM, 2.1 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Safety: The 88 Pro Series’ lock-out lever, guard and side-handle safety is designed to increase comfort and block sparks and debris.
• Durability: You can count on the 88 Pro Series to withstand chemical spills, repeated drops, and other harsh environments.
• Reliability: The patented motor controller removes material faster, prevents over speeding and reduces operator fatigue.

Includes: Guard
Product Application and Uses: Heavy Stock Removal And Rough Grinding In Metal Fabrication Operations
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1728
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Heavy Duty
Exhaust Location: Side
Grinder Type: Grinder Type 6/11
Height Over Spindle (in): 6.1
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 15.9
Product Height (in): 8.2
Product Weight (lb): 8.38
Rated Power (hp): 2.1
Sound Pressure/Power Db(A): 86 / 99
Vibration Level (m/s2): <2.5
Warranty: 1-year
Wheel Diameter (in): 5 or 6
Wheel Type: Type 6, 11

IR 99HL60H106

Extended Air Grinder, 6" Type 1 Wheel, 6,000 RPM, 3HP, 5/8 in-11 Thread, Side Exhaust

The 99 Series Type 1 Grinder is designed for the toughest jobs. With a patented motor controller that maximizes material-removal rate and prevents over speeding, this grinder is both safe to use and powerful.

Features And Benefits

• Safety: A lock-out lever and guard safety provide extra safety measures and increased operator comfort.
• Cleaner Workspaces: Compatible with piped-away exhaust kits to keep your worksite free from exhaust air.
• Durability: The 99 Series Type 1 Grinder’s built-in mist lubricator automatically oils the motor to keep your grinder in top condition.
• 1-year warranty.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Automotive, general assembly, metal fabrication, plant maintenance, production prep, aerospace, shipbuilding
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 84
Air Consumption @ Load (l/min): 2379
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Side

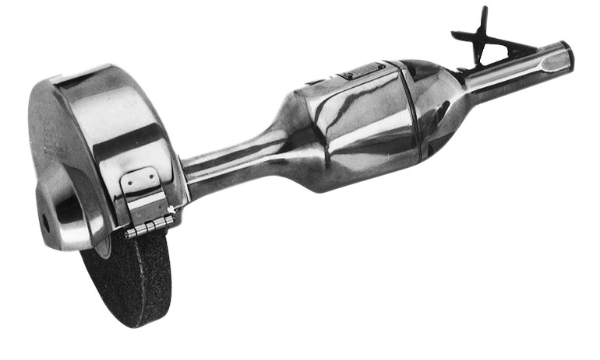

Grinder Type: Horizontal Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 5.91
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 20.5
Product Weight (lb): 13.5
Rated Power (hp): 3
Sound Pressure/Power Db(A): 82.8/93.8
Vibration Level (m/s2): <2.5
Warranty: 1-year
Wheel Diameter (in): 6
Wheel Thickness (in): 1
Wheel Type: Type 1

Similar IR

• 99HL60H108

IR 99HL60H108

Extended Air Grinder, 8" Type 1 Wheel, 6,000 RPM, 3HP, 5/8 in-11 Thread, Side Exhaust

Features And Benefits

• Safety: A lock-out lever and guard safety provide extra safety measures and increased operator comfort.
• Cleaner Workspaces: Compatible with piped-away exhaust kits to keep your worksite free from exhaust air.
• Durability: The 99 Series Type 1 Grinder’s built-in mist lubricator automatically oils the motor to keep your grinder in top condition.

Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Side
Grinder Type: Horizontal Grinder
Guard Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Rated Power (hp): 3
Warranty: 1-year
Wheel Diameter (in): 8
Wheel Thickness (in): 1
Wheel Type: Type 1

IR AG121-106-4

Guard for Ingersoll Rand G2 Series Air Grinder

IR AG2-A3

ASSEMBLY.G2 GRINDER 0.75 HP

IR AG3-26

SEAL CARRIER

IR DG600G2

Air Pencil Grinder, 60,000 RPM, 1/8" Collet

Product Application and Uses: For precision grinding and applications in confined spaces. Used for final cleaning and polishing of dies, mold finishing, intricate grinding applications, light deburring and flash removal.
Air Inlet: 1/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/8"
Average Air Consumption (cfm): 7
Average Air Consumption (l/min): 3.3
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Exhaust Location: Rear
Grinder Type: Pencil Grinder
Max Free Speed (rpm): 60000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/4
Power Source: Air Powered
Product Length (in): 5
Product Weight (lb): 1.5
Sound Pressure/Power Db(A): 76
Spindle Offset (in): 0.34
Vibration Level (m/s2): 3.5
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year

IR G1A120RG4

Angle Air Die Grinder, 12,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip shape that ensures you'll get more done with less fatigue.
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
• One-nut access for all motor servicing
• Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3.1
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6
Product Width (in): 12.5
Product Height (in): 2.5
Product Weight (lb): 1.1
Rated Power (hp): 0.4
Right Angle Length (in): 3
Right Angle Length (mm): 76
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 82.4 / 93.4
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 3.4
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2A120RG4
• G1A200RG4
• G1A120FG4

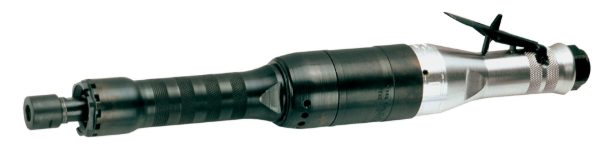

IR G1H350RG4

Air Die Grinder, 32,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments.
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip shape that ensures you'll get more done with less fatigue.
• One-nut access for all motor servicing.
• Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks for applications such as shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 32000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.13
Product Weight (lb): 0.9
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 84.2 / 95.2
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• G1H250RG4
