Impacts

IR 259-TK1

Tune-up Kit for Ingersoll Rand 259 Series Impact Wrench

For Use With

• 259
• 259G

IR 261-3

3/4" Air Impact Wrench, 3" Ext Anvil, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

The 261 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you’ll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

Features And Benefits

• Power: The 6 vane motor provides a high torque output for increased power.
• Jumbo Hammer Mechanism: The patented jumbo hammer is unaffected by air pressure changes and delivers 1100 ft-lbs. of max torque and a working torque of 200-900 ft-lbs.
• Lasting Performance: This power tool is equipped with a pressure-fed lube system which provides trouble-free, longer performance.
• Square Socket: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection, like auto repair and heavy truck and machinery jobs.
• Handle Exhaust: Handle exhaust directs dust and dirt from being blow at you while working as it directs air away from the operator.
• Extended Reach: The 3-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.

Product Application and Uses: Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 38
Air Consumption @ Load (l/min): 1076
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: 3" Extended
Average Air Consumption (cfm): 9.5
Average Air Consumption (l/min): 269
Blows per Min: 1000
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 98.4 / 109.4
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 11.8
Product Width (in): 3.76
Product Height (in): 10.3
Product Weight (lb): 13
Recommended Forward Torque Range (ft-lb): 200-600
Recommended Forward Torque Range (in-lb): 2399-7196
Recommended Forward Torque Range (nm): 271-813
Recommended Reverse Torque (ft-lb): 200-600
Recommended Reverse Torque (nm): 271-813
Retainer Type: Friction Ring
Side to Center Distance (in): 1.88
Side to Center Distance (mm): 48
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 10.4
Warranty: 1-year

Similar IR

• 259
• 2130-2

IR 261B-A727

Hammer Case for Ingersoll Rand 261, 271 Series Impact Wrench

For Use With

• 261
• 261-3
• 261-6
• 271

IR 280-TK2

Tune-up Kit for Ingersoll Rand 280 Series Impact Wrench

For Use With

• 280
• 280-6
• 280-EU
• 280-S-6

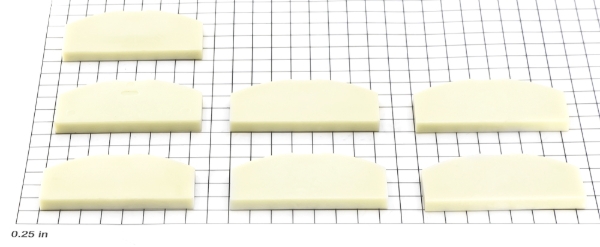

IR 2850-A42-7

VANE PACK

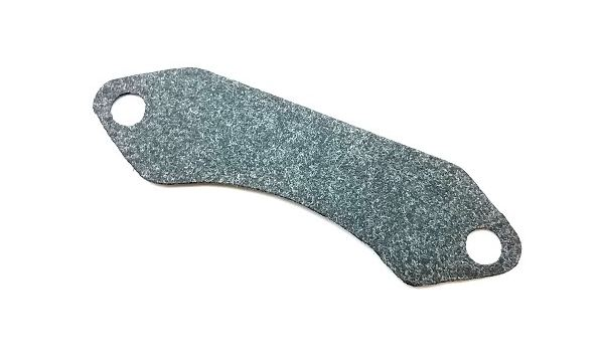

IR 2920B-283

GASKET

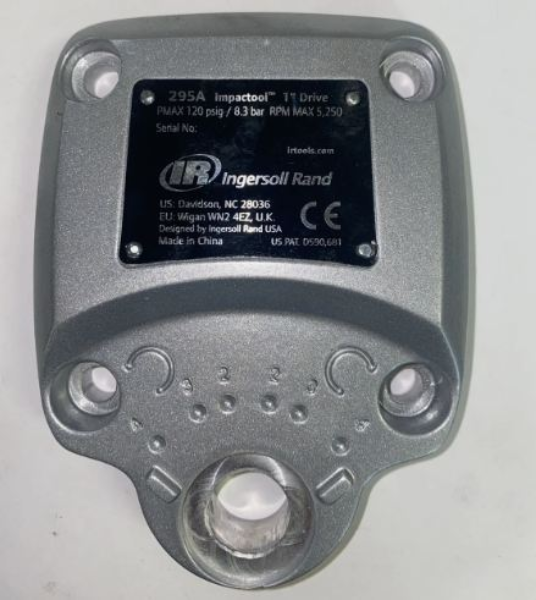

IR 295A-A102

BACKHEAD ASSEMBLY

IR 295A-A565

INLET BUSHING ASSEMBLY

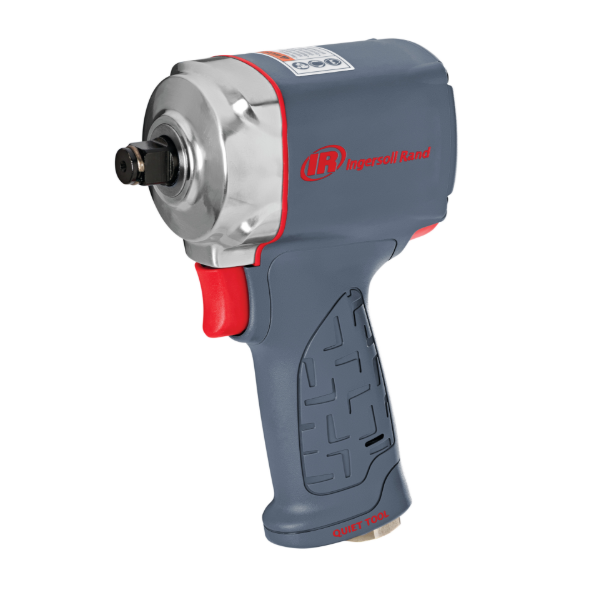

IR 36QMAX

1/2" Ultra Compact Air Impact Wrench, Quiet, 640 ft-lb Torque, Friction Ring Retainer, Pistol

This tool has been rigorously tested, beaten up, dropped and pushed to the limits to make sure it lasts twice as long as the competition. With the twin hammer design, unmatched durability, superior accessibility and up to 640 ft-lbs* of nut busting torque at just 2.4 lbs, the 36QMAX is not just the tool you want, it is the tool you need to get REAL WORK done time and time again.

Features And Benefits

• Power-to-Weight: At 2.4 lbs, this tool is amongst the lightest on the market, and still delivers 640 ft-lbs of nut busting torque; delivering the power you expect from an Ingersoll Rand impact.
• Access: There is no place for work to hide. The compact design provides a user the access and power they need, even if the task is up, under, over, or around any awaiting obstruction.
• Reliability: Built on the IR Impact Wrench legacy, this tool is tested at 2X the life of competitive products available today.
• Quiet: The sound baffling technology provides a quiet design at only 91.3 dB(A).
• Control: The one-handed forward/reverse push button and 3-mode power regulator give you max control and max performance.

Includes: Bare Tool
Product Application and Uses: Vehicle Maintence And Industrial Mro For Resctricted Areas
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 24
Average Air Consumption (l/min): 680
Blows per Min: 1300
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 87.6 / 98.6
Hammer Case: Aluminum
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 91.3 / 102.3
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 8000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 472
Max Torque (in-lb): 5664
Max Torque (nm): 640
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 640
Nut-busting/Breakaway Torque (in-lb): 7682
Nut-busting/Breakaway Torque (nm): 868
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 180.77
Product Length (in): 4.61
Product Width (in): 2.36
Product Height (in): 7.13
Product Weight (lb): 2.6
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 384
Recommended Forward Torque Range (in-lb): 4602
Recommended Forward Torque Range (nm): 520
Retainer Type: Friction Ring
Side to Center Distance (in): 1.2
Side to Center Distance (mm): 30
Special Features: Quiet, Ultra compact
Speed Setting: Variable Speed
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Compact
Vanes: 7
Vibration Level (m/s2): 8.1
Warranty: 2-year

Similar IR

• 15QMAX

IR 3940-302

Throttle Valve Plunger Service Part for Ingersoll Rand Power Tools

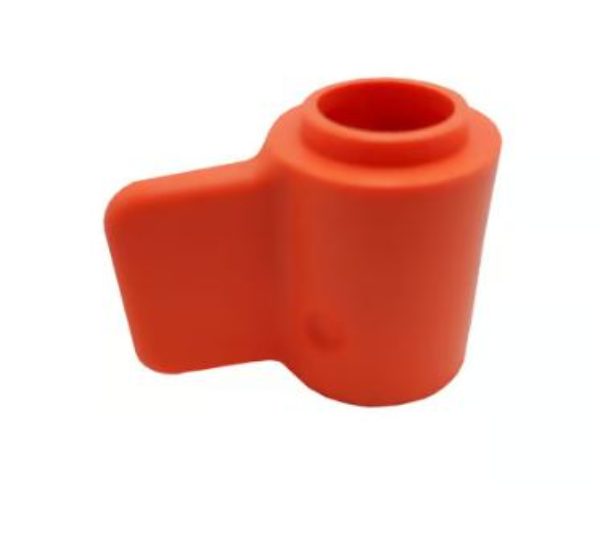

IR 3940-75

FORWARD REVERSE LEVER

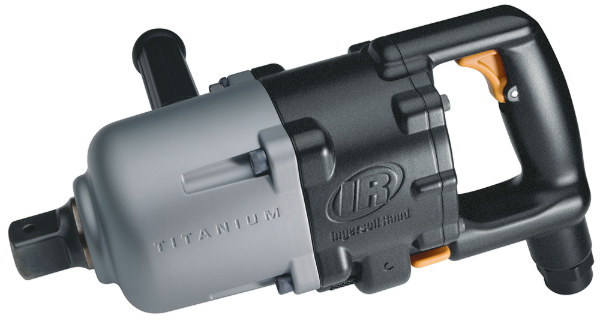

IR 3940B2TI

1" Air Impact Wrench, Super Duty, 2750 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Inside Trigger

With a titanium hammer case, bronze end plates and torque up to 2750 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits

• Power: High torque output of 2750 ft-lbs and 800 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding

Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 64
Average Air Consumption (l/min): 1812
Blows per Min: 800
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 103.4 / 114.4
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 100.6 / 111.6
Max Bolt Diameter (in): 1-3/8
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2750
Max Torque (in-lb): 33004
Max Torque (nm): 3729
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 117.9
Product Length (in): 13.5
Product Weight (lb): 21.2
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 500-1800
Recommended Forward Torque Range (in-lb): 6001-21596
Recommended Forward Torque Range (nm): 678-2440
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 13.1
Vibration Uncertainy K* (m/s2): 1.6
Warranty: 1-year

Similar IR

• 3940A2TI

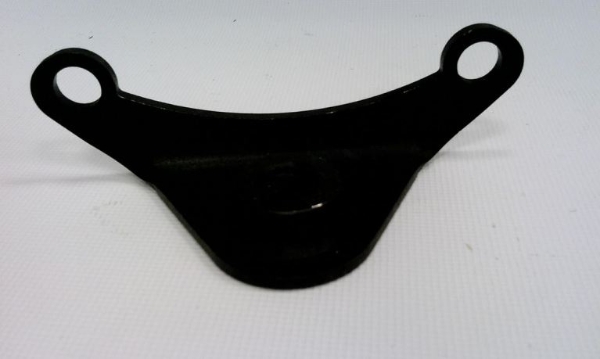

IR 3955-364

DEAD HANDLE BRACKET

IR 534-448

SIDE SPADE HANDLE STUD

IR 7500-64

THROTTLE VALVE PLUNGER

IR ILA578A1-695

RACE

MPT MP-1241P-ST

Impact 3/8in Drive

MPT MP-212-PT

Impact 3/8in Pistol Pin Anv

SUM NS-113

Stamp Tool, 1/2 Shaft

U UT8365C

3/4" Composite Impact

FP AC-1320

3/8in Butterfly Impact

IR 1702-A703A

FRAME (48951-10)

IR 1702B-B166

INLET (48951-19)

IR 1720P-231

GASKET

IR 2015MAX

3/8" Air Impact Wrench, 180 ft-lb Torque, Friction Ring Retainer, Right Angle

This revolutionary product is unlike any other on the market today. The Hammerhead Low Profile impact wrench offers the power and speed of an impact with the reach of a ratchet. The combination of MAX power, MAX control, and MAX access now allows you to use an Ingersoll Rand impact wrench for virtually any application. Say goodbye to awkward extensions and swivel sockets, and watch your productivity soar as you conquer tasks in minutes that once took you hours.

Features And Benefits

• Max Power: With 180 ft-lbs of max torque and 9000 rpm, this tool offers more than twice the power of the leading competitor's ratchet.
• Max Control: A feather-touch trigger, two-position forward power regulator and conveniently located forward / reverse ring provide precise control.
• Max Access: A head height of under 2" and reactionless torque allow you to safely use this powerful tool in tight spaces.
• Feather touch trigger, 2-position forward power regulator, forward/reverse ring
• Compact design, with head height under 2 inches, makes operation and access easier in tight spots so you can perform even the most detailed work with this air impact wrench.
• Ergonomically sound rear exhaust system.
• Offers the same reach as a ratchet.
• Optimized for the vehicle repair industry, body shops, and MRO.
• 1-year warranty.

Product Application and Uses: Designed to remove and install threaded fasteners. Optimized for the vehicle repair industry, body shops, and MRO
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 2100
Color: Grey
Configuration/Handle Type: Right Angle
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 94.1 / 105.1
Hammer Case: Aluminum
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Single Hammer
Impacting Sound Pressure/Power Db(A): 96.6 / 107.6
Max Bolt Diameter (in): 0.4375
Max Free Speed (rpm): 9000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 180
Max Torque (in-lb): 2160
Max Torque (nm): 244
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 2
Power Source: Air Powered
Product Length (in): 13.1
Product Width (in): 2.2
Product Height (in): 3.1
Product Weight (lb): 3.4
Recommended Forward Torque Range (ft-lb): 45-140
Recommended Forward Torque Range (in-lb): 540-1682
Recommended Forward Torque Range (nm): 61-190
Recommended Reverse Torque (ft-lb): 45-160
Recommended Reverse Torque (nm): 61-217
Retainer Type: Friction Ring
Side to Center Distance (in): 1.1
Side to Center Distance (mm): 28
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 17.4
Warranty: 2-year

Similar IR

• 2025MAX
