Impacts

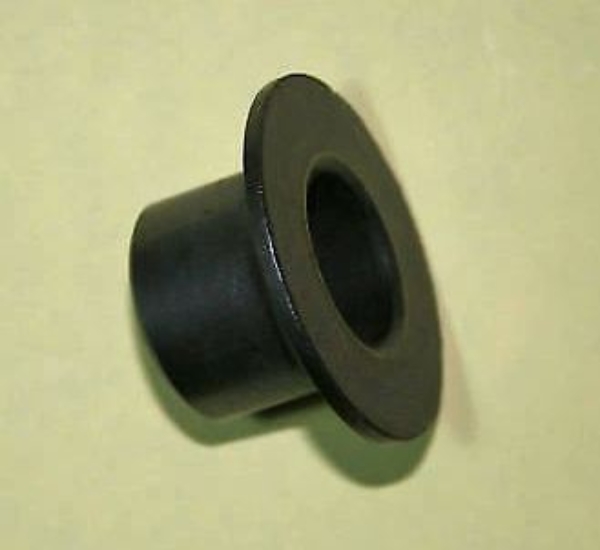

IR 2131A-941

BUSHING

IR 2131PEX

1/2" Air Impact Wrench, ATEX/Hazardous Duty, 600 ft-lb Torque, Pin Retainer, Pistol

Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, this 2130 Series Impact Wrench was built to help you succeed. Reliable and durable from your first to your last job, this wrench will see you through.ATEX Marking: ATEX 2014/34/EU and Ex h IIA T6 Gb XISO 80079-36 Certified

Features And Benefits

• Durability: Thanks to its steel hammer case and composite housing, this wrench will endure anything, from repeated drops to harsh chemicals. It'll never let you down.
• Bronze bushing reduces risk of sparks
• Twin hammer mechanism ensure consistent power and balance
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Feather-touch trigger allows precise delivery of pressure and speed
• Composite Housing is impact and chemical resistant to extend the life of the tool.
• ATEX Marking: ATEX 2014/34/EU and Ex h IIA T6 Gb X
• ISO 80079-36 Certified

Includes: Bare Tool
Product Application and Uses: Hazardous Environment, Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 4.8
Blows per Min: 1250
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Atex/Hazardous Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 86.4 / 97.4
Hammer Case: Steel
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 90.4 / 101.4
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 10250
Max Pressure (bar): 6.2
Max Torque (ft-lb): 600
Max Torque (in-lb): 7196
Max Torque (nm): 813
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 4
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 122
Product Length (in): 7.3
Product Width (in): 2.7
Product Height (in): 7.2
Product Weight (lb): 4.9
Recommended Forward Torque Range (ft-lb): 450
Recommended Forward Torque Range (in-lb): 5399
Recommended Forward Torque Range (nm): 610
Retainer Type: Pin Detent
Side to Center Distance (in): 1.35
Side to Center Distance (mm): 34
Special Features: ATEX Rated
Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 8.31
Warranty: 1-year

IR 2141-11B

FRONT END PLATE

IR 2141-703

HAMMER FRAME

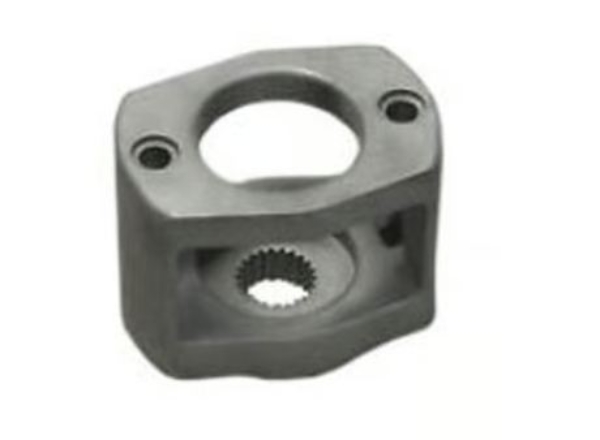

IR 2141-A703

HAMMER FRAME ASSEMBLY

IR 2141-TK1

Tune-up Kit for Ingersoll Rand 2141 Series Impact Wrench

IR 2145-61A

INLET SCREEN

IR 2145QIMAX-3

3/4" Air Impact Wrench, Quiet, 1700 ft-lbs Nut-busting Torque, Maintenance Duty, Pistol Grip, 3" Extended Anvil

As one of the toughest, most durable wrenches on the market 2145QiMAX Series is particularly beneficial in vehicle repair work- though this impact wrench is well suited for any job you want to take on.

Features And Benefits

• MAX POWER: 1350 ft-lb (1830Nm) maximum reverse torque from a tool that weighs just 7.4 lbs (3.36kg)and is compact enough to access tight spaces.
• MAX DURABILITY: Built to last and designed to withstand tough use in rugged environments; a two-year limited warranty is standard.
• MAX PRODUCTIVITY: An air motor that’s 16% more efficient than its predecessor and an easy-to-clean inlet screen means less downtime, better tool performance, and less money spent on compressed air.
• The 3-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
• Easier access to grease fitting – for quicker maintenance and less downtime.
• Enhanced socket retention.
• 7-vane Motor delivers added power with less weight.
• Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency.
• Feather-touch trigger provides maximum control of this air impact wrench.
• Anodized end plate for enhanced durability.
• Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction.
• Patented one-hand forward/reverse control for easy operation.
• Optimized air flow for maximized performance when using this pneumatic impact wrench.

Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 32
Air Consumption @ Load (l/min): 906
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: 3" Extended
Average Air Consumption (cfm): 8.5
Average Air Consumption (l/min): 241
Blows per Min: 1150
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Steel Wear Plate
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 91.1 / 102.1
Hammer Case: Steel
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 96.3 / 107.3
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 7000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1350
Max Torque (in-lb): 16197
Max Torque (nm): 1830
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1700
Nut-busting/Breakaway Torque (in-lb): 20401
Nut-busting/Breakaway Torque (nm): 2305
Power Source: Air Powered
Product Length (in): 11.5
Product Width (in): 3.3
Product Height (in): 8.1
Product Weight (lb): 8.4
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 1100
Recommended Forward Torque Range (in-lb): 13196
Recommended Forward Torque Range (nm): 1491
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 1.7
Side to Center Distance (mm): 43
Special Features: Quiet Tool, 2-Year Max warranty
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 8.1
Warranty: 2-year

Superseded To

• 2146Q1MAX-3

IR 2145SP-D727

HAMMER CASE ASSEMBLY

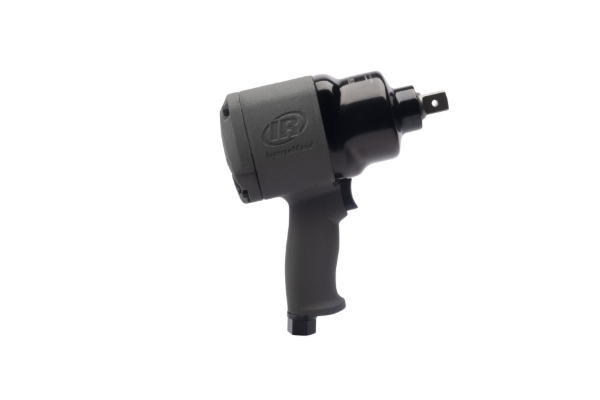

IR 2161P

3/4" Air Impact Wrench, 1250 ft-lb Torque, Thru-hole Retainer, Pistol

The metal housing and steel hammer case of the 2161 Series Impact Wrench makes this one of the toughest tools on the market. You’ll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features And Benefits

• Durability: This heavy-duty impact wrench is tough enough to handle harsh environments and repeated drops.
• Versatility: The 2161 Series is an ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
• Increased Safety: The square pin drive of the 2161 Series provides the strongest connection to the socket to increase safety, especially when doing overhead work.

Product Application and Uses: Ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 46
Air Consumption @ Load (l/min): 1303
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 55
Average Air Consumption (l/min): 1558
Blows per Min: 1025
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 97.7 / 108.7
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 90.7 / 101.8
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1250
Max Torque (in-lb): 15002
Max Torque (nm): 1695
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 8.5
Product Width (in): 3.5
Product Height (in): 9.5
Product Weight (lb): 12.14
Recommended Forward Torque Range (ft-lb): 300-1000
Recommended Forward Torque Range (in-lb): 3602-12002
Recommended Forward Torque Range (nm): 407-1356
Retainer Type: Thru-hole
Side to Center Distance (in): 1.75
Side to Center Distance (mm): 44
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 11.5
Warranty: 1-year

Similar IR

• 2171P
• 2161XP-6

IR 216B-12

PLATE, REAR END

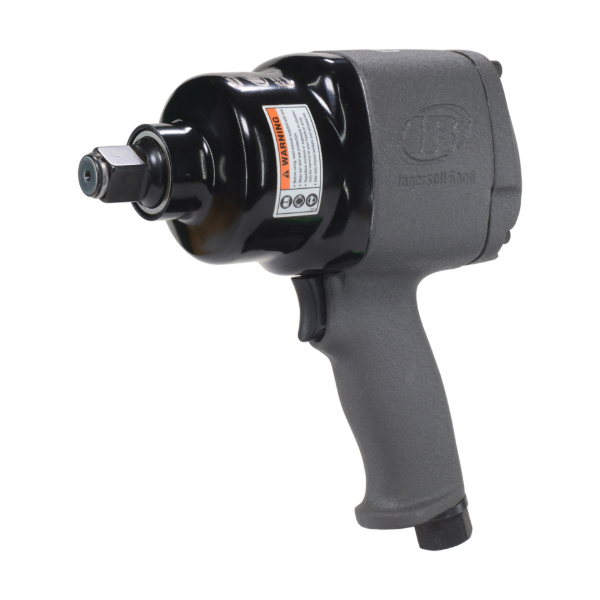

IR 2171XP

1" Air Impact Wrench, 1250 ft-lb Torque, Friction Ring Retainer, Pistol

The metal housing and steel hammer case of the 2171 Series Impact Wrench makes this one of the toughest tools on the market. You’ll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features And Benefits

• Durability: This heavy-duty impact wrench is tough enough to handle harsh environments and repeated drops.
• Versatility: The 2171 Series is an ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.

Product Application and Uses: Ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 46
Air Consumption @ Load (l/min): 1303
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 1025
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.4 / 107.4
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.3 / 106.3
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1250
Max Torque (in-lb): 15002
Max Torque (nm): 1695
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 8.5
Product Width (in): 3.5
Product Height (in): 9.5
Product Weight (lb): 12.32
Recommended Forward Torque Range (ft-lb): 300-1000
Recommended Forward Torque Range (in-lb): 3602-12002
Recommended Forward Torque Range (nm): 407-1356
Retainer Type: Friction Ring
Side to Center Distance (in): 1.75
Side to Center Distance (mm): 44
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 10.3
Warranty: 1-year

Similar IR

• 2161XP
• 2161XP-6

IR 2175MAX-6

1" Air Impact Wrench, 6" Ext Anvil, 2000 ft-lb Torque, Thru-hole Retainer, Pistol

The 2175MAX 1” Pistol Grip Impact Wrench - engineered to make quick work of big bolting jobs and semi trucks, bus and heavy equipment tires. This tool has been made lighter, pushed harder and worked longer to make sure it can handle repeated demands without sacrificing power. Every time you need extreme torque, this lightweight boss can get the job done.

Features And Benefits

• Power: A solid steel impact mechanism and robust motor deliver 2,000 ft- lbs of torque.
• Durability: The steel core and chemical resistant housing are made to last even in the harshest working conditions.
• Ergomonics: The 2175MAX-6 weighs in under 20 lbs. and the 360° adjustable handle design increases maneuverability and comfort.
• Swivel hose connection: Keeps cords from getting tangled so you can move freely around the garage
• Extended Reach: 6” anvil extension: Increases accessibility in hard to reach places

Includes: Bare Tool
Product Application and Uses: Heavy Duty Fastening On Trucks, Buses Or Other Large Vehicles
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 56.7
Air Consumption @ Load (l/min): 1606
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: 6" Extended
Average Air Consumption (cfm): 14.2
Average Air Consumption (l/min): 402
Blows per Min: 740
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Steel Wear Plate
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 103.6 / 114.6
Hammer Case: Steel
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 101.5 / 112.5
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 4500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2002
Max Torque (in-lb): 24030
Max Torque (nm): 2715
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 111.2
Product Length (in): 16
Product Width (in): 14
Product Height (in): 6.5
Product Weight (lb): 20.04
Recommended Forward Torque Range (ft-lb): 1903
Recommended Forward Torque Range (in-lb): 22835
Recommended Forward Torque Range (nm): 2580
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 7
Side to Center Distance (mm): 178
Special Features: 2-year Max warranty
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 11.2
Warranty: 2-year

Similar IR

• 2175MAX

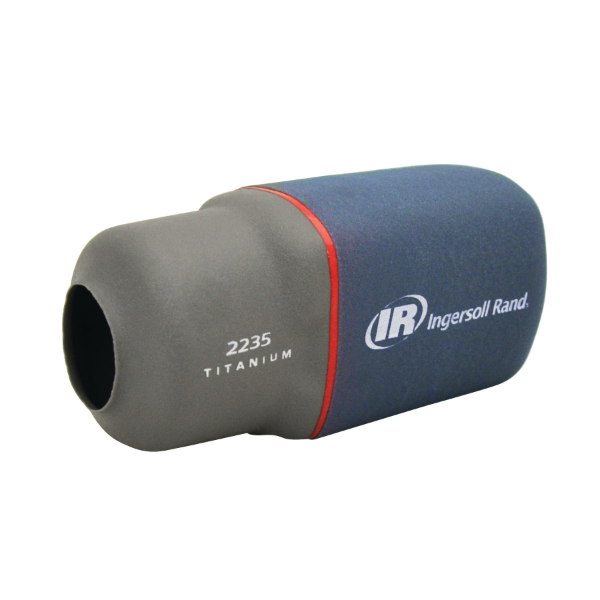

IR 2235M-BOOT

Protective Boot for Ingersoll Rand 2235 Series Impact Wrenches

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.
• Fits all 2235TiMAX Series impact wrenches.

Product Application and Uses: Tool Boot for 2235 Series impact wrenches
Color: Grey
Product Length (in): 3.2
Product Width (in): 3
Product Height (in): 6.7
Product Weight (lb): 0.15

For Use With

• 2235QPTIMAX
• 2235TIMAX-2
• 2235QTIMAX
• 2235TIMAX
• 2235QTIMAX-2
• 2235PTIMAX

IR 2236QTIMAX-R

DXS2 1/2" Air Impact Wrench, Quiet, 1500 ft-lb Torque, Titanium Hammercase, Friction Ring Retainer, Red

The Ingersoll Rand 2236QTiMAX Visibility Series, provides the power you know and trust in vibrant colors. Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years — and the performance, durability, and power of the 2236 1/2” pneumatic impact is no different. Our patented Drive Xchange System™ lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand — without losing a single ft-lb of power. Innovation: Ingersoll Rand’s patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.

Features And Benefits

• Visibility: The red 2236QTIMAX-R impact wrench allows you to see it on the job and in the garage, while customizing your toolbox. Also available in orange and green.
• Patented Drive Xchange System™: Helps you get more versatility, torque, and control out of your impact wrench. With 3/8," 1/2", and 3/4" drive options and 5 different anvil lengths ranging from 2 to 10 inches, you can do more work with less equipment.
• Powerful Versatility: 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.
• Patented Direct Greasing System: Greasing your tool has never been easier. Directly grease the tool’s hammer for more efficient operation and increased run time.
• Reliable Performance: Stay working, and at peak power by quickly replacing worn or broken anvils. Titanium hammer case is light weight with unyielding durability.
• Ergonomic: Smaller, lighter and better balanced design under 4.5 lbs. and 7.4" overall length.
• Quiet: 4 decibels quieter than the 2235TIMAX for a more user-friendly environment.
• Includes 1/2” Square Drive Anvil (A41H); 3/8” and 3/4” drive size options as well as extended lengths sold separately.

Includes: DXS2 1/2" Square Drive Anvil (A41H). Compatible with all DXS2 anvils and sockets. 3/8” and 3/4” drive size options as well as extended lengths sold separately.
Product Application and Uses: Vehicle Repair
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 36
Air Consumption @ Load (l/min): 1090
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 9
Average Air Consumption (l/min): 255
Blows per Min: 1350
Color: Red
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.4 / 107.4
Hammer Case: Titanium
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 94.2 / 105.2
Max Bolt Diameter (in): 1 1/4
Max Free Speed (rpm): 7500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1000
Max Torque (in-lb): 12002
Max Torque (nm): 1356
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 1500
Nut-busting/Breakaway Torque (in-lb): 18002
Nut-busting/Breakaway Torque (nm): 2034
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 339
Product Length (in): 7.36
Product Width (in): 2.9
Product Height (in): 7.34
Product Weight (lb): 4.4
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 900
Recommended For

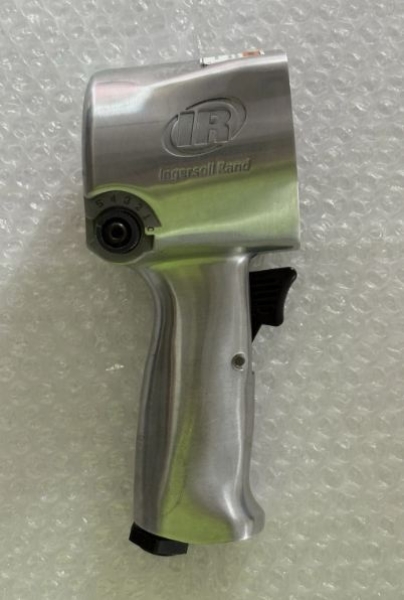

IR 231C-A40

HOUSING ASSEMBLY

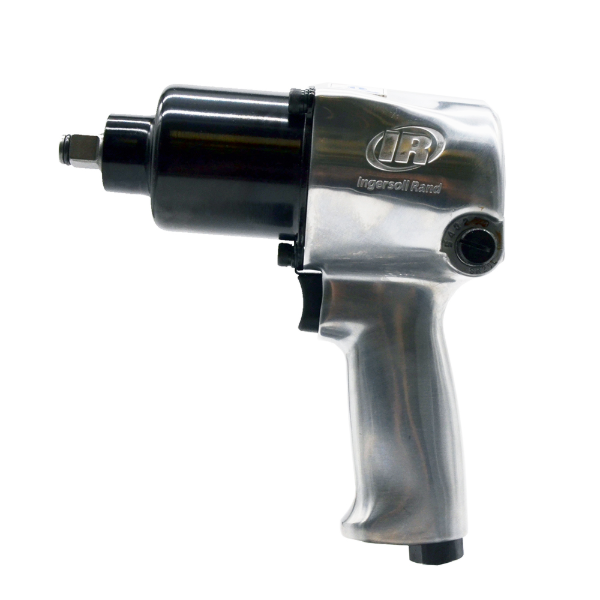

IR 231HA

1/2" Air Impact Wrench, Super Duty, 600 ft-lb Torque, Friction Ring Retainer, Pistol

The 231HA Series is the ideal impact wrench for any job you take it to, from facility maintenance and industrial work to vehicle repair and tire work. Tough and durable with a powerful vane motor, this impact wrench won’t let you down.

Features And Benefits

• Max Torque: 590 ft.-lbs. of max. torque. Pressure feed lubrication system.
• Durability: This impact wrench is tough enough to handle harsh environments, repeated drops and run-ins with any number of chemicals.
• Variable Power: Variable power control in forward and reverse.
• Handle Exhaust: Handle exhaust directs air away from the user.
• Comfort: Comfortable handle contour.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 22
Air Consumption @ Load (l/min): 623
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 4.2
Average Air Consumption (l/min): 119
Blows per Min: 1150
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 94.0 / 105.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 8000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 600
Max Torque (in-lb): 7196
Max Torque (nm): 813
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 101.7
Product Length (in): 7.3
Product Width (in): 2.75
Product Height (in): 7.9
Product Weight (lb): 5.8
Recommended Forward Torque Range (ft-lb): 25-300
Recommended Forward Torque Range (in-lb): 301-3602
Recommended Forward Torque Range (nm): 34-407
Recommended Reverse Torque (ft-lb): 25-350
Recommended Reverse Torque (nm): 34-475
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 6.5
Warranty: 1-year

Similar IR

• 231HA-2

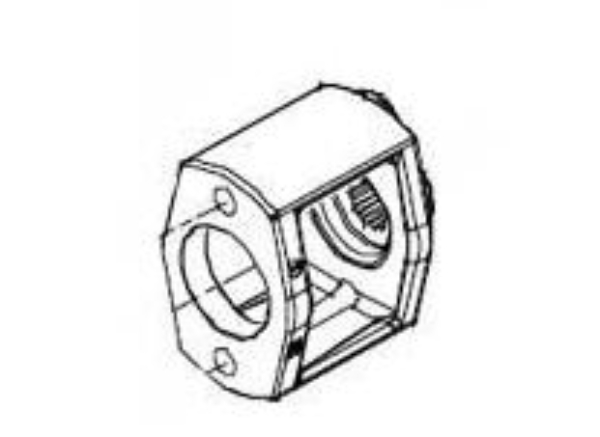

IR 231XP-A703

FRAME (131)

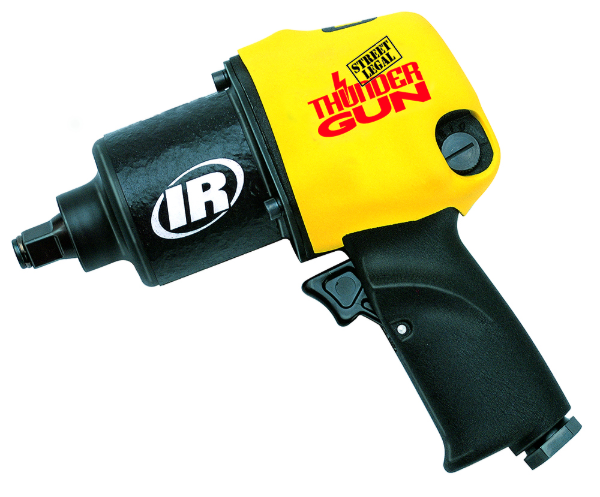

IR 232TGSL

1/2" Air Impact Wrench, Super Duty, 625 ft-lb Torque, Friction Ring Retainer, Pistol

If you’re looking for NASCAR pitstop-level speeds, the 232TGSL ½” is the impact wrench for you. Its powerful vane motor and smooth trigger actuation will help you fly through vehicle repair jobs with an added level of confidence and control.

Features And Benefits

• POWER: The 232TGSL impact gun delivers 625 ft/lbs of maximum reverse torque to give technicians the power they need to complete tough repairs.
• SPEED: This pneumatic thunder gun is the fastest 1/2 inch impact wrench in the Ingersoll Rand line, at 10,000 RPM, to deliver pit crew speed.
• Durability: The steel hammer case and metal housing in the 232TGSL ½” makes this impact wrench strong and durable to last through any job.
• Warranty: Your 232TGSL ½” comes with a one-year standard warranty to protect against any manufacturing defects.

Includes: Bare Tool
Product Application and Uses: Automotive Vehicle Service Racing
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 23
Air Consumption @ Load (l/min): 651
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 5.4
Average Air Consumption (l/min): 153
Blows per Min: 1250
Color: Yellow
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 105.3 / 109.3
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 10000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 625
Max Torque (in-lb): 7497
Max Torque (nm): 847
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 104.1
Product Length (in): 7.3
Product Width (in): 2.8
Product Height (in): 7.3
Product Weight (lb): 6
Recommended Forward Torque Range (ft-lb): 500
Recommended Forward Torque Range (in-lb): 6001
Recommended Forward Torque Range (nm): 678
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Warranty: 1-year

Similar IR

• 2235TIMAX
• 231C

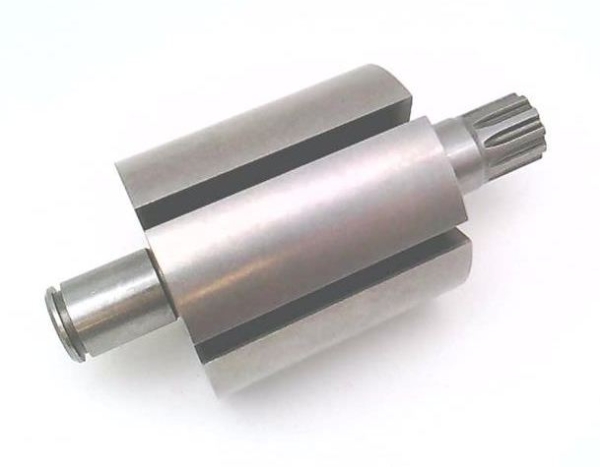

IR 244-53

ROTOR (48951-89)

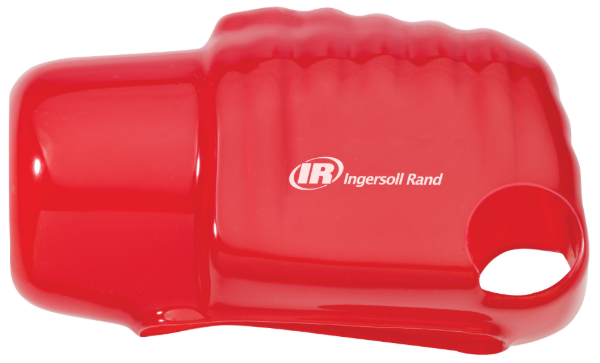

IR 244-BOOT

Protective Boot for Ingersoll Rand 244A Series Impact Wrench

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Color: Red
Housing Material: Thermoplastic Polymer

For Use With

• 244A
• 244A-2

IR 259-23

EXHAUST DEFLECTOR

IR 259-42-6

VANE PACKET

IR 261-301

NAMEPLATE

IR 261-6

3/4" Air Impact Wrench, 6" Ext Anvil, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

The 261 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you’ll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

Features And Benefits

• Power: The 6 vane motor on the 261 Series provides a high torque output for increased power.
• Jumbo Hammer Mechanism: The patented jumbo hammer is unaffected by air pressure changes and delivers 1100 ft-lbs. of max torque and a working torque of 200-900 ft-lbs.
• Square Socket: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection, like auto repair and heavy truck and machinery jobs.
• Lasting Performance: This power tool is equipped with a pressure-fed lube system which provides trouble-free, longer performance.
• Handle Exhaust: Handle exhaust directs dust and dirt from being blow at you while working as it directs air away from the operator.
• Extended Reach: The 6-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.

Product Application and Uses: Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 38
Air Consumption @ Load (l/min): 1076
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: 6" Extended
Average Air Consumption (cfm): 9.5
Average Air Consumption (l/min): 269
Blows per Min: 1000
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 98.4 / 109.4
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 14.8
Product Width (in): 3.76
Product Height (in): 10.3
Product Weight (lb): 13.7
Recommended Forward Torque Range (ft-lb): 200-600
Recommended Forward Torque Range (in-lb): 2399-7196
Recommended Forward Torque Range (nm): 271-813
Recommended Reverse Torque (ft-lb): 200-600
Recommended Reverse Torque (nm): 271-813
Retainer Type: Friction Ring
Side to Center Distance (in): 1.88
Side to Center Distance (mm): 48
Special Features: Extended anvil
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 10.4
Warranty: 1-year

Similar IR

• 271
• 259
