Impacts

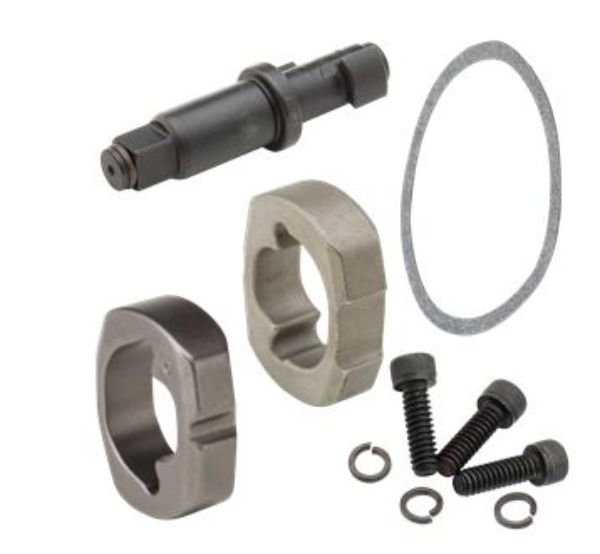

Hammer Kit
IR 261-THK1
Tune-up Kit for Ingersoll Rand 261 Series Impact Wrench
- For Use With: 261
Air Impact Wrench, Ext A
IR 280-6
1" Air Impact Wrench, 6" Ext Anvil, Super Duty, 1600 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger
Description: For a versatile impact wrench that doesn't compromise safety for power, the 280 Series can't be beat. The D-shaped handle fits comfortably in your hand and the jumbo hammer impact mechanism provides an excellent power-to-weight ratio.
Features And Benefits:
- Durability: The steel hammer case and metal housing of the 280 Series make this impact wrench incredibly durable and long-lasting.
- Increased Safety: Square thru-hole retainer increases on-the-job safety by providing a strong socket connection.
- Power: The jumbo hammer impact mechanism and 6 vane motor gives you the ability to power up to 1600 ft.-lbs. of torque for your toughest applications.
- Extended Reach: The 6-inch extended anvil provides you with increased reach that's invaluable when working with deeper fasteners.
Product Application and Uses:
Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.
- Actuation/Throttle Type/Switch Type: Inside Trigger
- Air Consumption @ Load (cfm): 55
- Air Consumption @ Load (l/min): 1557
- Air Inlet: 1/2" NPT
- Air Pressure (psi): 90
- Anvil Length: 6" Extended
- Average Air Consumption (cfm): 10
- Average Air Consumption (l/min): 283
- Blows per Min: 750
- Color: Grey
- Configuration/Handle Type: D-Handle
- Drive Size (in): 1
- Drive Type: Square
- Duty Rating: Super Duty
- End Plates: Bronze
- Exhaust Location: Bottom
- Free Speed Sound Pressure/Power Db(A): 107.7 / 118.7
- Hammer Case: Steel
- Handle Material: Composite
- Housing Material: Aluminum core with composite sleeve
- Impact Mechanism: Jumbo Hammer
- Impacting Sound Pressure/Power Db(A): 103 / 114
- Max Bolt Diameter (in): 1.25
- Max Free Speed (rpm): 6000
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 1600
- Max Torque (in-lb): 19197
- Max Torque (nm): 2169
- Min Hose Size (in): 1/2
- Motor: Non-Biased
- Number of Power Settings: Continuous
- Power Source: Air Powered
- Product Length (in): 18.5
- Product Width (in): 4.8
- Product Height (in): 6.7
- Product Weight (lb): 23.8
- Recommended Forward Torque Range (ft-lb): 148-1003
- Recommended Forward Torque Range (in-lb): 1770-12037
- Recommended Forward Torque Range (nm): 200-1360
- Recommended Reverse Torque (ft-lb): 148-1003
- Recommended Reverse Torque (nm): 200-1360
- Retainer Type: Thru-hole
- Special Features: Extended anvil
- Speed Setting: Variable Speed
- Standards/Certifications: CE
- Tool Type: Full-size
- Vanes: 6
- Vibration Level (m/s2): 21.8
- Warranty: 1-year
- Lubrication: 10P
- Parts: 280-TK2
- Parts: 2934-42-6
Tune-Up Kit
IR 2906P-TK1
Tune-up Kit for Ingersoll Rand 2960P Series Air Impact Wrench
- Includes: oil chamber plug seal, throttle valve seat, throttle valve, throttle valve spring, oiler body seal, exahust silencer, reverse valve bushing seal (2), trigger pin, reverse valve ball dentent, reverse valve dentent spring, housing cover gasket, rear rotor bearing, vane pack (6), front rotor bearing, hammer case gasket, socket retainer plunger and plunger spring
- For Use With: 2906P1
Tune-Up Kit
IR 290-TK2
Tune-up Kit for Ingersoll Rand 290 Series Impact Wrench
- Includes: Throttle Valve Plunger, Stop Pin, Oiler Felt, Seal, Vane Pack, Bearings, Handle Gasket, O-rings, Spring Pack, Ball
- For Use With: 290
3/4" Impact
IR 2920B1
3/4" Air Impact Wrench, Super Duty, 1100 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger
Description: The 2920 Series' finely tuned motor and power regulator make this wrench one to beat. Reliable, durable and variable, it can get any job done.
Features And Benefits:
- Durability: This wrench can withstand drops or harsh conditions, thanks to its steel hammer case and metal housing.
- Reliability: With a twin hammer impact mechanism that delivers even blows every time, and a power regulator that helps keep control, you'll never doubt that this wrench will perform the way you want it to. Comes with a 1-year warranty.
- Pressure-fed mechanism lubrication
- Integral muffler
Product Application and Uses:
Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding
- Actuation/Throttle Type/Switch Type: Inside Trigger
- Air Inlet: 3/8" NPT
- Air Pressure (psi): 90
- Anvil Length: Standard
- Average Air Consumption (cfm): 36
- Average Air Consumption (l/min): 1020
- Blows per Min: 950
- Color: Grey
- Configuration/Handle Type: D-Handle
- Configuration/Handle Type: Auxiliary Handle
- Drive Size (in): 3/4
- Drive Type: Square
- Duty Rating: Super Duty
- End Plates: Cast Iron
- Exhaust Location: Bottom
- Free Speed Sound Pressure/Power Db(A): 84.9 / 95.9
- Hammer Case: Steel
- Handle Material: Composite
- Housing Material: Aluminum core with composite sleeve
- Impact Mechanism: Twin Hammer
- Max Bolt Diameter (in): 1
- Max Free Speed (rpm): 5000
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 1100
- Max Torque (in-lb): 13196
- Max Torque (nm): 1491
- Min Hose Size (in): 1/2
- Motor: Non-Biased
- Number of Power Settings: Continuous
- Power Source: Air Powered
- Product Length (in): 12.5
- Product Weight (lb): 13.19
- Recommended Forward Torque Range (ft-lb): 250-800
- Recommended Forward Torque Range (in-lb): 3000-9603
- Recommended Forward Torque Range (nm): 339-1085
- Recommended Reverse Torque (ft-lb): 250-800
- Recommended Reverse Torque (nm): 339-1085
- Retainer Type: Thru-hole
- Side to Center Distance (in): 1.91
- Side to Center Distance (mm): 49
- Speed Setting: Variable Speed
- Standards/Certifications: CE
- Tool Type: Full-size
- Vanes: 6
- Vibration Level (m/s2): 19.9
- Warranty: 1-year
- Accessories: RR10034S
- Lubrication: 105-LBK1
- Lubrication: 10G
- Lubrication: 10P
- Lubrication: 10Z4
- Parts: 2920B-A40
- Parts: 2920B-TK2
